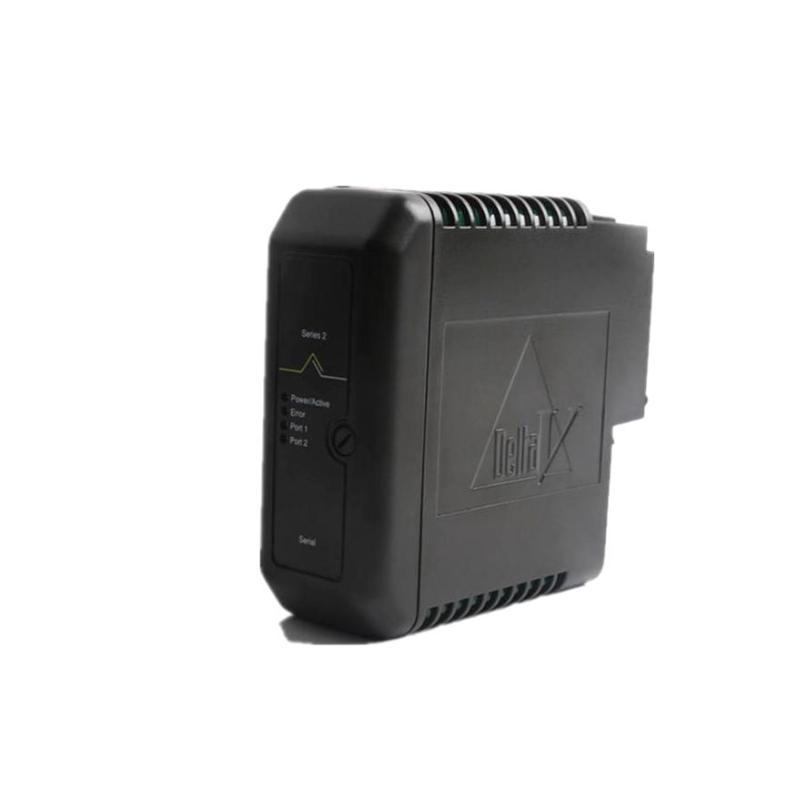

Emerson VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 Redundant Serial Interface Module
Emerson VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 Redundant Serial Interface Module
0.0
Points
Brand:Emerson Module Item No.:VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 Product Origin:USA Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Emerson VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 Redundant Serial Interface Module is a high-reliability communication solution developed for Emerson DeltaV M-Series distributed control systems. This assembly combines a redundant serial interface card with a dedicated redundant terminal block to provide stable communication between DeltaV controllers and external serial devices.
Engineered for demanding process automation environments, this module helps improve system availability by supporting redundant communication paths and flexible serial connectivity. It is widely used in industrial applications where reliable data transfer, integration flexibility, and long-term system performance are essential.
Technical Specifications
Specification
Details
Manufacturer
Emerson
Model
VE4036P2
Interface Card Model
KJ3241X1-BA1
Terminal Block Model
KJ3241X1-EA1
Module Type
Redundant Serial Interface Module
System Platform
Emerson DeltaV M-Series
Communication Ports
2 Serial Ports
Interface Type
RS232 / RS422 / RS485
Communication Mode
Half Duplex / Full Duplex
Data Capacity
32 Data Sets (16 per Port)
Power Requirement
12 VDC, 300 mA
Operating Temperature
-40°C to +70°C
Dimensions
Approx. 120 × 50 × 110 mm
Weight
Approx. 0.30 kg
Recommended Companion Models
Model
Product Name
VE4206P2
DeltaV M-Series Serial Interface Card
VE4236P2
DeltaV Redundant Serial Interface Card
KJ3222X1-BA1
DeltaV Analog Input Module
KJ3202X1-BA1
DeltaV Discrete Output Module
Frequently Selected Alternatives
Model
Product Name
VE4037P0
DeltaV Redundant FOUNDATION Fieldbus Interface Card
VE4003S2B1
DeltaV Discrete Input Module
VE4002S1T2B1
DeltaV Standard I/O Interface Module
KJ3241X1-BK1
DeltaV S-Series Serial Interface Card
Where It Excels in Industrial Use
• Designed for Emerson DeltaV M-Series distributed control systems requiring high-availability serial communication between control platforms and external intelligent devices.
• Well suited for process industries such as oil and gas, chemical processing, power generation, and manufacturing environments where uninterrupted data exchange is critical.
• Provides an effective solution for integrating serial field equipment, legacy devices, and third-party systems into modern DeltaV automation architectures.
Key Strengths at a Glance
• Combines the KJ3241X1-BA1 serial interface card with the KJ3241X1-EA1 redundant terminal block to provide a complete redundant communication assembly.
• Supports dual serial communication ports with flexible RS232 and RS422/485 interface options for industrial device connectivity.
• Enables reliable communication redundancy by allowing automatic switching between active and standby serial interface paths.
• Delivers stable operation in demanding industrial environments with strong diagnostics and DeltaV system compatibility.
Technical FAQs
1. What is the Emerson VE4036P2 KJ3241X1-BA1 + KJ3241X1-EA1 module used for?
The VE4036P2 assembly is a redundant serial interface solution for Emerson DeltaV M-Series systems, providing communication between the control system and external serial devices.
2. What components are included in this VE4036P2 configuration?
This configuration includes the KJ3241X1-BA1 Serial Interface Card and the KJ3241X1-EA1 redundant interface terminal block for redundant serial communication applications.
3. Which communication protocols can be supported by this module?
The module supports serial communication standards including RS232 and RS422/485 configurations for compatible industrial devices.
4. How many serial ports are available on this interface module?
The VE4036P2 provides two independent serial communication ports for connecting external serial equipment.
5. Can this module support redundant communication architectures?
Yes, the module is designed for redundant DeltaV configurations where communication availability and failover capability are required.
6. What type of devices can be connected through this serial interface?
The module can connect compatible serial devices such as analyzers, meters, controllers, and third-party automation equipment.
7. How is the VE4036P2 configured within a DeltaV system?
The module is configured through Emerson DeltaV engineering tools, where communication parameters, device settings, and system assignments can be managed.
8. What is the function of the KJ3241X1-EA1 terminal block?
The KJ3241X1-EA1 provides the redundant terminal connection required for the VE4036P2 serial interface assembly and supports proper field wiring integration.
9. What operating conditions can the KJ3241X1-BA1 serial card support?
The KJ3241X1-BA1 is designed for industrial environments with a wide operating temperature range and protection features suitable for process automation applications.
10. What maintenance advantages does this module provide?
The module simplifies troubleshooting and replacement by using standardized DeltaV hardware architecture and integrated system diagnostics.
