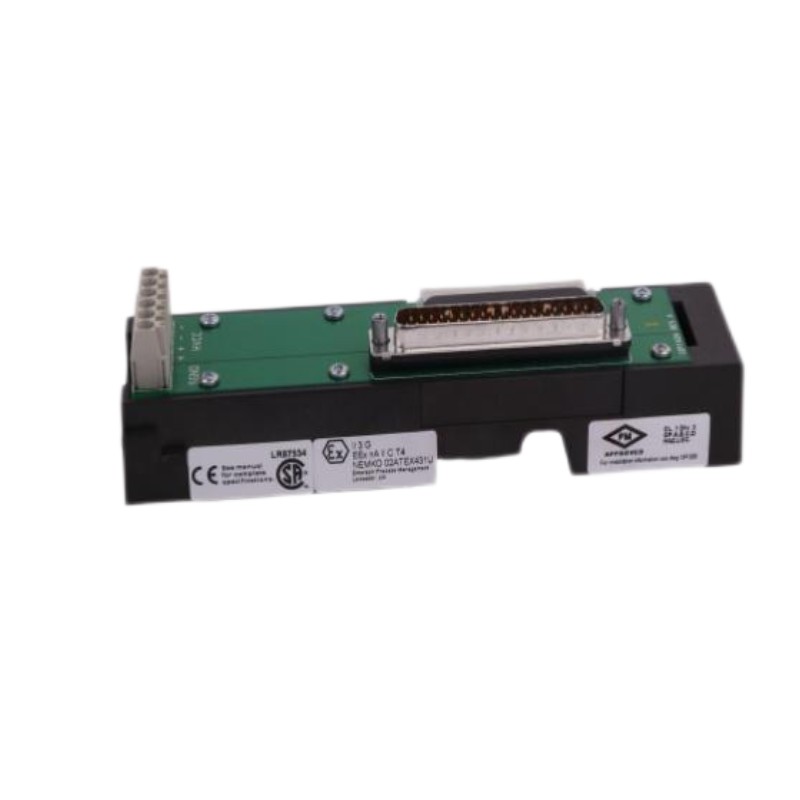

Emerson KJ4010X1-BG1 Right LocalBus Extender Cable Assembly
Emerson KJ4010X1-BG1 Right LocalBus Extender Cable Assembly
0.0
Points
Brand:Emerson Module Item No.: KJ4010X1-BG1 Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Emerson KJ4010X1-BG1 Right LocalBus Extender Cable Assembly is a dedicated hardware component designed for DeltaV automation systems that require extended LocalBus connectivity. It enables flexible placement of I/O carriers while maintaining stable communication and power distribution across the control architecture.
Built for industrial control environments, this extender assembly supports scalable DeltaV system designs where cabinet organization, installation flexibility, and long-term reliability are important considerations. Its robust construction makes it suitable for continuous operation in demanding process automation applications.
Technical Specifications
Specification
Details
Manufacturer
Emerson
Model
KJ4010X1-BG1
Part Number
12P0830X042
Module Type
Right LocalBus Extender Cable Assembly
System Platform
Emerson DeltaV M-Series
Function
LocalBus Communication and Power Extension
Connection Type
LocalBus Extender Cable
LocalBus Power
12.6 VDC at 8 A
Operating Temperature
-40°C to +70°C
Relative Humidity
5% to 95% Non-Condensing
Protection Rating
IP20
Dimensions
Approx. 100 × 60 × 25 mm
Weight
Approx. 0.10 kg
Recommended Companion Models
Model
Product Name
KJ4002X1-BF3
DeltaV M-Series Horizontal Carrier Extender Cable
KJ4002X1-BF2
DeltaV M-Series 1.2 m Carrier Extension Cable
KJ4010X1-BL1
DeltaV SIS Black Coax Extender Cable
KJ4010X1-BM1
DeltaV SIS White Coax Extender Cable
Frequently Selected Alternatives
Model
Product Name
KJ4010X1-BG2
DeltaV Left LocalBus Extender Cable Assembly
KJ4002X1-BF4
DeltaV M-Series 1.5 m Extender Cable
KJ4010X1-BL3
DeltaV SIS 1.5 m Black Coax Extender Cable
KJ4010X1-BM3
DeltaV SIS 1.5 m White Coax Extender Cable
Where It Excels in Industrial Use
• Designed for Emerson DeltaV M-Series I/O architectures requiring reliable LocalBus extension between I/O carriers and distributed hardware assemblies.
• Suitable for large-scale process automation installations where flexible cabinet layouts and extended I/O deployment distances are required.
• Ideal for industrial control environments including chemical processing, oil and gas, power generation, and manufacturing plants using DeltaV distributed control systems.
Key Strengths at a Glance
• Extends DeltaV LocalBus communication and power distribution to support expanded I/O system configurations.
• Provides reliable connection between compatible DeltaV carrier assemblies for flexible cabinet and system design.
• Supports industrial environments with a wide operating temperature range and robust mechanical performance.
• Helps simplify system expansion projects by enabling efficient placement of I/O hardware within automation cabinets.
Technical FAQs
1. What is the Emerson KJ4010X1-BG1 used for?
The KJ4010X1-BG1 is a Right LocalBus Extender Cable Assembly designed to extend LocalBus communication and power connections within Emerson DeltaV systems.
2. Which Emerson systems are compatible with the KJ4010X1-BG1?
The KJ4010X1-BG1 is designed for use with Emerson DeltaV M-Series I/O subsystem architectures and compatible carrier assemblies.
3. What is the main function of a LocalBus extender assembly?
The LocalBus extender assembly allows DeltaV I/O hardware to be positioned over extended distances while maintaining communication and power connections between system components.
4. Can the KJ4010X1-BG1 be used for cabinet expansion?
Yes, the extender assembly is commonly used in cabinet layouts where additional distance between DeltaV I/O carriers and related hardware is required.
5. What type of connection does this extender assembly provide?
The module provides LocalBus extension through a dedicated cable assembly designed for DeltaV carrier interconnection.
6. What are the power requirements of the KJ4010X1-BG1?
The KJ4010X1-BG1 supports LocalBus power distribution at 12.6 VDC with a maximum current rating of 8 A.
7. Can this component be installed in hazardous area applications?
The KJ4010X1-BG1 includes industrial approvals and installation requirements for applicable hazardous location environments when used according to Emerson guidelines.
8. How is the KJ4010X1-BG1 integrated into a DeltaV system?
The extender assembly is installed between compatible DeltaV carrier components to maintain LocalBus communication continuity throughout the I/O subsystem.
9. Does the KJ4010X1-BG1 require configuration through DeltaV software?
No software configuration is typically required because the component functions as a hardware-level LocalBus extension assembly.
10. What maintenance considerations apply to this extender assembly?
Maintenance mainly involves checking physical connections, cable integrity, and ensuring installation procedures are followed during system servicing.
