Brand:Schneider PLC Item No.:VW3M5101R150 Product Origin:France Product Dimensions:Cable Length: 15 meters Product Weight:3.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

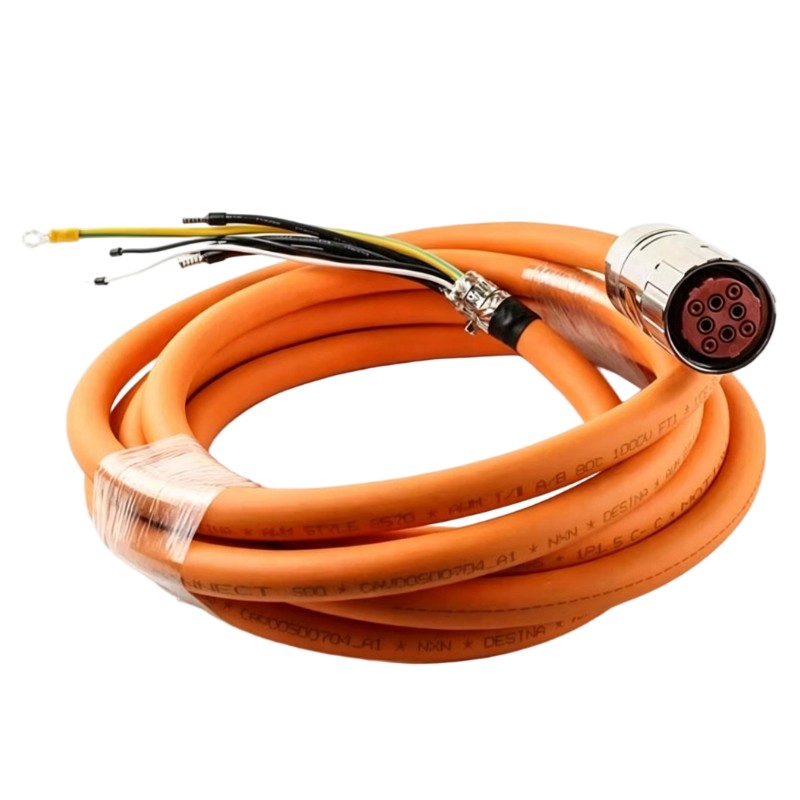

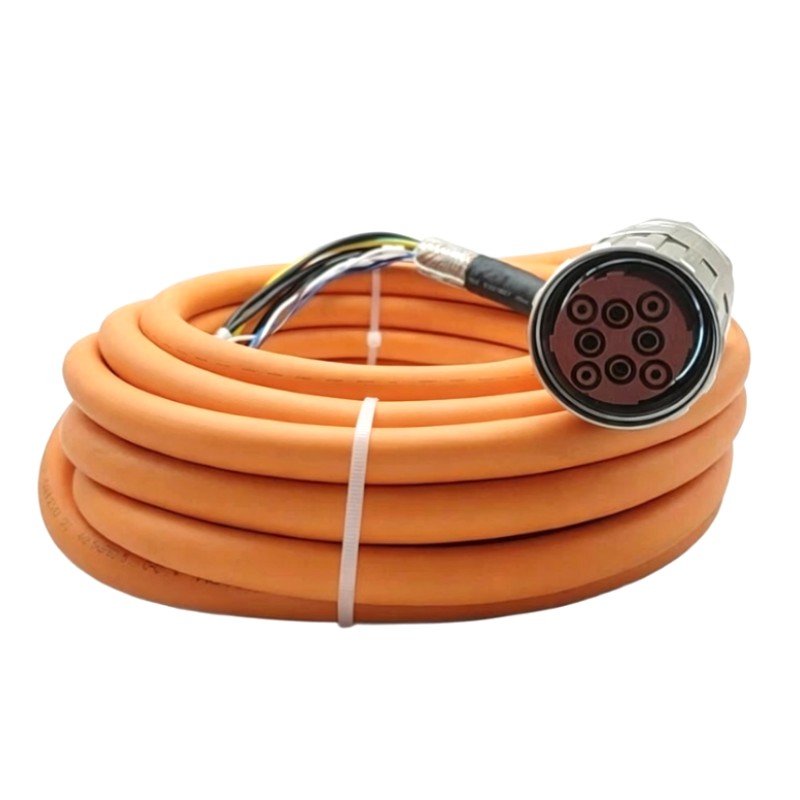

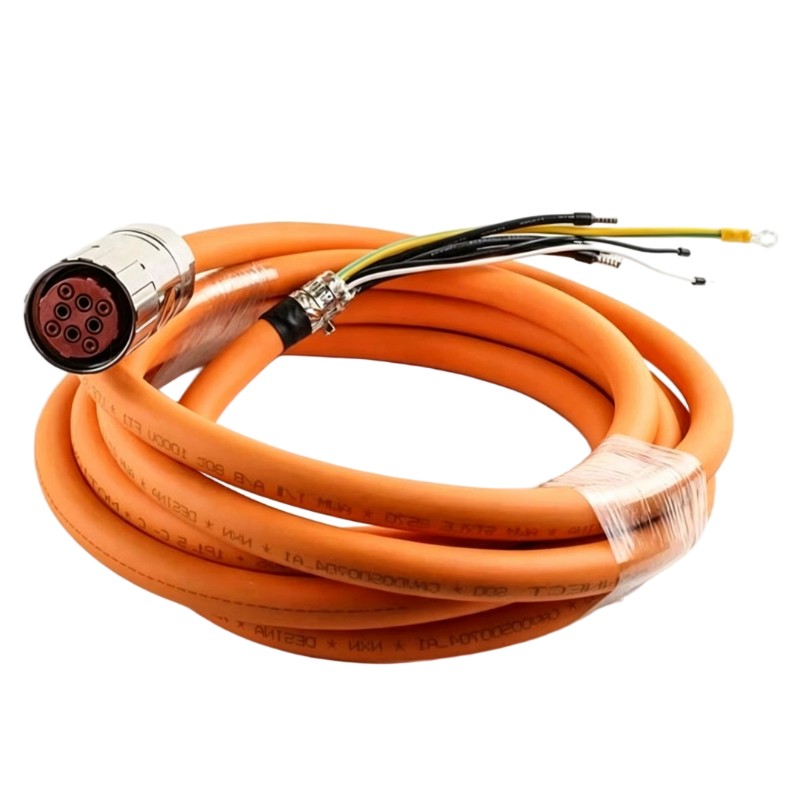

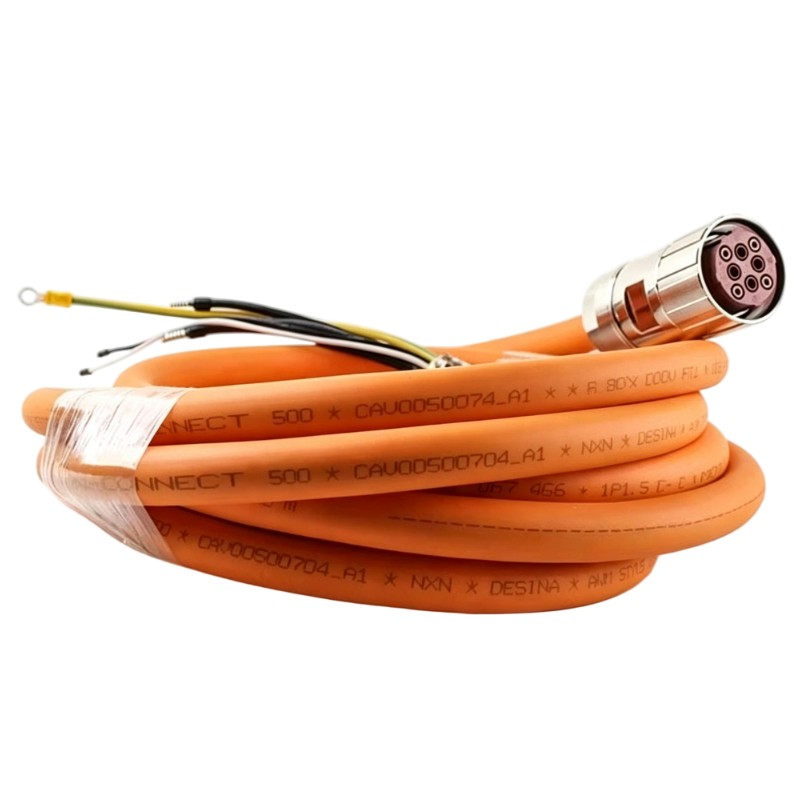

The Schneider VW3M5101R150 Power Cord Cable is an essential accessory for Schneider servo motion systems, providing a reliable electrical connection between servo drives and motors. In advanced manufacturing environments, motion control performance depends heavily on the stability of every component within the servo system.
Servo motors are widely used in applications requiring high precision, fast response, and continuous operation. A reliable power cable ensures that electrical energy is transferred efficiently from the servo drive to the motor, helping maintain smooth movement and accurate machine operation.
The 15-meter length of the VW3M5101R150 provides additional flexibility for equipment designers. It allows control cabinets and mechanical motion components to be arranged according to machine structure requirements while maintaining dependable system connectivity.
For automation professionals, OEM equipment manufacturers, and maintenance engineers, the Schneider VW3M5101R150 provides a practical and reliable solution for servo system installation, equipment upgrades, and long-term industrial operation.
Technical Specifications
Specification
Details
Product Type
Power Cord Cable
Manufacturer
Schneider Electric
Model Number
VW3M5101R150
Application
Servo Motor Power Connection
Cable Function
Servo Drive to Servo Motor Connection
Cable Length
15 meters
Cable Structure
Servo Power Cable
Compatible System
Schneider Servo Motion Systems
Installation Type
Industrial Servo Wiring
Application Environment
Industrial Automation
Dimensions
Not specified
Weight
3.40 kg (7.50 lb)
Recommended Related Models
Model
Product Type
Schneider VW3M5101R30
Servo Power Cable
Schneider VW3M5101R50
Servo Power Cable
Schneider VW3M5101R100
Servo Power Cable
Schneider VW3M5102R100
Servo Power Cable
Schneider VW3M5103R100
Servo Power Cable
Popular Related Models
Model
Product Type
Schneider LXM32MD18N4
Lexium 32M Servo Drive
Schneider LXM32MD30N4
Lexium 32M Servo Drive
Schneider BMH0701P16A2A
Servo Motor
Schneider BSH0552T12A2A
Servo Motor
Schneider LXM05AD10M2
Lexium Servo Drive
Industrial Applications and Usage Areas
The Schneider VW3M5101R150 Power Cord Cable is a professional servo motor power cable designed for connecting Schneider servo drives and compatible servo motors in industrial motion control systems. With a 15-meter cable length, it provides extended installation flexibility for automation equipment where the distance between the control cabinet and the motor requires additional cable reach.
In modern industrial automation, servo systems require stable and reliable power connections to achieve precise positioning, smooth operation, and high-speed motion performance. The VW3M5101R150 provides a dependable connection solution that helps reduce wiring complexity and improve the efficiency of machine installation and commissioning.
Designed for machine manufacturers, automation engineers, and system integrators, the Schneider VW3M5101R150 supports reliable motion system integration in demanding industrial environments.
Typical application areas include:
CNC machining equipment
Robotic automation systems
Packaging machinery
Precision assembly machines
Semiconductor manufacturing equipment
Material handling systems
Automated production lines
Motion control platforms
Industrial equipment upgrades
The Schneider VW3M5101R150 helps maintain stable power transmission between servo drives and motors, supporting consistent motion performance and improving overall automation system reliability.
Flexible Servo Connection Performance Advantages
The Schneider VW3M5101R150 Power Cord Cable combines reliable electrical performance with flexible installation capability. It is designed for industrial motion applications where cable quality, connection stability, and long-term durability are essential.
Advantage
Description
15-Meter Cable Length
Provides greater installation flexibility for large machines and complex layouts.
Servo System Compatibility
Designed for Schneider servo motor and drive connection applications.
Stable Power Transmission
Ensures reliable energy delivery for servo motor operation.
Simplified Machine Wiring
Helps reduce installation time and improve commissioning efficiency.
Reliable Connection Structure
Supports secure connection between servo components.
Industrial Application Design
Suitable for continuous operation in automation environments.
Technical FAQs
Q1: What is the main function of the Schneider VW3M5101R150 cable? A: The VW3M5101R150 is a servo power cable used to connect compatible servo motors with Schneider servo drive systems.
Q2: Why are dedicated servo cables important in motion control systems? A: Dedicated servo cables provide stable power transmission, reduce electrical interference, and support accurate servo motor operation.
Q3: What types of equipment commonly use the VW3M5101R150? A: It is commonly used in industrial machines, robotic systems, CNC equipment, and automated production lines requiring servo motion control.
Q4: What should be checked if the servo motor cannot start after installation? A: Check cable connections, connector installation, drive status, motor compatibility, and power supply conditions.
Q5: What are common causes of servo cable faults? A: Common causes include cable damage, improper installation, excessive mechanical stress, loose connections, or incorrect cable routing.
Q6: Can the VW3M5101R150 improve servo motor accuracy? A: The cable does not directly control accuracy, but stable power transmission helps the servo system maintain reliable operation.
Q7: How can users extend the service life of the VW3M5101R150? A: Proper cable routing, avoiding sharp bends, protecting against mechanical damage, and maintaining secure connections can extend service life.
Q8: Does replacing the VW3M5101R150 require servo parameter adjustment? A: Normally, replacing the cable with the correct compatible model does not require parameter changes.
Q9: What problems may occur when using an unsuitable servo cable? A: Incorrect cables may cause unstable operation, overheating, power transmission issues, or servo drive alarms.
Q10: Why is the VW3M5101R150 suitable for industrial automation projects? A: It provides reliable servo power connection, flexible installation length, and stable performance for motion control applications.
