Brand:Allen Bradley PLC Item No.:1783-ETAP2F Product Origin:USA Product Dimensions:132 × 50 × 110 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

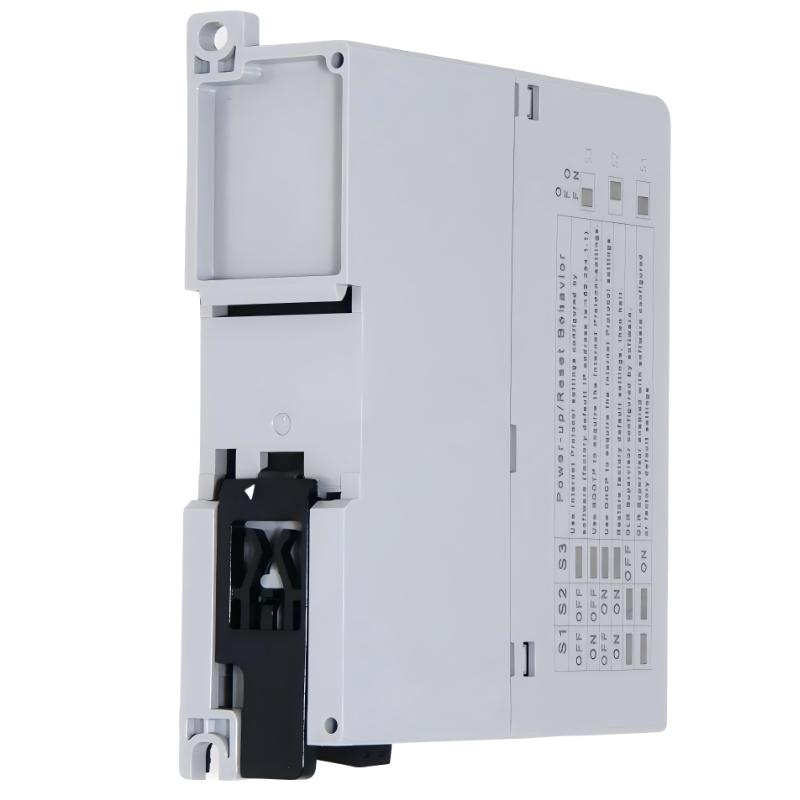

The Allen Bradley 1783-ETAP2F EtherNet/IP Tap Module is a specialized industrial networking component designed to enhance connectivity flexibility within Allen Bradley automation systems. Featuring one copper Ethernet port and two fiber ports, it provides a practical solution for integrating fiber communication into EtherNet/IP networks while maintaining reliable industrial data transmission.
Engineered for demanding automation environments, the 1783-ETAP2F helps improve network design flexibility, extend communication distances, and support efficient maintenance of industrial Ethernet infrastructures. Its compact design and compatibility with Allen Bradley architectures make it a valuable component for modernization projects and established automation installations.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley / Rockwell Automation
Model
1783-ETAP2F
Module Type
EtherNet/IP Tap Module
Product Family
Stratix Industrial Networking
Port Configuration
1 Copper Port + 2 Fiber Ports
Copper Interface
RJ45 Ethernet
Fiber Interface
100Base-FX Fiber
Network Protocol
EtherNet/IP
Power Supply
24V DC
Operating Voltage Range
20.4–27.6V DC
Maximum Current Consumption
260 mA
Maximum Power Consumption
6.24 W
Mounting Type
DIN Rail Mount
Operating Temperature
-25°C to +60°C
Height
Approx. 132 mm
Dimensions
Approx. 132 × 50 × 110 mm
Weight
Approx. 0.45 kg
Recommended Companion Models
Model
Product Name
1783-ETAP1F
Allen Bradley EtherNet/IP Tap Module with 1 Copper Port and 1 Fiber Port
1783-ETAP
Allen Bradley EtherNet/IP Tap Module with 3 Copper Ports
1783-ETAP1T2SFP
Allen Bradley EtherNet/IP Tap Module with SFP Fiber Ports
1783-BMS10CGN
Allen Bradley Stratix 5700 Managed Ethernet Switch
Frequently Selected Alternatives
Model
Product Name
1783-ETAP2F
Allen Bradley 1+2 Port EtherNet/IP Tap Module
1783-ETAP3T
Allen Bradley EtherNet/IP Tap Module
1783-BMS06TGA
Allen Bradley Stratix 5700 Managed Ethernet Switch
1783-CMS10DN
Allen Bradley Stratix 5200 Managed Ethernet Switch
Where It Excels in Industrial Use
• Designed for Allen Bradley industrial Ethernet architectures requiring reliable EtherNet/IP network segmentation, fiber communication, and flexible device connectivity.
• Suitable for manufacturing automation, process control, motion systems, and machine networks where stable Ethernet communication and network isolation are critical.
• Ideal for Device Level Ring (DLR) and linear network applications, allowing industrial devices to connect through copper and fiber-based EtherNet/IP infrastructures.
Key Strengths at a Glance
• Provides a 1 copper port plus 2 fiber port EtherNet/IP tap configuration for flexible industrial network expansion.
• Supports 100Base-FX fiber communication, helping extend network distances and improve communication reliability in industrial environments.
• Enables integration of EtherNet/IP devices into existing control networks without requiring complex switching infrastructure.
• Designed for DIN rail installation with industrial-grade construction suitable for automation cabinets and control panels.
Technical FAQs
1. What type of device is the Allen Bradley 1783-ETAP2F?
The Allen Bradley 1783-ETAP2F is a 1+2 Port EtherNet/IP Tap module designed for industrial Ethernet communication networks.
2. What is the main function of the 1783-ETAP2F?
The module provides a physical connection point between EtherNet/IP network segments, allowing copper and fiber communication paths to be integrated within automation systems.
3. How many ports does the 1783-ETAP2F provide?
The module provides one copper Ethernet port and two fiber optic ports for network connectivity.
4. What type of fiber communication does the 1783-ETAP2F support?
The module supports 100Base-FX fiber communication using industrial Ethernet standards.
5. Does the 1783-ETAP2F support EtherNet/IP networks?
Yes, the module is designed specifically for EtherNet/IP industrial communication applications.
6. What power supply is required for the 1783-ETAP2F?
The module requires a 24V DC power supply with an operating range of approximately 20.4 to 27.6V DC.
7. Can the 1783-ETAP2F be used in DLR networks?
Yes, the module supports industrial Ethernet topologies including Device Level Ring applications when configured within a compatible architecture.
8. Does the 1783-ETAP2F require software configuration?
The module may require network configuration depending on the application, but it does not function as a programmable controller requiring application logic.
9. What industrial systems commonly use the 1783-ETAP2F?
It is commonly used with Allen Bradley ControlLogix, CompactLogix, Stratix networking equipment, drives, I/O modules, and EtherNet/IP field devices.
10. What are the maintenance advantages of the 1783-ETAP2F?
The module simplifies troubleshooting and network expansion by providing clear physical separation between copper and fiber Ethernet connections.
