Allen Bradley 1783-BMS06SGL Managed Ethernet Switch Module
Allen Bradley 1783-BMS06SGL Managed Ethernet Switch Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1783-BMS06SGL Product Origin:USA Product Dimensions:145 × 135 × 50 mm Product Weight:0.65 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

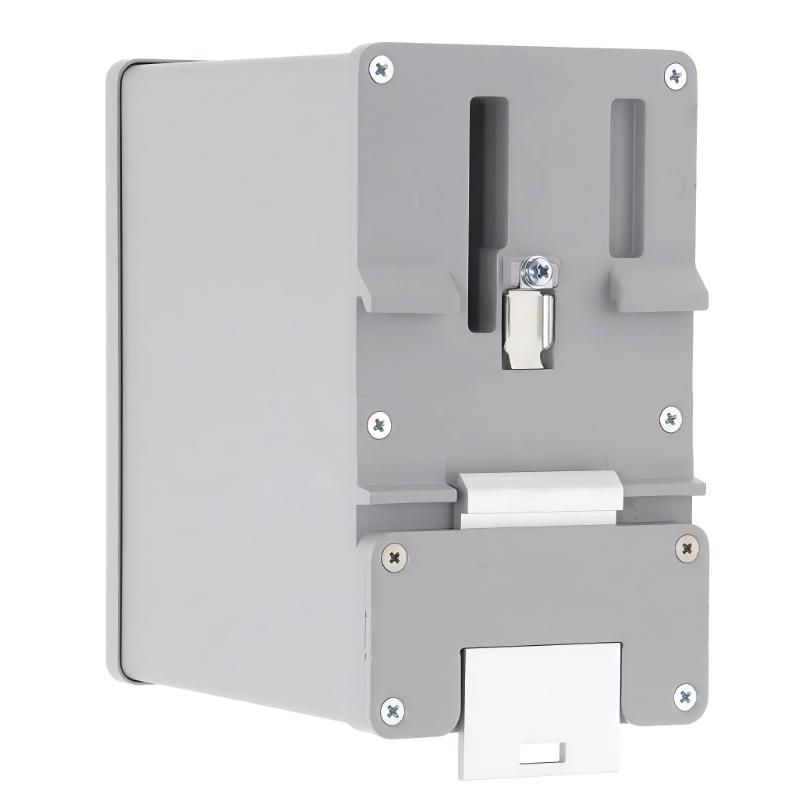

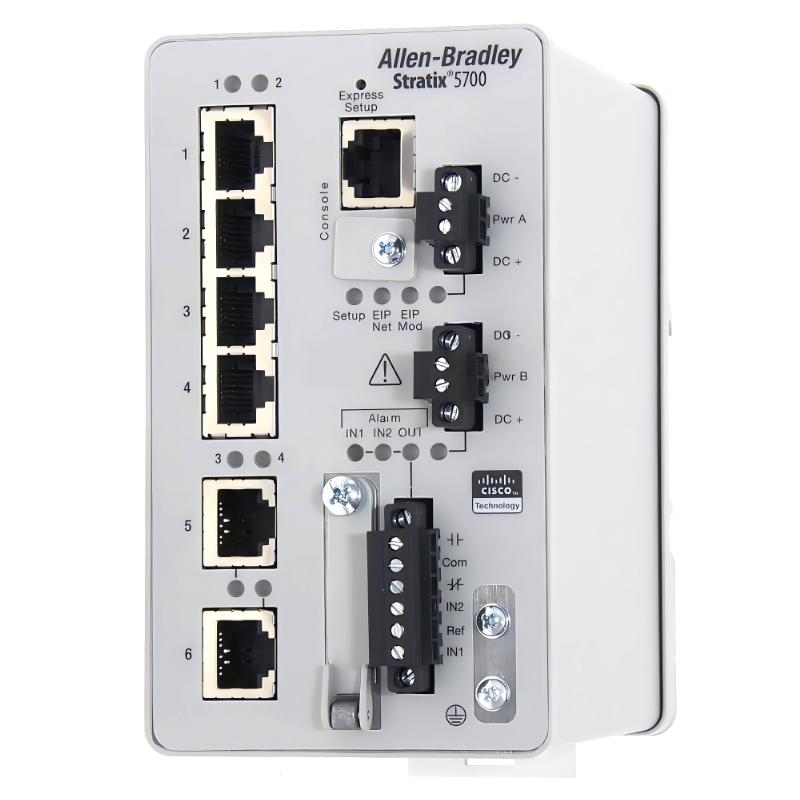

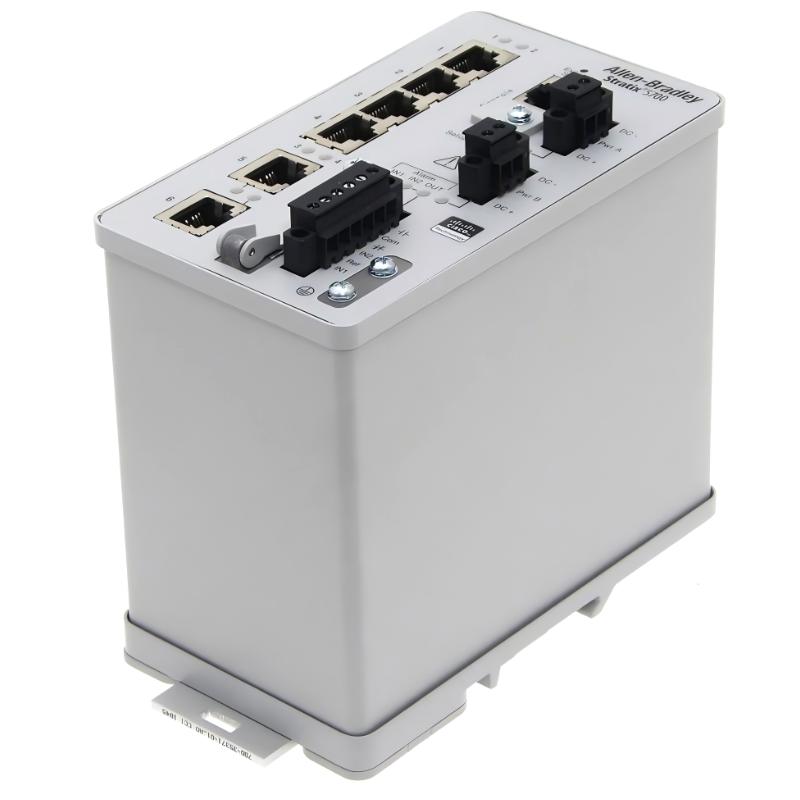

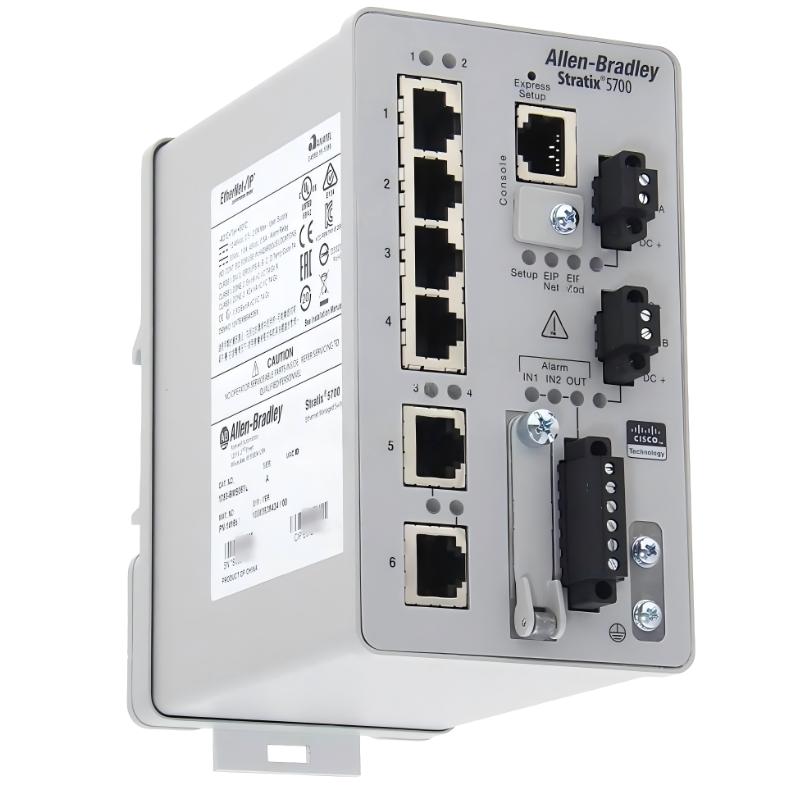

The Allen Bradley 1783-BMS06SGL Managed Ethernet Switch Module is part of the Stratix 5700 family, providing a compact and reliable networking solution for industrial automation environments. Featuring four Fast Ethernet copper ports and two Gigabit Ethernet SFP fiber ports, it enables flexible communication designs for control systems, machine networks, and distributed automation applications.
With its industrial-grade construction, DIN rail mounting design, and managed network capabilities, the 1783-BMS06SGL helps engineers improve connectivity organization while maintaining dependable Ethernet performance. It is a practical choice for applications requiring compact network infrastructure and efficient system integration.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley / Rockwell Automation
Model
1783-BMS06SGL
Product Family
Stratix 5700
Module Type
Managed Ethernet Switch Module
Total Ports
6 Ports
Copper Ethernet Ports
4 × 10/100 Mbps RJ45
Fiber Ports
2 × 10/100/1000 Mbps SFP
Firmware Type
Lite
Network Type
Industrial Ethernet
Management Capability
Managed Switch
Mounting Method
DIN Rail Mount
Input Voltage
12–48V DC
Maximum Power Consumption
15 W
Power Consumption at 24V DC
Approx. 9.5 W
Protection Rating
IP30
Operating Temperature
-40°C to +60°C
Dimensions
Approx. 145 × 135 × 50 mm
Weight
Approx. 0.65 kg
Recommended Companion Models
Model
Product Name
1783-BMS06SGL
Allen Bradley Stratix 5700 6-Port Managed Ethernet Switch
1783-BMS10CGN
Allen Bradley Stratix 5700 10-Port Managed Ethernet Switch
1783-BMS20CGN
Allen Bradley Stratix 5700 20-Port Managed Ethernet Switch
1783-BMS06SA
Allen Bradley Stratix 5700 6-Port Managed Ethernet Switch
Frequently Selected Alternatives
Model
Product Name
1783-CMS6B
Allen Bradley Stratix 5200 6-Port Managed Ethernet Switch
1783-CMS6P
Allen Bradley Stratix 5200 6-Port Managed Ethernet Switch with PoE Capability
1783-BMS06SGA
Allen Bradley Stratix 5700 6-Port Managed Ethernet Switch
1783-ETAP2F
Allen Bradley EtherNet/IP Tap Module with Fiber Connectivity
Where It Excels in Industrial Use
• Designed for Allen Bradley Stratix 5700 industrial Ethernet networks requiring compact managed switching, reliable communication, and efficient network monitoring capabilities.
• Suitable for factory automation, machine-level networks, process control systems, and industrial applications where stable EtherNet/IP connectivity is essential.
• Ideal for control cabinets and distributed automation installations that require fiber uplink capability together with copper Ethernet device connections.
Key Strengths at a Glance
• Provides a 6-port managed Ethernet switch configuration with 4 Fast Ethernet copper ports and 2 Gigabit Ethernet SFP fiber ports for flexible network architecture.
• Features Stratix 5700 Lite firmware designed for streamlined industrial network management and basic configuration requirements.
• Supports DIN rail mounting and industrial DC power input, making it suitable for compact automation panels and machine installations.
• Provides dependable Ethernet connectivity for Allen Bradley Integrated Architecture systems and industrial communication applications.
Technical FAQs
1. What type of device is the Allen Bradley 1783-BMS06SGL?
The Allen Bradley 1783-BMS06SGL is a Stratix 5700 6-port managed industrial Ethernet switch designed for automation network applications.
2. How many Ethernet ports does the 1783-BMS06SGL provide?
The switch provides six Ethernet ports, including four 10/100 Mbps RJ45 copper ports and two 10/100/1000 Mbps SFP fiber ports.
3. What is the firmware type of the 1783-BMS06SGL?
The 1783-BMS06SGL uses Lite firmware designed for basic managed switch configuration and industrial network operation.
4. Does the 1783-BMS06SGL support EtherNet/IP communication?
Yes, the switch is designed for industrial Ethernet environments commonly used with Allen Bradley controllers, I/O systems, and automation devices.
5. What type of fiber connection does the 1783-BMS06SGL support?
The switch provides two Gigabit Ethernet SFP slots for fiber-based uplink communication.
6. What power supply is required for the 1783-BMS06SGL?
The module requires a 12–48V DC industrial power supply through terminal block connections.
7. Can the 1783-BMS06SGL be installed in existing Stratix networks?
Yes, it can be integrated into compatible Stratix 5700 industrial Ethernet architectures.
8. Does the 1783-BMS06SGL support advanced Stratix features such as DLR and CIP Sync?
No, the Lite firmware version does not include some advanced Stratix networking functions such as DLR and CIP Sync.
9. What mounting method is used for this Ethernet switch?
The 1783-BMS06SGL is designed for DIN rail mounting in industrial control cabinets.
10. What applications commonly use the 1783-BMS06SGL?
The switch is commonly used in machine automation, production lines, remote I/O networks, and industrial Ethernet communication systems.
