Brand:Schneider PLC Item No.:TM5ACTB12PS Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

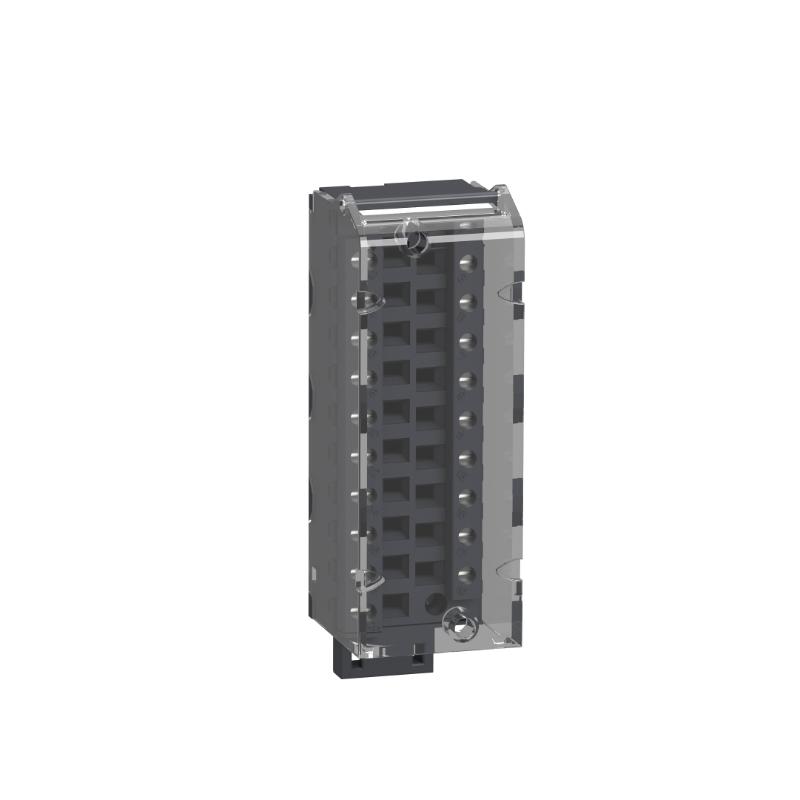

The Schneider TM5ACTB12PS Terminal Block Module is a specialized connection accessory developed for the Modicon TM5 modular I/O platform. Designed with 12 contacts and a gray identification color, it provides a reliable interface for power distribution and receiver modules within TM5 automation systems.
Built for industrial machine builders and automation engineers, the TM5ACTB12PS helps optimize cabinet layouts, improve service efficiency, and maintain stable electrical connections in distributed control environments. Its modular structure makes it a practical choice for scalable automation projects requiring flexible power distribution.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
TM5ACTB12PS
Product Family
Modicon TM5
Module Type
Terminal Block Module
Accessory Type
Connection Accessory
Compatible Modules
Power Distribution Module / Interface Power Distribution Module / Receiver Module
Number of Terminals
12 Contacts
Terminal Technology
Spring-Clamp Push-In Terminal
Color
Gray
Compatible Controllers
Modicon M258 / LMC058 / LMC078
System Type
TM5 Modular I/O System
Installation Method
Plug-In Terminal Connection
Application
24 V DC Power Distribution Wiring
Quantity per Package
1 Unit
Dimensions
Approx. 12.5 × 16 × 1.5 cm (package reference)
Weight
Approx. 0.02 kg
Recommended Companion Models
Model
Product Name
TM5ACBN1
Schneider Modicon TM5 Bus Base Module
TM5SPS3
Schneider Modicon TM5 Interface Power Supply Module
Schneider Modicon TM5 Terminal Block Module for AC and Relay I/O
Where It Excels in Industrial Use
• Designed for Schneider Electric Modicon TM5 modular I/O systems, providing a dedicated 12-contact terminal connection solution for power distribution modules, interface power distribution modules, and receiver modules.
• Suitable for distributed automation architectures, machine control cabinets, and remote I/O installations where reliable 24 V DC power connection and organized wiring management are required.
• Ideal for Modicon M258, LMC058, and LMC078 controller platforms, supporting scalable TM5 system expansion and efficient field connection integration.
Key Strengths at a Glance
• Provides a 12-contact gray terminal interface specifically designed for TM5 power distribution modules, interface power distribution modules, and receiver modules.
• Features a removable terminal block design, allowing simplified installation, replacement, and maintenance without disturbing the complete automation assembly.
• Uses spring-clamp push-in connection technology, enabling fast wiring, secure connections, and improved cabinet installation efficiency.
• Supports modular TM5 architectures, helping engineers build flexible and expandable distributed I/O solutions for complex industrial applications.
Technical FAQs
1. What type of component is the Schneider TM5ACTB12PS?
The Schneider TM5ACTB12PS is a Modicon TM5 terminal block accessory designed for power distribution and receiver modules.
2. What is the main function of the TM5ACTB12PS?
The TM5ACTB12PS provides the electrical connection interface between TM5 power-related modules and external field wiring.
3. How many terminals does the TM5ACTB12PS provide?
The TM5ACTB12PS provides twelve connection terminals for compatible TM5 modules.
4. Which modules are compatible with the TM5ACTB12PS?
The terminal block is designed for 24 V DC Power Distribution Modules, Interface Power Distribution Modules, and Receiver Modules.
5. Which controller platforms support the TM5ACTB12PS?
The TM5ACTB12PS is compatible with Modicon M258, LMC058, and LMC078 automation platforms.
6. Does the TM5ACTB12PS require software configuration?
No. The TM5ACTB12PS is a passive connection accessory and does not require programming or parameter configuration.
7. What wiring technology is used by the TM5ACTB12PS?
The terminal block uses spring-clamp push-in technology for secure and efficient field wiring connections.
8. Can the TM5ACTB12PS be replaced separately from the electronic module?
Yes. The removable terminal design allows independent replacement while keeping the installed TM5 electronic modules unchanged.
9. What applications commonly use the TM5ACTB12PS?
It is commonly used in distributed PLC systems, industrial machinery, automation panels, and remote I/O stations requiring reliable power distribution connections.
10. What advantage does the TM5ACTB12PS provide in automation systems?
It improves wiring organization, simplifies maintenance operations, and enhances flexibility when expanding TM5 modular control systems.
