Brand:Schneider PLC Item No.: TM5ACTB32 Product Origin:France Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

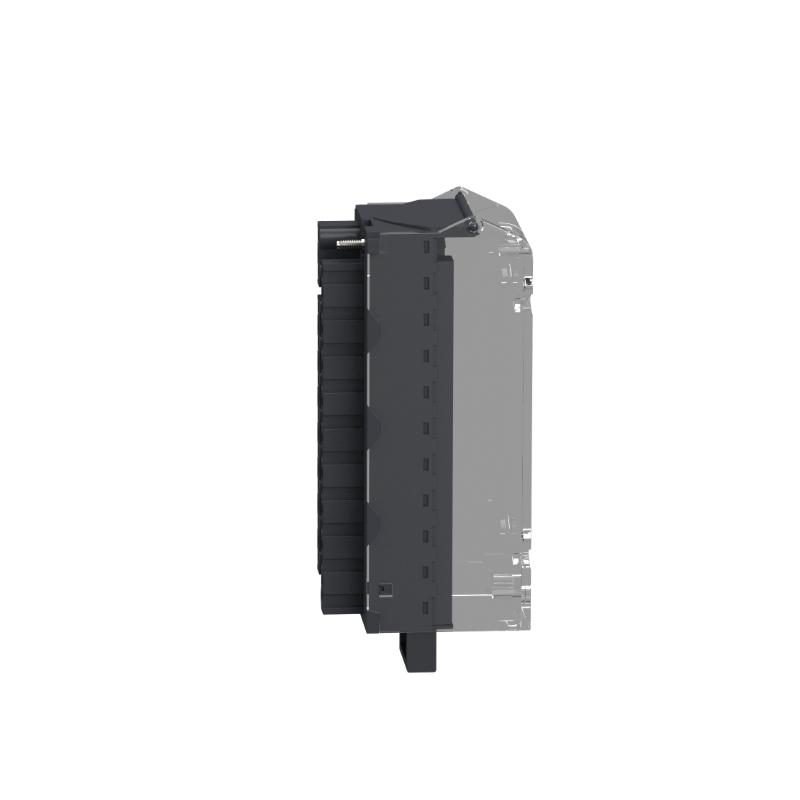

The Schneider TM5ACTB32 Terminal Block Module is a specialized connection accessory developed for the Modicon TM5 modular I/O platform. Designed for AC input and relay output applications, it provides a stable and efficient wiring interface between field devices and TM5 electronic modules.
With its compact modular structure, spring-clamp connection technology, and dedicated black identification design, the TM5ACTB32 helps automation engineers build cleaner control cabinets and improve system service efficiency. It is a practical solution for machine builders requiring dependable AC signal integration within Schneider Electric automation environments.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
TM5ACTB32
Product Family
Modicon TM5
Module Type
Terminal Block Module
Accessory Type
Connection Accessory
Application Type
AC I/O and Relay Modules
Number of Contacts
12 Contacts
Terminal Technology
Spring-Clamp Push-In Terminal
Color
Black
Compatible System
Modicon TM5 Modular I/O System
Maximum Voltage
300 V
Maximum Current
10 A per Connector
Contact Resistance
≤ 5 mΩ
Wire Connection Range
0.08...2.5 mm²
Installation Method
Plug-In Terminal Connection
Mounting System
TM5 Modular Assembly
Dimensions
Approx. 12.5 × 1.5 × 9 cm
Weight
Approx. 0.02 kg
Recommended Companion Models
Model
Product Name
TM5ACBM11
Schneider Modicon TM5 Bus Base Module
TM5SAI4L
Schneider Modicon TM5 Analog Input Module
TM5SDO12T
Schneider Modicon TM5 Digital Output Module
TM5SPS3
Schneider Modicon TM5 Interface Power Supply Module
• Designed for Schneider Electric Modicon TM5 modular I/O systems, providing a dedicated terminal connection interface for AC input modules and relay output modules used in industrial automation applications.
• Suitable for machine control panels, distributed I/O stations, and automation systems where reliable AC signal wiring and organized field connections are required.
• Ideal for Modicon TM5 architectures that require secure integration of AC I/O and relay-based modules within compact, scalable control solutions.
Key Strengths at a Glance
• Provides a 12-contact terminal block specifically designed for AC I/O modules and relay modules within the Modicon TM5 platform.
• Features spring-clamp push-in terminal technology, allowing fast wiring, secure connections, and improved maintenance efficiency.
• Supports clear terminal identification and test access, helping engineers simplify commissioning and troubleshooting procedures.
• Uses a black identification design that helps distinguish AC and relay module connections in complex TM5 control assemblies.
Technical FAQs
1. What type of component is the Schneider TM5ACTB32?
The Schneider TM5ACTB32 is a Modicon TM5 terminal block accessory designed for AC I/O and relay modules.
2. What is the main function of the TM5ACTB32?
The TM5ACTB32 provides the electrical connection interface between compatible TM5 electronic modules and external field wiring.
3. How many contacts does the TM5ACTB32 provide?
The TM5ACTB32 provides 12 terminal connection points for compatible AC and relay I/O modules.
4. Which Schneider Electric modules use the TM5ACTB32?
The TM5ACTB32 is designed for Modicon TM5 AC input modules and relay output modules.
5. Does the TM5ACTB32 require software configuration?
No. The TM5ACTB32 is a passive terminal accessory and does not require programming or parameter configuration.
6. What wiring technology does the TM5ACTB32 use?
The module uses spring-clamp push-in terminal technology for reliable and efficient field wiring.
7. What is the maximum electrical rating of the TM5ACTB32?
The terminal block supports up to 300 V maximum voltage and 10 A maximum current per connector, depending on the associated electronic module specifications.
8. Can the TM5ACTB32 be replaced separately from the electronic module?
Yes. The removable terminal structure allows independent replacement without changing the complete TM5 electronic module.
9. What applications commonly use the TM5ACTB32?
It is commonly used in industrial machinery, automated production systems, PLC expansion cabinets, and distributed I/O installations.
10. What advantage does the TM5ACTB32 provide in automation systems?
It improves wiring organization, enhances system maintainability, and supports flexible TM5 modular automation configurations.
