Brand:Schneider PLC Item No.:TM5ACTB52FS Product Origin:France Product Dimensions:202 × 21 × 261 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

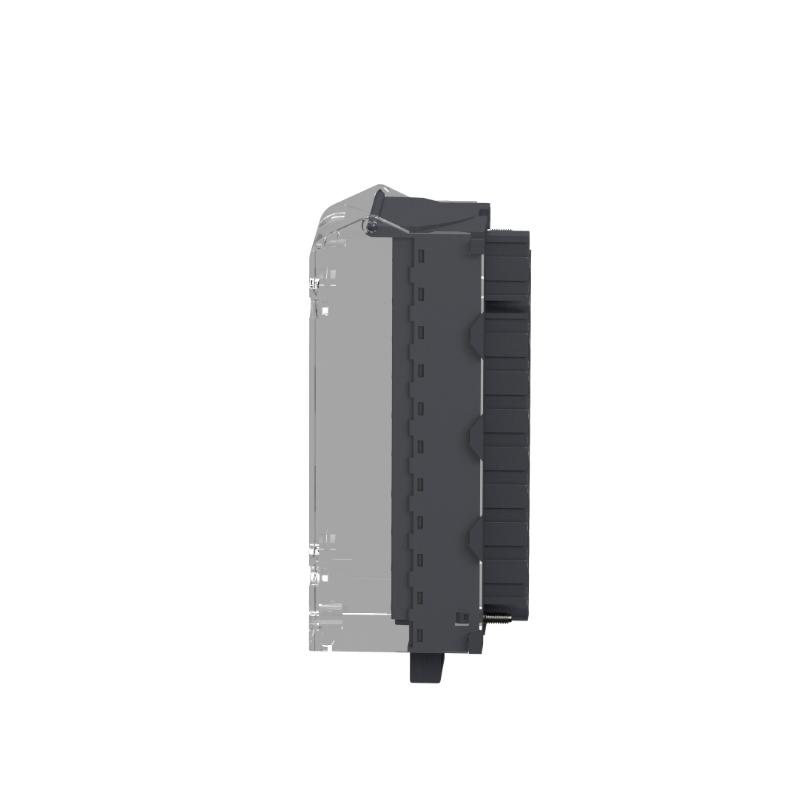

The Schneider TM5ACTB52FS Safety Terminal Block Module is a specialized connection component designed for Modicon TM5 safety-related automation solutions. With its 12-pin safety-coded structure, it provides a dependable interface between safety modules and field devices in industrial control environments.
Built for demanding machine safety applications, the TM5ACTB52FS combines secure spring-clamp wiring, clear identification, and maintenance-friendly design. It helps automation engineers develop cleaner safety cabinets while supporting efficient commissioning and long-term system reliability.
Schneider Modicon TM5 Power Distribution Terminal Block Module
Where It Excels in Industrial Use
• Designed for Schneider Electric Modicon TM5 safety-related automation systems, providing a dedicated safety-coded terminal connection interface for safety I/O modules and Safety Logic Controllers.
• Suitable for machine safety applications, emergency stop circuits, protective door monitoring systems, and safety control cabinets where dependable signal wiring and clear module identification are required.
• Ideal for industrial automation environments using Preventa safety solutions and Modicon TM5 architectures, helping engineers create reliable safety-related control systems with simplified wiring management.
Key Strengths at a Glance
• Provides a 12-pin safety-coded terminal interface specifically developed for safety-related modules and Safety Logic Controllers.
• Features red color coding to ensure correct module matching within TM5 safety assemblies, helping prevent incorrect component combinations during installation.
• Uses spring-clamp push-in terminal technology with tool-free wiring and simple wire release, improving installation efficiency and maintenance convenience.
• Supports terminal labeling and test access, enabling easier commissioning, diagnostics, and troubleshooting in safety control applications.
Technical FAQs
1. What type of component is the Schneider TM5ACTB52FS?
The Schneider TM5ACTB52FS is a safety-coded terminal block module designed for Modicon TM5 safety-related modules and Safety Logic Controllers.
2. What is the main function of the TM5ACTB52FS?
The TM5ACTB52FS provides the electrical connection interface between safety electronic modules and external field wiring.
3. How many connection points does the TM5ACTB52FS provide?
The TM5ACTB52FS provides 12 terminal connections for compatible safety modules.
4. Which Schneider Electric modules use the TM5ACTB52FS?
The TM5ACTB52FS is used with Modicon TM5 safety-related modules and Safety Logic Controller systems.
5. Is the TM5ACTB52FS a safety communication module?
No. The TM5ACTB52FS is a terminal connection accessory and does not perform communication processing or safety logic functions.
6. What wiring technology does the TM5ACTB52FS use?
The module uses spring-clamp push-in terminal technology for secure and efficient wiring connections.
7. What voltage rating does the TM5ACTB52FS support?
The TM5ACTB52FS supports applications up to 253 VAC, depending on the associated module electrical specifications.
8. Does the TM5ACTB52FS require software configuration?
No. The terminal block is a passive connection component and does not require programming or parameter configuration.
9. Why is color coding important for the TM5ACTB52FS?
The red safety coding helps ensure that compatible safety components are assembled correctly within the TM5 safety system.
10. What maintenance advantages does the TM5ACTB52FS provide?
It improves wiring organization, reduces installation errors, and simplifies inspection and replacement procedures in safety control systems.
