Product Introduction

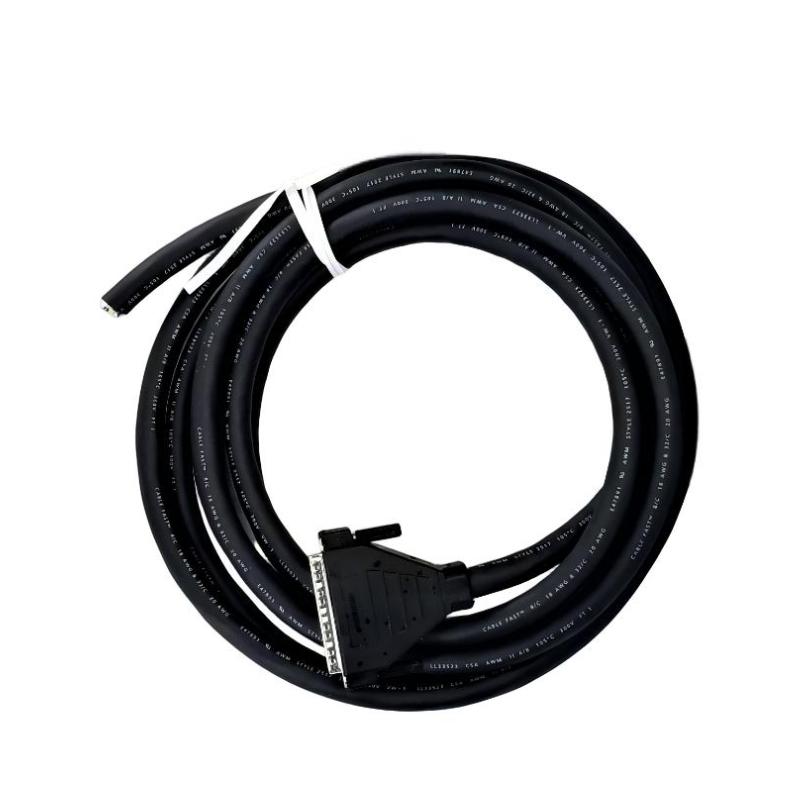

The Schneider VW3M5105R50 Power Cable Module is a premium servo motor connection accessory developed for high-power industrial automation systems. Designed to connect Schneider Electric BMH servo motors with Lexium 32 servo drives, it delivers reliable electrical performance while simplifying machine installation through its factory-assembled construction.

Its 5-meter cable length, heavy-duty conductor configuration, and industrial M40 connector make it an ideal solution for machine builders requiring dependable power transmission across medium-distance installations. Whether used in precision manufacturing, automated production lines, or advanced motion control equipment, the VW3M5105R50 helps maximize system reliability and reduce maintenance requirements.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Model	VW3M5105R50
Product Type	Power Cable Module
Accessory Category	Servo Motor Connection Accessory
Compatible Product Range	Lexium 32
Compatible Motor Series	BMH Servo Motors
Cable Length	5 m
Cable Construction	4 × 6 mm² + 2 × 1 mm²
Motor Side Connection	Industrial M40 Connector
Drive Side Connection	Free Cable End
Cable Type	Preassembled Servo Motor Power Cable
Application	Servo Motor Power Connection
Compliance	EN 60204-1
Dimensions	Cable length: 5000 mm
Product Weight	Approx. 3.4 kg

Recommended Related Models

Model	Product
Schneider VW3M5105R30	Servo Motor Power Cable, 3 m
Schneider VW3M5105R100	Servo Motor Power Cable, 10 m
Schneider VW3M5105R150	Servo Motor Power Cable, 15 m
Schneider VW3M5105R200	Servo Motor Power Cable, 20 m
Schneider Lexium 32 Servo Drive	Servo Drive

Popular Related Models

Model	Product Type
Schneider VW3M5105R250	Servo Motor Power Cable
Schneider VW3M5103R100	Servo Motor Power Cable
Schneider VW3M2208	Encoder Connector Module
Schneider BMH Servo Motor Series	Servo Motor
Schneider Lexium 32	Motion Control Platform

Industrial Applications for High-Power Servo Systems

The Schneider VW3M5105R50 Power Cable Module is a heavy-duty servo motor power cable designed to provide a secure electrical connection between Schneider Electric BMH servo motors and Lexium 32 servo drives. This preassembled cable features an industrial M40 connector on the motor side and a free cable end on the drive side, delivering reliable power transmission for demanding industrial motion control systems. It is engineered for applications that require higher current capacity and dependable long-term performance.

Ideal for robotic production cells, CNC machining centers, automated packaging equipment, conveyor systems, printing machinery, and material handling applications, the VW3M5105R50 supports stable servo motor operation while reducing installation time through its factory-assembled construction. It is an excellent choice for OEM machine builders and automation integrators seeking consistent electrical performance and simplified system integration.

Why Choose the VW3M5105R50?

High-Capacity Power Delivery

With a 4 × 6 mm² + 2 × 1 mm² conductor configuration, this cable is designed for larger servo motors that demand higher current capacity while maintaining reliable electrical performance during continuous industrial operation.

Factory-Assembled for Faster Commissioning

The cable is supplied ready for installation, reducing field wiring work, minimizing installation errors, and shortening machine commissioning time.

Industrial M40 Motor Connector

The motor side is equipped with a rugged M40 industrial connector, providing excellent mechanical stability and dependable electrical contact in harsh production environments. The opposite end features a free cable end for flexible drive-side termination.

Designed for Schneider Lexium Motion Platforms

Specifically engineered for Schneider Electric motion systems, the VW3M5105R50 ensures seamless compatibility with Lexium 32 servo drives and supported BMH servo motors, helping maintain high system reliability.

Technical FAQs

1. What is the primary function of the VW3M5105R50?

It is a preassembled power cable used to connect Schneider Electric BMH servo motors with compatible Lexium servo drives.

2. Which servo systems support this cable?

The cable is designed for Lexium 32 motion systems and compatible BMH servo motors.

3. What conductor configuration does the cable use?

It features 4 × 6 mm² power conductors plus 2 × 1 mm² auxiliary conductors, making it suitable for higher-power servo applications.

4. What connector is installed on the motor side?

The motor end is equipped with an industrial M40 connector for secure connection to compatible BMH servo motors.

5. Is this cable intended for communication networks?

No. It is designed exclusively for servo motor power transmission and is not suitable for Ethernet, CANopen, or other communication protocols.

6. Why is a preassembled power cable beneficial?

A factory-assembled cable improves installation quality, reduces wiring errors, and ensures consistent electrical performance across machine installations.
