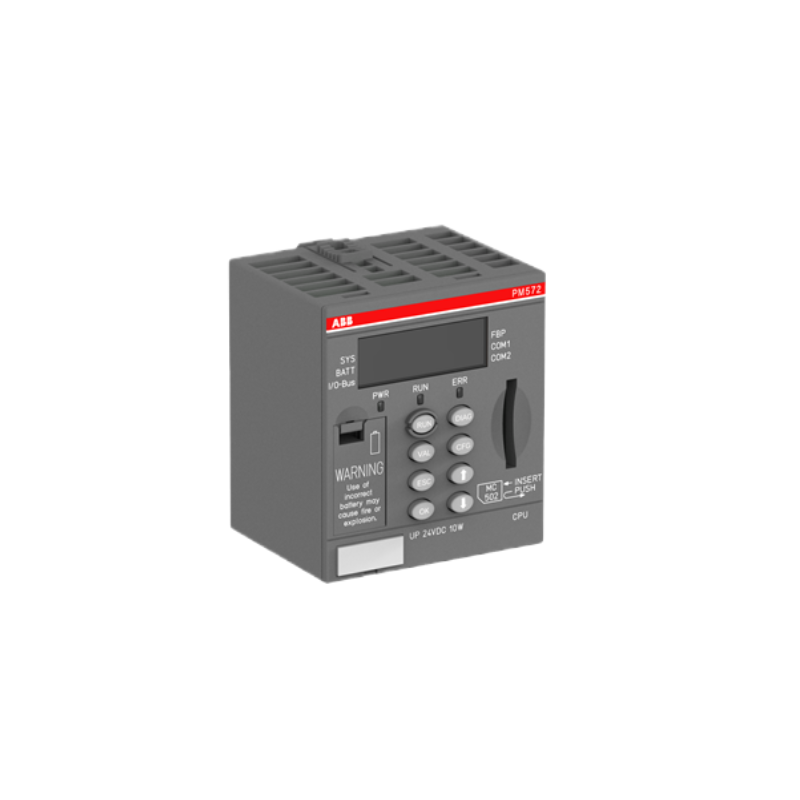

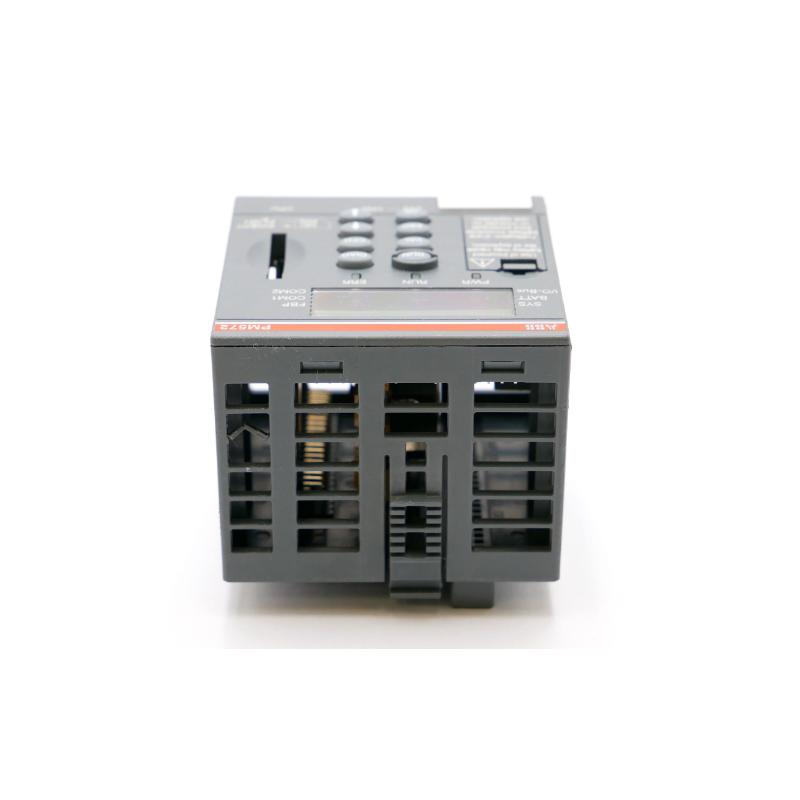

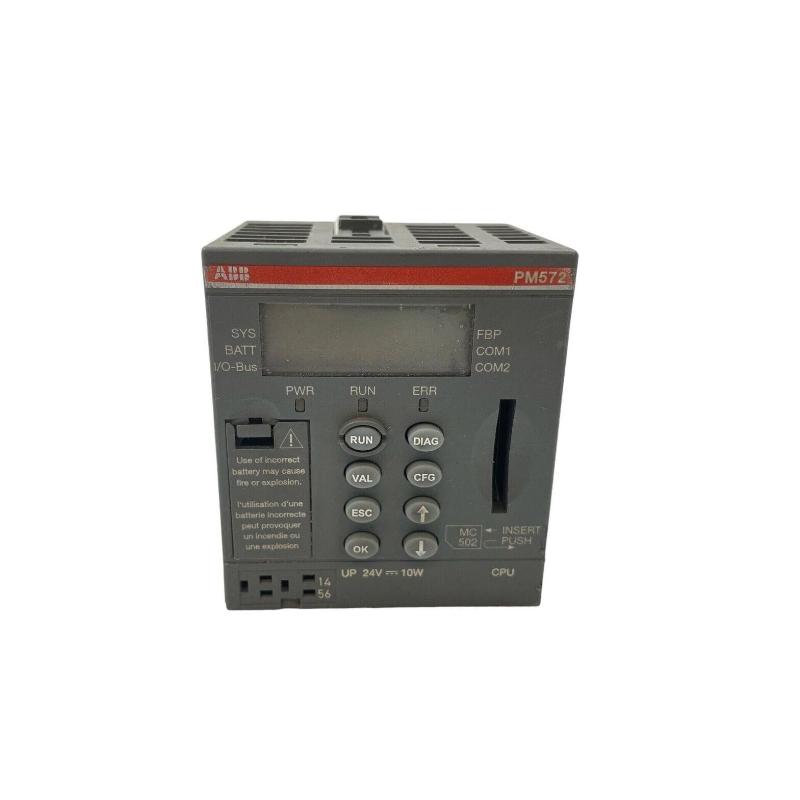

The ABB PM572 Control Processor Module is a high-performance CPU designed for demanding industrial automation applications. With its robust processing power and seamless integration capabilities, the PM572 offers exceptional flexibility, speed, and reliability in controlling and monitoring complex systems. Perfect for applications across a wide range of industries, this processor module ensures that your automation systems are efficient, scalable, and capable of handling high data volumes with minimal latency.

Technical Specifications

Part Number: PM572
Type: Control Processor Module
Processor Type: 1.8 GHz Dual-Core Processor
Memory: 1 GB DRAM (Expandable)
I/O Supported: Digital I/O, Analog I/O, and Fieldbus Connections
Communications: Ethernet, Modbus, Profibus, CANopen
Operating System: Real-time Operating System (RTOS)
Dimensions: 6.1" H x 4.5" W x 2.5" D (155 mm x 115 mm x 63 mm)
Weight: 0.75 lbs (0.34 kg)
Power Supply: 24V DC, 2A Max
Environmental Rating: IP20

Recommended Related Models

ABB CP600: Human Machine Interface (HMI) for operator control
ABB DM556: Digital I/O Module for flexible system design
ABB CI854: Ethernet Communication Interface Module
ABB PS550: Power Supply Module for ABB controllers
ABB SD512: System Diagnostics Module for system monitoring

Popular ABB Models

ABB PM573: High-performance version for larger, more complex systems
ABB PM581: Advanced control processor for specialized industrial applications
ABB AI531: Analog Input Module for precise data collection
ABB DO510: Digital Output Module for effective control
ABB CI520: Communication Interface for Modbus and Profibus

Applications

The ABB PM572 is ideal for a variety of industries, including:

Manufacturing Automation: Provides high-speed processing for robotics, conveyors, and production lines.
Energy Management: Used for grid control and real-time monitoring of power systems.
Oil & Gas: Ensures continuous performance in remote, harsh environments with stringent safety requirements.
Water Treatment: Ideal for managing water treatment facilities with real-time feedback and control.
Automated Packaging: Delivers fast, precise control for packaging systems in high-speed production environments.

Advantages

Dual-Core Processor: With a 1.8 GHz dual-core CPU, the PM572 handles complex tasks quickly, making it perfect for high-demand applications.
Expandable Memory: Comes with 1 GB of RAM, which can be expanded to accommodate larger systems.
Versatile I/O Support: Supports digital, analog, and fieldbus connections, offering unparalleled flexibility in I/O configurations.
Multiple Communication Protocols: Compatible with Ethernet, Modbus, Profibus, and CANopen, ensuring broad system compatibility.
Compact and Durable Design: Compact dimensions and an IP20 rating make the PM572 suitable for a wide range of installation environments.
Real-Time Performance: The real-time operating system (RTOS) minimizes latency and guarantees responsive control and data processing.
Scalable System: The PM572 can be easily integrated into existing systems or expanded as your needs grow.
Energy Efficient: Designed for low power consumption, it helps reduce operational costs.
Seamless Integration: Fully compatible with other ABB automation systems, ensuring easy and efficient system integration.
Long Operational Life: Known for its reliability and durability, ensuring reduced downtime and lower maintenance costs.

Technical FAQs

What is the maximum number of I/O devices supported by the PM572?
The PM572 supports a wide range of I/O devices, depending on the system configuration and communication protocol. It is highly flexible and scalable to meet the needs of various applications.
Can the PM572 be used in hazardous environments?
The PM572 is rated IP20, suitable for general industrial environments. For use in hazardous areas, additional protective measures such as explosion-proof enclosures may be necessary.
Does the PM572 support redundancy configurations?
Yes, the PM572 can be used in redundant configurations to provide high availability in mission-critical applications.
What is the input voltage for the PM572?
The PM572 operates on a 24V DC input with a maximum current of 2A.
Can I expand the memory of the PM572?
Yes, the PM572 comes with 1 GB of RAM, which can be expanded for applications requiring additional memory capacity.
Is the PM572 compatible with other ABB products?
Yes, the PM572 is fully compatible with other ABB automation products, allowing for seamless integration and system expansion.
What communication protocols are supported by the PM572?
The PM572 supports Ethernet, Modbus, Profibus, and CANopen, offering flexibility in communication across various industrial networks.
How do I update the firmware on the PM572?
Firmware updates can be performed through ABB's Automation Builder software, ensuring your system stays up-to-date with the latest features.
Is there technical support available for the PM572?
Yes, ABB provides comprehensive technical support, including documentation, troubleshooting resources, and direct access to their expert support team.
What is the warranty period for the PM572?
The standard warranty for the PM572 is one year from the date of purchase. Extended support and service plans are available through ABB’s service offerings.
