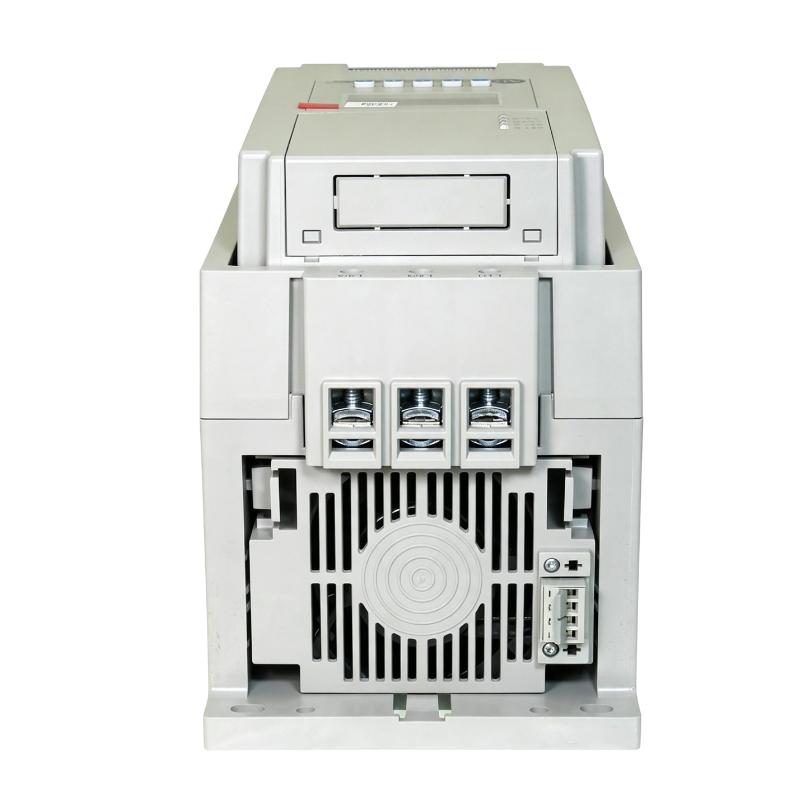

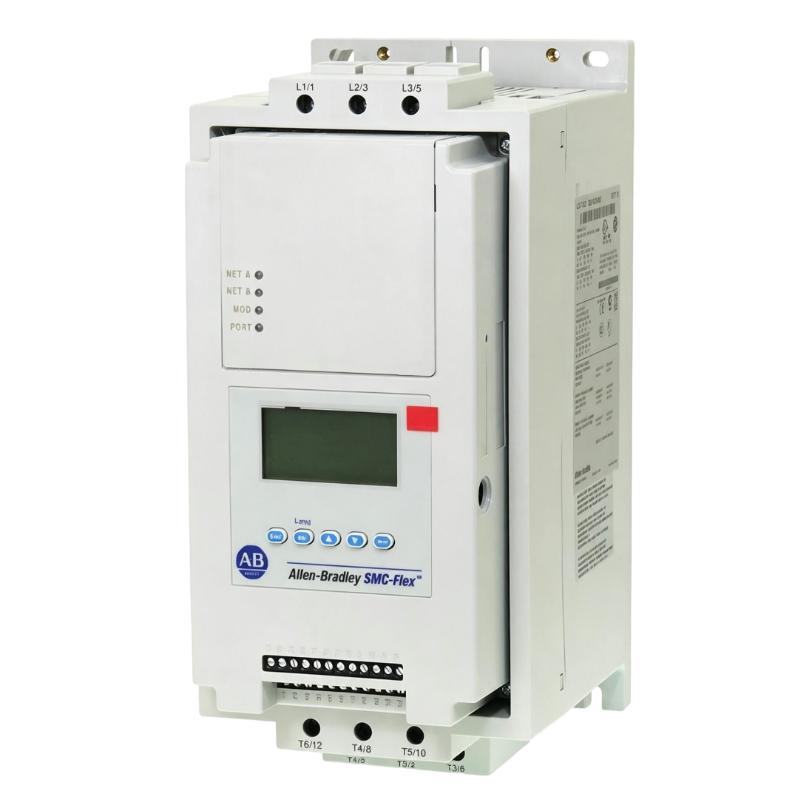

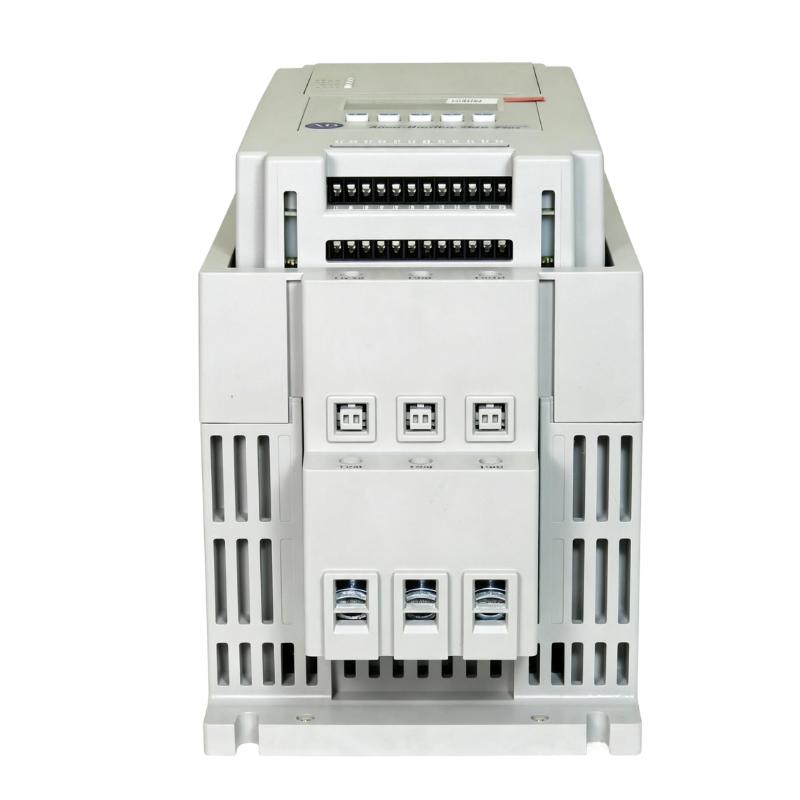

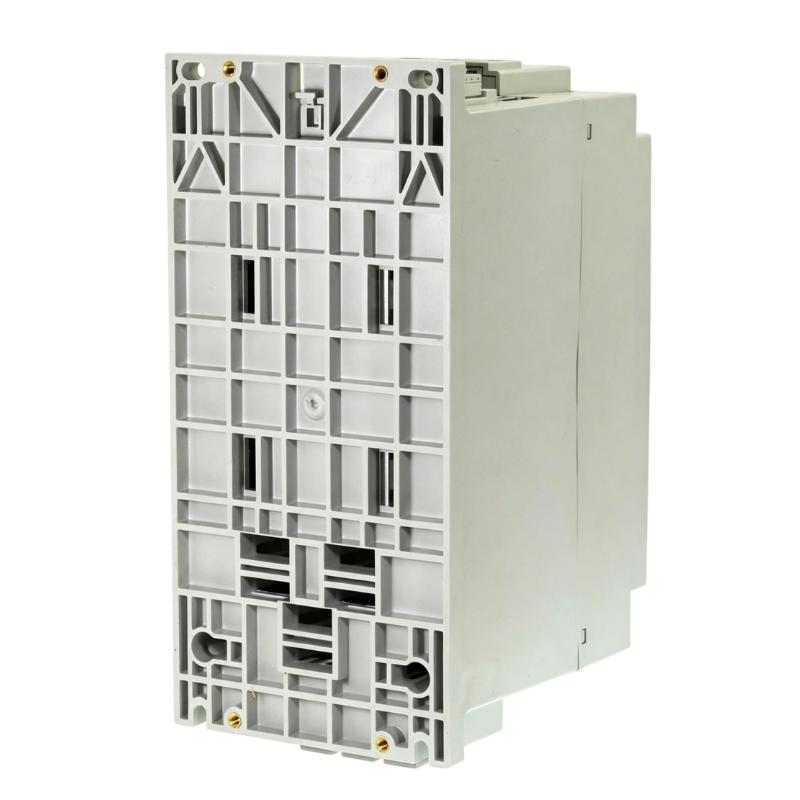

Allen Bradley 150-F85NBD SMC Flex Smart Motor Controller

Industrial Motor Starting Applications and Intelligent Soft Control Solutions

The Allen Bradley 150-F85NBD SMC Flex Smart Motor Controller is an advanced solid-state soft starter designed to provide reliable motor starting, stopping, and protection functions for industrial AC motor applications. As part of the Allen Bradley SMC Flex family, this controller helps reduce mechanical stress, limit inrush current, and improve motor system reliability in demanding automation environments.

Designed for three-phase motor applications, the 150-F85NBD supports an 85 A controller rating and is suitable for motors ranging from 15 to 60 HP at 460 V AC. It accepts an input voltage range of 200 to 480 V AC and provides 100 to 240 V AC control voltage, making it a flexible solution for industrial motor control systems.

The controller is widely used in pumps, fans, conveyors, compressors, material handling systems, and process equipment where smooth motor acceleration and reliable protection are essential. By combining solid-state starting technology with intelligent monitoring functions, the 150-F85NBD helps engineers improve equipment performance while reducing maintenance requirements.

Key Advantages and Industrial Performance Benefits

Smooth Motor Starting and Reduced Mechanical Stress
The 150-F85NBD uses solid-state soft starting technology to control motor acceleration, reducing sudden torque impact during startup. This helps protect mechanical components such as couplings, belts, gears, and drive systems.

Intelligent Motor Protection Capability
The controller integrates motor overload protection and monitoring functions to help prevent damage caused by excessive current conditions, improving operational safety and equipment service life.

High Compatibility with Industrial Motor Systems
Supporting 85 A current ratings and three-phase AC motor applications, the 150-F85NBD provides a practical control solution for medium-power industrial motors used in automated production environments.

Integrated Bypass Function for Improved Efficiency
The built-in bypass design allows the controller to reduce power losses after motor acceleration is complete, improving system efficiency during normal operation.

Flexible Application Configuration
The SMC Flex platform supports various operating modes and optional control features, allowing engineers to configure the controller according to different machine requirements.

Enhanced System Reliability
With solid-state thyristor technology and industrial-grade construction, the 150-F85NBD provides stable performance in continuous-duty automation applications.

Simplified Maintenance and Troubleshooting
The controller provides diagnostic capabilities that help technicians identify motor faults, overload conditions, and system problems more efficiently.

Technical FAQs About Allen Bradley 150-F85NBD SMC Flex Smart Motor Controller

Q1: What is the main function of the Allen Bradley 150-F85NBD?
A: The 150-F85NBD is a solid-state soft starter designed to control motor acceleration, reduce starting current, and provide motor protection functions.

Q2: What motor power range can the 150-F85NBD support?
A: The controller supports motors rated approximately 15 to 60 HP at 460 V AC applications.

Q3: What input voltage does the 150-F85NBD support?
A: The controller supports 200 to 480 V AC three-phase input voltage.

Q4: What control voltage is required for the 150-F85NBD?
A: The standard control voltage range is 100 to 240 V AC.

Q5: Does the 150-F85NBD include motor overload protection?
A: Yes. The controller includes integrated motor overload protection to help protect connected motors from abnormal operating conditions.

Q6: What causes an SMC Flex controller to trip during startup?
A: Common causes include incorrect motor settings, excessive load torque, insufficient power supply capacity, incorrect acceleration parameters, or motor wiring issues.

Q7: Can the 150-F85NBD be used for pump applications?
A: Yes. It is suitable for pump systems where controlled acceleration and reduced mechanical stress are required.

Q8: How can communication or control faults be diagnosed on the controller?
A: Engineers should check control wiring, parameter configuration, fault indicators, motor conditions, and input signal status.

Q9: What maintenance is recommended for the 150-F85NBD?
A: Regular inspection of terminals, cooling conditions, electrical connections, and fault history helps maintain reliable operation.

Q10: What industries commonly use the SMC Flex controller?
A: Common industries include water treatment, manufacturing, HVAC, material handling, mining, and process automation.
