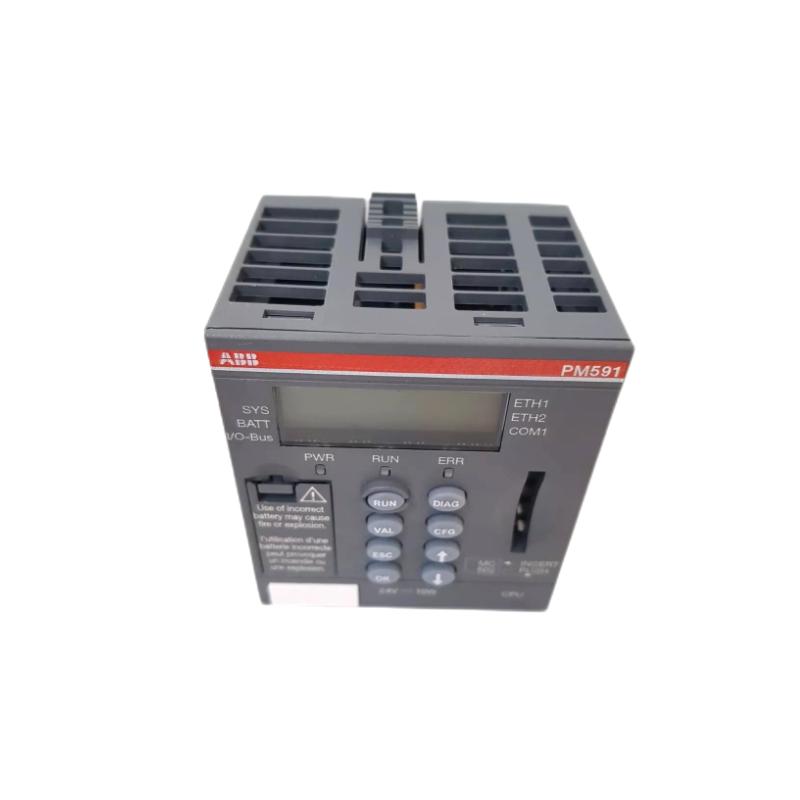

The ABB PM591 Control Processor Module is an advanced and highly versatile industrial CPU designed for complex automation systems. With its powerful multi-core processor, vast memory capacity, and extensive communication options, the PM591 is engineered to meet the demanding needs of modern industrial control applications. Whether you're automating manufacturing processes, managing energy systems, or overseeing critical infrastructure, the PM591 offers real-time performance, reliability, and scalability, making it an essential component for high-performance automation systems.

Technical Specifications

Part Number: PM591
Type: Control Processor Module
Processor Type: 3.5 GHz Octa-Core Processor
Memory: 16 GB DRAM (Expandable)
I/O Supported: Digital I/O, Analog I/O, and Fieldbus Connections
Communications: Ethernet, Modbus, Profibus, CANopen, OPC UA, EtherCAT, DNP3, HART
Operating System: Real-time Operating System (RTOS)
Dimensions: 8.3" H x 5.6" W x 3.6" D (211 mm x 142 mm x 92 mm)
Weight: 1.3 lbs (0.59 kg)
Power Supply: 24V DC, 4.5A Max
Environmental Rating: IP20

Recommended Related Models

ABB CP600: Human Machine Interface (HMI) for intuitive operator control
ABB DM556: Digital Input/Output Module for flexible system integration
ABB CI854: Ethernet Communication Interface Module for network connectivity
ABB PS550: Power Supply Module for supporting ABB control systems
ABB SD512: System Diagnostics Module for continuous monitoring

Popular ABB Models

ABB PM572: Mid-range CPU ideal for standard control applications
ABB PM573: High-performance processor designed for larger, more complex systems
ABB AI531: Analog Input Module for precise data acquisition
ABB DO510: Digital Output Module for efficient control
ABB CI520: Communication Interface for Modbus and Profibus

Applications

The ABB PM591 is built for high-performance industrial applications, including:

Advanced Manufacturing Automation: Controls complex production lines, robotics, and automated systems, enabling high-speed processing and precise control.
Energy Management: Used in power generation, distribution, and renewable energy management systems for real-time monitoring and operational control.
Oil & Gas: Provides reliable control and monitoring in remote or hazardous environments, ensuring continuous and safe operations.
Water Treatment: Ideal for managing large-scale water treatment plants, ensuring regulatory compliance and system efficiency.
Smart Infrastructure: Powers large-scale infrastructure systems such as smart cities and transportation networks, enabling real-time system management.

Advantages

Octa-Core Processor: With a powerful 3.5 GHz octa-core CPU, the PM591 delivers fast, efficient processing for the most complex industrial applications.
Large Memory Capacity: Equipped with 16 GB of DRAM (expandable), the PM591 can handle large datasets and high-speed processing requirements.
Flexible I/O Integration: The PM591 supports a wide range of digital, analog, and fieldbus I/O, offering exceptional flexibility in system design.
Broad Communication Protocol Support: Compatible with Ethernet, Modbus, Profibus, CANopen, OPC UA, EtherCAT, DNP3, and HART, the PM591 ensures seamless integration into diverse industrial networks.
Real-Time Data Processing: The real-time operating system (RTOS) guarantees minimal latency, making the PM591 ideal for time-sensitive applications that require rapid responses.
Compact and Durable: Despite its powerful features, the PM591 has a compact form factor and industrial-grade build, ensuring durability and reliability in tough environments.
Scalability: The PM591 is designed to grow with your needs, supporting both expansion and upgrading for future system enhancements.
Energy-Efficient: Designed to minimize power consumption, the PM591 helps reduce operating costs while maintaining optimal performance.
Seamless Integration: Fully compatible with other ABB automation products, the PM591 ensures smooth and efficient integration into existing systems.
Long-Term Reliability: Built for high reliability and minimal maintenance, the PM591 offers a long service life, reducing downtime and enhancing operational efficiency.

Technical FAQs

What is the maximum number of I/O devices the PM591 can support?
The PM591 supports a broad range of I/O devices, offering flexibility to meet the demands of both small and large-scale systems. The exact number depends on the system configuration and communication protocol.
Can the PM591 be used in hazardous environments?
The PM591 is rated IP20, making it suitable for general industrial environments. For use in hazardous locations, additional protective measures like explosion-proof enclosures may be required.
Does the PM591 support redundancy configurations?
Yes, the PM591 can be configured for redundancy to ensure high availability and continuous operation in critical systems.
What power supply is required for the PM591?
The PM591 operates on a 24V DC input with a maximum current draw of 4.5A, making it energy-efficient for industrial applications.
Can I expand the memory on the PM591?
Yes, the PM591 comes with 16 GB of DRAM, and it can be expanded to meet the needs of larger or more data-intensive applications.
Is the PM591 compatible with other ABB automation products?
Yes, the PM591 integrates seamlessly with other ABB automation products, offering an efficient and unified system solution.
What communication protocols does the PM591 support?
The PM591 supports Ethernet, Modbus, Profibus, CANopen, OPC UA, EtherCAT, DNP3, and HART, making it highly versatile and adaptable to different network environments.
How do I update the firmware on the PM591?
Firmware updates can be performed via ABB’s Automation Builder software, ensuring your system stays current with the latest features and optimizations.
What technical support is available for the PM591?
ABB provides comprehensive technical support, including documentation, troubleshooting resources, and direct access to expert assistance for any issues.
What is the warranty period for the PM591?
The standard warranty for the PM591 is one year from the date of purchase. Extended warranty and support plans are available through ABB’s service offerings.
