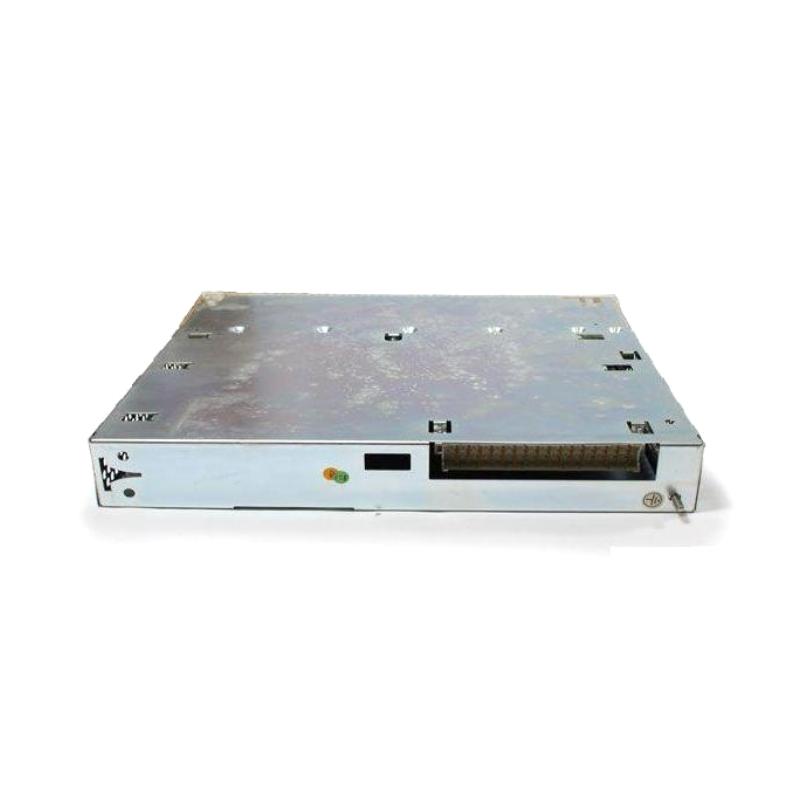

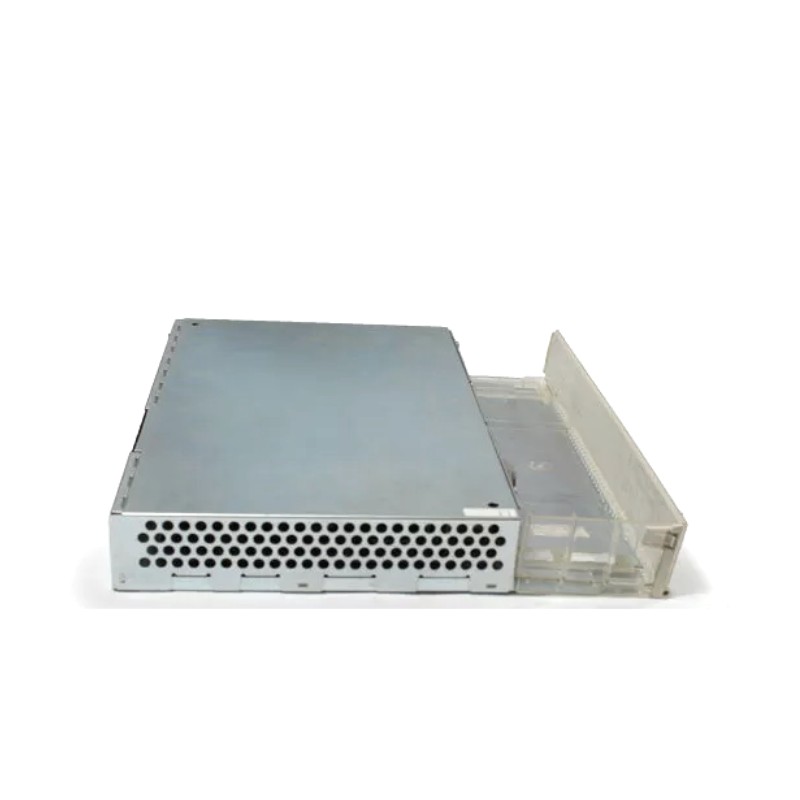

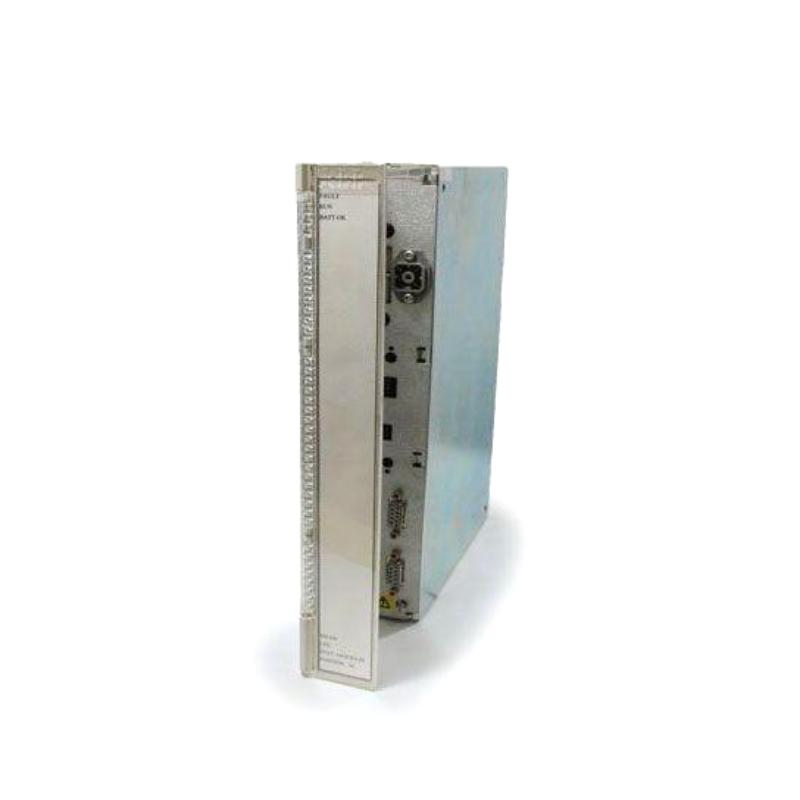

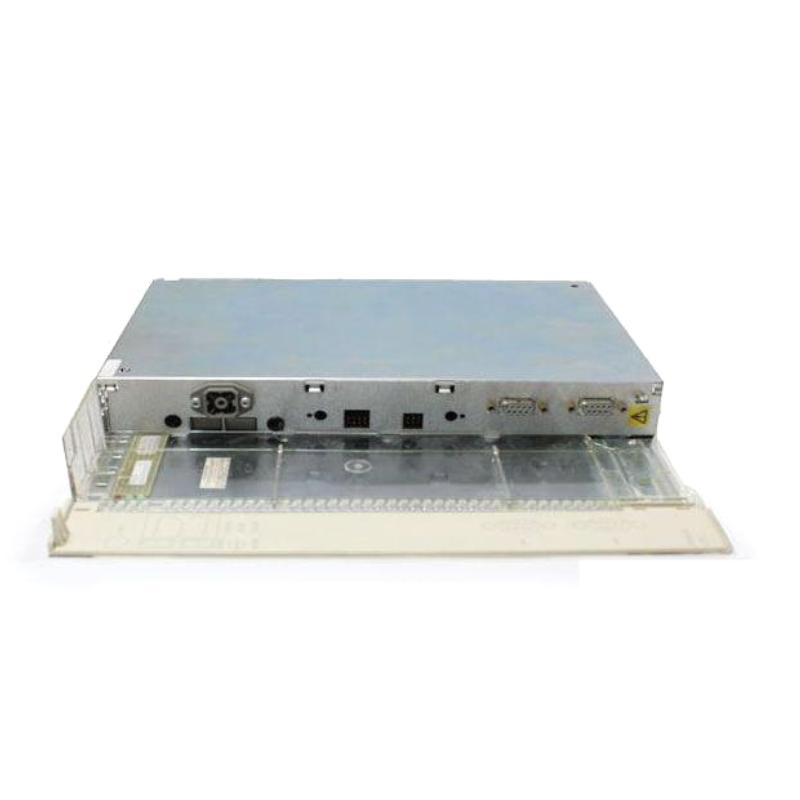

ABB PM630 Control Processor Module | High-Performance CPU for Industrial Automation Systems

Applications

The ABB PM630 excels in a wide range of advanced industrial applications:

• Manufacturing Automation: Controls complex production lines, robotics, and automated systems, offering high-speed data processing and precise control.

• Energy & Power Systems: Ideal for real-time control and monitoring of power generation, distribution, and renewable energy management.

• Oil & Gas: Provides reliable control in hazardous environments, ensuring safety and operational efficiency in remote sites.

• Water Treatment: Suitable for managing critical water treatment infrastructure, ensuring operational reliability and regulatory compliance.

• Smart Infrastructure: Powers infrastructure systems, such as smart cities and transportation networks, by offering real-time monitoring and control capabilities.

Advantages

1. Octa-Core Processor: The PM630’s powerful 3.5 GHz octa-core CPU provides unmatched processing power for complex, data-intensive applications, enabling high-speed control and decision-making.

2. Massive Memory Capacity: Equipped with 16 GB of DRAM (expandable), the PM630 easily handles large-scale applications, supporting high-volume data processing and seamless system expansion.

3. Flexible I/O Integration: Supports a wide variety of digital, analog, and fieldbus I/O options, making it ideal for flexible and adaptable system configurations.

4. Broad Communication Protocols: With support for Ethernet, Modbus, Profibus, CANopen, OPC UA, EtherCAT, DNP3, and HART, the PM630 offers seamless integration across various industrial networks.

5. Real-Time Processing: Equipped with a real-time operating system (RTOS), the PM630 delivers minimal latency, enabling rapid response times for time-sensitive applications.

6. Compact and Durable: Despite its high performance, the PM630’s compact design and rugged build make it ideal for installation in tight spaces and harsh environments.

7. Scalability: The PM630 is designed for scalability, allowing it to easily adapt to expanding system requirements as your automation needs grow.

8. Energy-Efficient: Designed for efficient power consumption, the PM630 helps reduce overall operational costs without sacrificing performance.

9. Seamless ABB Integration: Fully compatible with other ABB automation products, the PM630 integrates smoothly into ABB’s complete automation ecosystem.

10. Reliable Performance: Known for its robust design and high reliability, the PM630 is built to perform continuously with minimal downtime, ensuring smooth operations in critical applications.

Technical FAQs

1. What is the maximum number of I/O devices the PM630 can support?
   The PM630 supports a large number of I/O devices depending on the system configuration, communication protocol, and application requirements. Its scalability makes it ideal for both small and large systems.

2. Can the PM630 be used in hazardous environments?
   The PM630 is rated IP20, making it suitable for general industrial environments. For hazardous locations, additional protective measures such as explosion-proof enclosures or specific certifications may be needed.

3. Does the PM630 support redundancy configurations?
   Yes, the PM630 can be configured for redundancy, ensuring high availability and uninterrupted operation in mission-critical systems.

4. What power supply is required for the PM630?
   The PM630 operates on a 24V DC input with a maximum current of 5A, providing reliable and energy-efficient power for demanding applications.

5. Can I expand the memory on the PM630?
   Yes, the PM630 comes with 16 GB of DRAM, and additional memory can be added to meet the demands of larger and more data-intensive tasks.

6. Is the PM630 compatible with other ABB products?
   Yes, the PM630 integrates seamlessly with other ABB automation products, allowing you to build a unified, efficient automation system.

7. What communication protocols does the PM630 support?
   The PM630 supports multiple communication protocols, including Ethernet, Modbus, Profibus, CANopen, OPC UA, EtherCAT, DNP3, and HART, making it highly adaptable to various industrial environments.

8. How do I update the firmware on the PM630?
   Firmware updates can be easily performed through ABB’s Automation Builder software, ensuring your system stays up-to-date with the latest features and enhancements.

9. What technical support is available for the PM630?
   ABB provides comprehensive technical support, including access to detailed documentation, troubleshooting resources, and direct access to expert assistance for any technical issues.

10. What is the warranty period for the PM630?
    The standard warranty for the PM630 is one year from the date of purchase. ABB also offers extended warranty and service options to support long-term system reliability.
