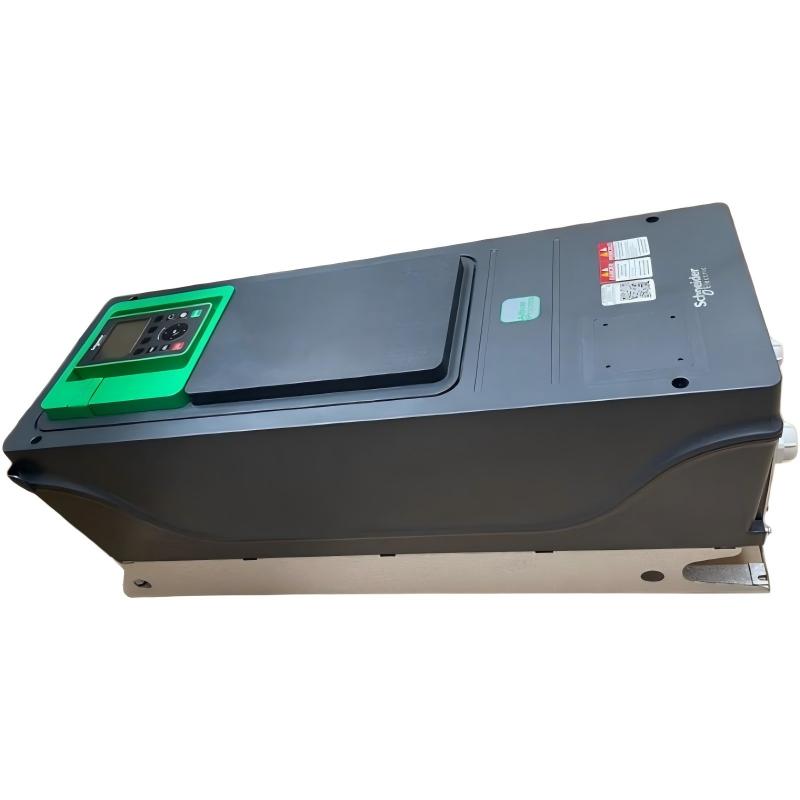

Schneider ATV650U55N4E Variable-Speed Drive

Industrial Motor Control Applications and Intelligent Process Automation Performance

The Schneider ATV650U55N4E Variable-Speed Drive is a high-efficiency Altivar Process ATV650 AC drive designed for industrial motor speed control, energy optimization, and advanced process management. With a 5.5 kW (7.5 HP) motor power rating, this drive provides stable and precise control for three-phase asynchronous and synchronous motors used in demanding industrial environments.

The ATV650U55N4E features an integrated disconnect switch combined with an IP55 industrial enclosure, offering a convenient solution for installations where equipment isolation, environmental protection, and simplified maintenance are required. It operates with a 380 to 480 VAC three-phase power supply and delivers reliable variable-speed performance for continuous industrial applications.

Built on Schneider Electric’s Altivar Process platform, the ATV650U55N4E integrates process monitoring, energy measurement, asset protection, and communication capabilities. These functions allow operators and engineers to improve equipment visibility, optimize energy usage, and enhance overall system reliability.

Typical application areas include:

• Industrial water and wastewater pumping systems
• HVAC and ventilation equipment
• Process fluid circulation systems
• Conveyor and material handling machines
• Manufacturing production lines
• Cooling and utility systems
• Food and beverage processing equipment
• OEM industrial automation solutions

The ATV650U55N4E is an ideal choice for applications requiring dependable motor control, easy commissioning, and long-term operational efficiency. Its integrated design helps reduce installation complexity while maintaining professional industrial performance.

Advanced Drive Features and Industrial Automation Advantages

Integrated Disconnect Switch for Efficient Maintenance

The ATV650U55N4E combines variable-speed control and isolation functionality in one compact enclosure. The integrated disconnect switch simplifies maintenance procedures by allowing technicians to safely isolate the drive during inspection and servicing.

Reliable 5.5 kW Motor Control Capability

With a 5.5 kW output rating and 12.7 A output current, the drive provides accurate speed and torque management for industrial motors. It helps maintain stable operation while improving energy efficiency in variable-load applications.

Advanced Process Monitoring Functions

The Altivar Process architecture provides embedded monitoring and energy management features, helping users analyze equipment performance and optimize operational efficiency.

Industrial IP55 Protection Design

The IP55 enclosure allows the ATV650U55N4E to operate reliably in industrial environments where dust and water resistance are required. This makes it suitable for machine-side installation without depending entirely on additional cabinets.

Flexible Motor Compatibility

The drive supports both asynchronous and synchronous motors, providing greater flexibility for industrial machine builders and system integrators.

Energy-Saving Variable-Speed Operation

By adjusting motor speed according to actual process requirements, the ATV650U55N4E helps reduce unnecessary energy consumption, especially in pumps, fans, and fluid-handling applications.

Industrial Network Integration

The drive can be integrated into automation systems through industrial communication solutions, allowing connection with PLC, SCADA, and supervisory control platforms for centralized management.

Enhanced Diagnostic Capability

Built-in monitoring functions provide valuable operating information, helping maintenance teams identify abnormal conditions, analyze faults, and reduce equipment downtime.

Technical FAQs – Schneider ATV650U55N4E Variable-Speed Drive

1. What is the main function of the Schneider ATV650U55N4E?
The ATV650U55N4E controls motor speed and torque by adjusting output frequency and voltage, improving process efficiency and motor performance.

2. What motor power rating does the ATV650U55N4E support?
The drive supports motor applications up to 5.5 kW (7.5 HP) under suitable operating conditions.

3. What type of motors are compatible with this drive?
The ATV650U55N4E supports both asynchronous motors and synchronous motors commonly used in industrial automation systems.

4. What input voltage range is required for the ATV650U55N4E?
The drive operates with a three-phase power supply range of 380 to 480 VAC.

5. Why does the drive trigger an overcurrent fault?
Possible causes include excessive motor load, incorrect acceleration parameters, motor cable issues, short circuits, or incorrect motor configuration.

6. How can communication faults between PLC and drive be diagnosed?
Check communication wiring, network parameters, addressing settings, protocol configuration, and PLC communication status.

7. Why does the motor fail to accelerate normally?
Possible causes include incorrect motor data, insufficient acceleration time, mechanical overload, or improper control parameters.

8. Can the ATV650U55N4E be used for pump and fan applications?
Yes. The drive is suitable for variable-load applications requiring energy-efficient speed control.

9. What causes drive overheating during operation?
Common causes include blocked ventilation, excessive ambient temperature, high load conditions, or insufficient cooling airflow.

10. What maintenance procedures are recommended for this drive?
Maintenance should include checking cooling paths, inspecting electrical terminals, reviewing fault history, and verifying parameter settings.
