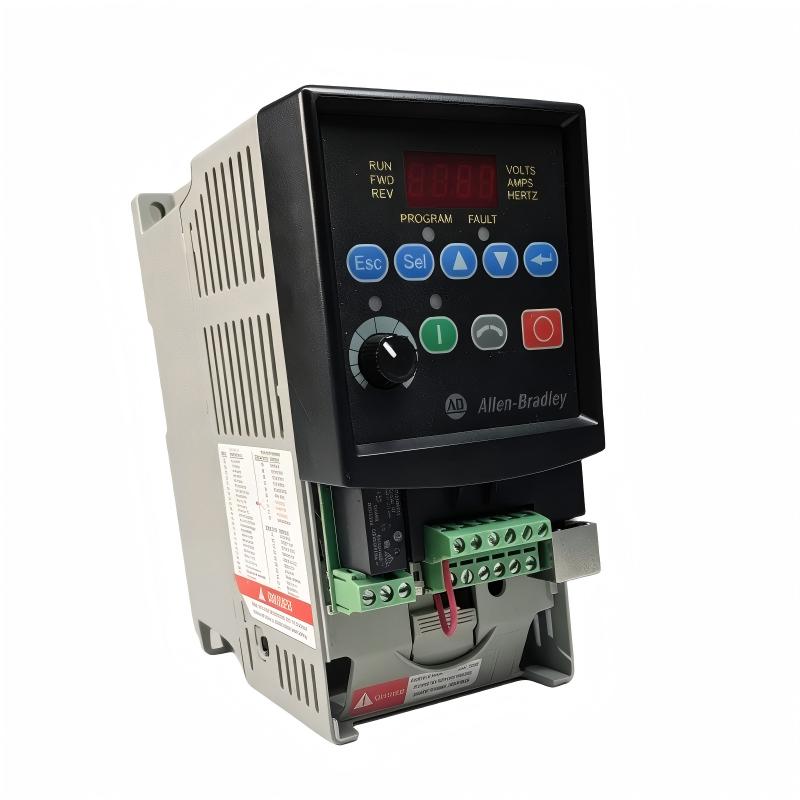

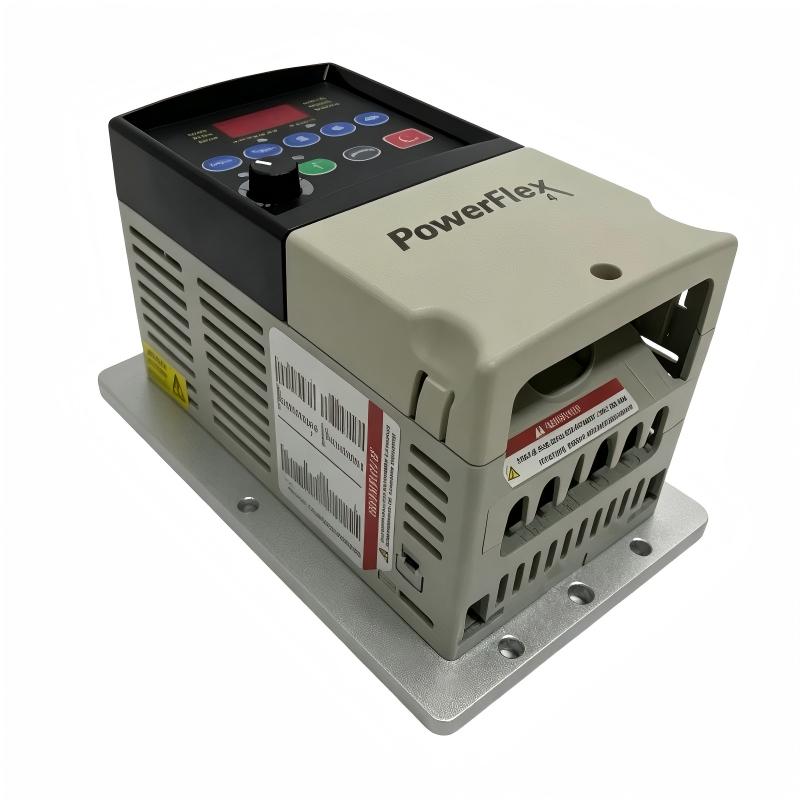

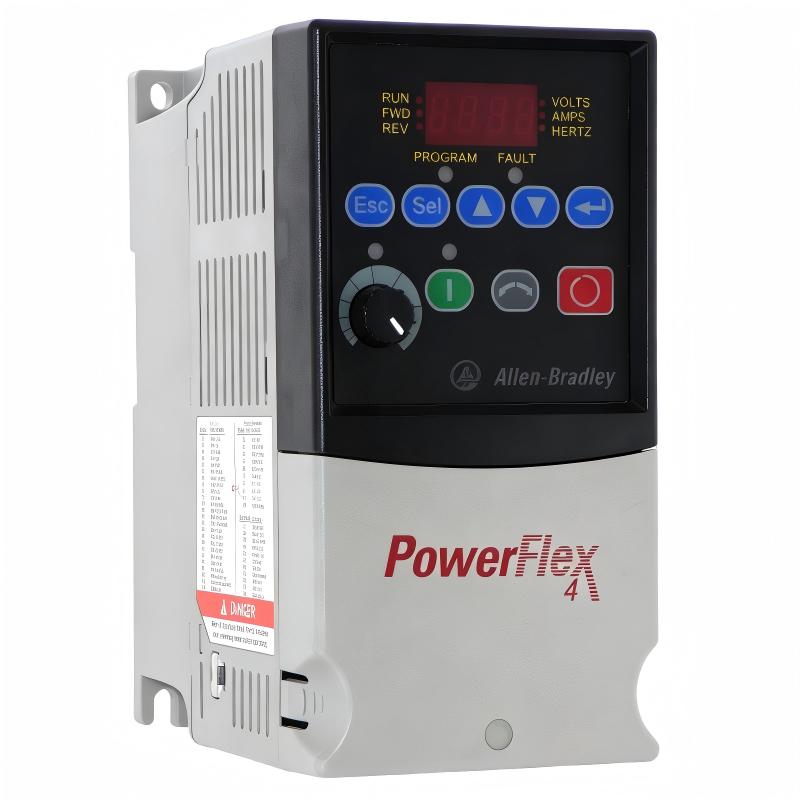

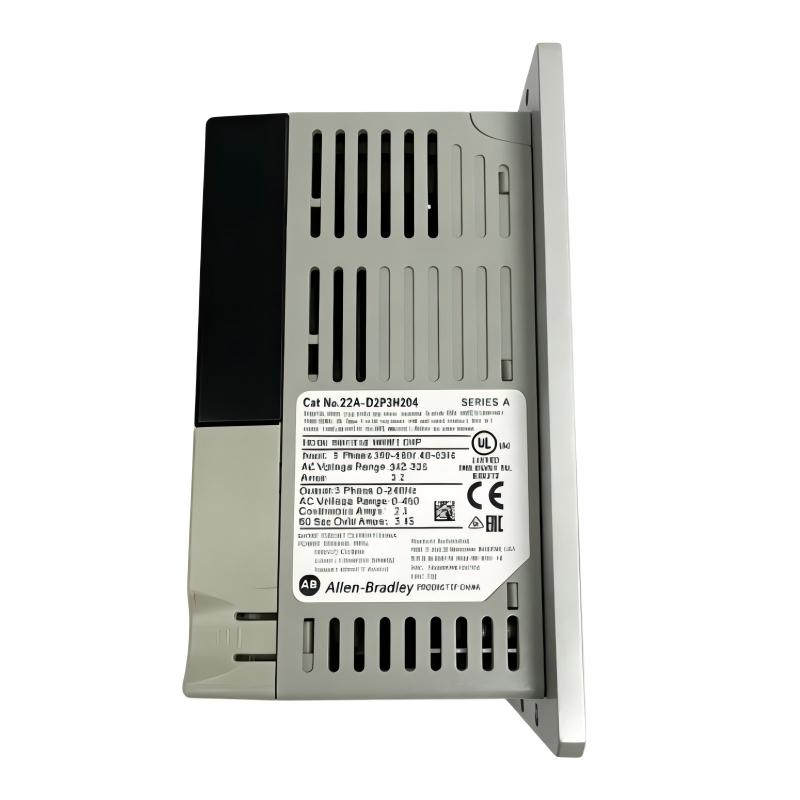

Allen Bradley 22A-D2P3H204 PowerFlex 4 AC Drive

Industrial Applications and Automation Integration

The Allen Bradley 22A-D2P3H204 PowerFlex 4 AC Drive is a compact variable frequency drive designed for industrial automation systems requiring reliable motor speed control, simple configuration, and efficient operation. As part of the PowerFlex 4 family, this AC drive provides a practical solution for controlling small industrial motors while maintaining excellent performance and flexibility in space-limited installations.

This drive is widely used in applications where precise motor adjustment, reduced energy consumption, and dependable operation are important factors. Its compact design makes it suitable for machine builders, OEM equipment manufacturers, and industrial users looking for an economical motor control solution.

Typical application areas include:

• Small conveyor systems requiring adjustable speed control
• Packaging and assembly machinery
• Fans and pumps in industrial facilities
• Material handling equipment
• Machine automation systems
• Small processing equipment
• OEM machines requiring compact drive solutions

The PowerFlex 4 platform helps simplify automation design by providing essential motor control functions in a compact package. It allows engineers to improve machine efficiency, reduce installation space requirements, and achieve stable motor operation in various industrial environments.

Engineering Advantages and Product Performance Benefits

The Allen Bradley 22A-D2P3H204 PowerFlex 4 AC Drive combines compact construction, dependable motor control, and flexible configuration capabilities, making it an ideal choice for general-purpose industrial applications.

Compact Design for Space-Saving Installation
The drive features a small footprint that allows easy installation inside control cabinets and machine enclosures. It helps system designers maximize cabinet space while maintaining reliable motor control performance.

Reliable Variable Speed Control
The PowerFlex 4 AC Drive provides accurate frequency regulation for small motors, enabling smooth acceleration, controlled operation, and improved machine performance.

Simple Commissioning Process
The drive is designed with user-friendly parameter configuration, allowing technicians to complete setup and adjustments efficiently during installation and maintenance.

Flexible Industrial Integration
With standard communication and control capabilities, the drive can be integrated into various automation systems for improved machine coordination and monitoring.

Improved Energy Efficiency
By adjusting motor speed according to actual operating requirements, the drive helps reduce unnecessary energy consumption and improves overall system efficiency.

Cost-Effective Automation Solution
The PowerFlex 4 series provides essential drive functions in a compact and economical design, making it suitable for applications requiring reliable performance without excessive system complexity.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the primary function of the Allen Bradley 22A-D2P3H204 AC Drive?
A: This drive controls motor speed and operating frequency in industrial applications, providing adjustable motor performance and improved process control.

Q2: What type of motors can be controlled by the PowerFlex 4 AC Drive?
A: The drive is designed for controlling standard AC induction motors used in general industrial machinery and automation equipment.

Q3: How should the drive be configured before starting operation?
A: Engineers should configure motor parameters, frequency settings, acceleration and deceleration times, and control commands before commissioning.

Q4: What causes an overcurrent fault on this AC drive?
A: Common causes include excessive mechanical load, incorrect motor parameters, short circuits, acceleration settings that are too aggressive, or motor wiring problems.

Q5: How can communication problems be diagnosed on the drive?
A: Check communication settings, network connections, controller configuration, and parameter settings to identify possible communication issues.

Q6: Does the PowerFlex 4 AC Drive support remote control operation?
A: Yes. The drive can support external control commands through configured input signals and communication options.

Q7: Why does the motor run slower than the commanded speed?
A: Possible causes include incorrect frequency settings, motor parameter errors, load conditions, or improper control configuration.

Q8: What maintenance practices are recommended for long-term operation?
A: Regular inspection of wiring connections, cooling conditions, parameter backups, and fault records can help maintain reliable operation.

Q9: How can technicians reduce startup problems during installation?
A: Verifying wiring, checking motor compatibility, setting correct parameters, and testing operation before full production can prevent commissioning issues.

Q10: What steps should be taken when replacing an existing PowerFlex 4 drive?
A: Record existing parameters, confirm electrical compatibility, install the replacement unit, and verify all control settings before operation.
