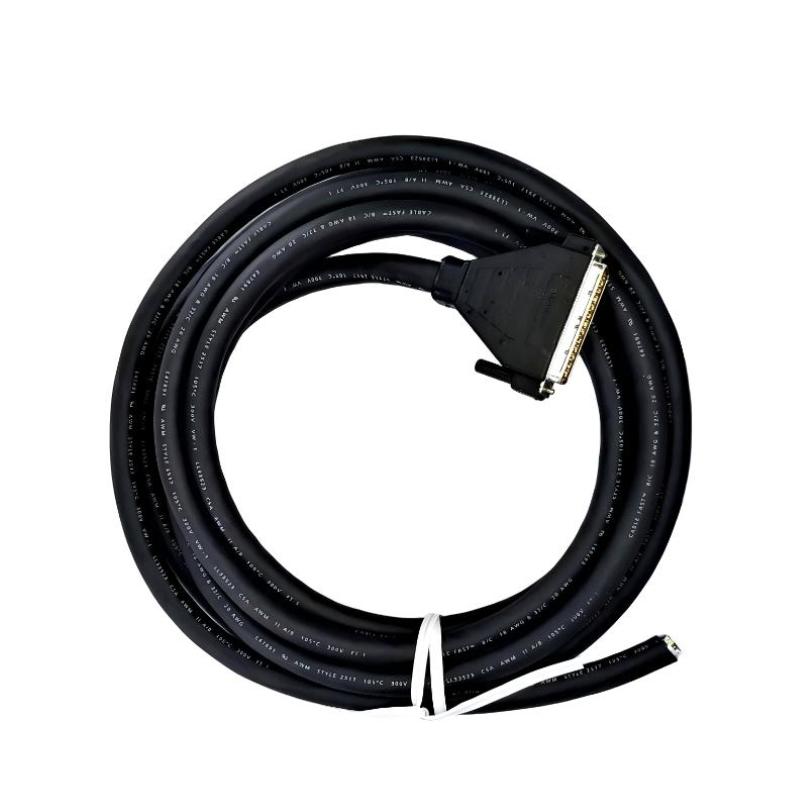

Schneider VW3M8A21R05GJ Encoder Cable Module

Where It Excels in Industrial Use

• Easy Lexium 16 servo motion control systems
• BCH16 servo motor encoder feedback applications
• Compact automation machinery requiring secure feedback connections
• Packaging, assembly, and material handling equipment
• Robotic positioning and precision motion platforms
• OEM machine manufacturing and customized servo integration
• Servo replacement and maintenance applications
• Industrial equipment requiring stable encoder signal transmission

Key Strengths at a Glance

• Designed for Schneider Electric Easy Lexium 16 servo systems
• Compatible with BCH16 servo motors and encoder feedback applications
• 5-meter shielded encoder cable configuration
• MIL connector design provides reliable motor-side connection
• Supports accurate feedback transmission for closed-loop servo control
• Shielded structure improves resistance to electromagnetic interference
• Factory-designed Schneider accessory for simplified installation
• Helps maintain stable positioning accuracy and smooth machine operation

Technical FAQs

1. What is the primary function of the Schneider VW3M8A21R05GJ?

The VW3M8A21R05GJ is an encoder feedback cable used to connect BCH16 servo motors with Schneider Electric servo drives, ensuring reliable transmission of position and speed feedback signals.

2. Which servo systems are compatible with the VW3M8A21R05GJ?

The cable is designed for Easy Lexium 16 servo applications and is intended for BCH16 servo motor encoder connections.

3. Is the VW3M8A21R05GJ a motor power cable?

No. The VW3M8A21R05GJ is an encoder signal cable and is used for feedback communication between the servo motor and drive.

4. What type of connector does the VW3M8A21R05GJ use?

The cable uses a MIL connector interface designed for secure BCH16 servo motor encoder connections.

5. Why is shielding important in this encoder cable?

The shielded construction helps reduce electromagnetic interference from servo motors, drives, and industrial electrical equipment, improving feedback signal stability.

6. Does the VW3M8A21R05GJ require software configuration?

No. It is a passive hardware accessory and does not require programming, firmware updates, or parameter configuration.

7. What cable length does the VW3M8A21R05GJ provide?

The VW3M8A21R05GJ provides a 5-meter cable length, offering additional flexibility for machine layouts where the motor and drive are separated.

8. Can the VW3M8A21R05GJ be used in OEM automation equipment?

Yes. It is suitable for OEM manufacturers and system integrators developing servo-based industrial automation solutions.

9. How does encoder cable quality influence servo performance?

A reliable encoder cable maintains stable feedback communication, allowing the servo drive to achieve precise positioning and smooth motion control.

10. Why choose a dedicated Schneider encoder cable solution?

A dedicated Schneider cable ensures correct compatibility, dependable signal transmission, and efficient integration with matching servo components.
