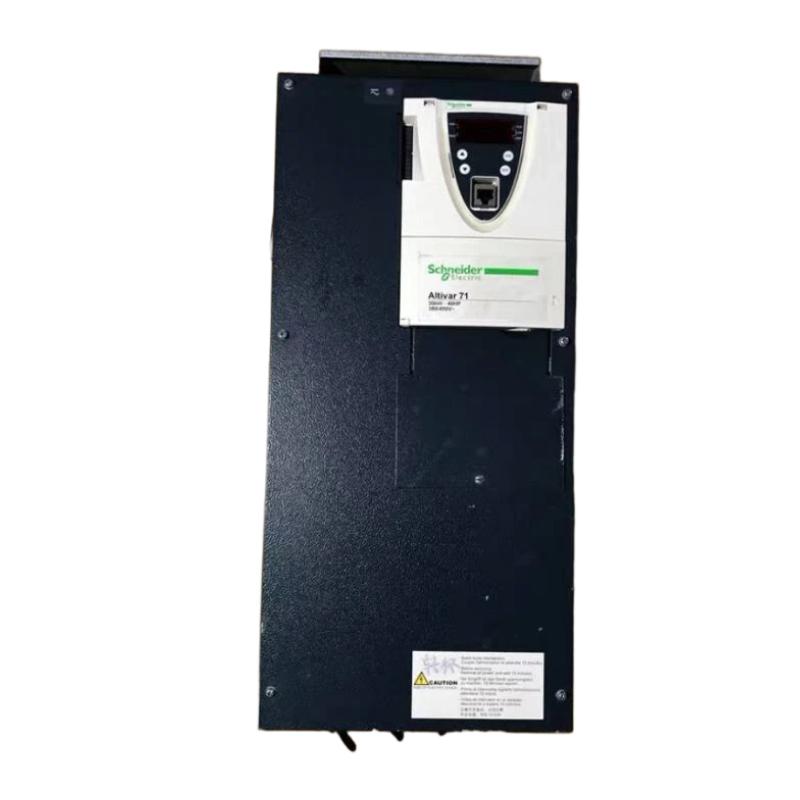

Schneider ATV71HD37N4Z Variable Speed ​​Drive

Industrial Applications and Automation Integration

The Schneider ATV71HD37N4Z Variable Speed Drive is a high-performance industrial motor control solution designed for complex automation systems requiring accurate speed regulation, strong torque control, and reliable operation. As part of the Altivar 71 series, this drive is engineered for demanding industrial machinery and provides advanced control functions for high-power motor applications.

With a 37 kW (50 HP) power rating and 380–480 V three-phase input capability, the ATV71HD37N4Z delivers stable variable frequency control for applications where motor efficiency, production continuity, and precise motion management are essential. It supports advanced motor control methods including flux vector control, making it suitable for machines requiring dynamic performance and accurate load handling.

Typical application areas include:

• Heavy-duty automated production equipment
• Conveyor and material transportation systems
• Pumps and fan systems in industrial plants
• Hoisting and lifting machinery
• Packaging and processing equipment
• Machine tools and OEM automation systems
• Large industrial motor control applications

The Altivar 71 platform provides engineers with flexible configuration options and powerful control functions, allowing the ATV71HD37N4Z to integrate into various industrial automation architectures. Its robust design helps improve machine productivity, reduce energy waste, and maintain stable operation in demanding environments.

Engineering Advantages and Product Performance Benefits

The Schneider ATV71HD37N4Z Variable Speed Drive combines advanced drive technology, high-power motor control capability, and industrial reliability, making it an effective solution for demanding automation applications.

High-Performance Motor Control Capability
The ATV71HD37N4Z provides advanced flux vector control technology, supporting accurate speed and torque regulation for machines requiring stable motor performance under changing loads.

Powerful Industrial Drive Capacity
With a 37 kW motor rating, this drive is suitable for medium and high-power applications where consistent output performance and reliable operation are required.

Flexible Automation System Integration
The drive supports industrial communication functions such as Modbus and CANopen, allowing convenient connection with PLC systems and industrial control networks.

Reliable Operation for Continuous Processes
The industrial-grade construction helps maintain stable performance in production environments where unexpected downtime can affect operational efficiency.

Advanced Parameter Configuration
Engineers can adjust acceleration, deceleration, motor control parameters, and application settings to optimize machine performance for different operating conditions.

Efficient Maintenance and Diagnostics
Integrated monitoring and fault diagnosis functions help technicians identify problems quickly and reduce maintenance time during troubleshooting procedures.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the primary function of the Schneider ATV71HD37N4Z drive?
A: The ATV71HD37N4Z controls motor speed, torque, and operating characteristics by regulating output frequency and voltage in industrial applications.

Q2: What motor types are compatible with the ATV71HD37N4Z?
A: The drive supports compatible asynchronous motors and synchronous motors according to configured application requirements.

Q3: How should the drive be configured before commissioning?
A: Engineers should enter motor nameplate information, select suitable control modes, configure acceleration and deceleration parameters, and verify communication settings.

Q4: What causes an overcurrent fault during operation?
A: Common causes include excessive mechanical load, incorrect motor parameters, short circuits, improper acceleration settings, or motor-related problems.

Q5: How can communication failures with a PLC be diagnosed?
A: Check network wiring, communication addresses, PLC configuration, drive parameters, and communication status indicators.

Q6: Does the ATV71HD37N4Z support motor identification functions?
A: Yes. Motor tuning functions can help optimize control performance by identifying motor characteristics and improving drive response.

Q7: Why does the drive experience overheating alarms?
A: Possible causes include poor ventilation, blocked cooling channels, excessive operating load, or unsuitable installation conditions.

Q8: How can unstable motor speed problems be corrected?
A: Check motor settings, control mode selection, reference signals, feedback configuration, and mechanical load conditions.

Q9: Can drive parameters be backed up before replacement?
A: Yes. Saving configuration parameters helps reduce commissioning time when replacing or restoring drive settings.

Q10: What maintenance procedures are recommended for long-term operation?
A: Regular inspection of cooling conditions, electrical connections, fault records, and parameter settings helps maintain reliable performance.
