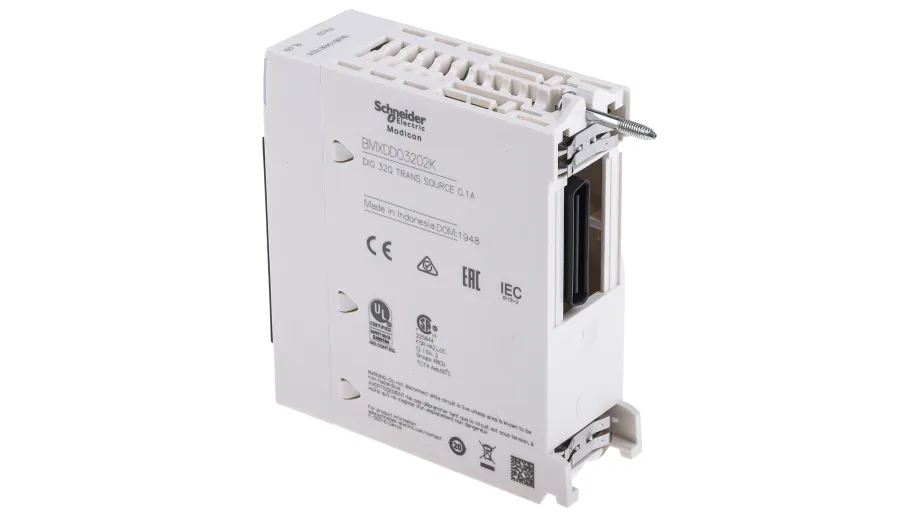

Schneider BMXDD0320 Discrete Output Module

Where It Excels in Industrial Use

• Modicon X80 PLC automation platforms
• Industrial machine control systems requiring reliable digital output expansion
• Factory automation and production line control
• Motor, valve, actuator, and solenoid control applications
• Packaging, material handling, and assembly equipment
• Process automation systems with distributed I/O requirements
• Schneider Electric M340 and M580 PLC architectures
• Control cabinets requiring compact high-density output modules

Key Strengths at a Glance

• Designed for Schneider Electric Modicon X80 automation platforms
• Provides 32 transistor-based discrete outputs
• Supports 24 VDC output control applications
• High-density I/O design saves cabinet space
• Fast response performance for industrial switching operations
• Suitable for controlling multiple field devices simultaneously
• Reliable solid-state switching technology for frequent operations
• Integrates easily into Schneider PLC-based automation systems

Technical FAQs

1. What is the primary function of the Schneider BMXDD0320?

The BMXDD0320 is a discrete output module used with Modicon X80 PLC systems to provide additional digital output channels for controlling external devices such as actuators, relays, valves, and indicators.

2. How many output channels does the BMXDD0320 provide?

The module provides 32 transistor discrete outputs for controlling multiple digital devices within an automation system.

3. Is the BMXDD0320 a relay output module?

No. The BMXDD0320 uses transistor solid-state outputs, which are designed for fast switching applications and frequent operating cycles.

4. What voltage level does the BMXDD0320 support?

The module is designed for 12/24 VDC discrete output applications within Modicon X80 PLC environments.

5. What types of devices can be controlled by the BMXDD0320?

Typical connected devices include contactors, solenoid valves, indicator lamps, small actuators, and other industrial field components requiring digital control signals.

6. Does the BMXDD0320 support high-speed switching?

Yes. Its transistor output design provides faster switching performance compared with traditional mechanical relay outputs, making it suitable for dynamic automation processes.

7. Which Schneider PLC platforms use the BMXDD0320?

The module belongs to the Modicon X80 I/O family and is designed for integration with Schneider M340 and M580 automation architectures.

8. Does the BMXDD0320 provide output protection?

Yes. The X80 transistor output modules include protection functions such as short-circuit and overload protection depending on the specific configuration.

9. Can the BMXDD0320 be used in industrial environments with continuous operation?

Yes. It is designed for industrial automation applications requiring stable operation, reliable switching, and long service life.

10. What software is used to configure the BMXDD0320?

The module is configured through Schneider Electric PLC programming environments such as Control Expert when integrated into Modicon automation systems.
