Brand:Schneider PLC Item No.:HMIS5T Product Origin:France Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

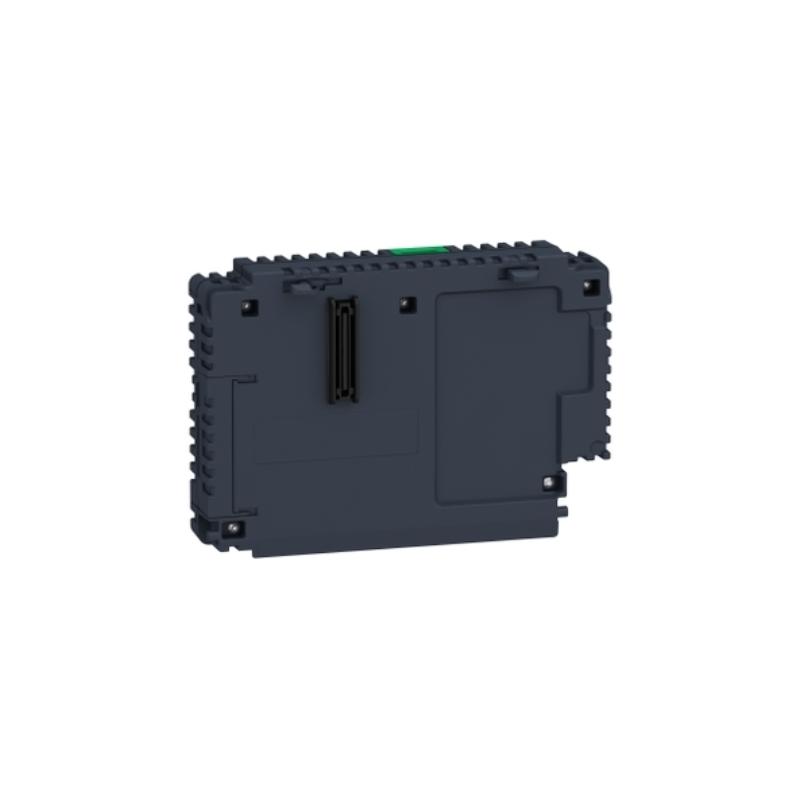

The Schneider HMIS5T HMI Rear Module is a modular operator interface component designed for the Harmony STU HMI platform. As the rear processing unit of the STU series, it works together with compatible HMIS65 and HMIS85 front displays to create a complete industrial touchscreen terminal.
Developed for compact automation applications, the HMIS5T combines reliable processing capability, flexible display compatibility, and efficient panel integration. Its modular architecture allows machine builders and system integrators to replace or configure HMI components according to application requirements without changing the complete terminal assembly.
With its compact footprint and Schneider Electric ecosystem compatibility, the HMIS5T is an effective solution for machine control, operator visualization, and industrial equipment monitoring applications.
Maintenance and retrofit projects for Schneider Magelis STU systems
Control cabinets where space-saving operator terminals are required
Key Strengths at a Glance
Designed for Schneider Electric Harmony STU HMI platforms
Functions as the rear module component for HMIS65 and HMIS85 displays
Supports modular front display replacement and configuration flexibility
Compatible with Vijeo Designer engineering software environment
Compact rear module design for efficient panel installation
Provides reliable communication and power connection interfaces
Suitable for Harmony STU 3.5-inch and 5.7-inch display combinations
Ideal for OEM machine builders requiring scalable HMI solutions
Technical FAQs
1. What is the main function of the Schneider HMIS5T?
The HMIS5T is a rear module designed for Harmony STU HMI terminals. It provides the processing hardware and connection interfaces required when combined with compatible HMIS65 or HMIS85 front displays. (se.com)
2. Is the HMIS5T a complete HMI terminal?
No. The HMIS5T is only the rear module. A compatible front display such as HMIS65 or HMIS85 is required to create a complete Harmony STU HMI terminal. (se.com)
3. Which displays are compatible with the HMIS5T?
The HMIS5T rear module can be combined with HMIS65 3.5-inch displays and HMIS85 5.7-inch displays within the Harmony STU product family. (se.com)
4. Which software is used to configure the HMIS5T?
The HMIS5T is configured using Schneider Electric Vijeo Designer software with the appropriate Harmony STU target selection. (se.com)
5. What type of applications use the HMIS5T?
Typical applications include machine monitoring, operator control panels, production equipment interfaces, and compact industrial automation systems.
6. Can the HMIS5T be used as a replacement module?
Yes. It can be used as a replacement rear module for compatible Harmony STU HMI installations requiring continued operation or system refurbishment.
7. Does the HMIS5T include a touchscreen display?
No. The touchscreen display is provided by the separate HMIS65 or HMIS85 front module.
8. What communication functions does the HMIS5T support?
The rear module provides the hardware platform for communication with PLCs and automation devices through supported serial and USB interfaces available in the Harmony STU system.
9. Is the HMIS5T suitable for OEM equipment manufacturers?
Yes. Its modular structure allows OEM builders to select suitable display sizes while maintaining a consistent HMI control platform.
10. Why choose the Schneider HMIS5T rear module?
The HMIS5T provides reliable compatibility with Harmony STU displays, simplified maintenance, and flexible configuration options for industrial HMI applications.
