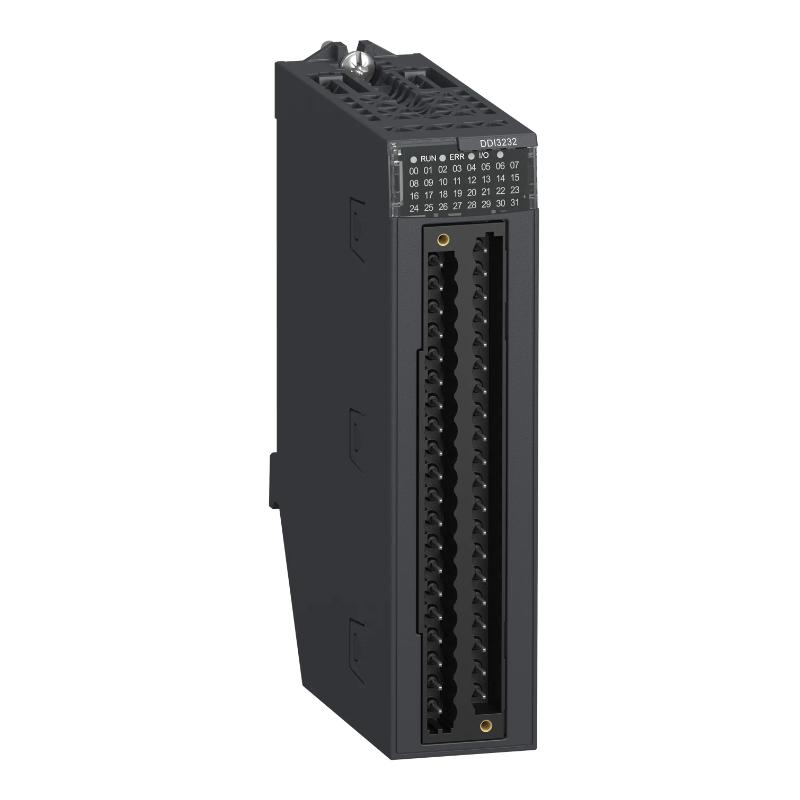

Schneider BMXDDI3232 Discrete Input Module

Industrial Applications and Automation Integration

The Schneider BMXDDI3232 Discrete Input Module is a reliable digital input expansion component designed for Modicon X80 automation platforms, providing accurate signal acquisition and efficient field device integration for industrial control systems. This module is widely used in PLC architectures where stable monitoring of sensors, switches, and binary field signals is required.

As part of the Schneider Modicon X80 I/O family, the BMXDDI3232 provides 32 isolated discrete input channels and supports 12 VDC and 24 VDC positive or negative logic configurations, making it suitable for a wide range of industrial automation applications.

Typical application areas include:

• PLC-based industrial automation systems
• Manufacturing production lines
• Machine status monitoring applications
• Packaging and assembly equipment
• Process control systems
• Energy and infrastructure automation
• Factory equipment modernization projects
• Remote I/O signal acquisition systems

The BMXDDI3232 helps automation engineers connect field devices with control platforms efficiently. Its compact modular design allows flexible installation inside PLC racks while supporting reliable signal monitoring for industrial processes requiring high availability and consistent performance.

Engineering Advantages and Product Performance Benefits

The Schneider BMXDDI3232 Discrete Input Module combines flexible digital input capability, strong compatibility with Modicon control platforms, and dependable industrial performance, making it an ideal choice for modern automation projects and system upgrades.

High-Density Digital Input Capability
The module provides 32 discrete input channels, allowing engineers to connect multiple field devices within a single PLC configuration. This high channel density helps reduce cabinet space requirements and simplifies system architecture.

Flexible Voltage Compatibility
Supporting 12 VDC and 24 VDC input signals, the BMXDDI3232 can adapt to different industrial sensor and switching applications, improving system flexibility during machine design and retrofit projects.

Reliable Signal Processing Performance
The module provides stable digital signal detection with optimized response characteristics, helping PLC systems accurately capture field device states during continuous operation.

Modicon X80 Platform Integration
Designed for Schneider Modicon X80 architectures, the module allows convenient integration with M340 and M580 automation environments, supporting scalable control system development.

Simplified Maintenance and Diagnostics
Integrated status indicators help maintenance personnel quickly identify module operation status and channel-level signal conditions, improving troubleshooting efficiency.

Suitable for Industrial Modernization Projects
The BMXDDI3232 provides a practical solution for replacing aging I/O systems while maintaining reliable PLC-based automation performance.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the primary function of the Schneider BMXDDI3232 module?
A: The BMXDDI3232 receives digital signals from field devices and transfers their status information to the PLC control system for processing.

Q2: How many input channels does the BMXDDI3232 provide?
A: The module provides 32 discrete input channels for connecting industrial sensors, switches, and digital devices.

Q3: What type of input signals are supported by this module?
A: The module supports 12 VDC and 24 VDC discrete input signals with positive or negative logic operation.

Q4: Why does the PLC fail to detect an input signal?
A: Possible causes include incorrect field wiring, sensor failure, insufficient input voltage, damaged terminals, or incorrect PLC configuration.

Q5: How can an input channel fault be diagnosed?
A: Check the channel LED status, measure field voltage, verify wiring connections, and review PLC diagnostic information.

Q6: Can the BMXDDI3232 be used with proximity sensors?
A: Yes. The module supports compatibility with suitable two-wire and three-wire proximity sensors conforming to industrial sensor standards.

Q7: What causes unstable digital input signals?
A: Signal instability may result from electrical interference, poor grounding, incorrect wiring, sensor problems, or unstable field power supply.

Q8: How should the module be configured in a PLC project?
A: Engineers should correctly define the hardware configuration, input addresses, communication parameters, and application logic before operation.

Q9: What should be checked before replacing a BMXDDI3232 module?
A: Verify the module model, PLC configuration backup, wiring arrangement, and replacement compatibility before installation.

Q10: How can long-term module reliability be improved?
A: Regular inspection of wiring conditions, cabinet environment, power quality, and PLC diagnostics helps maintain stable operation.
