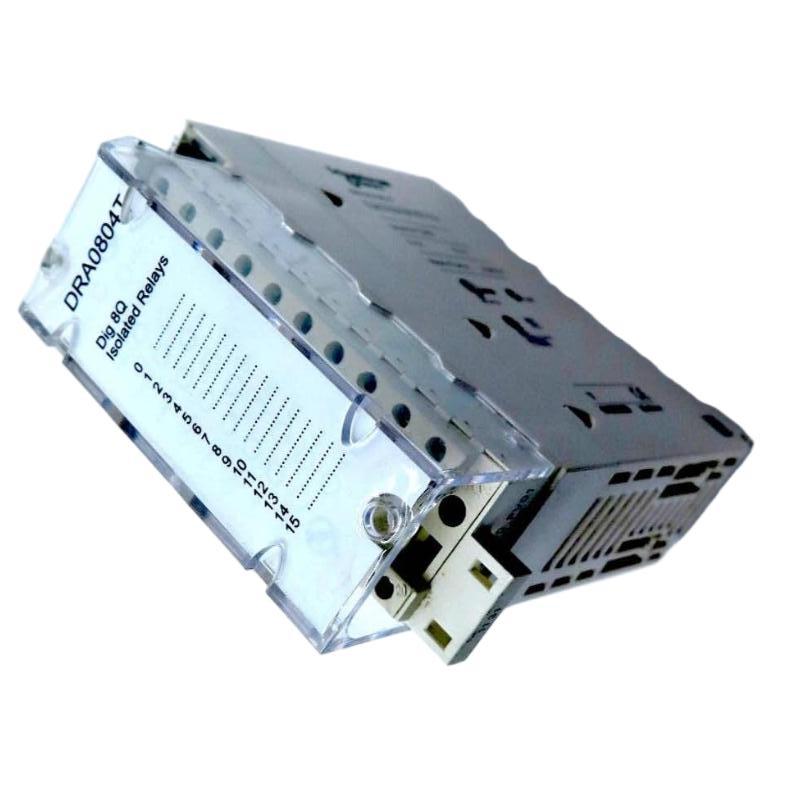

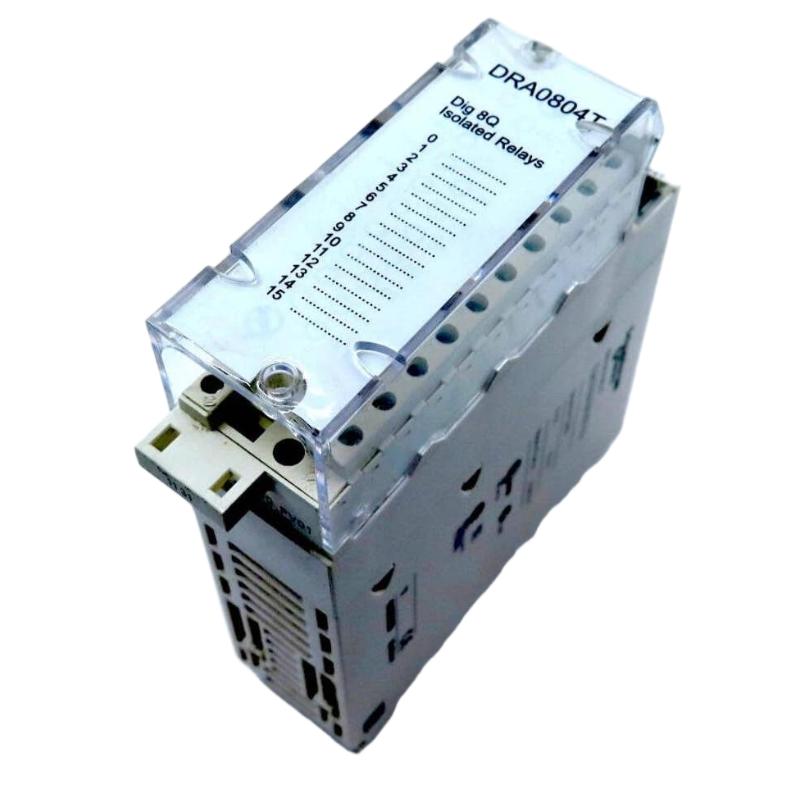

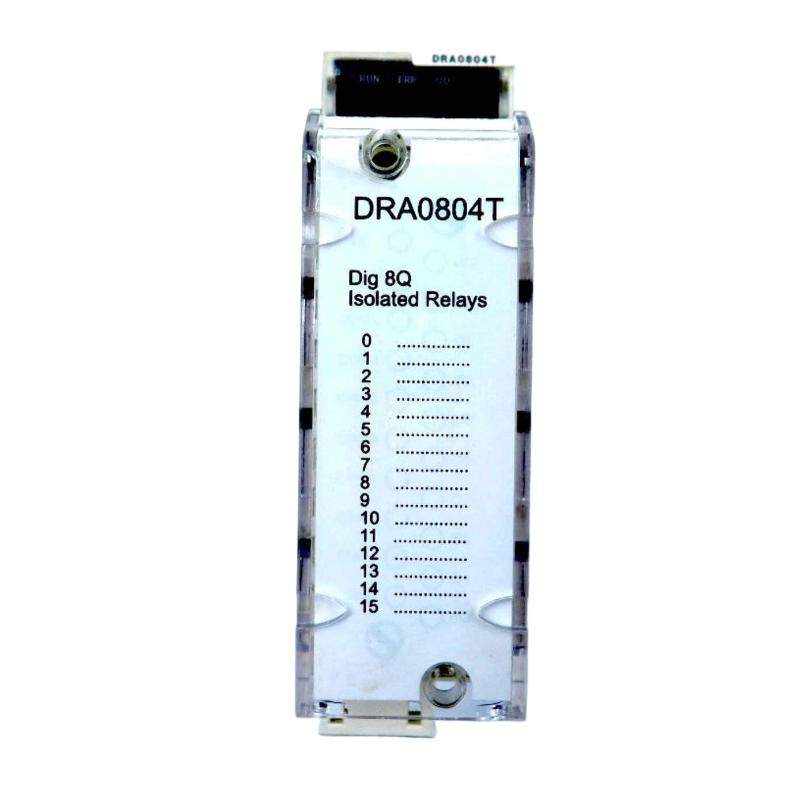

Schneider BMXDRA0804T Discrete Output Module

Industrial Applications and Automation Integration

The Schneider BMXDRA0804T Discrete Output Module is a reliable industrial automation output component designed for Modicon X80 PLC platforms, providing stable relay-based switching control for industrial equipment, actuators, and field devices. This module is engineered for applications where dependable digital output performance and flexible control integration are essential.

As part of the Schneider Modicon X80 I/O family, the BMXDRA0804T provides 8 relay output channels with support for 100–150 VDC output applications, making it suitable for industrial systems requiring robust switching capability and extended temperature operation.

Typical application areas include:

• PLC-based machine automation systems
• Industrial motor control auxiliary circuits
• Process equipment control applications
• Power and energy automation systems
• Manufacturing production lines
• Packaging and material handling machinery
• Industrial control cabinet installations
• Existing Modicon M340 and M580 system expansions

The BMXDRA0804T helps engineers connect PLC control logic with external electrical devices through reliable relay outputs. Its modular design simplifies system expansion while maintaining the flexibility and reliability required for industrial automation projects.

Engineering Advantages and Product Performance Benefits

The Schneider BMXDRA0804T Discrete Output Module combines relay switching capability, Modicon X80 compatibility, and industrial-grade reliability, making it a practical solution for automation systems requiring dependable output control.

Reliable Relay Output Performance
The module provides 8 relay output channels designed for industrial switching applications, allowing PLC systems to control external devices with stable and consistent operation.

Flexible Industrial Voltage Support
Supporting 100–150 VDC output applications, the BMXDRA0804T can be integrated into various industrial control circuits where relay isolation and dependable switching are required.

Modicon X80 Platform Integration
Designed for Schneider Modicon X80 architectures, the module provides seamless integration with compatible PLC systems, supporting scalable automation solutions for different industrial applications.

Extended Temperature Capability
The module is developed for extended temperature environments, allowing reliable operation in industrial installations with demanding environmental conditions.

Improved System Diagnostics
Integrated LED indicators provide clear operating and channel status information, helping maintenance teams quickly identify output conditions and simplify troubleshooting.

Space-Efficient PLC Expansion
With its compact modular design, the BMXDRA0804T helps reduce control cabinet space requirements while increasing the available output capacity of automation systems.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the main function of the Schneider BMXDRA0804T module?
A: The BMXDRA0804T provides relay-based digital outputs from a Modicon PLC system to control external industrial devices.

Q2: How many output channels does the BMXDRA0804T provide?
A: The module provides 8 discrete relay output channels for industrial switching applications.

Q3: What type of loads can be controlled by this output module?
A: It can control compatible industrial loads such as contactors, valves, indicators, and other relay-controlled devices.

Q4: Why does an output channel fail to activate?
A: Possible causes include incorrect PLC configuration, wiring problems, relay contact issues, insufficient field power, or module faults.

Q5: How can an output fault be diagnosed?
A: Check PLC logic status, channel indicator LEDs, terminal wiring, load conditions, and module diagnostic information.

Q6: Does the BMXDRA0804T provide electrical isolation?
A: Yes. Relay outputs provide isolation between PLC control signals and connected external circuits.

Q7: What causes relay output contact failure?
A: Common causes include excessive load current, electrical arcing, unsuitable load type, or frequent switching cycles.

Q8: How should the module be configured in the PLC project?
A: Engineers should define the hardware configuration, rack position, I/O addressing, and application logic before operation.

Q9: Can the BMXDRA0804T be used in retrofit projects?
A: Yes. It is suitable for upgrading or expanding compatible Modicon X80-based automation systems.

Q10: What maintenance practices improve output module reliability?
A: Regular inspection of terminal connections, load conditions, cabinet environment, and diagnostic information helps maintain stable performance.
