Brand:Schneider PLC Item No.: BMENOC0331 Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider BMENOC0331 Communication Module is an advanced Ethernet networking solution designed for the Modicon M580 PLC platform. It provides additional communication capability for industrial automation systems requiring reliable Ethernet connectivity between controllers, field devices, supervisory platforms, and enterprise-level systems.
Engineered for modern industrial networks, the BMENOC0331 supports Ethernet-based communication services and helps simplify system integration through flexible networking functions, diagnostics, and web-based maintenance tools. Its modular design allows automation engineers to expand M580 architectures while maintaining a compact control cabinet footprint.
With strong performance, scalable connectivity, and seamless compatibility with Schneider Electric automation solutions, the BMENOC0331 is a practical choice for demanding industrial communication applications.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
BMENOC0331
Product Type
Communication Module
Product Range
Modicon M580
Communication Interface
Ethernet RJ45
Communication Protocols
Ethernet/IP, Modbus TCP
Ethernet Ports
3 × Ethernet Ports
Transmission Rate
10/100 Mbps Ethernet
Network Services
I/O Scanner, Messaging, FDR, SNMP, RSTP
Web Services
FactoryCast Configurable Web Server
Installation
Modicon X80 Ethernet + X-bus Rack
Power Supply
Internal Rack Power
Protection Rating
IP20
Operating Temperature
0 to 60°C
Mounting Type
PLC Rack Mounting
Dimensions (H × W × D)
Approx. 103.7 mm × 32 mm × 86 mm
Weight
Approx. 0.2 kg
Recommended Companion Models
Model
Product Name
BMEP582040
Modicon M580 High Performance Processor Module
BMENOC0321
Modicon M580 Ethernet Communication Module with Subnet Management
BMEXBP0800
Modicon X80 Eight Slot Ethernet Backplane
BMXP342020
Modicon M340 Processor Module
Frequently Selected Alternatives
Model
Product Name
BMENOC0301
Modicon M580 Ethernet Communication Module
BMENOC0311
Modicon M580 FactoryCast Ethernet Communication Module
BMENOC0321
Modicon M580 Three Subnet Ethernet Communication Module

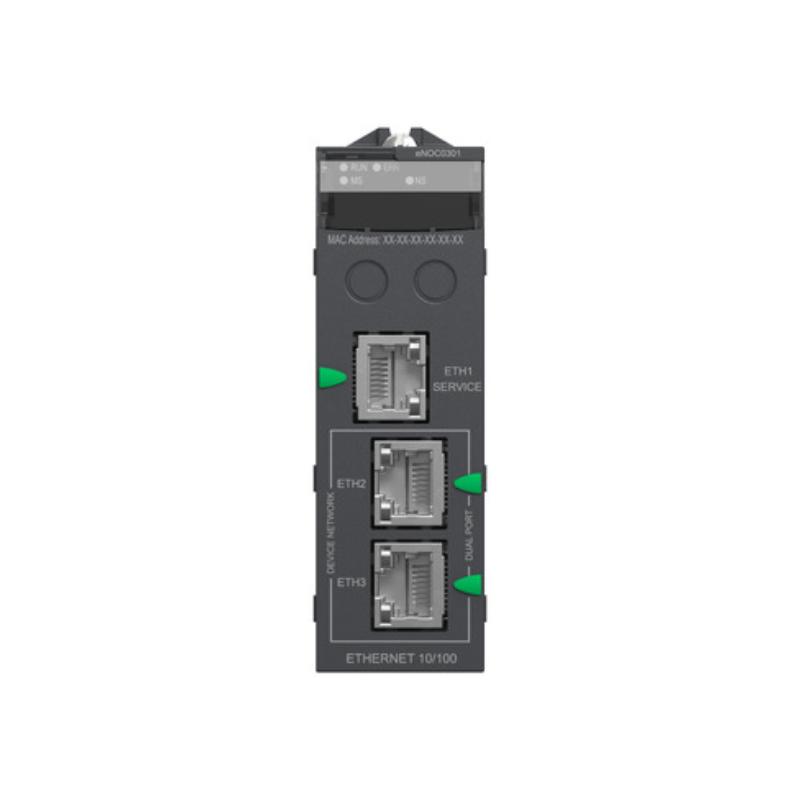

Compact modular design for efficient PLC rack installation
Technical FAQs
1. What is the main function of the Schneider BMENOC0331?
The BMENOC0331 is an Ethernet communication module designed for Modicon M580 PLC systems, providing additional network connectivity for industrial Ethernet communication applications.
2. Which PLC platform is compatible with the BMENOC0331?
The module is designed for Schneider Electric Modicon M580 automation platforms and works with compatible Ethernet + X-bus racks.
3. Which communication protocols does the BMENOC0331 support?
The module supports industrial Ethernet communication services including Ethernet/IP and Modbus TCP communication for PLC-to-device and PLC-to-system data exchange.
4. How many Ethernet ports does the BMENOC0331 provide?
The module provides multiple Ethernet RJ45 communication ports for flexible network connection and industrial Ethernet topology configuration.
5. Can the BMENOC0331 communicate with remote I/O devices?
Yes. It can be integrated into Modicon M580 architectures for communication with distributed devices and Ethernet-based automation equipment.
6. Does the BMENOC0331 support web-based diagnostics?
Yes. The module includes web server functions that assist engineers with commissioning, monitoring, and maintenance tasks.
7. Is the BMENOC0331 installed on a standard PLC rack?
Yes. The module is installed on Modicon X80 Ethernet + X-bus racks and receives power through the rack backplane.
8. What type of applications commonly use the BMENOC0331?
Typical applications include process automation, manufacturing systems, machine networks, SCADA communication, and industrial Ethernet integration projects.
9. Does the BMENOC0331 require external power wiring?
No. The module receives internal power directly through the PLC rack connection.
10. Why choose a Schneider Electric Ethernet communication module?
A Schneider communication module ensures native compatibility with Modicon M580 systems, stable industrial networking performance, and simplified integration within Schneider automation environments.
