Product Introduction

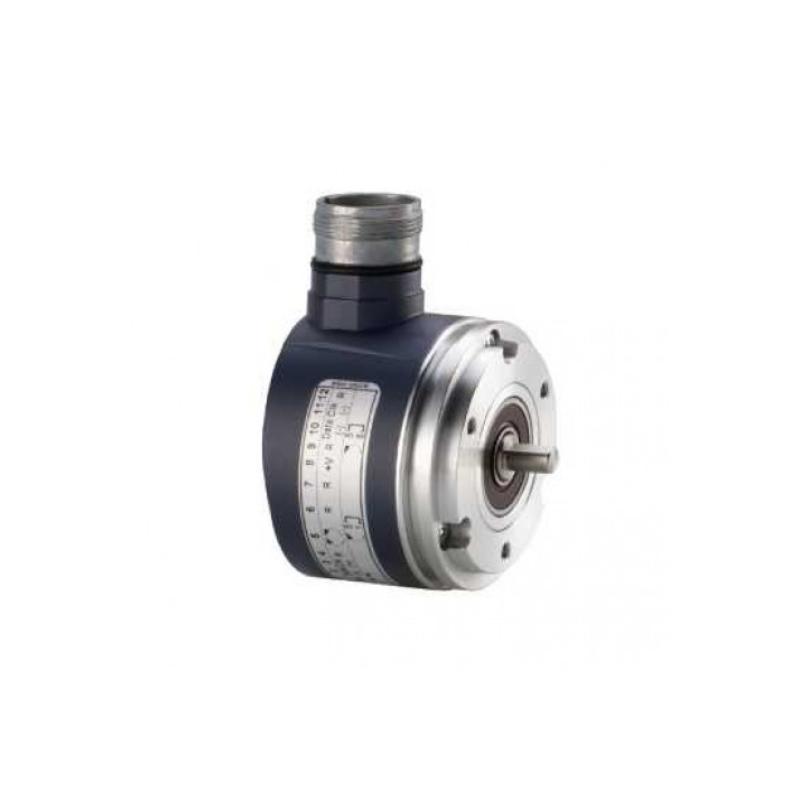

The Schneider XCC-1930TS10RN Incremental Encoder Module is a high-performance rotary feedback device from the OsiSense XCC encoder family, developed for industrial automation applications requiring accurate rotational measurement and reliable position feedback. With a 1000-point incremental resolution, this encoder delivers precise feedback signals for motion control systems, machine automation equipment, and industrial positioning applications.

Featuring a 90 mm diameter through-shaft structure, 30 mm shaft compatibility, and 5 V RS422 differential output, the XCC-1930TS10RN provides stable signal transmission even in electrically demanding industrial environments. Its M23 connector design and IP65 protection rating support secure installation in production machinery and automated equipment.

Built for professional automation applications, this Schneider encoder combines mechanical durability, accurate feedback performance, and straightforward system integration, making it a valuable component for OEM machine builders and industrial control engineers.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Model	XCC-1930TS10RN
Product Type	Incremental Encoder Module
Product Range	OsiSense XCC
Encoder Type	Incremental Rotary Encoder
Resolution	1000 Points
Diameter	90 mm
Shaft Type	Through Shaft
Shaft Diameter	30 mm
Output Type	RS422 Differential Driver
Supply Voltage	5 V DC
Voltage Range	4.5–5.5 V DC
Connection Type	M23 Male Radial 12-pin Connector
Number of Channels	3 Channels
Maximum Speed	3600 rpm
Output Frequency	100 kHz
Protection Rating	IP65
Housing Material	Zamak Metal Alloy
Shaft Material	Stainless Steel
Operating Temperature	-20°C to +80°C
Maximum Radial Load	8 daN
Maximum Axial Load	5 daN
Dimensions	Approx. Ø90 mm × Length 96 mm
Weight	Approx. 0.96 kg

Recommended Companion Models

Model	Product Name
XCC-1930TS05RN	OsiSense XCC Incremental Encoder 500 Points RS422 Output
XCC-1930TS11RN	OsiSense XCC Incremental Encoder 1024 Points RS422 Output
XCC-1930TS25RN	OsiSense XCC Incremental Encoder 2500 Points RS422 Output
XZC-C23FDP120S	OsiSense Encoder Female M23 Connector Kit

Frequently Selected Alternatives

Model	Product Name
XCC-1930TS10KN	OsiSense XCC Incremental Encoder 1000 Points Push-Pull Output
XCC-1912PS10RN	OsiSense XCC Incremental Encoder 1000 Points Through Shaft Encoder
XCC-1930TS50RN	OsiSense XCC Incremental Encoder 5000 Points RS422 Output
XCC-1930TS00RN	OsiSense XCC Incremental Encoder 10000 Points RS422 Output

Where It Excels in Industrial Use

Precision position feedback systems for industrial automation equipment
Machine tool applications requiring accurate rotational measurement
Packaging and material handling machinery
Printing, textile, and processing equipment with motion control requirements
Servo and motor feedback applications in production lines
Industrial indexing and positioning systems
OEM automation equipment requiring reliable encoder performance
Retrofit projects replacing aging incremental encoder solutions

Key Strengths at a Glance

Designed for Schneider Electric OsiSense XCC incremental encoder systems
Provides 1000-point incremental position resolution
Through-shaft design with 30 mm shaft diameter compatibility
5 V DC supply with RS422 differential driver output
M23 radial connector interface for secure industrial wiring
IP65 protection rating suitable for demanding environments
High-speed operation up to 3600 rpm
Robust metal housing design for long-term industrial reliability

Technical FAQs

1. What is the main function of the Schneider XCC-1930TS10RN?

The XCC-1930TS10RN is an incremental rotary encoder designed to provide accurate rotational position and speed feedback for industrial automation systems.

2. What resolution does the XCC-1930TS10RN provide?

The encoder provides a resolution of 1000 points per revolution, allowing precise motion measurement and position control.

3. What type of output signal does the XCC-1930TS10RN use?

The encoder uses a 5 V RS422 differential driver output stage, which provides stable signal transmission for industrial control systems.

4. What applications are suitable for the XCC-1930TS10RN?

It is commonly used in machine automation, motion control, positioning systems, and industrial equipment requiring incremental rotary feedback.

5. What shaft design does the XCC-1930TS10RN have?

The encoder features a through-shaft design with a 30 mm shaft diameter, allowing direct mechanical integration with compatible rotating equipment.

6. Which connector is used on the XCC-1930TS10RN?

The encoder uses a radial M23 male 12-pin connector for electrical connection.

7. What supply voltage is required for the XCC-1930TS10RN?

The encoder operates with a 5 V DC power supply, with an allowable voltage range of approximately 4.5 to 5.5 V DC.

8. Can the XCC-1930TS10RN operate in industrial environments?

Yes. With an IP65 enclosure rating and durable metal construction, it is designed for reliable operation in industrial automation environments.

9. What is the maximum operating speed of the XCC-1930TS10RN?

The encoder supports a maximum rotational speed of 3600 rpm, making it suitable for many high-speed industrial motion applications.

10. Why choose the XCC-1930TS10RN for motion feedback applications?

Its combination of high-resolution feedback, RS422 output stability, robust mechanical design, and Schneider compatibility makes it a dependable solution for industrial position monitoring.
