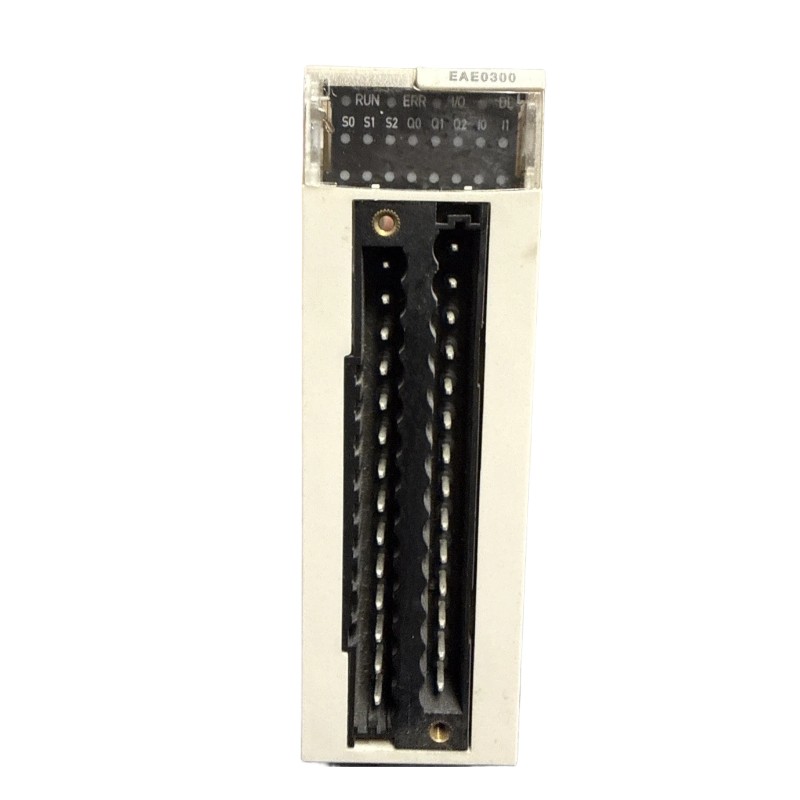

Schneider BMXEAE0300 SSI Encoder Interface Module

Industrial Applications and Automation Integration

The Schneider BMXEAE0300 SSI Encoder Interface Module is a specialized industrial automation module designed for Modicon X80 PLC platforms, providing high-precision position feedback acquisition from SSI (Synchronous Serial Interface) absolute encoders. This module enables PLC systems to directly process encoder position data, making it an ideal solution for motion control, positioning systems, and advanced industrial automation applications.

As part of the Schneider Modicon X80 expert module family, the BMXEAE0300 supports three SSI encoder channels, allowing engineers to integrate multiple absolute encoders into a single PLC architecture. It supports encoder data widths from 8 to 31 bits and multiple communication speeds up to 1 Mbaud, providing flexible configuration options for demanding motion applications.

Typical application areas include:

• CNC machines requiring accurate axis positioning
• Robotics and automated handling systems
• Servo motion control applications
• Packaging and production machinery
• Material handling equipment
• Industrial positioning systems
• Manufacturing automation lines
• Motion monitoring and synchronization applications

The BMXEAE0300 helps bridge the communication gap between SSI absolute encoders and Schneider PLC systems. Its advanced position acquisition capability allows automation engineers to achieve improved motion accuracy, faster response times, and more reliable machine operation.

Engineering Advantages and Product Performance Benefits

The Schneider BMXEAE0300 SSI Encoder Interface Module combines advanced encoder communication capability, precise position measurement, and seamless Modicon X80 integration, making it a valuable component for high-performance automation systems.

Three-Channel SSI Encoder Integration
The module provides three independent SSI input channels, allowing multiple absolute encoders to be connected directly to the PLC system for accurate position monitoring and motion feedback applications.

High-Accuracy Position Acquisition
The BMXEAE0300 can automatically read SSI encoder position values with fast acquisition performance, helping control systems achieve precise motion monitoring and improved machine synchronization.

Flexible Encoder Configuration Capability
Supporting 8 to 31-bit encoder data formats and multiple baud rates, the module can adapt to different SSI encoder specifications used in industrial motion systems.

Advanced Capture and Compare Functions
Integrated capture inputs and reflex outputs allow engineers to create fast response motion applications where position events need to trigger specific control actions.

Modicon X80 Platform Compatibility
Designed for Schneider PLC architectures, the module integrates efficiently with Modicon automation systems and supports simplified configuration through Schneider engineering software environments.

Improved Motion System Reliability
By providing direct SSI encoder communication, the BMXEAE0300 reduces additional conversion hardware and helps improve overall system stability and maintenance efficiency.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the main function of the Schneider BMXEAE0300 module?
A: The BMXEAE0300 receives SSI absolute encoder signals and transfers precise position information to Modicon PLC systems for motion control and monitoring.

Q2: How many SSI encoder channels does the BMXEAE0300 support?
A: The module supports three SSI encoder channels for connecting multiple absolute encoder devices.

Q3: What type of encoders can be connected to this module?
A: The module supports standard SSI absolute encoders with compatible voltage and communication specifications.

Q4: Why does the PLC receive incorrect encoder position values?
A: Possible causes include incorrect SSI configuration, incompatible encoder settings, wiring problems, incorrect baud rate, or improper data length configuration.

Q5: How can SSI communication faults be diagnosed?
A: Check encoder power supply, DATA and CLOCK wiring, module configuration parameters, communication speed settings, and PLC diagnostic information.

Q6: What causes unstable encoder feedback signals?
A: Signal instability may result from electrical interference, improper shielding, cable problems, grounding issues, or incorrect installation practices.

Q7: Does the BMXEAE0300 support high-speed motion applications?
A: Yes. Its SSI communication capability and capture functions make it suitable for applications requiring accurate position feedback and fast response.

Q8: How should the module be configured in EcoStruxure Control Expert?
A: Engineers should configure the module type, SSI channel parameters, encoder data format, communication speed, and application-specific settings.

Q9: What should be checked before replacing a BMXEAE0300 module?
A: Verify PLC configuration data, encoder parameters, wiring connections, and compatibility with the existing Modicon X80 system.

Q10: How can long-term SSI module reliability be improved?
A: Regular inspection of encoder cables, shielding connections, cabinet conditions, and diagnostic records helps maintain stable operation.
