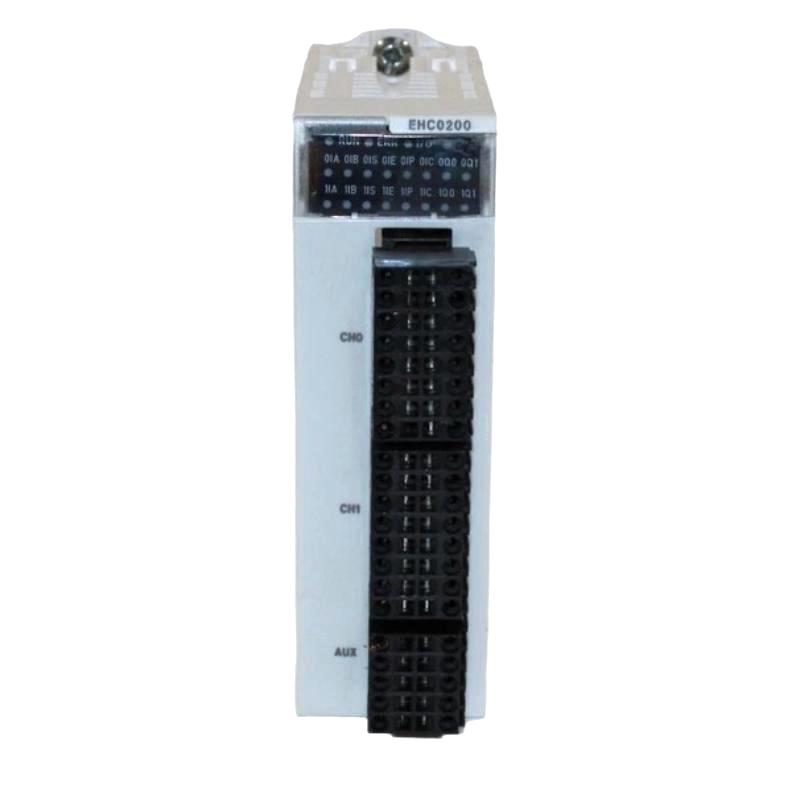

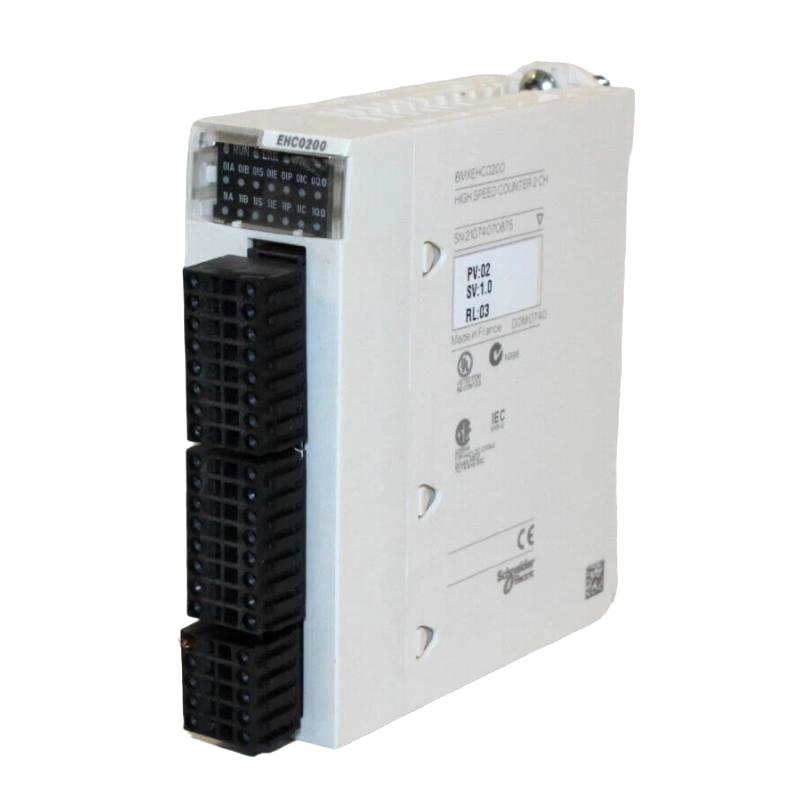

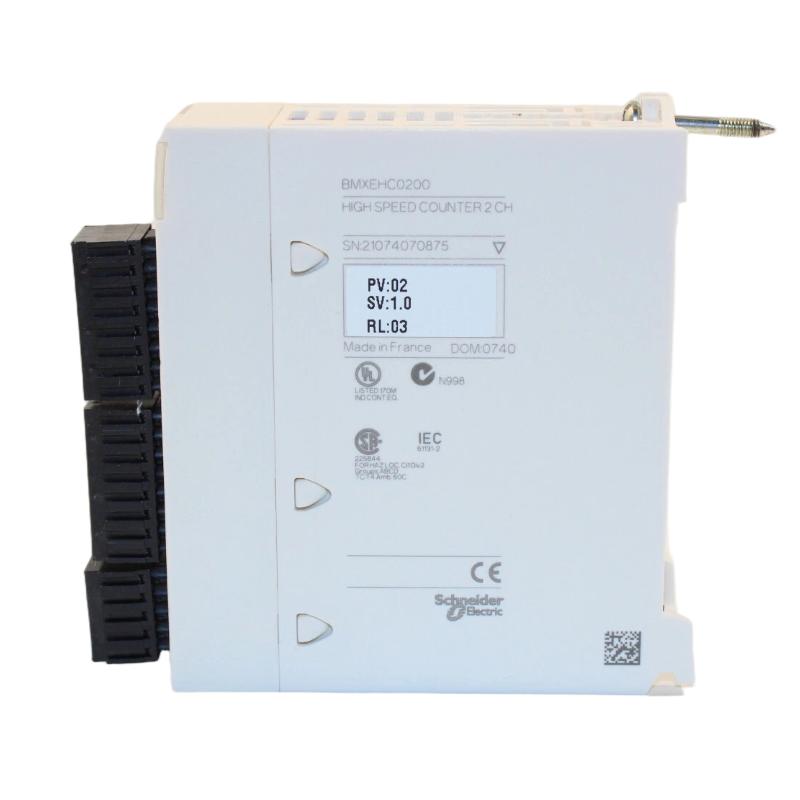

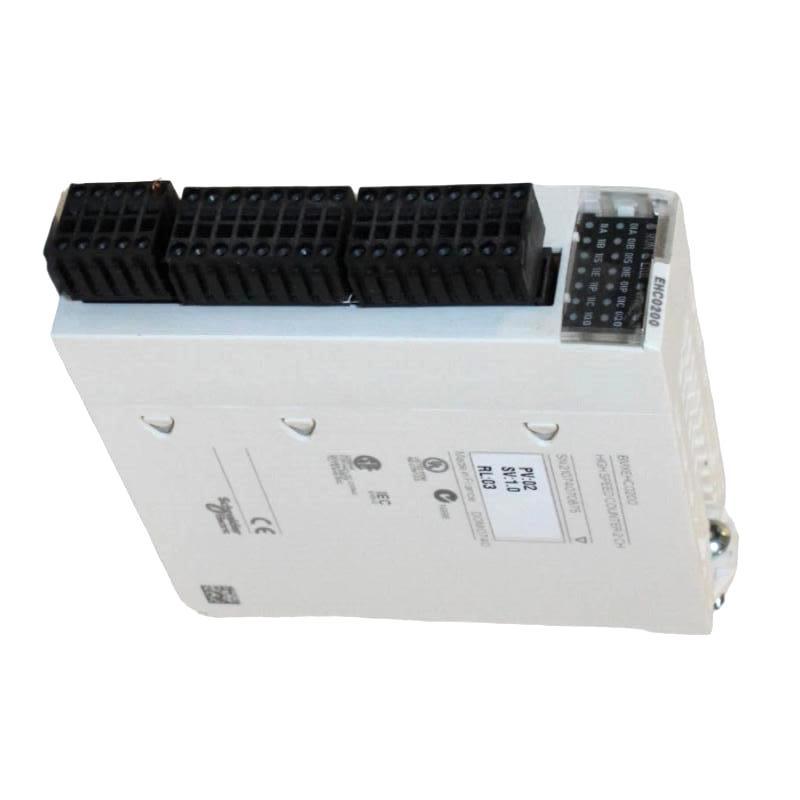

The Schneider BMXEHC0200 High-Speed Counter Module is a professional automation expansion module designed for accurate pulse processing within Schneider Modicon M340 PLC systems.
Unlike standard digital input modules that depend on PLC scan time, the BMXEHC0200 uses dedicated high-speed counting technology to capture rapid signals from industrial devices. This makes it suitable for applications where counting accuracy, timing precision, and fast response are critical.
The module supports two high-speed channels and provides various counting functions for industrial automation tasks, including production counting, rotational speed monitoring, encoder feedback processing, and measurement applications.
For machine builders, system integrators, and maintenance engineers, the BMXEHC0200 provides a reliable method to enhance PLC capabilities without replacing the main controller. Its compact design and powerful counting functions make it suitable for upgrading existing automation systems and developing new high-performance machines.
With Schneider’s Modicon technology, the BMXEHC0200 helps improve machine accuracy, increase production efficiency, and create more responsive industrial control systems.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
BMXEHC0200
Product Type
High-Speed Counter Module
Automation Platform
Modicon M340
Module Category
Expert Module
Number of Channels
2 High-Speed Counter Channels
Counting Frequency
Up to 60 kHz
Input Compatibility
24 VDC Sensors / Incremental Encoders
Input Type
High-Speed Digital Input
Counting Functions
Event Counting, Frequency Measurement, Ratio Counting, Period Measurement
Counter Resolution
32-bit Counter
Output Type
24 VDC Reflex Output
Mounting Type
PLC Rack Mount
Communication Method
Modicon Backplane Communication
Application
High-Speed Industrial Counting and Measurement
Dimensions
32 × 103.7 × 86 mm
Weight
0.11 kg (0.25 lb)
Recommended Related Models for System Expansion
Model
Product Type
Application
BMXEHC0800
High-Speed Counter Module
Multi-channel high-speed counting applications
BMXEAE0300
SSI Encoder Interface Module
Absolute encoder position feedback
BMXAMI0410
Analog Input Module
Industrial analog measurement applications
BMXDDI3232
Discrete Input Module
Digital field signal acquisition
Popular Related Models in Industrial Automation
Model
Product Type
BMXEHC0200
Modicon M340 High-Speed Counter Module
BMXEHC0800
High-Speed Counter Module
BMXEAE0300
SSI Encoder Interface Module
BMXDDI3232
Discrete Input Module
BMXDRA0805
Discrete Output Module
Industrial Applications and Automation Integration
The Schneider BMXEHC0200 High-Speed Counter Module is a specialized industrial automation module designed for the Modicon M340 PLC platform, providing high-speed pulse counting and precise measurement functions for demanding automation applications. This module is developed for systems that require accurate counting, frequency measurement, position tracking, and fast signal processing beyond the capability of standard PLC inputs.
As part of Schneider’s expert module family, the BMXEHC0200 provides 2 high-speed counting channels and supports applications involving incremental encoders, proximity sensors, and pulse-based measurement devices. With high-frequency counting capability, it enables PLC systems to process rapid field signals while maintaining reliable control performance.
Typical application areas include:
High-speed packaging and filling machines
Conveyor speed monitoring systems
Rotary encoder position detection
Production line counting applications
Material handling equipment
Machine synchronization systems
Industrial measurement and monitoring equipment
Motion-related automation applications
The BMXEHC0200 helps automation engineers improve system accuracy by providing dedicated high-speed signal processing hardware. Compared with standard digital input modules, it allows faster pulse acquisition and more reliable real-time counting performance, making it an important component for advanced industrial control systems.
Engineering Advantages and Product Performance Benefits
The Schneider BMXEHC0200 High-Speed Counter Module combines fast signal processing, flexible counting functions, and Modicon M340 compatibility to deliver dependable performance for industrial automation applications.
High-Speed Counting Capability
The module supports high-speed pulse counting with two dedicated channels, allowing PLC systems to process fast-changing signals from encoders and industrial sensors accurately.
Advanced Counting Functions
The BMXEHC0200 supports multiple operating modes, including event counting, frequency measurement, ratio counting, period measurement, and 32-bit counting functions, providing flexibility for different machine requirements.
Encoder and Sensor Compatibility
The module can connect with incremental encoders and compatible proximity sensors, making it suitable for position detection, speed monitoring, and production quantity measurement applications.
Fast Response for Industrial Processes
Dedicated hardware counting technology allows the module to capture high-frequency signals without relying only on PLC scan cycles, improving system response performance.
Modicon M340 Platform Integration
Designed for Schneider Modicon M340 automation systems, the BMXEHC0200 integrates smoothly into PLC architectures and simplifies engineering configuration.
Reliable Industrial Operation
The module features industrial-grade construction with stable operation characteristics, helping reduce downtime and improve automation system availability.
Technical FAQs and Professional Troubleshooting Guide
Q1: What is the main function of the Schneider BMXEHC0200 module?
A: The BMXEHC0200 processes high-speed pulse signals from encoders and sensors, allowing PLC systems to perform accurate counting and measurement operations.
Q2: How many counting channels does the BMXEHC0200 provide?
A: The module provides two high-speed counting channels for industrial signal processing applications.
Q3: What types of devices can be connected to this module?
A: The module supports compatible incremental encoders and high-speed pulse sensors used for industrial measurement and positioning applications.
Q4: Why does the counter value become inaccurate during operation?
A: Possible causes include incorrect parameter settings, electrical interference, poor signal wiring, improper encoder configuration, or exceeding the module’s counting capability.
Q5: How can missing pulse signals be diagnosed?
A: Check sensor power supply, signal wiring, shielding connection, input configuration, and module diagnostic information.
Q6: Can the BMXEHC0200 measure frequency signals?
A: Yes. The module supports frequency measurement functions for applications requiring real-time speed or signal monitoring.
Q7: What causes unstable encoder feedback signals?
A: Common causes include cable interference, incorrect grounding, damaged signal cables, unsuitable encoder settings, or incorrect installation methods.
Q8: How should the module be configured before commissioning?
A: Engineers should configure counting mode, input parameters, encoder settings, counting limits, and PLC application logic before operation.
Q9: Why does the module fail to count incoming pulses?
A: Possible reasons include incorrect channel configuration, missing sensor power, wrong wiring polarity, signal frequency exceeding limits, or module hardware faults.
Q10: What maintenance steps improve long-term reliability?
A: Regular inspection of signal cables, terminal connections, encoder conditions, PLC diagnostics, and cabinet environment helps maintain stable operation.
