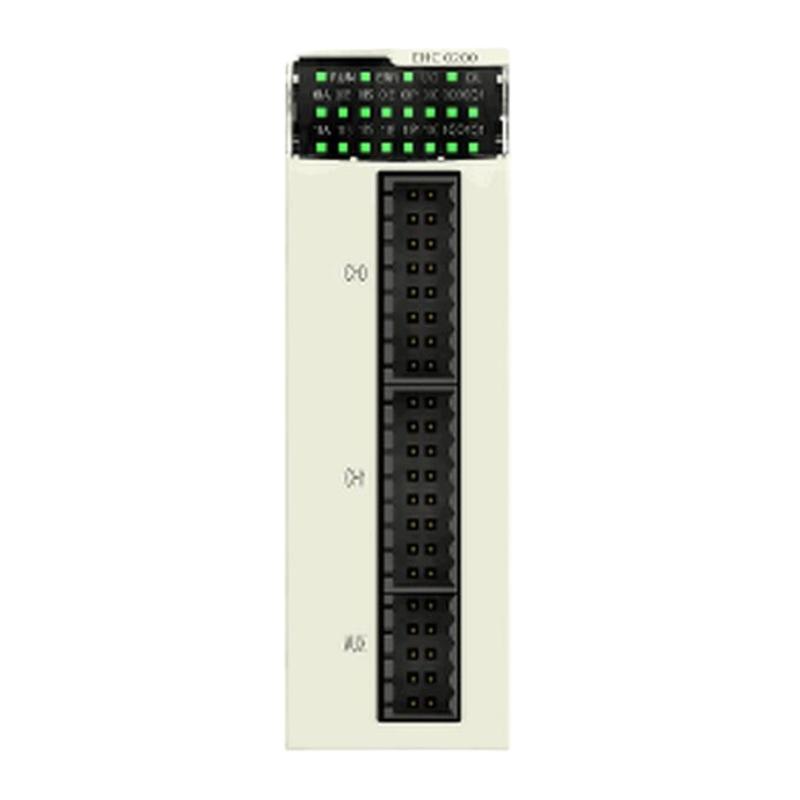

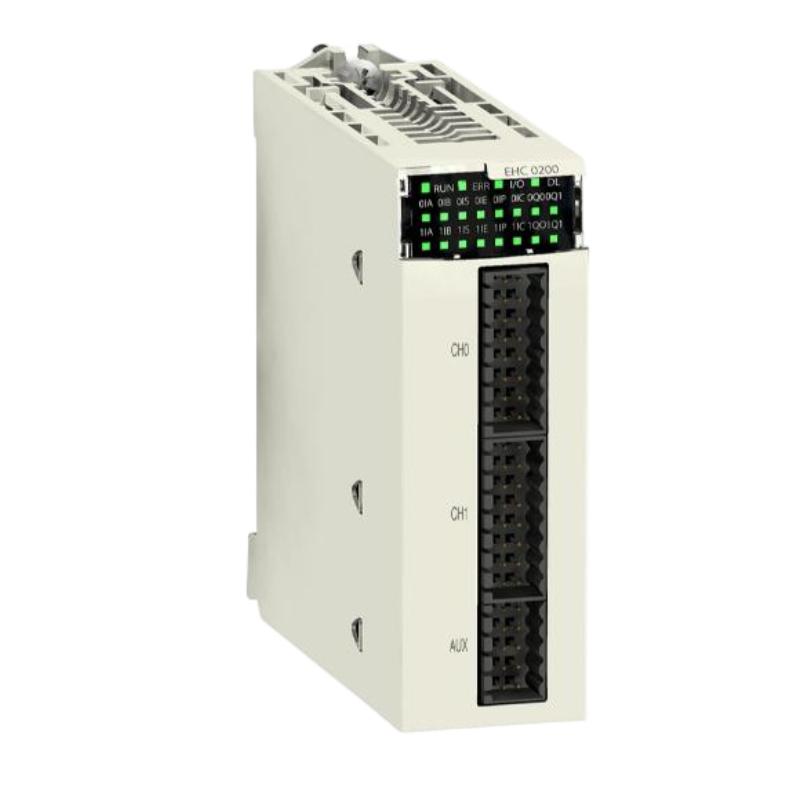

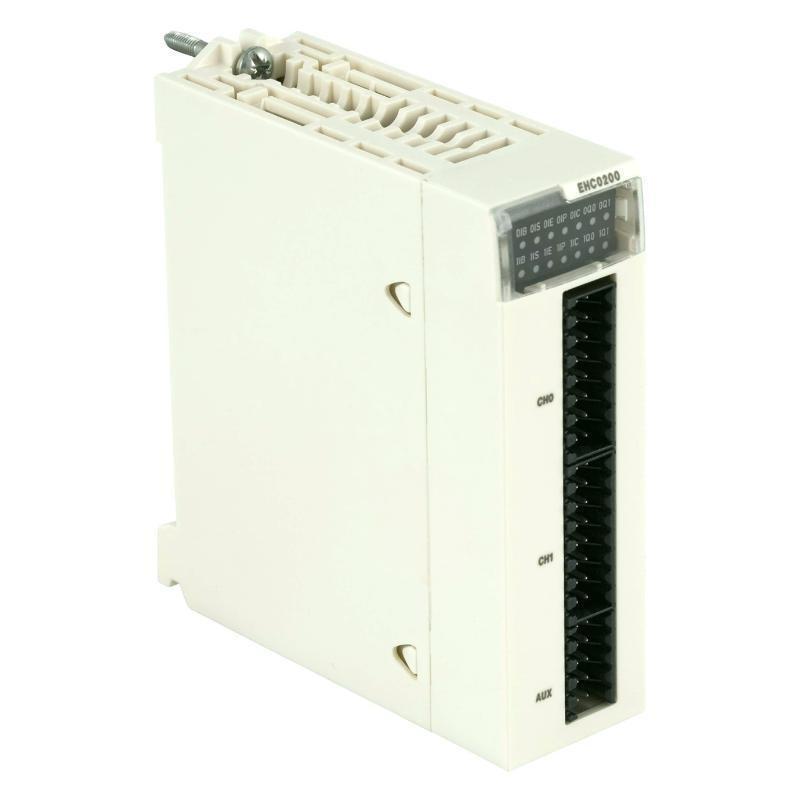

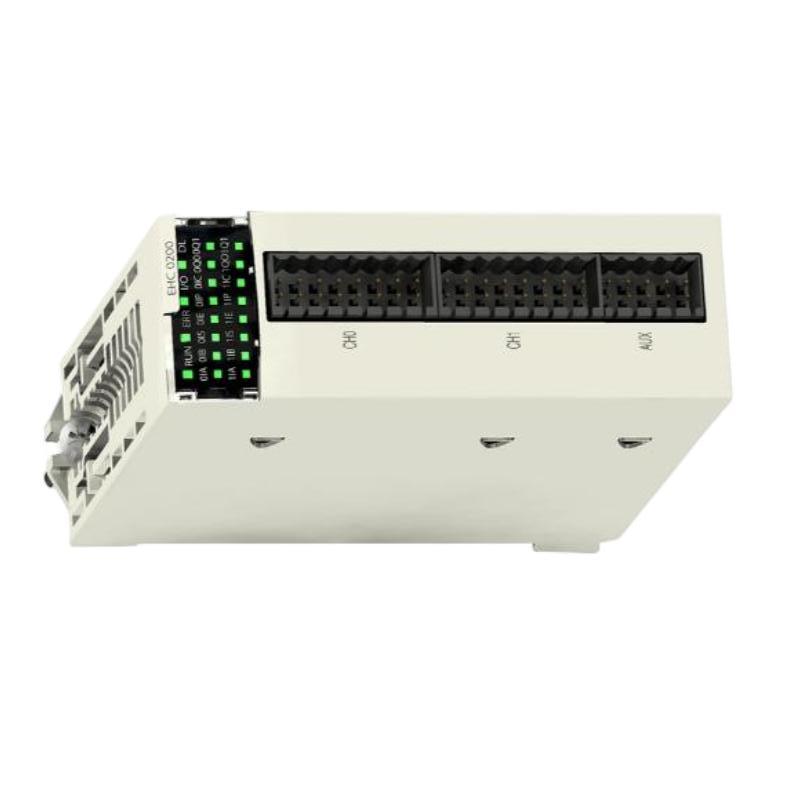

Schneider BMXEHC0200H High-Speed Counter Module

Industrial Applications and Automation Integration

The Schneider BMXEHC0200H High-Speed Counter Module is a ruggedized industrial automation module designed for Modicon M340 PLC platforms, providing high-speed pulse counting, precise signal measurement, and reliable operation in demanding industrial environments. This hardened version is developed for applications where standard automation components may face harsh operating conditions, including temperature variations, chemical exposure, and industrial contamination.

As a dedicated expert module, the BMXEHC0200H provides two high-speed counting channels for processing signals from incremental encoders, proximity sensors, and pulse-generating devices. It enables PLC systems to capture high-frequency signals independently from normal PLC scan cycles, improving counting accuracy and machine response performance.

Typical application areas include:

• High-speed production counting systems
• Industrial conveyor monitoring equipment
• Rotary encoder position tracking
• Packaging and filling machinery
• Motion synchronization applications
• Material processing equipment
• Harsh-environment manufacturing systems
• Heavy industrial automation installations

The BMXEHC0200H expands the capability of Modicon M340 automation systems by adding dedicated high-speed counting functions. Its hardened design makes it especially suitable for factories and process environments where equipment reliability and continuous operation are critical.

Engineering Advantages and Product Performance Benefits

The Schneider BMXEHC0200H High-Speed Counter Module combines fast pulse acquisition, rugged industrial construction, and flexible counting functions to provide a dependable solution for advanced automation systems.

High-Speed Pulse Processing Capability
The module uses dedicated counting hardware to process rapid input signals without depending entirely on PLC program scan time. This improves accuracy in applications involving high-frequency pulses and fast-moving equipment.

Dual Channel Counting Architecture
With two independent counting channels, the BMXEHC0200H allows engineers to monitor multiple devices simultaneously, supporting applications such as dual-axis measurement, production counting, and encoder-based positioning.

Hardened Industrial Design
The BMXEHC0200H features conformal coating and ruggedized construction, providing enhanced protection for automation systems installed in more severe industrial environments.

Encoder and Sensor Compatibility
The module supports 24 VDC sensors and compatible incremental encoder signals, allowing flexible connection with various industrial detection devices.

Advanced Measurement Functions
The module supports multiple counting modes, including event counting, frequency measurement, and position-related applications, helping engineers develop more accurate machine control strategies.

Improved System Reliability
By separating high-speed signal processing from standard PLC input scanning, the BMXEHC0200H reduces missed pulses and improves overall automation system stability.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the primary function of the Schneider BMXEHC0200H module?
A: The BMXEHC0200H processes high-speed pulse signals from industrial sensors and encoders, allowing PLC systems to perform accurate counting and measurement operations.

Q2: How many counting channels does the BMXEHC0200H provide?
A: The module provides two independent high-speed counting channels for industrial automation applications.

Q3: What devices can be connected to the BMXEHC0200H?
A: The module can interface with compatible 24 VDC sensors and incremental encoders with suitable signal outputs.

Q4: Why does the counter value become incorrect during machine operation?
A: Possible causes include incorrect parameter configuration, signal interference, poor wiring, encoder problems, or input frequency exceeding application limits.

Q5: How can missing pulse signals be diagnosed?
A: Check sensor power supply, signal cable connections, shielding, module configuration, and PLC diagnostic information.

Q6: Does the BMXEHC0200H support encoder position monitoring?
A: Yes. The module can process incremental encoder signals for position detection and motion-related applications.

Q7: What causes unstable counting results?
A: Electrical noise, incorrect grounding, damaged cables, improper filtering settings, and unstable sensor signals can cause counting errors.

Q8: How should the module be configured before commissioning?
A: Engineers should configure channel operation mode, counting parameters, input settings, encoder characteristics, and PLC application logic.

Q9: Why does the module fail to detect incoming pulses?
A: Possible reasons include incorrect wiring, disabled channels, unsuitable sensor output type, incorrect configuration, or hardware problems.

Q10: How can long-term reliability of the BMXEHC0200H be maintained?
A: Regular inspection of signal wiring, connector conditions, cabinet environment, and diagnostic records helps ensure stable operation.
