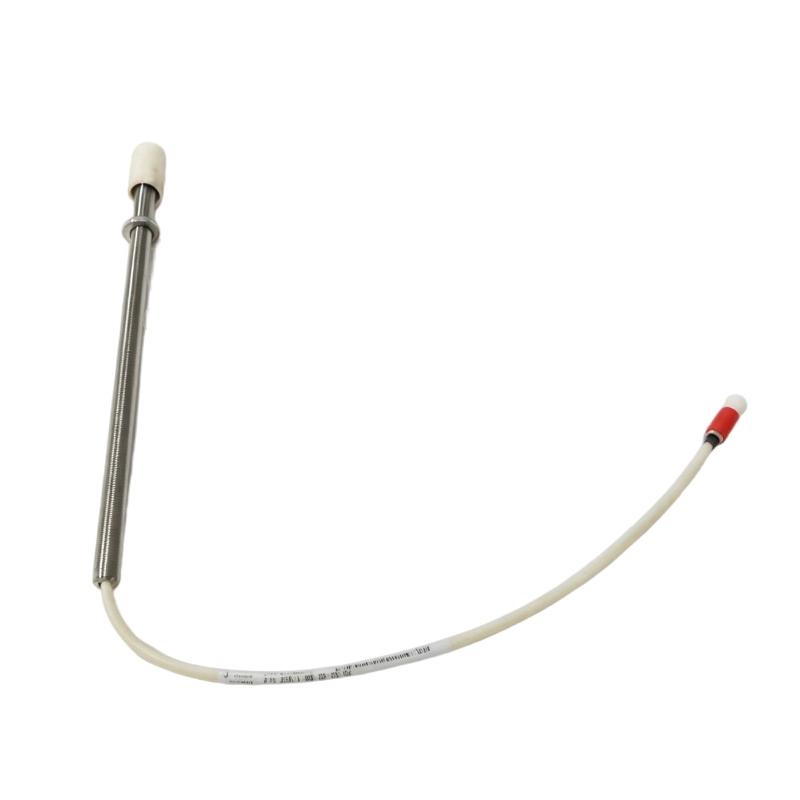

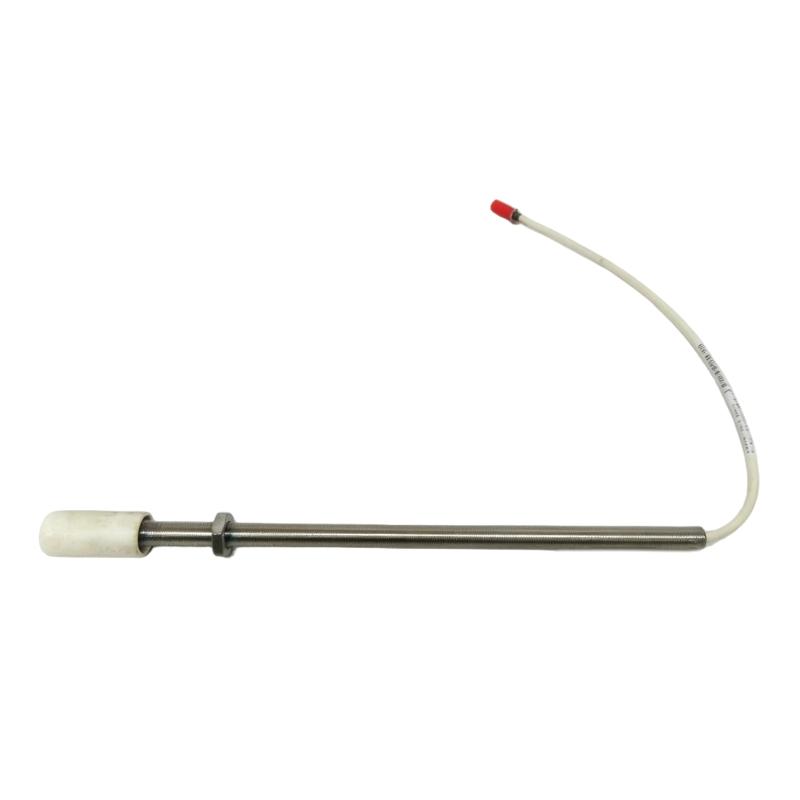

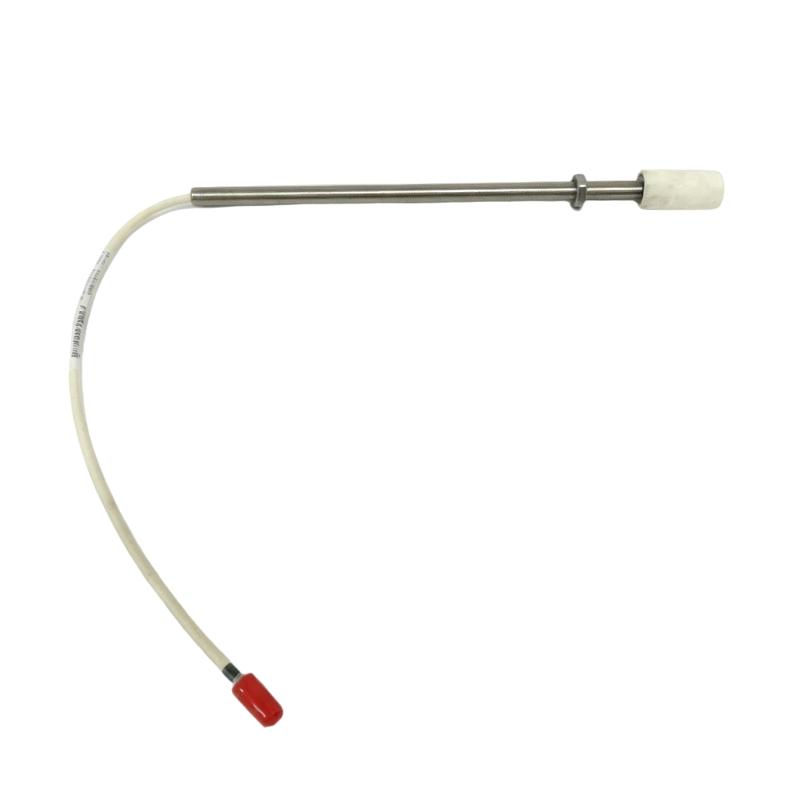

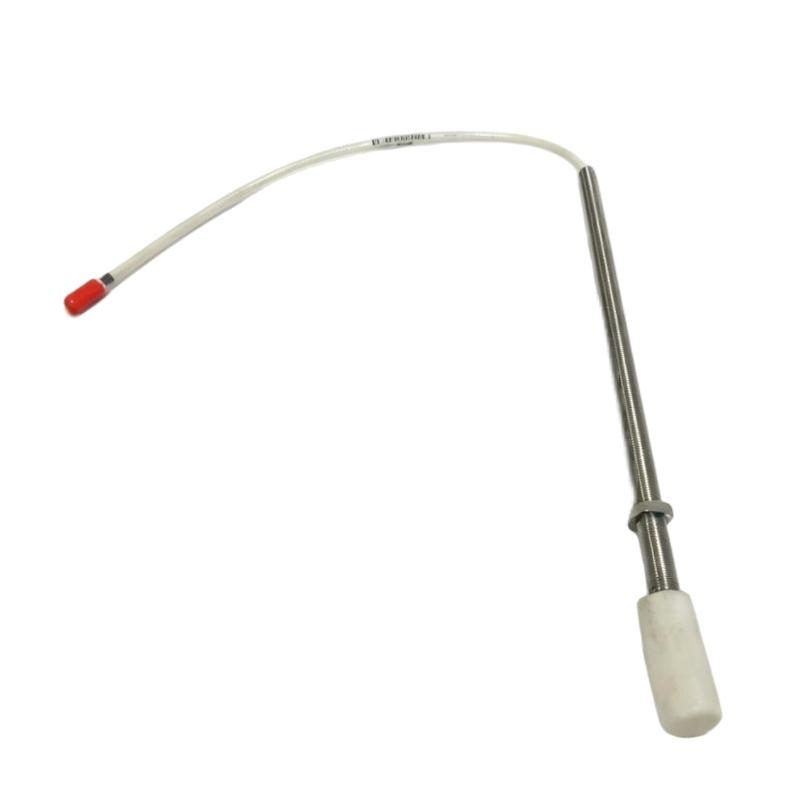

Bently Nevada 22811-00-13-05-02 7200 Series 8mm Standard Mount Probe

Applications and Machinery Monitoring Integration

The Bently Nevada 22811-00-13-05-02 7200 Series 8mm Standard Mount Probe is a precision eddy current proximity sensor designed for continuous monitoring of rotating machinery performance. It provides accurate shaft displacement and vibration measurement, allowing industrial operators to identify mechanical conditions and maintain reliable equipment operation.

This 8mm standard mount probe is commonly applied in critical machinery systems such as turbines, compressors, pumps, generators, and industrial motors. It works as an essential sensing component in machinery protection and predictive maintenance applications, providing valuable operating data for vibration analysis and equipment health assessment.

For reliability engineers and maintenance teams, the Bently Nevada 22811-00-13-05-02 offers a dependable monitoring solution that helps reduce unexpected failures, improve maintenance planning, and protect high-value rotating assets.

Advantages and Technical Performance Features

• Precision Shaft Displacement Monitoring
  The 22811-00-13-05-02 provides accurate non-contact measurement of shaft movement, supporting reliable vibration and position monitoring.
• 7200 Series Industrial Reliability
  Designed for Bently Nevada 7200 Series applications, the probe delivers stable sensing performance in demanding industrial environments.
• Reliable Eddy Current Technology
  The sensor technology enables consistent measurement without physical contact, reducing mechanical wear and improving monitoring reliability.
• Supports Condition-Based Maintenance
  Accurate vibration information allows maintenance teams to detect abnormal operating conditions and optimize service schedules.
• Suitable for Critical Rotating Equipment
  The probe is designed for applications where machinery protection and continuous monitoring are essential.
• Professional Replacement Component
  It provides an effective replacement option for maintaining existing Bently Nevada monitoring systems and improving equipment availability.

Technical FAQs and Troubleshooting Guide

1. What is the main function of the Bently Nevada 22811-00-13-05-02 probe?
The probe measures shaft displacement and vibration by detecting changes in the electromagnetic field between the probe tip and the rotating shaft.

2. What are common signs of a damaged 22811-00-13-05-02 probe?
Typical indicators include unstable vibration signals, incorrect displacement readings, signal interruption, abnormal gap voltage, or monitoring alarms.

3. How can technicians troubleshoot this proximity probe?
Engineers should inspect probe installation, verify cable connections, check gap voltage, analyze signal output, and test the associated monitoring module.

4. What industrial equipment uses this type of 8mm probe?
It is commonly used on turbines, compressors, pumps, generators, and other rotating machines requiring shaft monitoring.

5. Why is correct probe installation important?
Proper installation ensures accurate measurement performance and prevents false vibration readings caused by incorrect positioning or gap adjustment.

6. Can a faulty proximity probe affect machinery protection systems?
Yes. Incorrect sensor signals may reduce monitoring accuracy and affect protective responses in machinery monitoring applications.

7. Which components should be checked when diagnosing probe-related faults?
Technicians should inspect the proximity probe, extension cable, driver module, monitoring system input, connectors, and wiring.

8. How can users improve the operating reliability of the probe?
Regular inspection, proper mounting, cable protection, and maintaining clean operating conditions can help extend sensor service life.

9. Is the 22811-00-13-05-02 compatible with all Bently Nevada monitoring systems?
No. Compatibility depends on the monitoring system configuration, electrical specifications, and application requirements.

10. What factors can cause unstable proximity probe signals?
Possible causes include electromagnetic interference, damaged cables, incorrect installation gap, excessive vibration, and environmental contamination.
