Brand:Schneider PLC Item No.:ATV71HU55N4Z Product Origin:France Product Dimensions:295 x 187 x 175 mm Product Weight:5.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

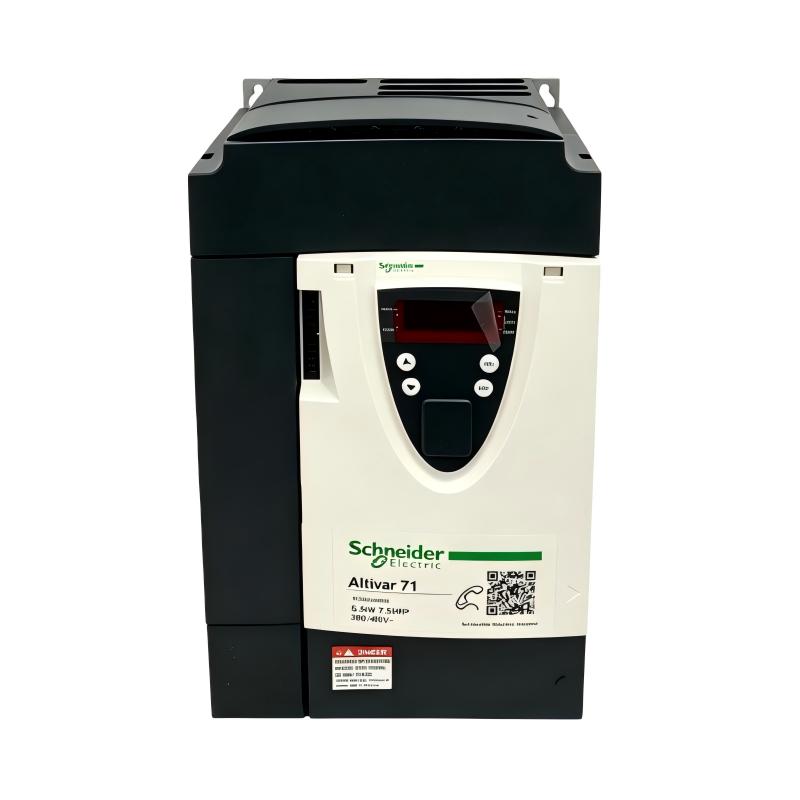

The Schneider ATV71HU55N4Z Variable Speed Drive is a professional industrial inverter designed to deliver precise and reliable motor control for automation applications. It belongs to the Altivar 71 family, which is developed for machines requiring flexible configuration, efficient operation, and dependable performance.
This model is designed for 5.5 kW motor applications with 380–480 V three-phase power input. It provides advanced motor control functions, integrated communication capability, and practical diagnostic features that help engineers optimize equipment performance.
The ATV71HU55N4Z is suitable for applications where accurate motor speed adjustment and stable operation are essential. Its compact design allows convenient installation in industrial control panels, while its flexible communication options support integration into modern automation systems.
For machine builders, maintenance teams, and automation engineers, this variable speed drive offers a reliable solution for improving productivity, reducing downtime, and enhancing industrial equipment control.
By combining Schneider Electric’s drive technology with flexible configuration capabilities, the ATV71HU55N4Z provides a dependable platform for industrial motor management.
Industrial Applications and Automation Integration
The Schneider ATV71HU55N4Z Variable Speed Drive is a compact and high-performance motor control solution designed for industrial automation applications requiring precise speed regulation, reliable operation, and flexible integration with modern control systems. As part of the Altivar 71 series, this drive is engineered to provide advanced control functions for three-phase motors in demanding industrial environments.
Designed for 5.5 kW (7.5 HP) motor applications, the ATV71HU55N4Z supports 380–480 V three-phase power systems and provides advanced motor control technologies suitable for machinery requiring smooth acceleration, stable torque output, and efficient operation. The drive also supports industrial communication options such as CANopen and Modbus, allowing convenient connection with PLC-based automation architectures.
Typical application areas include:
Automated production machinery
Conveyor and material handling systems
Pump and fan control applications
Packaging and processing equipment
Machine tools and manufacturing systems
Industrial ventilation systems
OEM equipment requiring variable speed control
Factory automation and motion control applications
The ATV71HU55N4Z provides engineers with a flexible motor management platform that helps optimize machine performance while simplifying commissioning and maintenance procedures. Its compact structure makes it suitable for control cabinets where space efficiency and reliable operation are both important considerations.
Engineering Advantages and Product Performance Benefits
The Schneider ATV71HU55N4Z Variable Speed Drive combines advanced motor control technology, compact installation design, and strong automation compatibility, making it a practical choice for industrial equipment manufacturers and system integrators.
Advanced Motor Regulation Capability
The drive provides accurate speed and torque management through advanced control algorithms, helping motors maintain stable performance under different load conditions. This improves machine response and reduces mechanical stress during operation.
Compact Industrial Design
With its optimized enclosure structure, the ATV71HU55N4Z can be installed efficiently inside electrical cabinets while maintaining reliable heat dissipation and electrical performance.
Flexible Automation Communication
The drive supports CANopen and Modbus communication protocols, allowing integration with PLC systems, HMIs, and industrial networks for centralized monitoring and control.
Efficient Energy Management
By adjusting motor speed according to actual process requirements, the ATV71HU55N4Z helps reduce unnecessary energy consumption in variable-load applications such as pumps and fans.
Reliable Protection Functions
Built-in protection features help safeguard the drive and connected motor against conditions such as overload, overvoltage, overheating, and abnormal current situations.
Suitable for Machine Upgrades
The Altivar 71 platform provides flexible configuration options, making the ATV71HU55N4Z suitable for both new automation projects and modernization of existing industrial equipment.
Technical FAQs and Professional Troubleshooting Guide
Q1: What is the main function of the Schneider ATV71HU55N4Z drive?
A: The ATV71HU55N4Z controls motor speed, torque, acceleration, and operating parameters in industrial automation systems.
Q2: What type of motors can be controlled by this variable speed drive?
A: It is mainly designed for three-phase asynchronous motors used in industrial machinery and automation equipment.
Q3: Why does the drive display an overcurrent fault during startup?
A: Possible causes include excessive mechanical load, incorrect motor parameters, short circuits, insufficient acceleration time, or improper tuning.
Q4: How should motor parameters be configured before commissioning?
A: Engineers should enter motor nameplate information, configure control mode settings, adjust acceleration and deceleration parameters, and complete necessary tuning procedures.
Q5: Why does the motor speed fluctuate during operation?
A: Speed instability may be caused by incorrect parameter settings, unstable power conditions, unsuitable control mode selection, or motor-related issues.
Q6: How can communication faults between PLC and drive be diagnosed?
A: Check network wiring, communication addresses, PLC configuration, drive communication settings, and diagnostic messages.
Q7: What causes overheating alarms on the ATV71HU55N4Z?
A: Common causes include blocked ventilation, excessive ambient temperature, overload operation, cooling problems, or incorrect installation.
Q8: Does the ATV71HU55N4Z support advanced motor control functions?
A: Yes. The Altivar 71 series supports advanced control methods including vector control functions for improved motor performance.
Q9: How can replacement commissioning time be reduced?
A: Saving drive parameters before replacement and restoring configuration data after installation can simplify startup procedures.
Q10: What maintenance practices improve drive reliability?
A: Regular inspection of cooling conditions, wiring connections, fault history, and parameter settings helps maintain stable operation.
