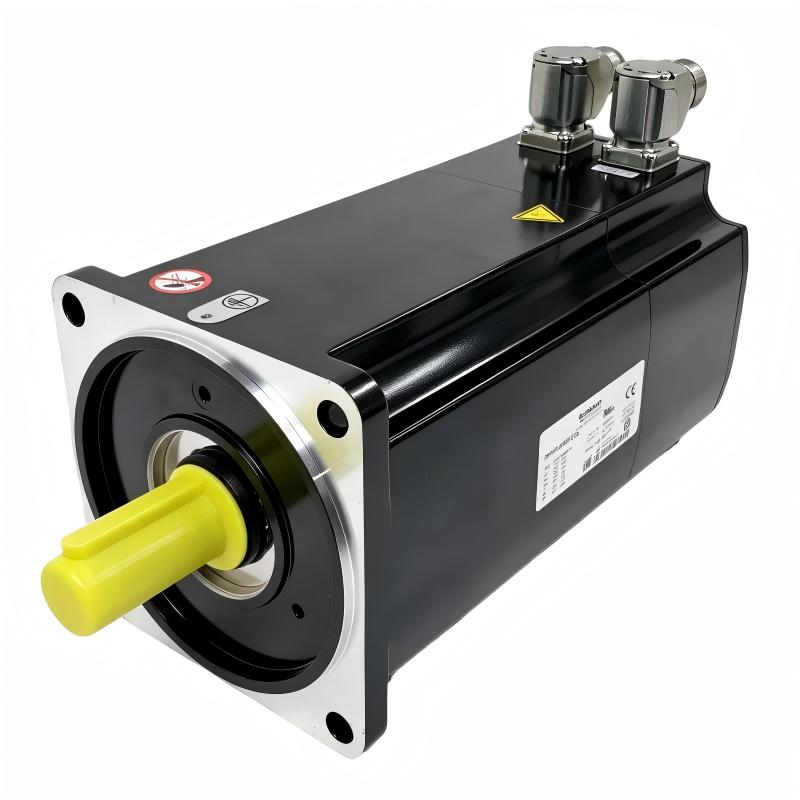

Schneider BCH1001O12A1C Servo Motor

Industrial Applications and Motion Automation Integration

The Schneider BCH1001O12A1C Servo Motor is a high-performance industrial motion component designed for automation systems that require accurate positioning, stable torque output, and fast dynamic response. As part of the Lexium 23 Plus servo motor family, this model provides a reliable motion solution for machine builders and system integrators working on precision automation projects.

The BCH1001O12A1C features a 1 kW servo motor configuration, 220 V power supply compatibility, and a 20-bit incremental encoder feedback system, allowing precise position monitoring and closed-loop motion control. Its compact 100 mm flange design makes it suitable for applications where installation efficiency and motion accuracy are equally important.

Typical application areas include:

• CNC machining equipment
• Automated assembly systems
• Packaging and labeling machines
• Robotic handling equipment
• Electronic manufacturing machinery
• Printing and converting equipment
• Precision positioning platforms
• Industrial production lines requiring synchronized motion

The BCH1001O12A1C provides engineers with a dependable servo solution for improving machine accuracy and productivity. Through accurate feedback control and smooth torque management, it helps automation systems achieve repeatable movement performance and enhanced operational stability.

Engineering Advantages and Product Performance Benefits

The Schneider BCH1001O12A1C Servo Motor combines precision feedback technology, compact mechanical design, and reliable industrial performance, making it suitable for advanced motion control applications.

High-Resolution Encoder Feedback

The servo motor integrates a 20-bit incremental encoder, allowing the control system to continuously monitor motor position and speed. This improves positioning accuracy and supports demanding automation applications requiring precise movement control.

Powerful Motion Performance

With a continuous power rating of 1 kW and optimized torque characteristics, the BCH1001O12A1C provides stable mechanical output for applications requiring consistent acceleration, deceleration, and positioning performance.

Efficient Servo System Integration

Designed for Schneider Lexium 23 Plus motion systems, this servo motor can be integrated into industrial automation architectures requiring coordinated control between PLCs, servo drives, and motion devices.

Compact 100 mm Flange Design

The optimized motor structure provides a balance between power output and installation efficiency, allowing machine designers to develop compact equipment layouts while maintaining reliable performance.

Smooth Dynamic Response

The BCH1001O12A1C is designed for applications requiring frequent starts, stops, and position changes. Its servo characteristics support fast response and accurate movement during complex machine cycles.

Reliable Industrial Operation

The motor uses natural cooling and a robust industrial construction method, helping maintain stable performance during continuous operation in factory environments.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the main function of the Schneider BCH1001O12A1C servo motor?
A: The BCH1001O12A1C converts electrical energy from a servo drive into precise mechanical movement for industrial automation applications.

Q2: Which servo drive series can be used with this motor?
A: The motor is designed for integration with compatible Schneider Lexium servo drive systems.

Q3: Why does the servo motor fail to start after installation?
A: Possible causes include incorrect wiring, missing drive enable signals, incorrect motor parameters, communication faults, or servo alarm conditions.

Q4: What causes inaccurate positioning during machine operation?
A: Position errors may result from incorrect tuning parameters, mechanical backlash, encoder feedback problems, excessive load, or improper coupling.

Q5: How should the BCH1001O12A1C be configured before commissioning?
A: Engineers should configure motor identification parameters, encoder settings, control gains, acceleration values, and motion profiles.

Q6: Why does the servo motor generate abnormal vibration?
A: Possible reasons include poor servo tuning, mechanical resonance, incorrect mounting, coupling problems, or unstable feedback signals.

Q7: What causes servo motor overheating during operation?
A: Overheating may occur due to excessive load, insufficient cooling space, frequent overload cycles, incorrect current settings, or mechanical resistance.

Q8: How can encoder feedback problems be diagnosed?
A: Check encoder cable connections, grounding conditions, drive diagnostic information, feedback parameters, and signal integrity.

Q9: Can this servo motor be used in high-speed positioning applications?
A: Yes. Its high-resolution encoder feedback and servo control characteristics make it suitable for precision motion applications.

Q10: What maintenance procedures are recommended for long-term operation?
A: Regular inspection of motor connections, mechanical coupling, operating temperature, encoder wiring, and servo parameters helps maintain reliable performance.
