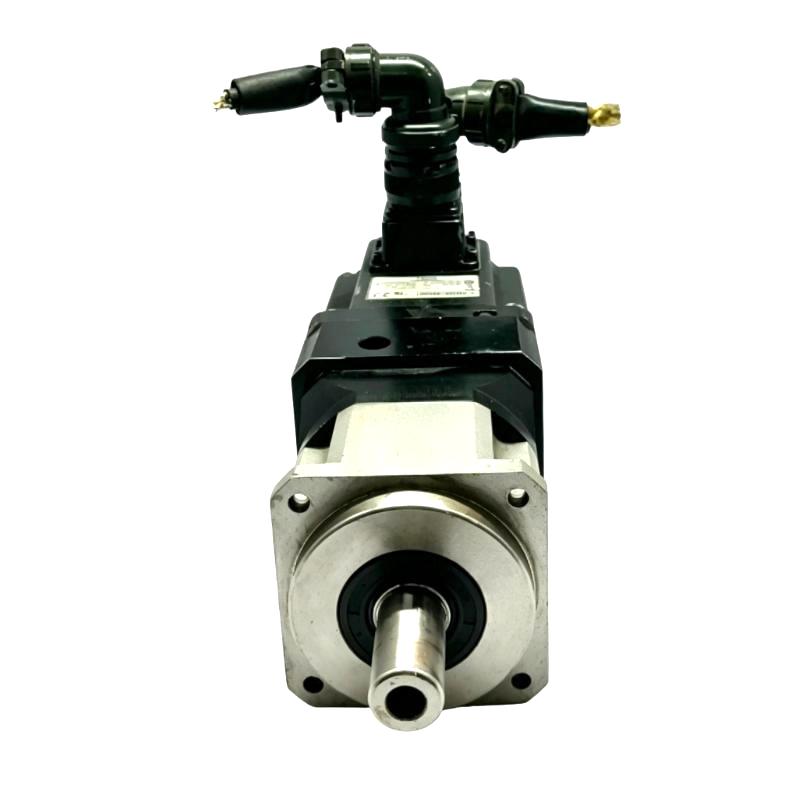

Schneider BCH1001O32A1C Servo Motor

Industrial Applications and Motion Automation Integration

The Schneider BCH1001O32A1C Servo Motor is a high-performance industrial servo motor designed for automation systems requiring precise positioning, stable torque output, and reliable motion performance. As part of the Lexium 23 Plus servo motor family, this model provides an efficient motion solution for machine builders and industrial engineers who need accurate control, fast response, and long-term operational stability.

The BCH1001O32A1C features a 1 kW servo motor configuration, 220 V power compatibility, a 20-bit incremental encoder, keyed shaft design, and an oil-sealed structure. These characteristics make it suitable for industrial environments where accurate feedback, mechanical protection, and consistent movement performance are required.

Typical application areas include:

• CNC machining equipment
• Automated assembly machinery
• Packaging and labeling systems
• Robotic positioning platforms
• Electronic manufacturing equipment
• Material handling systems
• Printing and converting machines
• Precision industrial automation lines

The BCH1001O32A1C helps improve machine accuracy by providing closed-loop motion control through encoder feedback. Its combination of compact construction, reliable mechanical design, and flexible integration capability makes it a practical choice for upgrading or developing advanced automation equipment.

Engineering Advantages and Product Performance Benefits

The Schneider BCH1001O32A1C Servo Motor combines precision feedback technology, industrial durability, and efficient motion performance to meet the requirements of modern automation applications.

High-Resolution Motion Feedback

The integrated 20-bit incremental encoder provides accurate position and speed feedback, allowing servo systems to achieve stable closed-loop control. This helps reduce positioning errors and improves machine repeatability during continuous operation.

Reliable 1 kW Servo Performance

With a 1 kW continuous power rating, the BCH1001O32A1C delivers stable output performance for industrial applications requiring controlled acceleration, accurate positioning, and consistent torque response.

Oil Seal Protection Design

The servo motor includes an oil seal structure that improves mechanical protection and helps maintain reliable operation in applications where additional shaft protection is required.

Efficient Lexium System Integration

Designed for the Schneider Lexium 23 Plus platform, this motor can be combined with compatible servo drives to create coordinated motion control systems for industrial machinery.

Smooth Dynamic Response

The BCH1001O32A1C supports frequent acceleration, deceleration, and positioning cycles, making it suitable for machines that require fast response and high operational efficiency.

Compact Mechanical Structure

The 100 mm flange design provides a balance between installation efficiency and motor performance, helping engineers create compact automation equipment without sacrificing motion capability.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the main function of the Schneider BCH1001O32A1C servo motor?
A: The BCH1001O32A1C converts electrical control signals from a servo drive into precise mechanical motion for industrial automation applications.

Q2: Which servo systems are compatible with this motor?
A: The motor is designed for integration with compatible Schneider Lexium servo drive systems.

Q3: Why does the servo motor fail to rotate after installation?
A: Possible causes include incorrect wiring, missing enable signals, incorrect motor parameters, encoder communication problems, or servo drive alarms.

Q4: What causes inaccurate positioning during operation?
A: Position errors may be caused by incorrect tuning parameters, mechanical backlash, encoder signal problems, excessive load, or improper coupling.

Q5: How should the motor parameters be configured before commissioning?
A: Engineers should configure motor identification data, encoder settings, speed control parameters, acceleration values, and application motion profiles.

Q6: Why does the servo motor produce abnormal vibration?
A: Common causes include incorrect servo tuning, mechanical resonance, loose mounting, coupling issues, or unstable feedback signals.

Q7: What causes servo motor overheating?
A: Overheating may result from excessive load, insufficient ventilation, incorrect current settings, frequent overload operation, or mechanical resistance.

Q8: How can encoder faults be diagnosed?
A: Check encoder wiring, connector conditions, grounding, feedback signals, and servo drive diagnostic information.

Q9: Is this servo motor suitable for high-precision positioning applications?
A: Yes. The high-resolution encoder feedback system makes it suitable for applications requiring accurate positioning and repeatable motion control.

Q10: What maintenance procedures are recommended for this servo motor?
A: Regular inspection of wiring connections, mechanical coupling, operating temperature, encoder feedback, and servo parameters helps maintain reliable performance.
