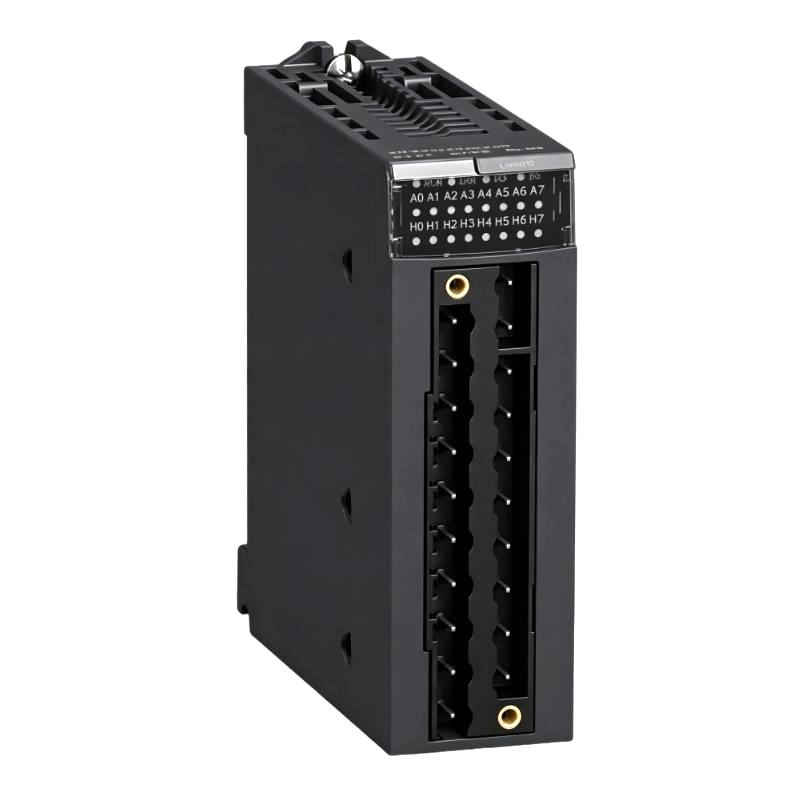

Schneider BMEAHI0812 Analog Input Module

Industrial Applications and Automation Integration

The Schneider BMEAHI0812 Analog Input Module is a high-performance industrial automation module designed for Modicon X80 I/O platforms, providing accurate analog signal acquisition and reliable communication between field instruments and PLC control systems. This module is developed for process automation applications where precise measurement, stable signal processing, and advanced device diagnostics are essential.

As a HART-compatible analog input module, the BMEAHI0812 supports 8 isolated analog input channels with 4–20 mA current signals, enabling automation systems to collect data from transmitters, sensors, and industrial measurement devices. Its high-resolution signal processing capability helps improve monitoring accuracy and supports advanced process control strategies.

Typical application areas include:

• Process control systems
• Chemical and pharmaceutical production equipment
• Oil and gas automation systems
• Water treatment facilities
• Power generation monitoring systems
• Industrial measurement and instrumentation systems
• Factory automation data acquisition networks
• Distributed control system (DCS) integration projects

The BMEAHI0812 expands the capability of Modicon automation platforms by providing reliable analog data acquisition and HART communication functions. Its isolated input design improves signal stability in industrial environments where electrical interference and complex field wiring are common challenges.

Engineering Advantages and Product Performance Benefits

The Schneider BMEAHI0812 Analog Input Module combines high-accuracy measurement technology, flexible field device connectivity, and robust industrial performance to support modern automation applications.

High-Accuracy Analog Signal Processing

The module provides 15-bit plus sign resolution for analog input measurement, allowing control systems to obtain detailed process information from connected transmitters and sensors. This improves monitoring precision in applications where measurement accuracy directly affects production quality.

Eight-Channel HART Analog Input Capability

The BMEAHI0812 provides eight isolated current input channels supporting 4–20 mA signals with HART communication capability. This allows engineers to connect multiple intelligent field devices within a single automation architecture.

Reliable Channel Isolation Design

Independent channel isolation helps reduce interference between field signals and improves system reliability when multiple sensors operate under different electrical conditions.

Advanced Field Device Diagnostics

Through HART communication support, the module can exchange additional device information beyond standard analog measurement values, helping maintenance teams improve equipment monitoring and troubleshooting efficiency.

Flexible Modicon X80 Integration

Designed for Modicon X80 architectures, the BMEAHI0812 can be integrated into Schneider PLC systems using compatible processors, backplanes, and terminal connection solutions.

Improved Industrial System Reliability

The module supports broken-wire detection and provides stable signal conversion, helping reduce unexpected measurement errors and improving overall automation system availability.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the main function of the Schneider BMEAHI0812 module?
A: The BMEAHI0812 collects analog current signals from field instruments and converts them into digital values for PLC processing and control applications.

Q2: How many analog input channels does the BMEAHI0812 provide?
A: The module provides eight isolated analog input channels for industrial measurement applications.

Q3: What type of signals can be connected to this analog input module?
A: The module supports 4–20 mA current input signals commonly used by industrial transmitters and process instruments.

Q4: Why does the PLC display incorrect analog values from the module?
A: Possible causes include incorrect channel configuration, improper scaling parameters, wiring problems, unstable transmitter output, or communication configuration errors.

Q5: How can HART communication faults be diagnosed?
A: Check field device settings, wiring polarity, HART configuration parameters, communication status, and module diagnostic information.

Q6: Why does an analog input channel show zero current?
A: Possible causes include broken field wiring, transmitter power failure, incorrect input range settings, or damaged signal cables.

Q7: How should the BMEAHI0812 be configured before operation?
A: Engineers should configure channel mode, signal range, HART settings, scaling parameters, and PLC address mapping before commissioning.

Q8: What causes unstable analog measurement values?
A: Electrical noise, poor grounding, signal interference, incorrect shielding, or unstable transmitter output may cause measurement fluctuations.

Q9: Can the module be used with Modicon M580 systems?
A: Yes. The BMEAHI0812 is designed for Modicon X80 architectures and can be integrated into compatible PLC system configurations.

Q10: What maintenance steps improve module reliability?
A: Regular inspection of terminal connections, field wiring, configuration backups, and diagnostic records helps maintain stable operation.
