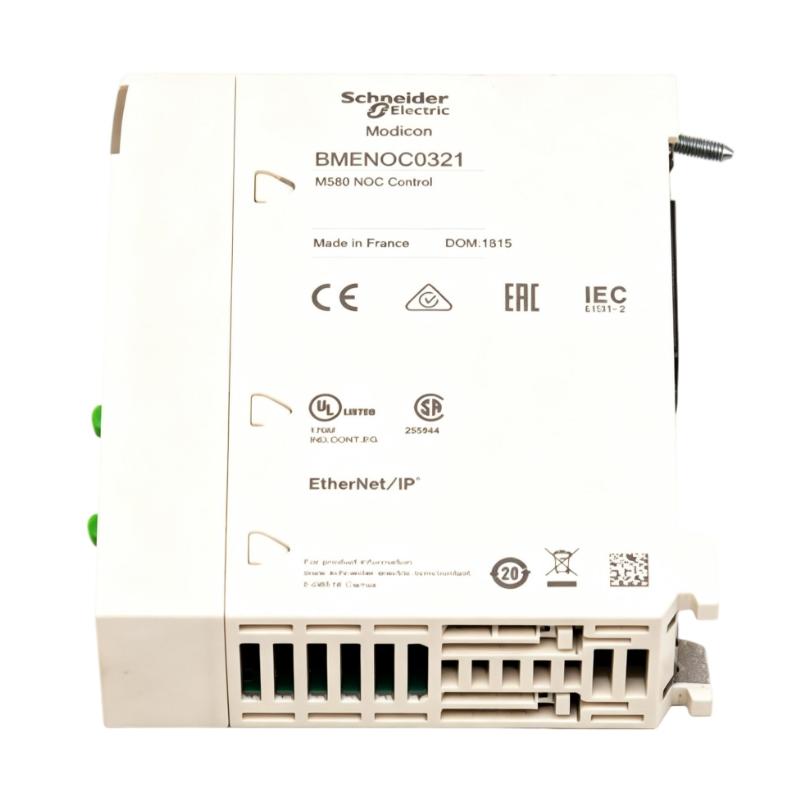

Schneider BMENOC0321 Communication Module

Industrial Applications and Automation Network Integration

The Schneider BMENOC0321 Communication Module is a high-performance industrial communication component designed for Modicon M580 automation platforms, providing advanced Ethernet connectivity, network management, and seamless data exchange between PLC systems and industrial devices. This module is developed for modern automation architectures that require reliable communication, flexible network configuration, and efficient control system integration.

As an Ethernet communication module, the BMENOC0321 enables Modicon M580 controllers to communicate through industrial Ethernet networks using EtherNet/IP and Modbus TCP protocols. It supports multiple Ethernet subnets, IP forwarding functions, and advanced network services, making it suitable for large-scale automation systems where distributed control and real-time data transmission are required.

Typical application areas include:

• Large industrial automation systems
• Process control and manufacturing plants
• Remote I/O communication networks
• Machine production lines
• Water and wastewater treatment systems
• Energy management applications
• Factory Ethernet infrastructures
• Distributed PLC control architectures

The BMENOC0321 helps engineers build scalable automation networks by providing reliable communication between controllers, remote devices, HMIs, SCADA systems, and industrial equipment. Its integration with the Modicon X80 platform allows system designers to expand communication capabilities while maintaining a structured and efficient control architecture.

With strong Ethernet performance and flexible network services, this communication module provides a dependable foundation for industrial digital transformation projects.

Engineering Advantages and Product Performance Benefits

The Schneider BMENOC0321 Communication Module combines industrial Ethernet technology, advanced network management features, and Modicon system compatibility to support demanding automation applications.

High-Speed Industrial Ethernet Communication

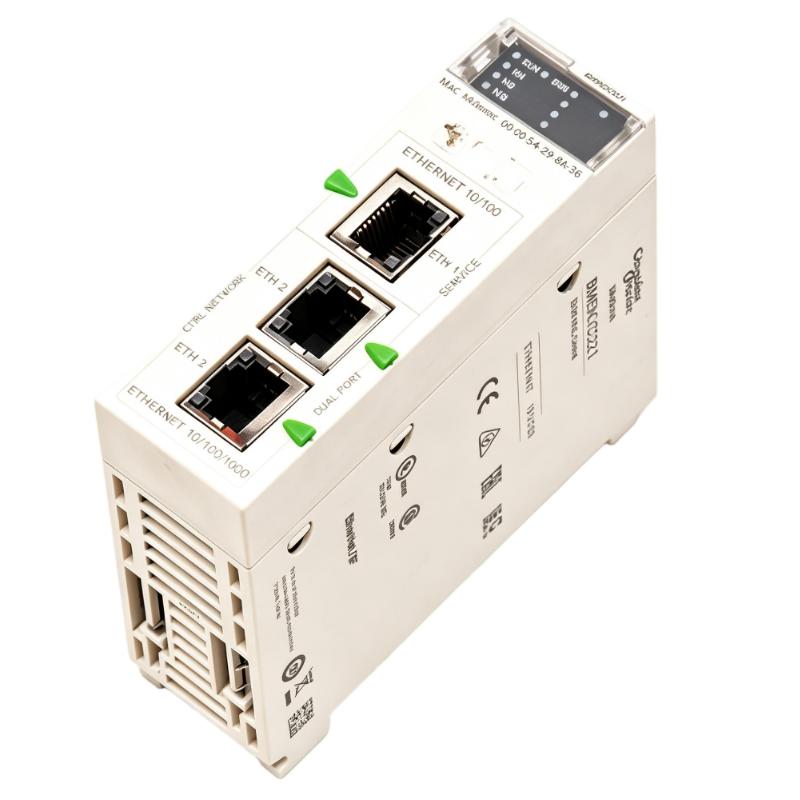

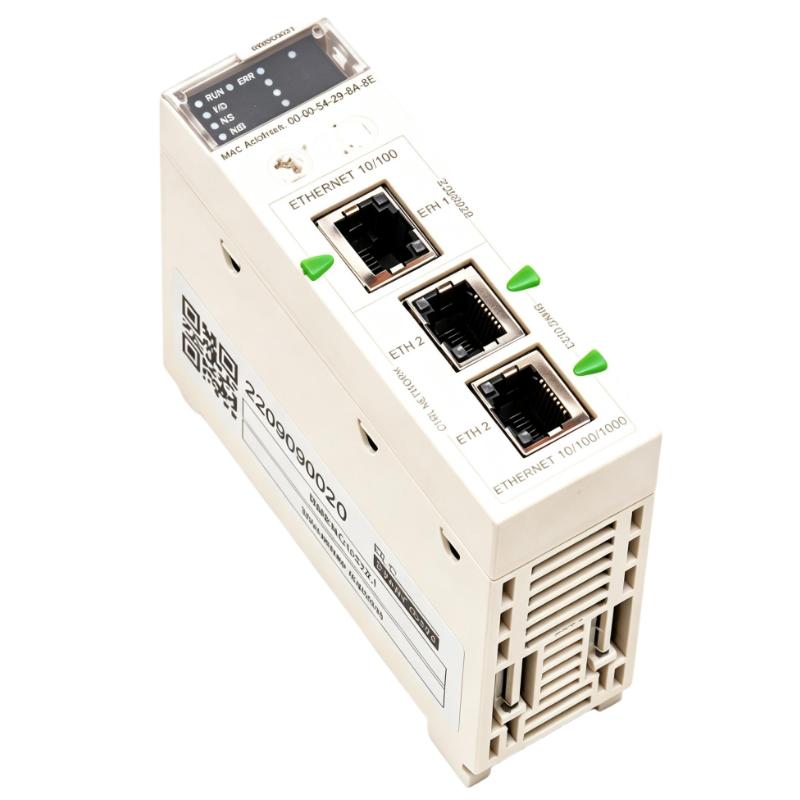

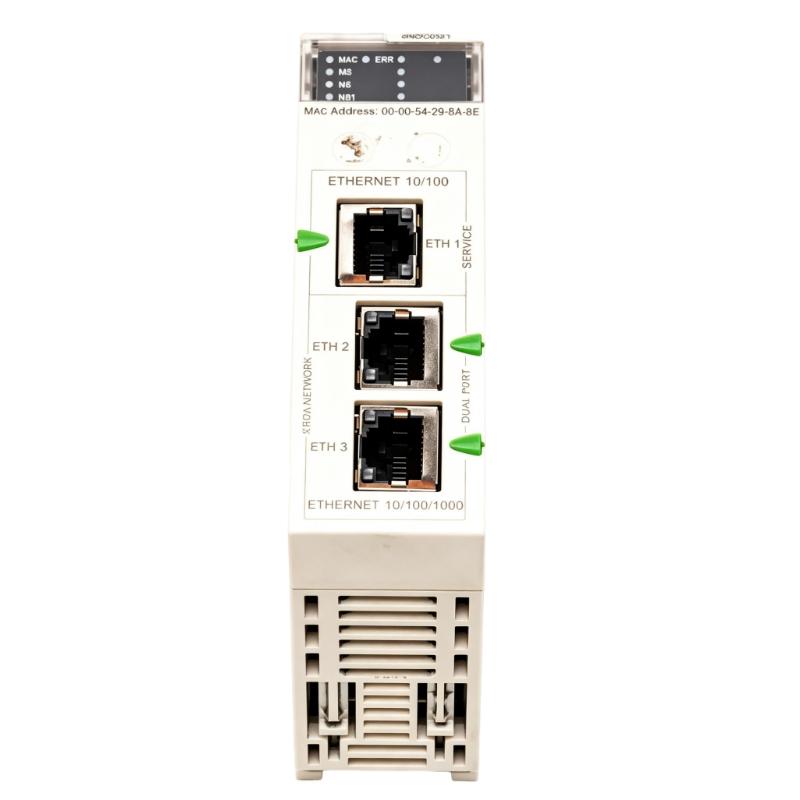

The module provides three Ethernet RJ45 ports supporting 10/100/1000 Mbps communication, enabling efficient data exchange between PLC systems and connected industrial devices. This high-speed architecture improves system responsiveness and supports complex automation networks.

Multi-Network Integration Capability

The BMENOC0321 supports communication across multiple Ethernet subnets and provides IP forwarding functionality, allowing engineers to design flexible network structures for large automation installations.

Support for EtherNet/IP and Modbus TCP

The module supports both EtherNet/IP and Modbus TCP communication services, allowing integration with various industrial devices, remote I/O systems, and third-party automation equipment.

Embedded Network Management Functions

With features such as bandwidth management, FDR server support, RSTP capability, and FactoryCast configurable web services, the BMENOC0321 simplifies network configuration and maintenance.

Reliable Modicon M580 Integration

Designed specifically for Modicon M580 PLC architectures, this module provides a convenient communication expansion solution for industrial control systems requiring high reliability and scalability.

Efficient System Diagnostics

The module includes status indicators and diagnostic functions that help engineers quickly identify communication conditions, network problems, and configuration issues, reducing maintenance time.

Technical FAQs and Professional Troubleshooting Guide

Q1: What is the main function of the Schneider BMENOC0321 module?
A: The BMENOC0321 provides Ethernet communication capability for Modicon M580 PLC systems, enabling data exchange with industrial devices and automation networks.

Q2: Which PLC platform is compatible with the BMENOC0321?
A: The module is designed for Modicon M580 systems using compatible Ethernet and X-bus rack configurations.

Q3: What communication protocols does the BMENOC0321 support?
A: The module supports EtherNet/IP and Modbus TCP communication for industrial automation applications.

Q4: Why does the module fail to communicate with connected devices?
A: Possible causes include incorrect IP configuration, network cable problems, communication parameter errors, switch configuration issues, or device addressing conflicts.

Q5: How should the BMENOC0321 be configured before commissioning?
A: Engineers should configure IP addresses, network parameters, communication services, device mappings, and PLC application settings before operation.

Q6: What causes unstable Ethernet communication?
A: Common causes include electromagnetic interference, damaged cables, incorrect network topology, overloaded switches, or improper grounding.

Q7: Can the BMENOC0321 connect multiple Ethernet networks?
A: Yes. The module supports multiple Ethernet subnet connections and provides IP forwarding functions for complex industrial network architectures.

Q8: How can Ethernet/IP communication faults be diagnosed?
A: Check network status indicators, PLC communication settings, device configuration, IP addressing, and diagnostic information from the control software.

Q9: Why can connected Modbus TCP devices not exchange data correctly?
A: Possible reasons include incorrect register mapping, communication timeout settings, device address errors, or improper PLC configuration.

Q10: What maintenance practices improve communication reliability?
A: Regular inspection of Ethernet cables, switch status, IP configurations, module diagnostics, and application backups helps maintain stable operation.
