Brand:Schneider PLC Item No.:BMENOS0300 Product Origin:France Product Dimensions:32 x 100 x 87.5 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

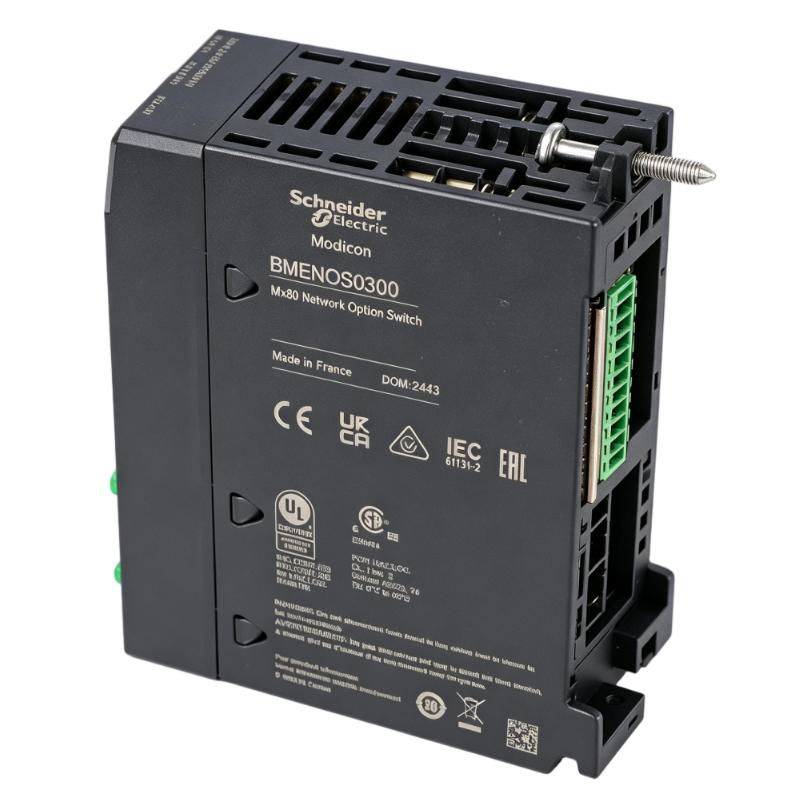

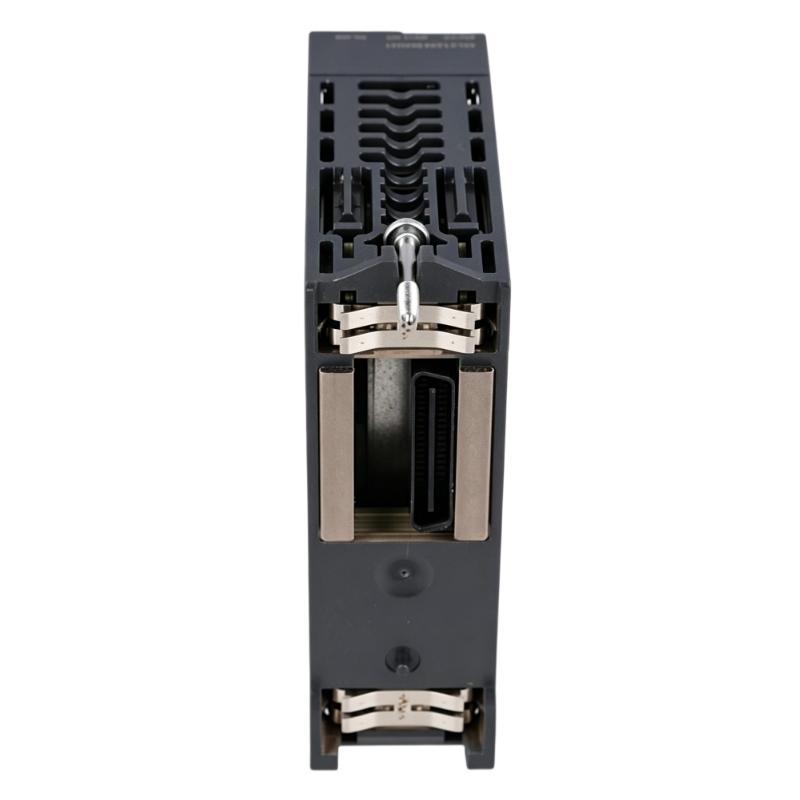

The Schneider BMENOS0300 Switch Module is an industrial Ethernet network expansion device developed for Schneider Electric’s Modicon X80 platform. It provides a practical method for extending Ethernet communication capability within PLC control architectures.
The module is designed as an Ethernet network option switch that can replace the need for additional external switching devices in certain automation applications. It supports copper Ethernet communication over short distances and allows engineers to configure network structures according to system requirements.

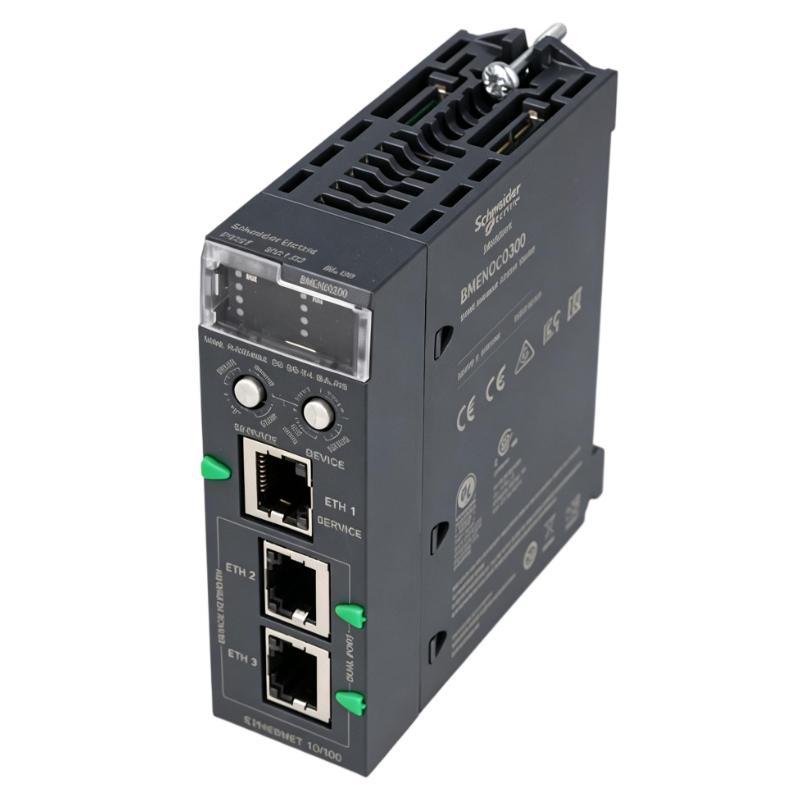

The BMENOS0300 includes one Ethernet service port and two device network ports, enabling flexible communication between PLC systems, remote I/O stations, and industrial Ethernet devices. Its integrated design improves cabinet layout efficiency while maintaining reliable industrial communication performance.
For automation engineers, machine builders, and system integrators, this switch module provides a compact and efficient networking solution for Modicon-based control systems. It helps reduce hardware complexity, simplify installation, and improve the scalability of industrial automation networks.
By combining Ethernet switching capability with the Modicon X80 architecture, the BMENOS0300 delivers a dependable communication foundation for modern industrial control applications.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
BMENOS0300
Product Type
Switch Module
Automation Platform
Modicon X80
Module Function
Ethernet Network Option Switch
Compatible Backplane
BMEXBP Series
Communication Protocol
Ethernet/IP
Number of Ethernet Ports
3 Ports
Service Port
1 Ethernet Port
Device Network Ports
2 Ethernet Ports
Rated Supply Voltage
24 VDC Backplane Supply
Power Consumption
3.30 W at 25°C
Protection Rating
IP20
Module Format
Standard X80 Module
Mounting Type
Rack Mount
Operating Temperature
0–60°C
Application
Industrial Ethernet Network Expansion
Dimensions
32 x 100 x 87.5 mm
Weight
0.45 kg (0.99 lb)
Recommended Related Models for System Expansion
Model
Product Type
Application
BMENOC0321
Ethernet Communication Module
Modicon M580 Ethernet network integration
BMECXM0100
CANopen Master Communication Module
CANopen field device communication
BMECRA31210
Remote I/O Adapter Module
Modicon X80 remote I/O expansion
BMXNOC0401
Ethernet Communication Module
Industrial Ethernet connectivity
Popular Related Models in Industrial Automation
Model
Product Type
BMENOS0300
Modicon X80 Ethernet Switch Module
BMENOC0321
Modicon M580 Ethernet Communication Module
BMXNOC0401
Modicon X80 Ethernet Communication Module
BMECXM0100
CANopen Master Communication Module
BMECRA31210
Modicon X80 Remote I/O Adapter Module
Industrial Applications and Automation Network Integration
The Schneider BMENOS0300 Switch Module is an industrial Ethernet communication expansion component designed for Modicon X80 automation platforms, providing reliable network switching capability for distributed I/O systems and industrial Ethernet architectures. This module enables automation engineers to create flexible communication structures between PLC controllers, remote I/O devices, and Ethernet-based field equipment.
As a Modicon X80 Ethernet Network Option Switch, the BMENOS0300 provides an efficient solution for short-distance copper Ethernet communication applications. It can be installed directly on local racks or remote drops to support RIO (Remote I/O) ring, DIO (Distributed I/O) ring, and DIO port network configurations.
Typical application areas include:
Modicon M580 PLC automation systems
Remote I/O network architectures
Distributed industrial control systems
Manufacturing production lines
Process automation projects
Machine integration applications
Industrial Ethernet communication networks
Factory automation infrastructure
The BMENOS0300 helps simplify Ethernet network design by providing integrated switching functionality inside the Modicon X80 architecture. Its compact structure allows engineers to expand network capability without adding external switching equipment, improving cabinet organization and system reliability.
With flexible network configuration options and industrial-grade communication performance, this switch module is suitable for automation projects requiring efficient data transmission and simplified maintenance.
Engineering Advantages and Product Performance Benefits
The Schneider BMENOS0300 Switch Module combines embedded Ethernet switching technology, Modicon platform compatibility, and flexible network configuration features to support modern industrial automation requirements.
Integrated Ethernet Switching Function
The module provides built-in Ethernet switching capability, allowing communication between industrial devices without requiring additional external network hardware. This helps reduce system complexity and improves cabinet installation efficiency.
Flexible Network Architecture Support
The BMENOS0300 supports multiple Ethernet configurations, including RIO ring, DIO ring, and DIO port applications. Engineers can select the appropriate topology according to system requirements and automation structure.
Modicon X80 Platform Compatibility
Designed for Modicon X80 racks, the module integrates seamlessly with Schneider automation systems using compatible BMEXBP backplanes, providing a convenient communication expansion solution.
Efficient Remote I/O Communication
The switch module helps establish reliable communication paths between controllers and distributed I/O devices, improving system response and supporting large-scale automation installations.
Simplified Installation and Maintenance
The front-panel configuration switches and diagnostic indicators allow engineers to quickly configure network functions and identify communication conditions during commissioning and troubleshooting.
Industrial Reliability Design
With IP20 protection and industrial temperature capability, the BMENOS0300 is designed for continuous operation inside control cabinets and automation environments.
Technical FAQs and Professional Troubleshooting Guide
Q1: What is the main function of the Schneider BMENOS0300 module?
A: The BMENOS0300 provides Ethernet switching functionality for Modicon X80 automation systems, allowing communication between PLC networks and distributed Ethernet devices.
Q2: Which automation platforms support the BMENOS0300?
A: The module is designed for Modicon X80 architectures and can be installed in compatible Schneider PLC rack systems.
Q3: What type of communication does the BMENOS0300 support?
A: The module supports Ethernet communication for industrial automation networks, including Ethernet/IP-based device communication.
Q4: Why does the Ethernet network fail after installing the switch module?
A: Possible causes include incorrect network configuration, improper cable connections, incorrect topology settings, or communication parameter conflicts.
Q5: How should the BMENOS0300 be configured before operation?
A: Engineers should configure network topology settings, verify Ethernet connections, check device addresses, and confirm communication status before commissioning.
Q6: What causes unstable communication through the BMENOS0300?
A: Possible causes include damaged Ethernet cables, electromagnetic interference, incorrect network architecture, excessive network load, or faulty connected devices.
Q7: How can the module status be checked during troubleshooting?
A: Engineers can review RUN, ERR, module status, and network communication indicators to identify operating conditions and faults.
Q8: Can the BMENOS0300 be used for remote I/O communication?
A: Yes. The module is designed to support Ethernet communication structures involving distributed I/O systems.
Q9: Why are connected Ethernet devices not communicating correctly?
A: Common causes include incorrect network topology selection, device configuration errors, cable faults, or improper Ethernet settings.
Q10: What maintenance practices improve switch module reliability?
A: Regular inspection of Ethernet cables, network configuration backups, diagnostic information, and cabinet conditions helps maintain stable operation.
