Brand:Schneider PLC Item No.:BMEP583040 Product Origin:France Product Dimensions:134.6 x 64.6 x 130.3 mm Product Weight:0.849 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

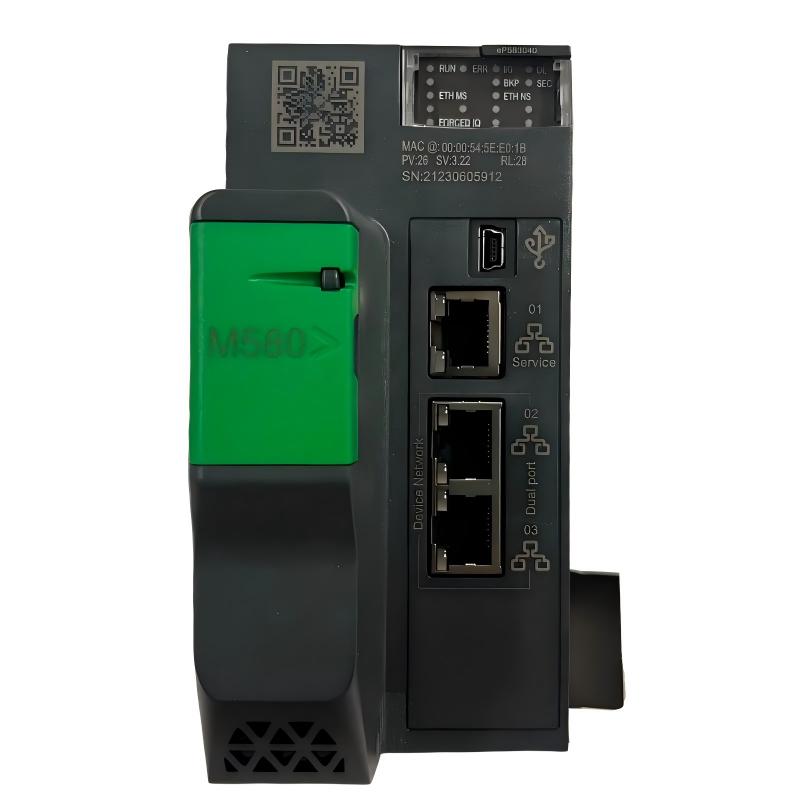

The Schneider BMEP583040 Independent Processor Module is a powerful automation controller designed for advanced Modicon M580 PAC systems. It provides a reliable processing platform for industrial applications requiring high-performance control, distributed architecture support, and extensive communication capability.
The processor module integrates advanced CPU functions with Ethernet-based automation communication, allowing seamless coordination between local control tasks, remote I/O stations, and industrial field devices. It supports up to eight racks, large I/O configurations, and multiple communication modules, making it suitable for complex industrial installations.
The BMEP583040 is optimized for remote control architectures and provides engineers with a scalable solution for expanding automation systems. Its support for distributed equipment, process control functions, and Ethernet networking helps simplify system design while improving operational efficiency.
For system integrators and automation professionals, this processor module offers a strong combination of performance, flexibility, and reliability. It enables organizations to create modern industrial control systems that support future expansion and digital transformation.
The compact Modicon X80 design allows convenient installation within standard control cabinets, making the BMEP583040 an effective choice for both new automation projects and modernization applications.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
BMEP583040
Product Type
Independent Processor Module
Automation Platform
Modicon M580
Processor Level
Level 3 Remote Processor
Program Memory
12 MB
Data Memory
1024 kB
System Memory
10 kB
Flash Storage
4 GB Expandable Data Storage
Local Digital I/O Capacity
3072 I/O
Local Analog I/O Capacity
768 I/O
Supported Racks
8 Racks
Remote I/O Support
16 Remote I/O Stations
Distributed Equipment Support
64 Devices
Ethernet Interface
1 Service Port + 2 Device Network Ports
USB Interface
Mini USB Type-B
Communication Services
RIO Scanner / DIO Scanner
Application Functions
Motion Control, Counter, SSI Encoder, HART, Process Control
Ethernet Communication Module Capacity
3 Modules
AS-Interface Module Capacity
8 Modules
Current Consumption
295 mA at 24 VDC
Mounting Type
Modicon X80 Rack Mount
Operating Temperature
0–60°C
Application
High Performance Remote PAC Control
Dimensions
134.6 x 64.6 x 130.3 mm
Weight
0.85 kg (1.87 lb)
Recommended Related Models for System Expansion
Model
Product Type
Application
BMEP581020
Modicon M580 Independent Processor Module
Standard automation control applications
BMEP582020
Modicon M580 Processor Module
Medium-scale industrial control systems
BMEP583020
Modicon M580 Level 3 Processor Module
Advanced distributed automation projects
BMEP584040
Modicon M580 High Performance Processor
Large process control applications
Popular Related Models in Industrial Automation
Model
Product Type
BMEP583040
Modicon M580 Level 3 Remote Processor Module
BMEP583020
Modicon M580 Level 3 Processor Module
BMEP584040
Modicon M580 High Performance Processor
BMEP582020
Modicon M580 Processor Module
BMENOC0321
Modicon M580 Ethernet Communication Module
Industrial Applications and Advanced Automation Control Integration
The Schneider BMEP583040 Independent Processor Module is a high-performance processor designed for the Modicon M580 PAC automation platform, providing advanced control processing, distributed I/O management, and industrial Ethernet communication capabilities for large-scale automation systems.
As a Level 3 remote processor module, the BMEP583040 is engineered for complex industrial applications that require powerful processing performance, extensive remote I/O support, and reliable communication between multiple automation layers. It provides a robust control foundation for process industries, infrastructure projects, and advanced manufacturing environments where system availability and scalability are essential.
Typical application areas include:
Large process automation systems
Oil and gas production facilities
Water and wastewater treatment plants
Energy generation and distribution systems
Automotive manufacturing lines
Chemical and pharmaceutical production
Distributed remote I/O control architectures
Smart factory automation projects
The BMEP583040 operates as a central processing unit within Modicon M580 architectures, managing application execution, remote I/O communication, and industrial network coordination. Its high processing capacity allows engineers to develop complex control solutions while maintaining stable system performance.
With advanced Ethernet communication functions and support for extensive automation resources, this processor module provides an efficient solution for companies upgrading existing control systems or building new-generation industrial automation platforms.
Engineering Advantages and Product Performance Benefits
The Schneider BMEP583040 Independent Processor Module combines high-performance computing capability, flexible communication architecture, and industrial reliability to meet the requirements of demanding automation applications.
High-Capacity Control Processing
The BMEP583040 delivers Level 3 processing performance for Modicon M580 systems, supporting large application programs and advanced control strategies. It is designed for projects requiring increased computing resources and efficient execution of complex automation tasks.
Extensive Remote I/O Management
The processor supports up to 3072 discrete I/O points and 768 analog I/O points, allowing engineers to build large distributed control systems with flexible field device management.
Powerful Ethernet Communication Architecture
Equipped with Ethernet TCP/IP service and device network interfaces, the BMEP583040 provides reliable communication with remote I/O stations, industrial devices, and automation networks.
Flexible Distributed Control Capability
The processor supports remote I/O architectures with multiple remote drops and distributed equipment connections, making it suitable for large production facilities requiring decentralized control.
Advanced Application Support
The module supports various application-specific functions including motion control, counting, SSI encoder integration, HART communication, serial communication, and process control functions, providing engineers with greater system design flexibility.
Reliable Industrial Operation
Designed for continuous industrial use, the BMEP583040 includes diagnostic indicators, communication monitoring, and robust hardware performance to help reduce downtime and improve maintenance efficiency.
Technical FAQs and Professional Troubleshooting Guide
Q1: What is the primary function of the Schneider BMEP583040 processor module?
A: The BMEP583040 acts as the main processing controller for Modicon M580 systems, executing automation programs and managing remote I/O communication.
Q2: Which automation platform supports the BMEP583040?
A: The module is designed specifically for Schneider Electric Modicon M580 PAC automation systems.
Q3: What makes the BMEP583040 different from standard M580 processors?
A: It provides higher processing capability and enhanced remote I/O support, making it suitable for larger automation architectures.
Q4: Why does the processor fail to start the application program?
A: Possible causes include incorrect application configuration, firmware compatibility issues, memory problems, communication faults, or hardware initialization errors.
Q5: How should the BMEP583040 be configured before commissioning?
A: Engineers should configure processor settings, Ethernet parameters, remote I/O addresses, communication services, and application logic before startup.
Q6: What causes Ethernet communication interruption with remote devices?
A: Common causes include incorrect IP configuration, damaged network cables, switch problems, network topology errors, or device addressing conflicts.
Q7: How can processor faults be diagnosed efficiently?
A: Engineers can review LED indicators, controller diagnostics, programming software messages, and system event logs to identify fault conditions.
Q8: Can the BMEP583040 support motion control applications?
A: Yes. The processor supports application-specific functions including motion control, counters, and other industrial control features.
Q9: Why does the PLC system experience increased scan time?
A: Possible reasons include complex application logic, excessive communication tasks, overloaded network traffic, or inefficient program structure.
Q10: What maintenance methods improve processor reliability?
A: Regular application backups, firmware updates, network inspections, diagnostic monitoring, and environmental checks help maintain stable operation.
