Brand:Honeywell DCS Item No.:8C-PAOHA Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

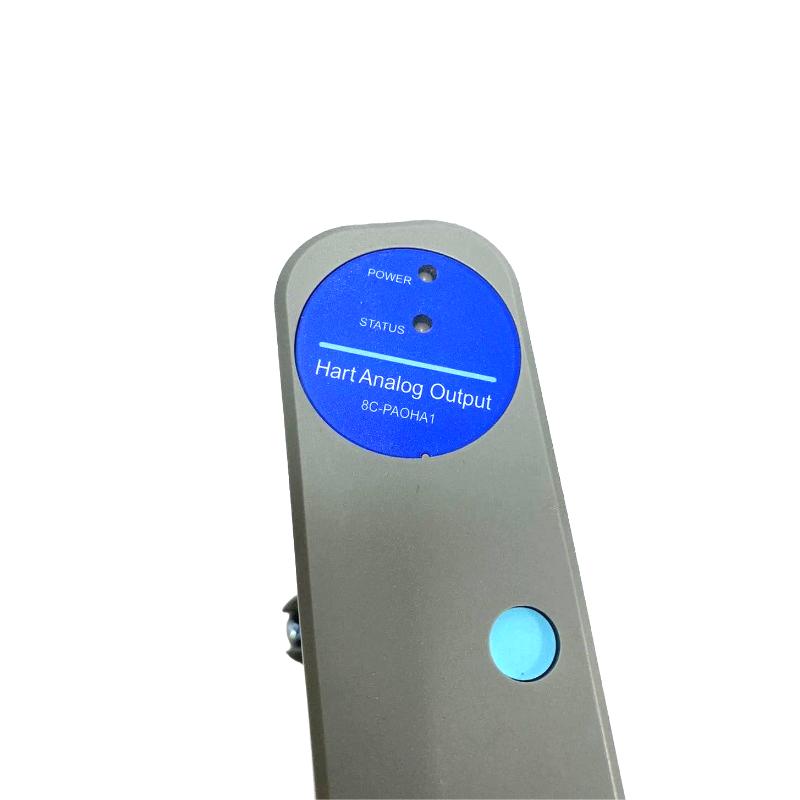

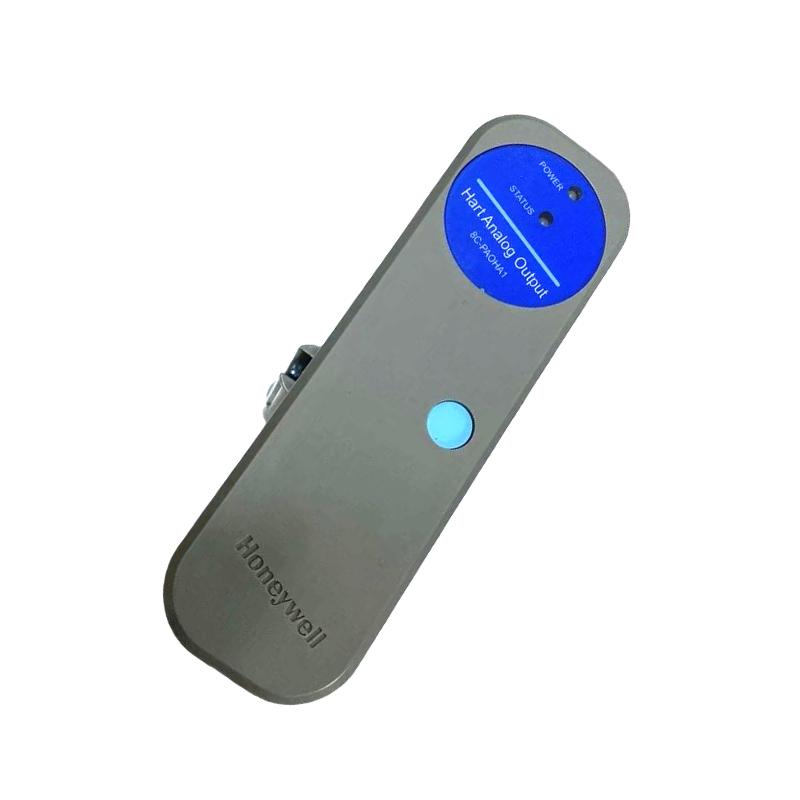

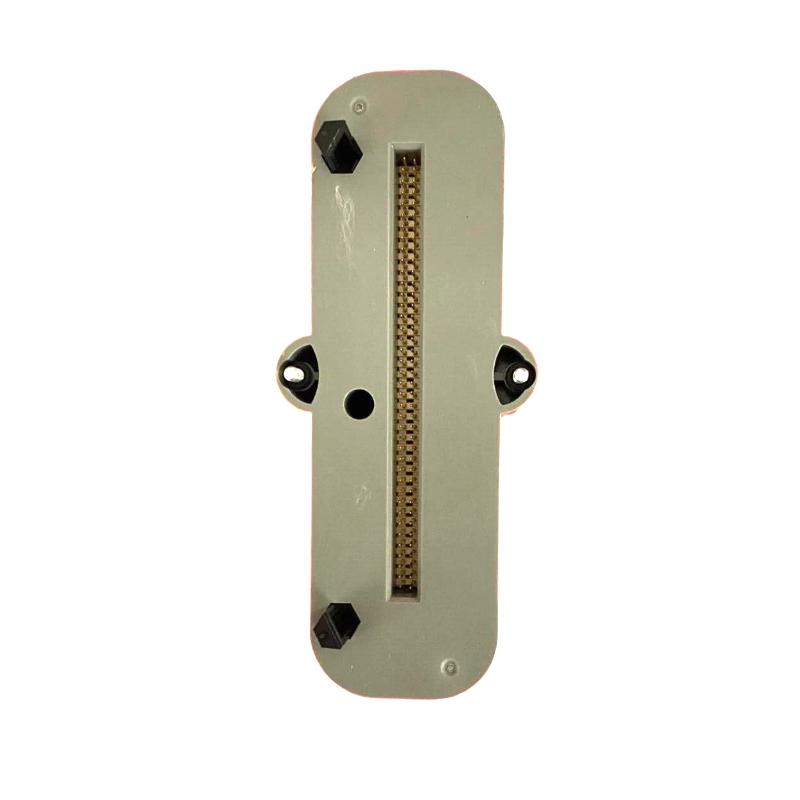

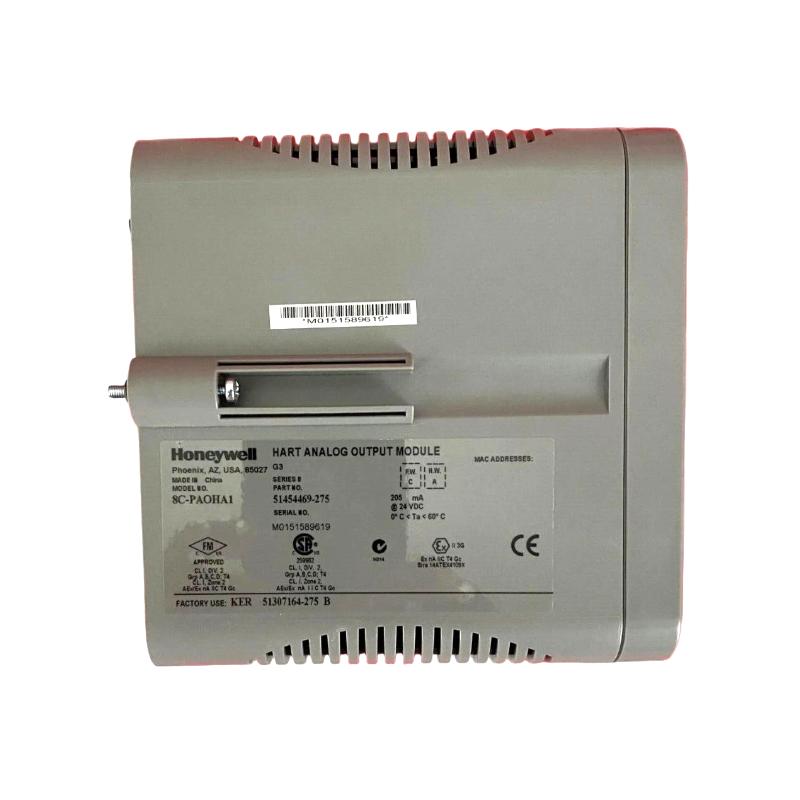

The Honeywell 8C-PAOHA Analog Output Module is a high-performance output module designed for Honeywell Series 8 I/O systems, providing reliable analog signal control for industrial process automation applications. Supporting 16 channels of 4–20 mA output, the module enables accurate regulation of actuators, valves, and other analog-controlled field devices.
Built for demanding process environments, the 8C-PAOHA combines precise signal generation, integrated diagnostics, and HART communication capability to improve operational visibility and equipment reliability. Its configurable failure response functions allow engineers to define appropriate safe-state behavior for critical applications.
Designed for integration with Honeywell distributed control platforms, this analog output module provides a dependable solution for industries requiring stable process regulation, enhanced diagnostics, and long-term automation performance.
Technical Specifications
Specification
Details
Manufacturer
Honeywell
Model
8C-PAOHA
Product Type
Analog Output Module
Product Series
Series 8 I/O
Application
Process Control Output
Output Channels
16 Channels
Output Signal
4–20 mA
Communication Capability
HART
Supply Voltage
24 VDC
Resolution
±0.05% of Full Scale
Output Accuracy
±0.2% of Full Scale at 25°C
Load Resistance
50–800 Ω
Diagnostics
Channel Diagnostics, Self-Diagnostics
Redundancy Support
Optional
Compatible IOTA
8C-TAOXA1 / 8C-TAOXB1
Installation Type
Honeywell Series 8 I/O Carrier
Operating Temperature
0°C to 60°C
Protection Rating
IP20
Dimensions
Approx. 100 mm × 100 mm × 25 mm
Weight
Approx. 0.8 kg
Recommended Companion Models
Model
Product Name
8C-PAIHA1
Honeywell Series 8 Analog Input Module with HART
8C-TAOXA1
Honeywell Series 8 Analog Output Non-Redundant IOTA
8C-TAOXB1
Honeywell Series 8 Analog Output Redundant IOTA
8U-PDILA1
Honeywell Series 8 Digital Input/Logic Interface Module
Frequently Selected Alternatives
Model
Product Name
8C-PAOHA1
Honeywell Series 8 Analog Output Module with HART
8C-PAIH54
Honeywell Series 8 Analog Input Module
CC-PAOH01
Honeywell ControlEdge Analog Output Module
CC-TAOX01
Honeywell ControlEdge Analog Output Terminal Assembly
Where It Excels in Industrial Use
Honeywell Experion Process Knowledge System (PKS) and Series 8 control architectures
Process control applications requiring high-accuracy analog output signals
Oil & gas, petrochemical, and chemical production facilities
Power generation and utility automation systems
Refining and continuous process industries
Control of valves, actuators, positioners, and analog-driven field devices
HART-enabled smart instrumentation applications
Modern DCS installations requiring reliable output control and diagnostics
Key Strengths at a Glance
Designed for Honeywell Series 8 I/O systems
Provides 16-channel analog output capability
Supports standard 4–20 mA current output signals
Compatible with HART-enabled field devices
Provides advanced channel diagnostics and fault monitoring
Supports configurable safe-state output behavior
Enables optional redundancy configurations
Delivers accurate analog control for demanding process environments
Technical FAQs
1. What is the primary function of the Honeywell 8C-PAOHA?
The Honeywell 8C-PAOHA is an analog output module designed to provide precise 4–20 mA control signals for process actuators and field devices within Honeywell Series 8 control systems.
2. How many output channels does the 8C-PAOHA provide?
The module provides 16 independent analog output channels for controlling multiple process devices from a single I/O assembly.
3. Does the 8C-PAOHA support HART communication?
Yes. The module supports HART-capable field devices, allowing digital communication functions alongside the standard 4–20 mA output signal.
4. What type of output signal does the 8C-PAOHA use?
The module uses a 4–20 mA analog current output suitable for industrial actuators, control valves, and recording devices.
5. What power supply does the 8C-PAOHA require?
The module operates with a 24 VDC power supply architecture within the Honeywell Series 8 I/O system.
6. Can the 8C-PAOHA be used with redundant I/O configurations?
Yes. Honeywell Series 8 analog output modules support optional redundancy through compatible IOTA configurations.
7. What types of devices can be controlled by the 8C-PAOHA?
Typical applications include control valves, actuators, variable position devices, and other field equipment requiring analog current control signals.
8. Does the 8C-PAOHA provide diagnostic functions?
Yes. The module includes self-diagnostics and channel monitoring features to improve system availability and maintenance efficiency.
9. Can the output failure response be configured?
Yes. The module supports configurable fail-safe output behavior, allowing channels to maintain the last value or move to a predefined safe value during faults.
10. Why choose the Honeywell 8C-PAOHA for process automation systems?
The module combines accurate analog control, HART compatibility, diagnostics, and Series 8 integration to support reliable operation in critical industrial processes.
