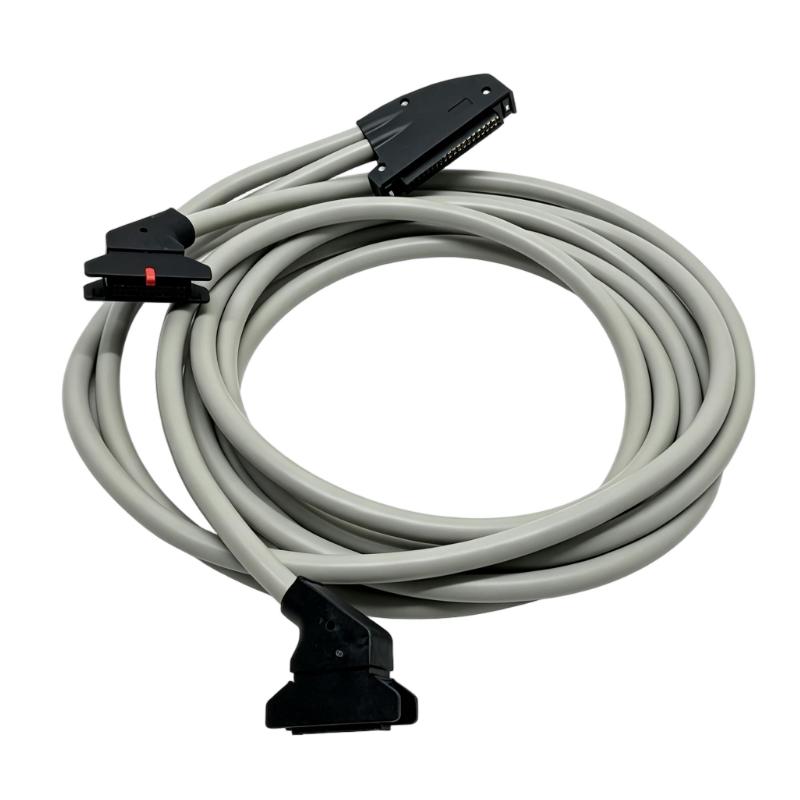

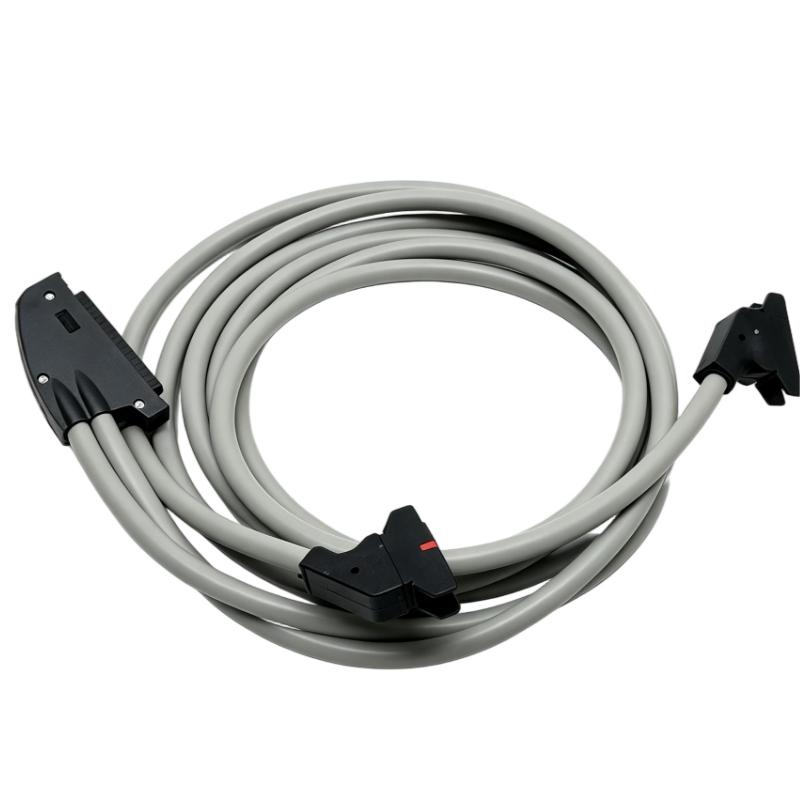

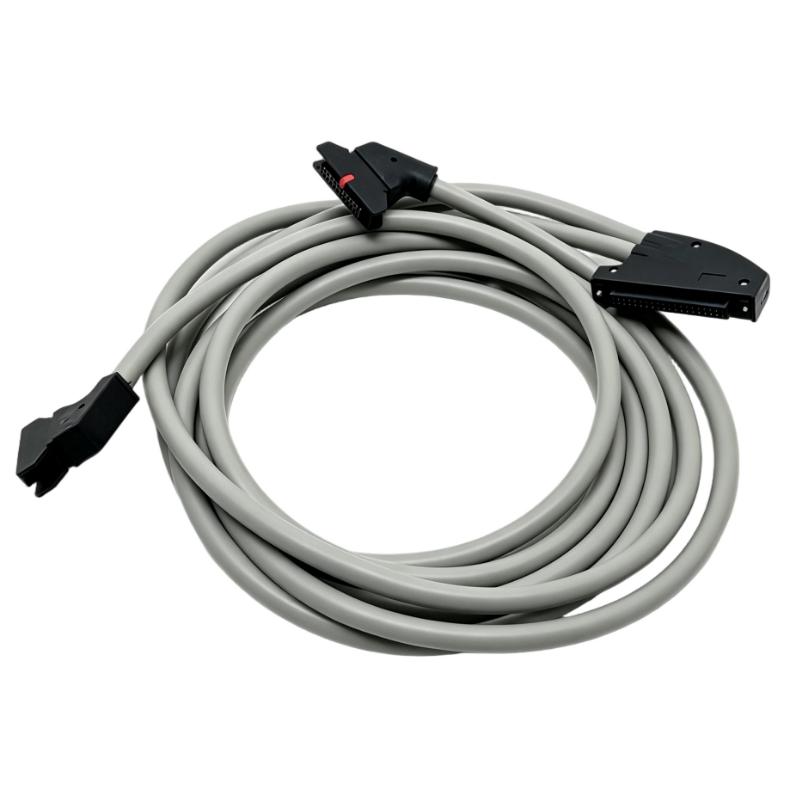

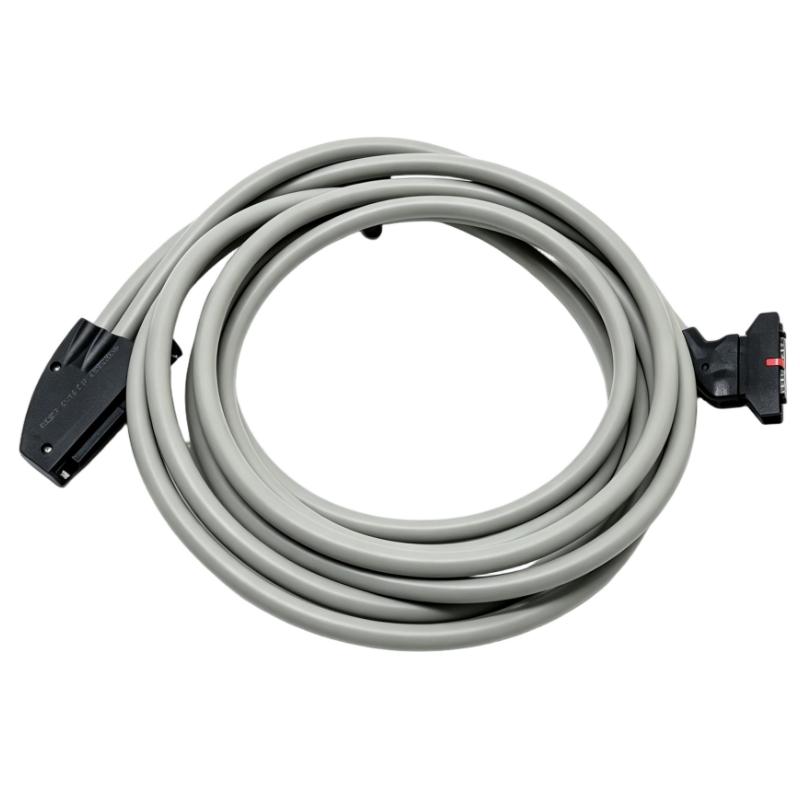

Schneider BMXFCC203 40-Pin Connector Cable

Automation Applications and Connection Scenarios

The Schneider BMXFCC203 40-Pin Connector Cable is a specialized wiring accessory designed to provide a secure and efficient connection between Modicon X80 I/O modules and external terminal interfaces. Built for industrial automation environments, this cable assembly helps simplify control cabinet wiring while ensuring stable signal transmission for demanding PLC applications.

The BMXFCC203 is commonly applied in:

• Modicon M340 and Modicon X80 PLC control systems
• Digital and analog I/O module connection applications
• Industrial machine automation cabinets
• Factory production and assembly equipment
• Process monitoring and control installations
• OEM automation equipment requiring standardized wiring solutions

With its preassembled 40-pin connector structure, the BMXFCC203 helps reduce manual wiring complexity and improves installation consistency. It is particularly suitable for projects where fast commissioning, reliable connections, and simplified maintenance are important factors.

Core Benefits and Engineering Value

Streamlined PLC Cabinet Wiring

The BMXFCC203 provides a ready-to-use connection method that reduces the time required for traditional point-to-point wiring. Engineers can achieve cleaner cabinet layouts and more organized signal management.

Stable Multi-Channel Signal Transmission

The 40-pin connector design supports reliable communication between compatible automation modules and interface components, helping maintain consistent I/O performance during continuous operation.

Improved Installation Efficiency

Factory-assembled cable construction reduces wiring mistakes caused by manual assembly, allowing technicians to complete system installation and commissioning more efficiently.

Flexible System Integration

Designed for Schneider Electric Modicon automation platforms, the BMXFCC203 supports scalable PLC architectures where additional I/O expansion and structured connection methods are required.

Enhanced Maintenance Capability

The standardized connector interface allows easier troubleshooting, replacement, and inspection compared with individually wired terminal solutions.

Technical FAQs

1. Q: What is the main function of the Schneider BMXFCC203 cable?
A: The BMXFCC203 is used to connect compatible Modicon X80 I/O modules with external connection interfaces through a standardized 40-pin connector cable assembly.

2. Q: Which Schneider PLC systems are compatible with BMXFCC203?
A: The cable is designed for use with Schneider Electric Modicon M340 and Modicon X80 automation platforms when matched with compatible modules and accessories.

3. Q: Does BMXFCC203 require parameter configuration in PLC software?
A: No. The cable itself does not require software settings, but the connected I/O modules must be properly configured in the PLC programming environment.

4. Q: What should be checked when I/O signals are missing after installation?
A: Check the 40-pin connector seating, terminal wiring, module status indicators, PLC hardware configuration, and I/O addressing settings.

5. Q: Can BMXFCC203 be used for both digital and analog I/O applications?
A: It can be used with compatible modules that support the corresponding connector interface and electrical signal requirements.

6. Q: What are common causes of signal instability when using this cable?
A: Possible causes include loose connectors, incorrect wiring, cable damage, poor grounding, or electromagnetic interference from nearby equipment.

7. Q: How does the BMXFCC203 improve system commissioning efficiency?
A: The preassembled cable reduces manual wiring work, shortens installation time, and helps ensure consistent connection quality.

8. Q: Can the BMXFCC203 replace individually wired terminal connections?
A: Yes, it provides a standardized alternative for applications where compatible Modicon I/O interfaces are used.

9. Q: How can engineers identify whether a fault comes from the cable or the PLC module?
A: Engineers should perform connector inspection, continuity testing, module diagnostics checking, and signal verification through the PLC system.

10. Q: What maintenance practices are recommended for BMXFCC203 cable installations?
A: Regular checks of connector condition, cable routing, cabinet environment, and mechanical fixing help maintain long-term reliability.
