Product Introduction and Industrial Automation Integration

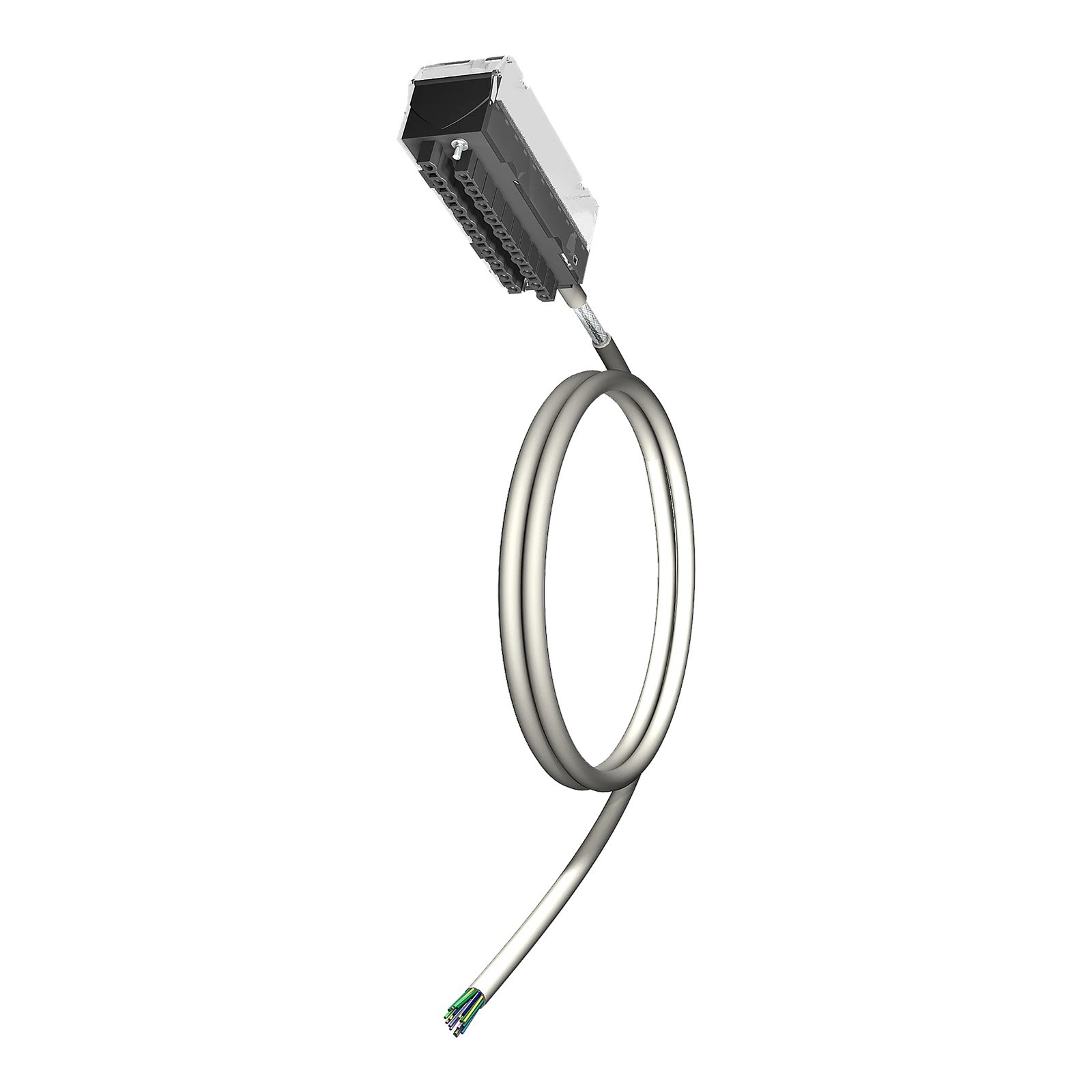

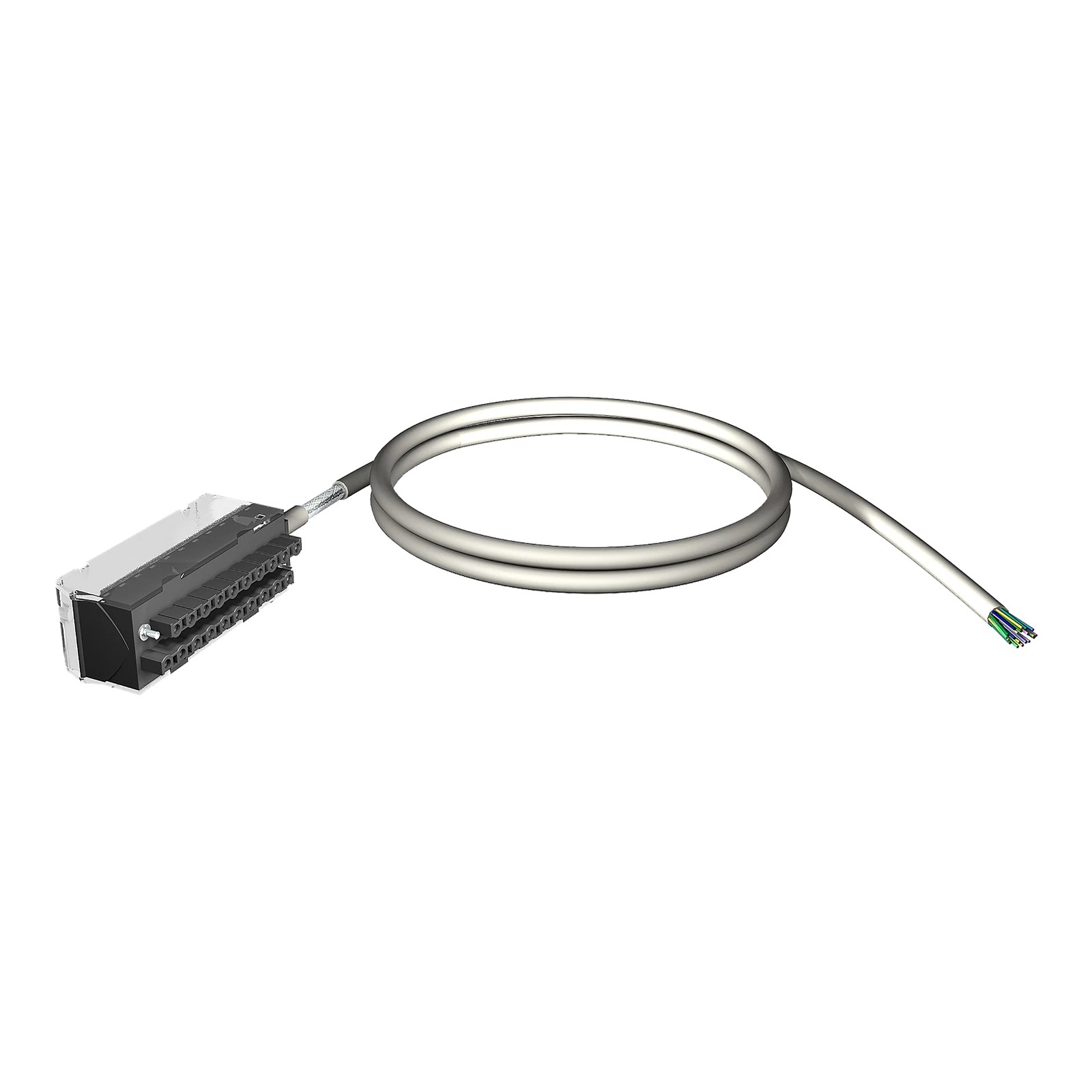

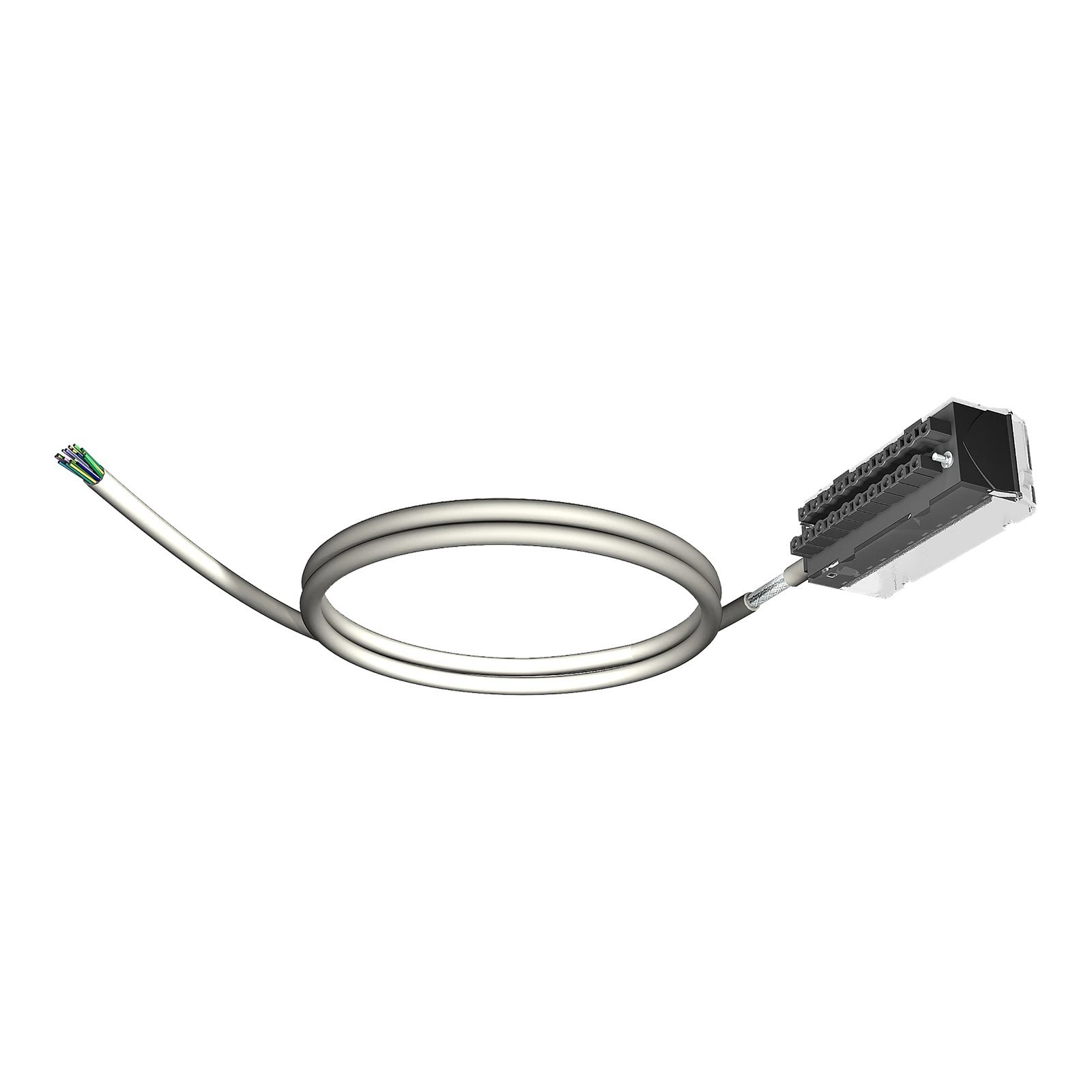

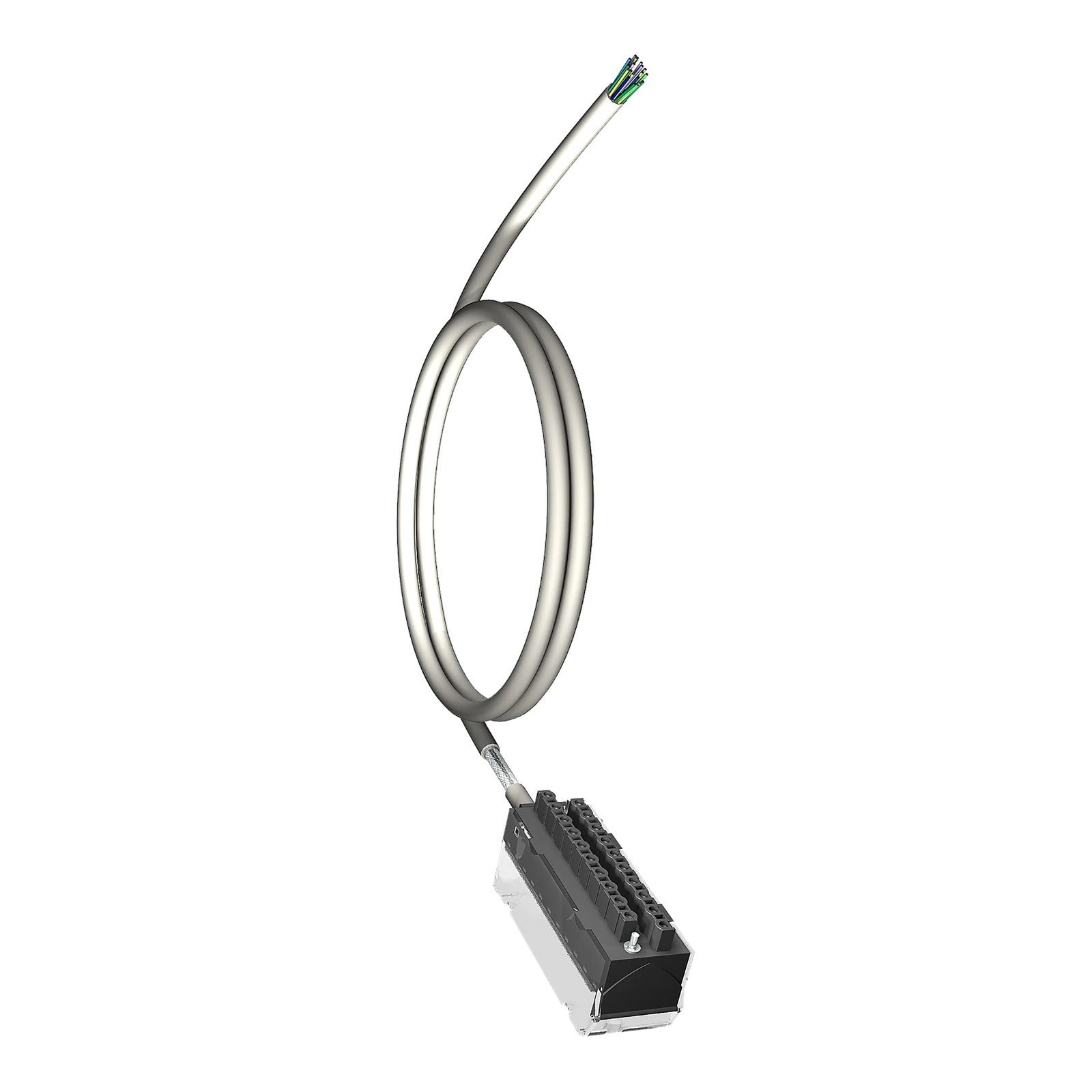

The Schneider BMXFTW1001 Preformed Rope Sleeve Cable is designed to improve the efficiency and reliability of PLC field wiring installations. As part of the Modicon X80 accessory family, it provides engineers with a structured connection method for integrating I/O modules with external devices.

In large automation systems, traditional manual wiring can increase installation complexity and make future maintenance more difficult. The BMXFTW1001 addresses these challenges through a preformed cable design that improves wiring organization, reduces commissioning effort, and enhances system serviceability.

Its 10-meter length makes it particularly valuable for large equipment installations, production lines, and distributed control applications where flexible wiring arrangements are required. For machine builders and system integrators, the BMXFTW1001 offers a dependable connection solution that supports efficient automation system deployment.

Technical Specifications

Parameter	Specification
Product Type	Preformed Rope Sleeve Cable / Cable Assembly
Manufacturer	Schneider Electric
Model Number	BMXFTW1001
Product Family	Modicon X80
Compatible Platform	Modicon M340 / Modicon X80 I/O Systems
Cable Length	10 m
Number of Wires	20
Wire Section	0.324 mm²
Connection Type	20-Way Removable Terminal Block + Flying Leads
Cable Design	Preassembled Industrial Wiring Cable
Application	PLC I/O Module Field Connection
Dimensions	Cable Length: 10 m
Weight	2.78 kg (6.13 lb)

Recommended Related Models

Model	Description
Schneider BMXFTW301	Modicon X80 Preformed Cable Assembly 3 m
Schneider BMXFTW501	Modicon X80 Preformed Cable Assembly 5 m
Schneider BMXFTB2020	Modicon X80 20-Pin Spring Terminal Block
Schneider BMXFTB2010	Modicon X80 20-Pin Screw Terminal Block
Schneider BMXFCA302	Modicon X80 Cable Assembly 3 m

Popular Related Models

Model	Product Type
Schneider BMXP342020	Modicon M340 Processor Module
Schneider BMXP342030	Modicon M340 High Performance Processor
Schneider BMXCPS3500	Modicon X80 Power Supply Module
Schneider BMXDDI1602	Modicon X80 Digital Input Module
Schneider BMXDDO1602	Modicon X80 Digital Output Module

Industrial Applications and PLC Field Wiring Solutions

The Schneider BMXFTW1001 Preformed Rope Sleeve Cable is a professional industrial connection accessory designed for Modicon X80 automation systems and Modicon M340 I/O modules. It provides a reliable preassembled wiring solution for connecting PLC modules with removable terminal blocks, helping engineers simplify field wiring, improve installation efficiency, and maintain organized control cabinet layouts.

Featuring a 10-meter cable length, the BMXFTW1001 is suitable for automation projects requiring extended wiring distance between PLC racks and field connection points. The cable assembly includes a 20-way removable terminal block connection and color-coded flying leads, allowing easier identification and faster installation during system commissioning.

Typical applications include:

Modicon M340 PLC control systems
Modicon X80 discrete I/O module installations
Industrial machine control cabinets
Factory automation production equipment
Distributed field wiring systems
OEM machinery and customized automation solutions

The BMXFTW1001 helps reduce manual wiring workload, improve connection accuracy, and provide a cleaner wiring structure for long-term industrial operation.

Engineering Advantages and Connection Performance

Extended Distance Wiring Capability

The 10-meter cable length provides additional flexibility for large machines, separated control cabinets, and automation systems where PLC modules are located away from field devices.

Preassembled Connection Efficiency

The BMXFTW1001 eliminates complex manual wiring preparation by providing a ready-to-install cable assembly. This helps reduce installation time and minimizes potential wiring mistakes during system construction.

Organized Signal Management

With a 20-wire structure and color-coded flying leads, the cable supports easier signal identification and improves efficiency during PLC commissioning and maintenance.

Reliable Industrial Connection

Designed for Modicon automation platforms, the BMXFTW1001 provides stable electrical connections between I/O modules and external field devices, supporting dependable control system operation.

Simplified Maintenance and Troubleshooting

The standardized cable design makes inspection and fault tracing easier, allowing technicians to quickly locate wiring issues and reduce machine downtime.

Technical FAQs

1. Q: What is the main function of the Schneider BMXFTW1001 Cable Assembly?
A: The BMXFTW1001 provides a preassembled connection between Modicon I/O modules with removable terminal blocks and external field wiring systems.

2. Q: Which PLC platforms are compatible with BMXFTW1001?
A: The cable is designed for compatible Modicon M340 and Modicon X80 I/O applications.

3. Q: What type of connection does BMXFTW1001 provide?
A: It provides a 20-way removable terminal block connection with one end equipped with color-coded flying leads.

4. Q: Does BMXFTW1001 require PLC software configuration?
A: No. The cable assembly is a passive hardware accessory, but connected I/O modules must be correctly configured in the PLC application.

5. Q: How can engineers troubleshoot incorrect I/O signals when using BMXFTW1001?
A: Check terminal assignments, inspect cable continuity, verify module configuration, and review PLC diagnostic information.

6. Q: What causes signal interruption in a long cable connection?
A: Common causes include damaged cable sections, loose terminals, incorrect wiring, electromagnetic interference, or poor installation practices.

7. Q: Why use BMXFTW1001 instead of manual field wiring?
A: It improves wiring consistency, reduces installation workload, and helps prevent connection errors during automation system assembly.

8. Q: How should BMXFTW1001 be tested during commissioning?
A: Verify terminal connections, perform continuity checks, confirm I/O mapping, and monitor PLC input/output status.

9. Q: Can BMXFTW1001 support industrial environments with continuous operation?
A: Yes. It is designed for industrial automation applications requiring reliable and stable field connections.

10. Q: What maintenance steps are recommended for BMXFTW1001?
A: Regular inspection of terminal connections, cable routing, mechanical protection, and cabinet conditions helps maintain reliable performance.
