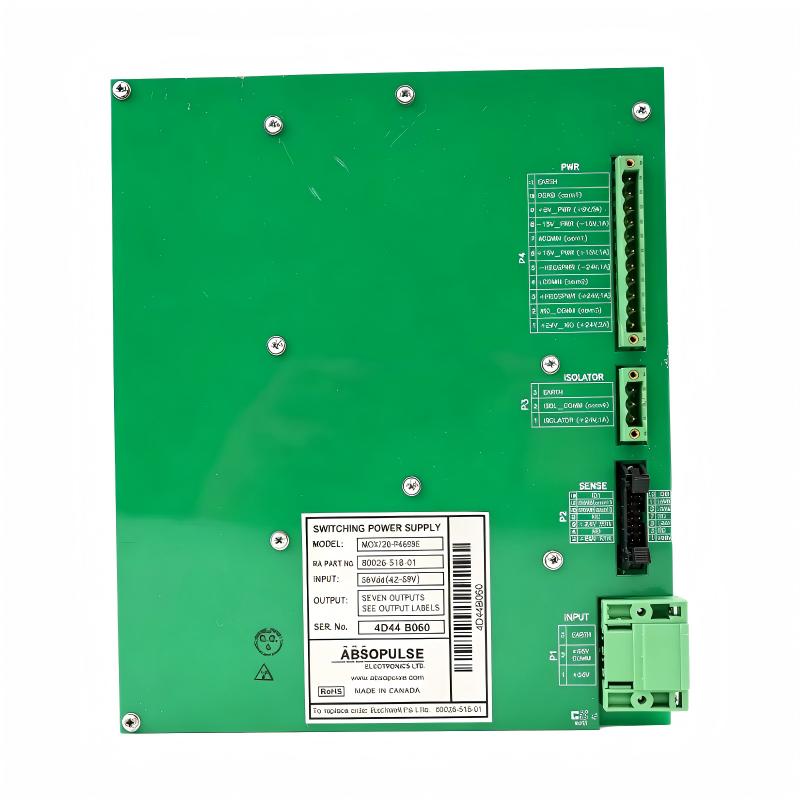

Allen Bradley 80026-518-01-R DC Switching Power Supply
Allen Bradley 80026-518-01-R DC Switching Power Supply
0.0
Points
Brand:Allen Bradley PLC Item No.:80026-518-01-R Product Origin:USA Product Dimensions:130 x 100 x 55 mm Product Weight:0.64 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial DC Power Solution
The Allen Bradley 80026-518-01-R DC Switching Power Supply provides a dependable power solution for industrial automation systems requiring stable and flexible DC voltage distribution.
Modern automation cabinets contain various electronic devices operating at different voltage levels. A reliable power supply is essential to maintain communication modules, control circuits, and monitoring equipment in continuous operation. The 80026-518-01-R simplifies power architecture by providing multiple regulated DC outputs from a single industrial power module.
With its compact structure, multi-output capability, and reliable switching design, the 80026-518-01-R is a practical choice for system integrators, maintenance engineers, and OEM manufacturers requiring dependable DC power conversion.
Its robust industrial design makes it suitable for applications where power stability directly impacts equipment performance, production efficiency, and system uptime.
Technical Specifications
Parameter
Specification
Product Type
DC Switching Power Supply
Manufacturer
Allen Bradley
Model Number
80026-518-01-R
Power Supply Type
Switching DC Power Supply
Input Voltage
56 VDC
Output Voltage
5 VDC / 15 VDC / 24 VDC
Number of Outputs
7 Outputs
Output Current Rating
5 A / 2 A / 1 A
Application
Industrial Control Power Conversion
Installation Type
Control Cabinet Mounting
Cooling Method
Natural Air Cooling
Length
130 mm
Dimensions
130 × 100 × 55 mm
Weight
0.64 kg (1.41 lb)
Recommended Related Models
Model
Description
Allen Bradley 80026-508-08-R
PowerFlex 7000 Buffer Capacitor Module
Allen Bradley 80026-518-01
DC Switching Power Supply
Allen Bradley 80026-529-01-R
Industrial Power Supply Module
Allen Bradley 1606-XLE240E
DIN Rail DC Power Supply
Allen Bradley 1606-XLS240E
High Performance DC Power Supply
Popular Related Models
Model
Product Type
Allen Bradley 1606 Series
Industrial DC Power Supply
Allen Bradley 1769-PA4
CompactLogix Power Supply
Allen Bradley 1756-PA75
ControlLogix Power Supply Module
Allen Bradley 2711P Series
PanelView Plus Operator Terminal
Allen Bradley PowerFlex 7000 Series
Medium Voltage AC Drive System
Industrial Applications and Stable DC Power Conversion
The Allen Bradley 80026-518-01-R DC Switching Power Supply is a dedicated industrial power conversion component designed to provide reliable DC power for automation equipment and control system applications. It converts DC input power into multiple regulated DC output voltages, supporting electronic control circuits that require stable and continuous power operation.
Designed for demanding industrial environments, the 80026-518-01-R features a multi-output architecture with 5 VDC, 15 VDC, and 24 VDC outputs, making it suitable for systems that require different voltage levels within the same electrical cabinet.
The 80026-518-01-R is commonly applied in:
Industrial automation control cabinets
PowerFlex drive auxiliary systems
PLC control and monitoring equipment
Industrial electronic assemblies
Machine automation platforms
Process control systems
OEM equipment electrical panels
By providing dependable DC voltage conversion, this switching power supply helps maintain stable operation of sensitive electronic components and improves overall system reliability.
Power Supply Advantages and Industrial Control Benefits
Multi-Voltage Output Capability
The 80026-518-01-R provides multiple DC output levels, including 5 VDC, 15 VDC, and 24 VDC, allowing one power supply unit to support different automation devices and electronic circuits.
Reliable Switching Technology
The switching power design improves conversion efficiency while maintaining stable output performance, making it suitable for continuous industrial operation.
Compact Cabinet Integration
With a compact mechanical design, the module can be installed in limited control cabinet spaces while providing dependable power conversion capability.
Enhanced System Availability
Stable DC power is essential for PLCs, communication devices, sensors, and control electronics. The 80026-518-01-R helps reduce unexpected shutdowns caused by unstable power conditions.
Industrial-Grade Performance
Designed for automation environments, the module supports reliable operation in applications requiring consistent voltage regulation and long-term service performance.
Technical FAQs
1. Q: What is the primary function of the Allen Bradley 80026-518-01-R?
A: The 80026-518-01-R converts DC input power into regulated DC outputs for industrial automation and control applications.
2. Q: What output voltages are available from the 80026-518-01-R?
A: The module provides 5 VDC, 15 VDC, and 24 VDC outputs for different control system requirements.
3. Q: What type of input power does the 80026-518-01-R require?
A: The module is designed with a 56 VDC input configuration.
4. Q: How can engineers troubleshoot a 80026-518-01-R power failure?
A: Check input voltage levels, output connections, terminal wiring, load conditions, and any abnormal system indicators.
5. Q: What causes unstable output voltage from a switching power supply?
A: Possible causes include excessive load current, poor input power quality, damaged internal components, or incorrect wiring.
6. Q: Can the 80026-518-01-R supply multiple devices simultaneously?
A: Yes. Its multi-output design allows different circuits to receive appropriate DC voltage levels when properly configured.
7. Q: What should be checked if connected equipment cannot start?
A: Verify input power availability, output voltage measurements, wiring polarity, and connected device current requirements.
8. Q: How does a switching power supply improve industrial system efficiency?
A: Switching technology reduces conversion losses and provides efficient power regulation compared with traditional linear power supplies.
9. Q: What maintenance practices are recommended for the 80026-518-01-R?
A: Regular inspection of terminals, ventilation conditions, output voltage stability, and cabinet temperature is recommended.
10. Q: Can power supply problems affect PLC or drive operation?
A: Yes. Incorrect or unstable DC power can cause controller resets, communication issues, and unexpected equipment faults.
