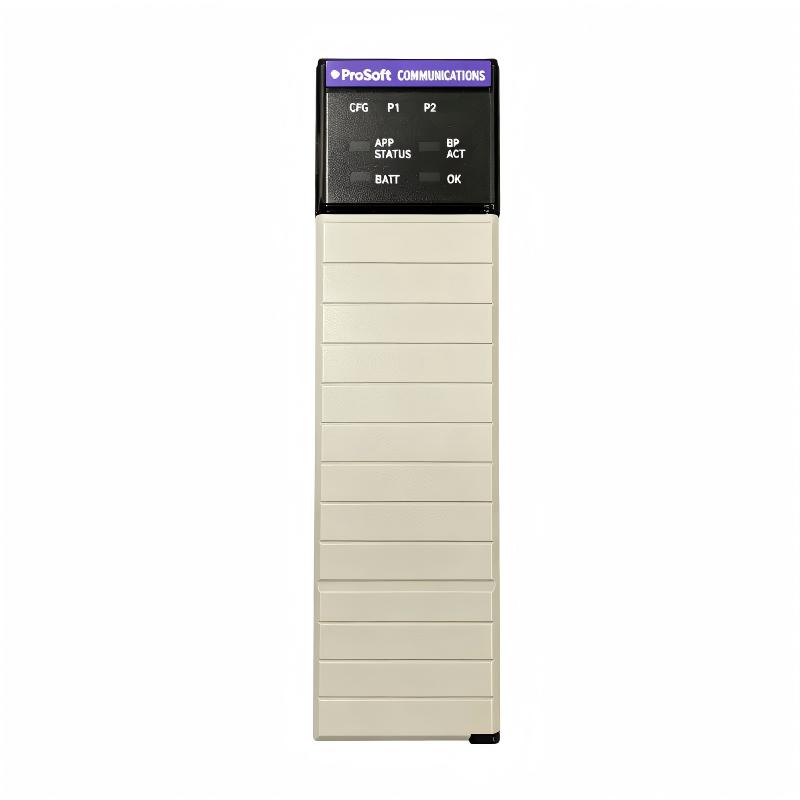

Allen Bradley MV156-MCM Modbus Communication Module
Allen Bradley MV156-MCM Modbus Communication Module
0.0
Points
Brand:Allen Bradley PLC Item No.:MV156-MCM Product Origin:USA Product Dimensions:139 x 34 x 145 mm Product Weight:0.23 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Communication Gateway Solution
The Allen Bradley MV156-MCM Modbus Communication Module provides a reliable communication solution for industrial automation systems requiring integration between ControlLogix controllers and Modbus field devices.
Many industrial facilities operate a combination of Rockwell Automation controllers and third-party equipment using Modbus communication. The MV156-MCM helps bridge these technologies by providing stable protocol conversion and efficient data exchange without requiring major changes to existing control architectures.
Designed for system integrators, automation engineers, and maintenance professionals, this communication module improves connectivity, extends equipment compatibility, and supports long-term automation system upgrades.
Its compact design, flexible communication capability, and industrial-grade reliability make the MV156-MCM a practical choice for applications where dependable serial communication is essential.
Technical Specifications
Parameter
Specification
Product Type
Modbus Communication Module
Manufacturer
Allen Bradley
Model Number
MV156-MCM
Communication Protocol
Modbus RTU
Communication Mode
Master / Slave
Compatible Platform
ControlLogix System
Backplane Interface
ControlLogix Chassis
Serial Ports
Dual Serial Communication Ports
Serial Interface
RS-232 / RS-422 / RS-485
Configuration Port
RS-232
Data Transfer Capacity
Up to 5000 Registers
LED Indicators
Module Status / Communication Status / Error Status
Operating Temperature
0…60 °C
Installation Type
ControlLogix Rack Mounting
Dimensions
139 × 34 × 145 mm
Weight
0.23 kg (0.51 lb)
Recommended Related Models
Model
Description
Allen Bradley MVI56-MCM
ControlLogix Modbus Master/Slave Communication Module
Allen Bradley ILX69-PBM
PROFIBUS DP Master Communication Module
Allen Bradley 1756-EN2T
ControlLogix EtherNet/IP Communication Module
Allen Bradley 1756-DHRIO
ControlLogix DH+/RIO Communication Module
Allen Bradley 1756-CNB/E
ControlLogix ControlNet Communication Module
Popular Related Models
Model
Product Type
Allen Bradley 1756-L71
ControlLogix Processor Module
Allen Bradley 1756-L73
ControlLogix Controller Module
Allen Bradley 1769-L36ERM
CompactLogix Controller
Allen Bradley 1769-SM1
CompactLogix Communication Module
Allen Bradley 5069-L340ER
CompactLogix 5380 Controller
Industrial Applications and Modbus Network Connectivity
The Allen Bradley MV156-MCM Modbus Communication Module is a powerful communication interface designed to integrate Allen Bradley ControlLogix automation systems with Modbus-compatible devices. It provides a reliable communication bridge between the ControlLogix backplane and external Modbus networks, allowing industrial equipment from different manufacturers to exchange operational data efficiently.
The MV156-MCM supports Modbus master and slave communication functions, enabling flexible integration with PLCs, process instruments, drives, energy meters, remote I/O devices, and third-party automation equipment. By adding native Modbus capability to ControlLogix architectures, the module helps engineers maintain existing field devices while upgrading control system performance.
Typical applications include:
Process automation systems
Factory production lines
Energy monitoring systems
Motor drive communication networks
Water and wastewater control systems
Oil and gas instrumentation
Building automation equipment
OEM machine control platforms
With dependable serial communication performance and flexible protocol support, the MV156-MCM provides an effective solution for connecting modern Rockwell Automation controllers with established Modbus field networks.
Communication Advantages and System Integration Benefits
Seamless ControlLogix Modbus Expansion
The MV156-MCM extends ControlLogix communication capability by providing dedicated Modbus connectivity, allowing controllers to exchange data with devices that use Modbus RTU protocol.
Master and Slave Communication Flexibility
The module can operate as a Modbus master or slave device, giving engineers greater freedom when designing automation architectures and integrating different equipment brands.
Independent Communication Processing
The module manages Modbus communication independently from the PLC application program, helping reduce controller workload and improving overall system efficiency.
Wide Device Compatibility
The MV156-MCM can communicate with a broad range of Modbus-enabled equipment, including instruments, controllers, meters, and industrial devices, making it suitable for system modernization projects.
Simplified Maintenance and Troubleshooting
Integrated status indicators and configuration functions help technicians quickly identify communication problems, reduce downtime, and maintain stable industrial operations.
Technical FAQs
1. Q: What is the main function of the Allen Bradley MV156-MCM?
A: The MV156-MCM is a Modbus communication module that enables ControlLogix processors to exchange data with Modbus-compatible devices.
2. Q: Which communication protocol does the MV156-MCM support?
A: The module supports Modbus RTU serial communication for industrial device integration.
3. Q: Can the MV156-MCM work as both Modbus master and slave?
A: Yes. The module supports flexible master and slave communication configurations according to application requirements.
4. Q: How can engineers troubleshoot MV156-MCM communication failures?
A: Check serial wiring, baud rate settings, parity configuration, slave addresses, termination, and module diagnostic indicators.
5. Q: What causes Modbus communication timeouts on the MV156-MCM?
A: Common causes include incorrect device addressing, communication parameter mismatch, damaged cables, grounding problems, or excessive network noise.
6. Q: Does the MV156-MCM reduce PLC processing load?
A: Yes. The module processes Modbus communication separately, allowing the ControlLogix controller to focus on control logic execution.
7. Q: What should be checked if Modbus data values are incorrect?
A: Verify register mapping, data format, byte order, scaling settings, and communication configuration parameters.
8. Q: Can the MV156-MCM connect third-party industrial equipment?
A: Yes. It is commonly used to connect ControlLogix systems with third-party Modbus-compatible devices.
9. Q: What maintenance practices improve MV156-MCM reliability?
A: Regular inspection of communication cables, connector conditions, configuration backups, and diagnostic records is recommended.
10. Q: What are typical symptoms of a failing MV156-MCM module?
A: Possible symptoms include loss of communication, unstable data exchange, module status errors, or repeated network interruptions.
