Product Introduction and Technical Overview

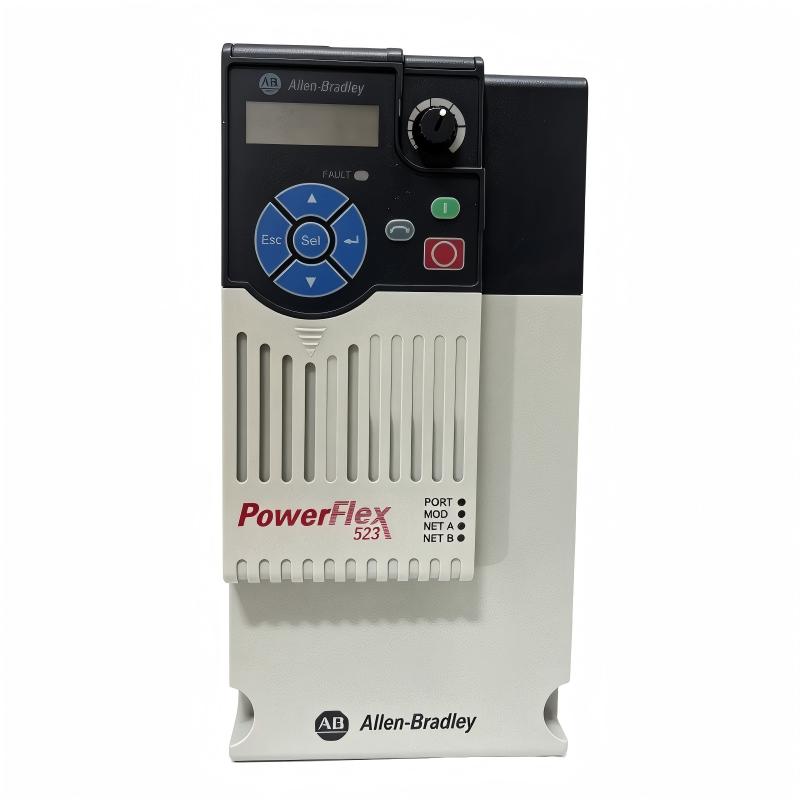

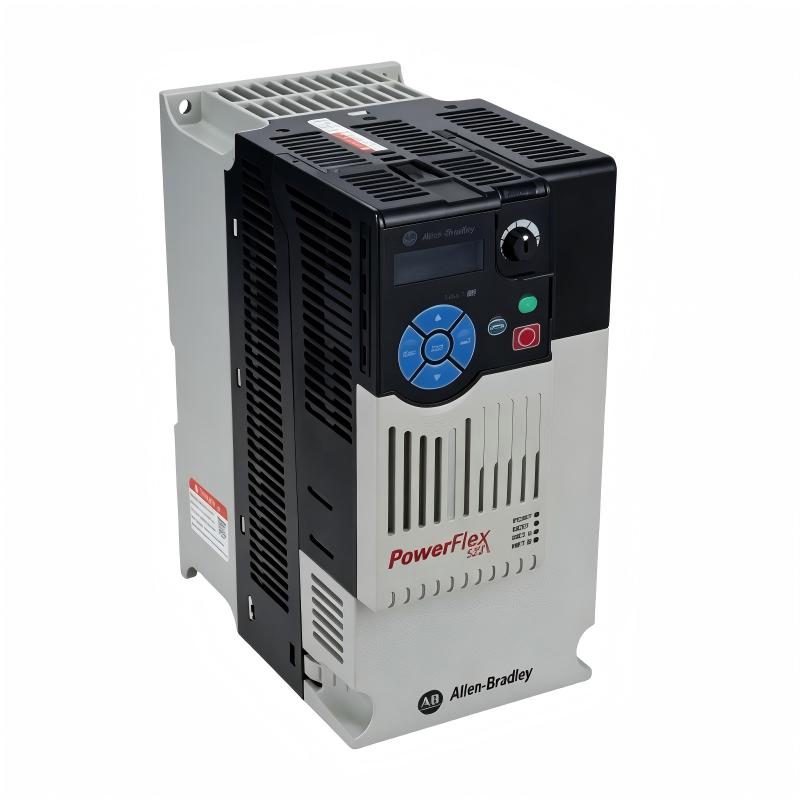

The Allen Bradley 25A-D017N114 PowerFlex 523 AC Drive is a compact and reliable variable frequency drive designed for industrial motor control applications. It provides an efficient solution for controlling motors in automated equipment where flexible operation, simple installation, and dependable performance are required.

Featuring a 380–480 VAC three-phase input design, 17 A output current capability, Frame C construction, and integrated filtering, the drive is designed to deliver stable operation across a variety of industrial environments.

The PowerFlex 523 platform combines essential motor control functions with a compact architecture, making the 25A-D017N114 an ideal choice for OEM equipment manufacturers, machine builders, and industrial facilities requiring efficient and reliable drive technology.

Technical Specifications and Engineering Data

Parameter	Specification
Brand	Allen Bradley
Model	25A-D017N114
Product Type	PowerFlex 523 AC Drive
Drive Family	PowerFlex 520-Series
Input Voltage	380–480 VAC
Phase	Three Phase
Output Current	17 A
Power Rating	7.5 kW / 10 HP
Duty Rating	Normal Duty and Heavy Duty
Frame Size	Frame C
Enclosure Type	IP20 NEMA Open Type
EMC Filtering	Integrated Filter
Control Method	Adjustable Frequency Drive Control
Communication Interface	Standard Industrial Interface
Mounting Type	Panel Mount
Dimensions	109 × 220 × 184 mm
Weight	2.30 kg (5.07 lb)

Recommended Related Models

Model	Product Type
25A-D011N114	PowerFlex 523 AC Drive
25A-D024N114	PowerFlex 523 AC Drive
25A-D043N114	PowerFlex 523 AC Drive
25B-D017N114	PowerFlex 525 AC Drive
25B-D024N114	PowerFlex 525 AC Drive

Popular Related Models

Model	Product Type
25B-D017N114	PowerFlex 525 AC Drive
25C-D017N114	PowerFlex 527 AC Drive
20F11ND034AA0NNNNN	PowerFlex 753 AC Drive
22F-D017N103	PowerFlex 4M AC Drive
1769-L24ER-QBFC1B	CompactLogix Controller

Industrial Applications and Automation Integration

The Allen Bradley 25A-D017N114 PowerFlex 523 AC Drive is a compact variable frequency drive designed for reliable motor speed control in industrial automation applications. With its efficient design, flexible configuration, and dependable performance, this drive provides a practical solution for machine builders and industrial users requiring precise control in space-limited installations.

The drive is widely used in conveyor systems, packaging machines, pumps, fans, material handling equipment, automated production lines, and general-purpose machinery. Its compact structure allows easy installation inside control cabinets while providing stable motor operation for various industrial processes.

The 25A-D017N114 PowerFlex 523 AC Drive is an excellent choice for applications where reliable performance, simplified commissioning, and cost-effective motor control are important considerations.

Key Advantages and Engineering Benefits

Compact Industrial Design
The PowerFlex 523 AC Drive features a space-saving design that helps engineers optimize cabinet layouts while maintaining reliable variable speed control performance.

Reliable Motor Speed Management
The drive provides accurate speed regulation and smooth motor operation, helping equipment achieve consistent performance during different operating conditions.

Flexible Application Configuration
Multiple configuration options allow the drive to adapt to different machine requirements, making it suitable for a wide range of industrial automation projects.

Efficient Machine Operation
Variable frequency control helps motors operate according to actual process requirements, improving energy utilization and reducing mechanical stress.

Simplified Installation Process
The compact frame design and practical connection structure help reduce installation time and simplify system integration.

Convenient Maintenance and Troubleshooting
Built-in monitoring functions assist technicians in diagnosing operating conditions and maintaining reliable system performance.

Technical FAQs

Q1: What applications are suitable for the Allen Bradley 25A-D017N114 PowerFlex 523 AC Drive?
A: This drive is suitable for conveyors, pumps, fans, packaging machines, small production equipment, and general industrial motor applications.

Q2: What motor control functions does the PowerFlex 523 provide?
A: It provides adjustable frequency control, speed regulation, acceleration control, and deceleration management for AC motors.

Q3: Can the 25A-D017N114 be integrated into automation systems?
A: Yes. The drive can be connected with industrial control systems through compatible communication and control interfaces.

Q4: What type of motors can be controlled by this AC drive?
A: It is designed for controlling compatible three-phase AC motors used in industrial automation applications.

Q5: How does variable frequency control improve machine performance?
A: It allows motors to operate at optimized speeds, improving process control and reducing unnecessary energy consumption.

Q6: How are parameters configured on the PowerFlex 523 drive?
A: Parameters can be configured through the built-in interface or compatible programming tools based on application requirements.

Q7: What protection features help ensure reliable operation?
A: The drive provides monitoring and protective functions designed to help manage abnormal operating conditions.

Q8: Can this drive support applications with frequent start and stop cycles?
A: Yes. Proper configuration allows the drive to handle applications requiring repeated acceleration and deceleration operations.

Q9: What maintenance actions are recommended for this AC drive?
A: Regular inspection of electrical connections, cooling conditions, parameter settings, and operating status is recommended.

Q10: Is the PowerFlex 523 suitable for machine upgrade projects?
A: Yes. It provides a practical replacement solution for upgrading older motor control systems with improved variable speed performance.
