Where It Excels in Industrial Use

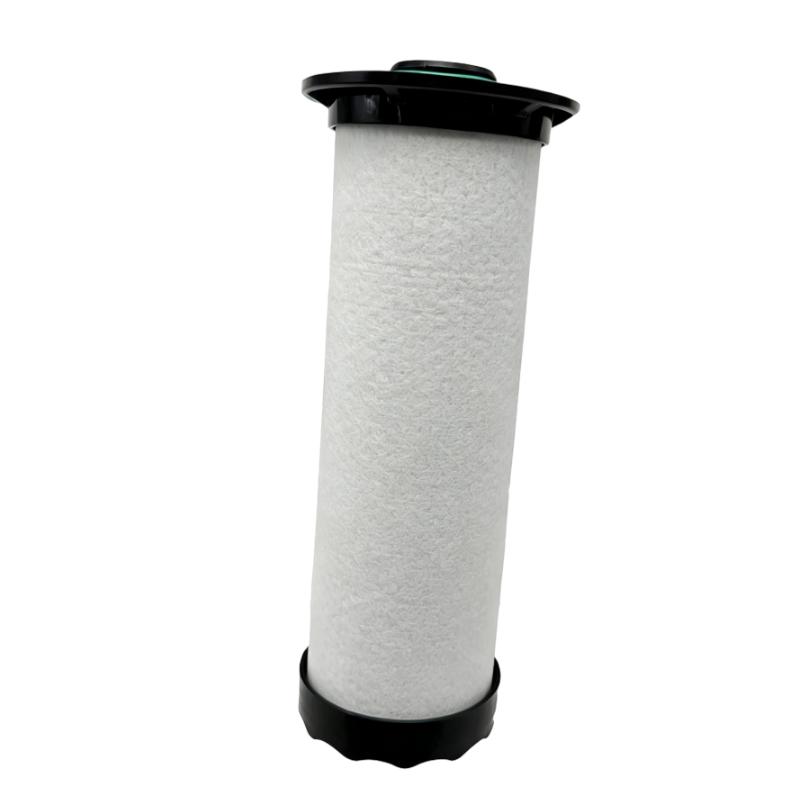

• The Ingersoll Rand 47629379001 / 54601513 Compressor Maintenance Kit is a preventive maintenance combination designed for compatible Ingersoll Rand rotary screw compressor systems.

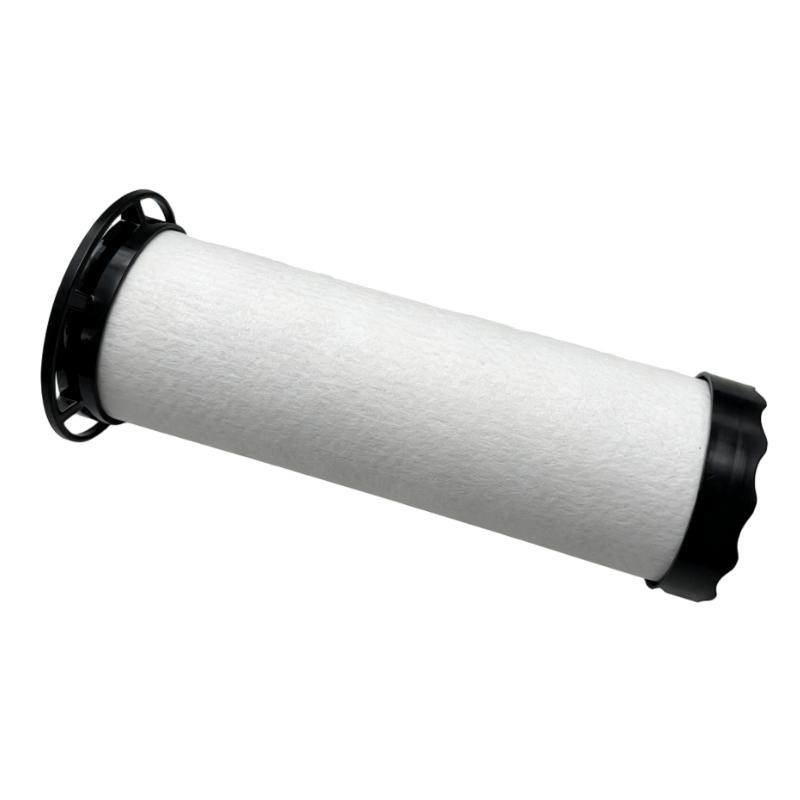

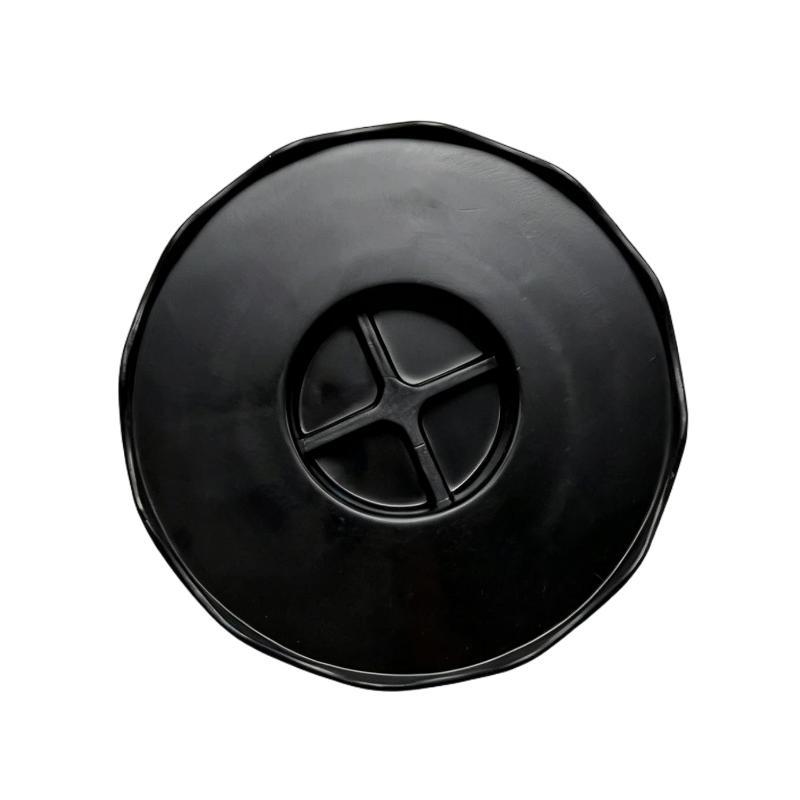

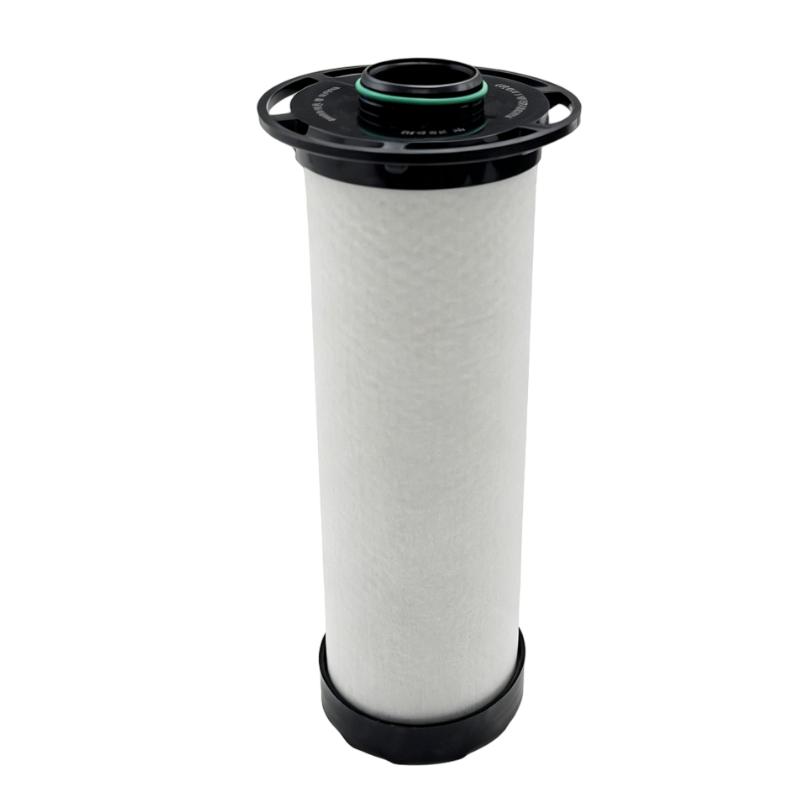

• The 54601513 OEM air/oil separator element separates oil mist from compressed air inside the separator tank, allowing recovered oil to return to the lubrication circuit while delivering cleaner compressed air downstream. This helps reduce oil carryover, maintain efficiency, and protect connected air treatment equipment.
• The 54601513 separator element is used on selected Ingersoll Rand rotary screw compressor models, including certain EP75, EP100, HP75, HP100, XP75, XP100, XF75, and XF100 configurations depending on compressor model and serial number.
• This maintenance combination is suitable for industrial applications such as manufacturing plants, automotive production, process industries, workshops, and facilities requiring continuous compressed air availability.
• Regular replacement of the separator element helps maintain low pressure drop, reduce oil contamination in downstream systems, improve energy efficiency, and extend compressor service life.

Key Strengths at a Glance

• Genuine Ingersoll Rand maintenance solution.
• 47629379001 supports scheduled compressor servicing.
• 54601513 provides high-efficiency air/oil separation.
• Helps reduce oil carryover into compressed air lines.
• Protects dryers, filters, and production equipment.
• Supports stable compressor performance and reduced downtime.

Technical FAQs

1. What is the purpose of the Ingersoll Rand 47629379001 / 54601513 combination?

It combines a compressor maintenance kit with an air/oil separator element to maintain clean compressed air output and efficient oil recovery.

2. What does the 54601513 separator element do?

The 54601513 removes oil aerosol from compressed air inside the separator tank and returns separated oil back into the compressor lubrication system.

3. Why is an air/oil separator important in a rotary screw compressor?

A properly functioning separator reduces oil carryover, maintains air quality, reduces energy losses caused by restriction, and protects downstream equipment.

4. Which compressors use the 54601513 separator element?

The part is used on selected Ingersoll Rand rotary screw compressors, including certain SSR EP, HP, XP, and XF 75/100 series machines. Compatibility must be confirmed by compressor model and serial number.

5. How often should the 54601513 separator element be replaced?

Typical maintenance recommendations are around 4,000 operating hours or annually, whichever occurs first, and replacement may also be performed during oil service depending on operating conditions.

6. What are signs that the separator element needs replacement?

Common indicators include:

• Increased oil carryover
• Higher separator differential pressure
• Excessive oil consumption
• Reduced compressor efficiency
• Oil contamination in downstream equipment

7. Can a worn separator increase operating costs?

Yes. A restricted separator can increase pressure drop and energy consumption, while poor separation can allow oil contamination into the compressed air system.

8. Is the 54601513 an OEM Ingersoll Rand component?

Yes. The 54601513 is identified as an Ingersoll Rand air/oil separator element for compatible compressor applications.

9. What other components are commonly replaced during maintenance?

Typical maintenance items include:

• Air filter element
• Oil filter element
• Compressor lubricant
• Pre-filter pads
• Motor bearing grease

10. Why use OEM separator elements?

OEM separator elements are designed to match compressor requirements for fit, filtration efficiency, pressure drop, and operating reliability.
