Brand:Ingersoll Rand Item No.:47588685001 95069779 Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

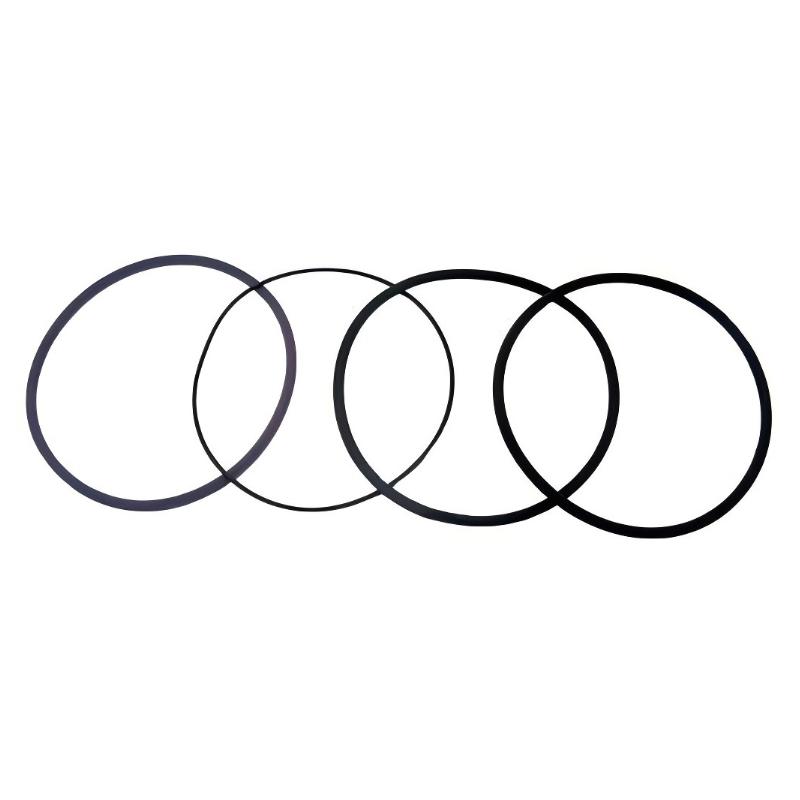

The Ingersoll Rand 47588685001 95069779 Gear Box Maintenance Package is intended for planned maintenance of compatible Ingersoll Rand screw compressor drivetrain systems. The primary 47588685001 reference is identified as a Gear Box Maintenance Package, while 95069779 is a Standard -036 O-ring used within the applicable motor and gear assembly.
The 95069779 O-ring has a documented 2.375-inch inside diameter and 0.062-inch cross-section width and is specified as an FKM70 sealing component. Its relatively compact profile allows it to perform a precise static-sealing function within the associated shaft and gearcase assembly.
In the documented 75 kW motor and gear assembly, 95069779 is installed alongside components including the shaft-seal housings and the larger 95023107 O-ring. This arrangement illustrates why exact part-number identification matters: visually similar O-rings can have substantially different dimensions and perform different functions within the same mechanical assembly.
For maintenance professionals, replacing the correct sealing component during planned gearbox service is a straightforward reliability measure. Proper O-ring selection and installation help preserve lubricant containment, protect surrounding drivetrain components, and maintain the designed sealing condition of the compressor assembly.
Technical Specifications
Specification
Details
Brand
Ingersoll Rand
Main Part Number
47588685001
Main Product Type
Gear Box Maintenance Package
Associated Part Number
95069779
Component Type
O-Ring
O-Ring Designation
Standard -036
Inside Diameter
2.375 in
Cross-Section Width
0.062 in
Inside Diameter, Metric
Approx. 60.33 mm
Cross-Section, Metric
Approx. 1.57 mm
Material
FKM70
Application
Motor / Gear Assembly
Service Category
Gearbox / Drivetrain Maintenance
Function
Static Sealing
Associated Components
Shaft-Seal Housing, Shaft Seal, Related O-Rings
Product Dimensions
Approx. 7 × 7 × 7 mm package dimensions
Individual Net Weight
Approx. 0.01 kg
Installation
Professional compressor service recommended
The available product data lists an individual net weight of approximately 0.01 kg and package dimensions of approximately 7 × 7 × 7 mm for 95069779. These figures refer to the individual O-ring/package, not the complete 47588685001 maintenance package.
Recommended Companion Models
Model
Product Name
89244024
High-Pressure Shaft Seal
89244040
Shaft Seal Housing
89246524
Shaft Sleeve
95023107
Standard -156 O-Ring
Frequently Selected Alternatives
Model
Product Name
95070611
Standard O-Ring
95070272
Standard O-Ring
95023107
Standard -156 O-Ring
96958111
Standard O-Ring
Where It Excels in Industrial Use
• Gearbox and Motor Assembly Service — The Ingersoll Rand 47588685001 Gear Box Maintenance Package is designed for planned service of compatible compressor drivetrain assemblies, providing a practical maintenance reference for critical mechanical components.
• Motor Shaft Sealing — The associated 95069779 O-ring is used within the motor and gear assembly, where dependable static sealing helps maintain the integrity of the shaft-seal housing and surrounding components.
• Industrial Compressor Maintenance — This component is well suited to compressor service environments where lubricant containment, mechanical stability, and reliable sealing are important to continuous equipment operation.
• Preventive Drivetrain Maintenance — Replacing aged or damaged O-rings during scheduled service can help reduce leakage risks and prevent minor sealing problems from developing into more extensive drivetrain maintenance issues.
Key Strengths at a Glance
• Defined OEM Part Reference — 95069779 provides a specific Ingersoll Rand replacement reference for the applicable motor and gear assembly, helping maintenance teams avoid uncertain generic substitutions.
• Standard -036 Configuration — The O-ring is identified as a Standard -036 configuration with a 2.375-inch inside diameter and 0.062-inch cross-section, providing a precise dimensional reference for replacement.
• FKM70 Material — 95069779 is specified as an FKM70 O-ring, providing a defined elastomer specification for the compatible compressor sealing application.
• Part of a Complete Sealing Assembly — In documented Ingersoll Rand assemblies, 95069779 is installed alongside shaft-seal housing and other O-ring components, making correct component matching important for maintaining sealing performance.
Technical FAQs
1. What is Ingersoll Rand 47588685001?
Ingersoll Rand 47588685001 is identified as a Gear Box Maintenance Package for compatible Ingersoll Rand screw compressor systems.
2. What is Ingersoll Rand 95069779?
95069779 is an Ingersoll Rand O-ring identified as a Standard -036 sealing component used within compatible motor and gear assemblies.
3. What are the dimensions of 95069779?
The documented specification is 2.375 inches inside diameter × 0.062 inches cross-section width.
4. What O-ring standard is associated with 95069779?
95069779 is identified as a Standard -036 O-ring under the SAE AS568 dimensional system.
5. What material is used for 95069779?
Available product specifications identify 95069779 as an FKM70 O-ring.
6. Where is 95069779 used in the compressor assembly?
In the documented 75 kW motor and gear assembly, 95069779 is listed as an O-ring associated with the shaft-seal housing and related drivetrain components.
7. Is 95069779 the same as 95023107?
No. They are different O-rings. 95069779 is the Standard -036 O-ring with a 2.375-inch ID, while 95023107 is the larger Standard -156 O-ring used elsewhere in the same assembly.
8. Can another -036 O-ring be substituted for 95069779?
Not automatically. The elastomer material, dimensions, temperature capability, lubricant compatibility, and specific compressor application should all be confirmed before substitution.
9. Why is O-ring condition important in a gearbox assembly?
An O-ring provides sealing between mating components. Deterioration, flattening, cracking, or incorrect installation can compromise the seal and allow lubricant leakage or contamination.
10. What should be checked before installing 95069779?
The O-ring groove, mating surfaces, shaft-seal housing, adjacent seals, and installation condition should be inspected to ensure that the new O-ring can form the intended seal.
