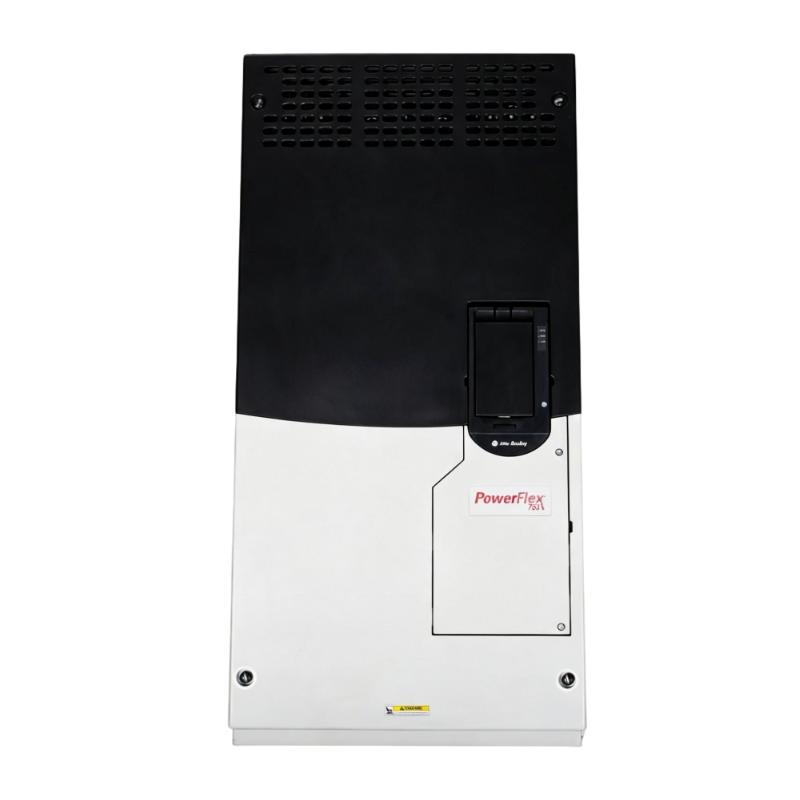

Allen Bradley 20F1ANC456JN0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F1ANC456JN0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F1ANC456JN0NNNNN Product Origin:USA Product Dimensions:881.5 x 349.6 x 430 mm Product Weight:48 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20F1ANC456JN0NNNNN PowerFlex 753 AC Drive is engineered for industrial users requiring powerful, flexible, and reliable motor control. It combines advanced drive technology with a scalable design approach to support a wide range of automation applications.
The PowerFlex 753 platform is commonly selected for applications where performance, integration capability, and operational reliability are critical. The drive provides efficient motor management while helping industries improve energy usage, production consistency, and equipment availability.
With its high-current capability and industrial-grade construction, the Allen Bradley 20F1ANC456JN0NNNNN is an excellent choice for large machinery, process systems, and automation modernization projects.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20F1ANC456JN0NNNNN
Product Type
PowerFlex 753 AC Drive
Series
PowerFlex 753
Application
High-Power Industrial Motor Control
Input Voltage
400 VAC
Phase
Three Phase
Normal Duty Power Rating
250 kW
Heavy Duty Power Rating
200 kW
Output Current
456 A
Frame Size
Frame 7
Protection Type
IP20/IP00 Open Type
Cooling Method
Forced Air Cooling
Dimensions
881.5 x 349.6 x 430 mm
Weight
48.00 kg (105.82 lb)
Recommended Related Allen Bradley Models
Model
Product Type
Allen Bradley 20F1ANC286JN0NNNNN
PowerFlex 753 AC Drive
Allen Bradley 20F1ANC302JN0NNNNN
PowerFlex 753 AC Drive
Allen Bradley 20F1ANC367JN0NNNNN
PowerFlex 753 AC Drive
Allen Bradley 20F1ANC456JN0NNNNN
PowerFlex 753 AC Drive
Allen Bradley 20G1AGC205JN0NNNNN
PowerFlex 755 AC Drive
Popular Allen Bradley Automation Products
Model
Product Type
Allen Bradley 1756-L83E
ControlLogix Processor Module
Allen Bradley 1756-EN2T
EtherNet/IP Communication Module
Allen Bradley 1734-OB2E
Point I/O Digital Output Module
Allen Bradley 1769-L33ER
CompactLogix Controller
Allen Bradley 2711P-T15C4D8
PanelView Plus Terminal
Allen Bradley 20F11ND077AA0NNNNN
PowerFlex 753 AC Drive
The Allen Bradley 20F1ANC456JN0NNNNN PowerFlex 753 AC Drive is a powerful industrial motor control solution designed for high-demand automation environments. With advanced control functions, strong load-handling capability, and reliable system integration, it provides an effective solution for large industrial machines, process equipment, and modern automation applications.
Industrial Drive Applications and High-Power Motor Control Solutions
The Allen Bradley 20F1ANC456JN0NNNNN PowerFlex 753 AC Drive is a high-performance variable frequency drive designed for demanding industrial motor control applications. As part of the PowerFlex 753 family, this drive provides reliable speed regulation, flexible configuration, and advanced control capability for large-scale automation systems.
The 20F1ANC456JN0NNNNN is suitable for applications requiring powerful motor management, including manufacturing equipment, material handling systems, pumps, fans, compressors, conveyors, and process automation machinery. Its embedded I/O capability and robust drive architecture make it an effective solution for system integrators and industrial engineers seeking dependable motor control performance.
Designed for continuous industrial operation, the Allen Bradley PowerFlex 753 AC Drive helps improve production efficiency, optimize motor performance, and reduce operational interruptions in complex automation environments.
Drive Performance Advantages and Engineering Benefits
The Allen Bradley 20F1ANC456JN0NNNNN PowerFlex 753 AC Drive provides strong advantages for modern industrial applications:
High-Capacity Motor Control Performance
Designed for large motor applications, the drive delivers reliable speed and torque management for demanding industrial loads.
Advanced Automation Integration
Built-in I/O functions simplify connection with industrial control systems and improve application flexibility.
Stable Operation Under Heavy Loads
The drive supports reliable motor performance in applications requiring continuous operation and consistent output.
Flexible Configuration Capability
Adjustable parameters allow engineers to optimize drive performance according to different machine requirements.
Enhanced System Reliability
Integrated monitoring and protection functions help prevent damage caused by abnormal operating conditions.
For OEM manufacturers, system integrators, and maintenance professionals, the Allen Bradley 20F1ANC456JN0NNNNN provides a dependable solution for upgrading high-power motor control systems and improving industrial productivity.
Technical FAQs About Allen Bradley 20F1ANC456JN0NNNNN PowerFlex 753 AC Drive
Q1: What is the primary function of the Allen Bradley 20F1ANC456JN0NNNNN?
A: The drive controls motor speed, torque, and operating performance in industrial automation applications.
Q2: What types of applications are suitable for the PowerFlex 753 AC Drive?
A: It is commonly used in conveyors, pumps, fans, compressors, production machinery, and process control systems.
Q3: What are common causes of PowerFlex 753 drive faults?
A: Common causes include overcurrent, overload, overheating, incorrect parameter settings, communication errors, and motor issues.
Q4: How can technicians troubleshoot an overcurrent fault?
A: Check motor wiring, mechanical load conditions, acceleration parameters, output connections, and motor insulation status.
Q5: Why is parameter configuration important for this AC drive?
A: Correct parameter setup ensures accurate motor control and improves system stability during operation.
Q6: What can cause communication problems with the PowerFlex 753?
A: Incorrect network configuration, damaged communication cables, or improper communication settings may interrupt data exchange.
Q7: Does replacing the drive require parameter backup?
A: Yes. Saving existing application parameters helps restore machine operation efficiently after replacement.
Q8: What should be checked before commissioning the 20F1ANC456JN0NNNNN?
A: Verify input power, motor compatibility, wiring connections, grounding, control settings, and safety functions.
Q9: How does overheating affect drive operation?
A: Excessive temperature may activate protection functions and reduce drive performance or cause shutdown.
Q10: How can users maintain long-term PowerFlex 753 reliability?
A: Regular inspections, proper cooling, clean installation conditions, and preventive maintenance help extend service life.
