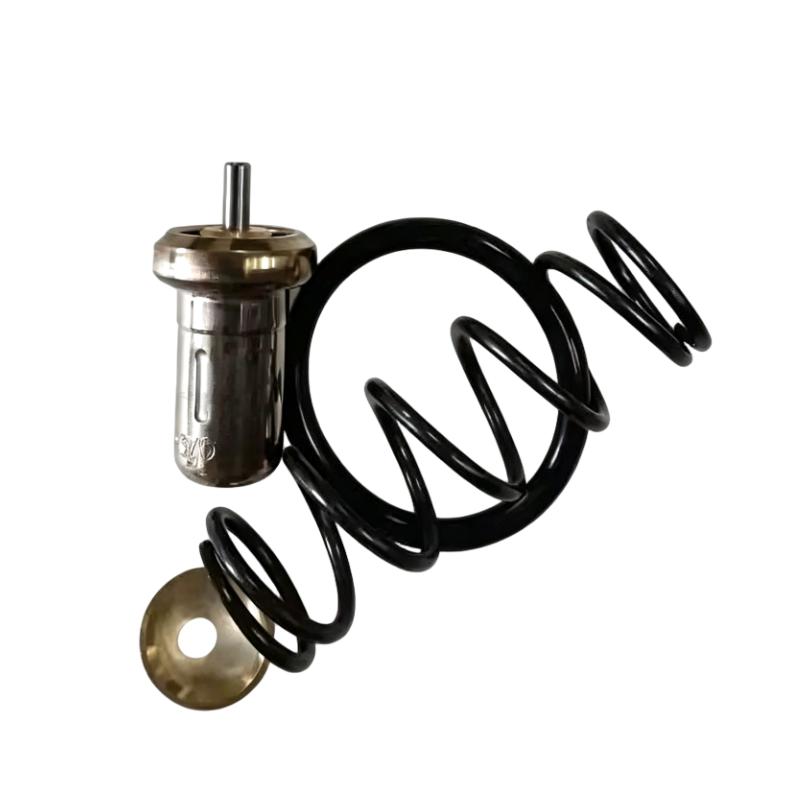

Ingersoll Rand 47690563001 / 23710842 Thermal Valve Service Kit
Ingersoll Rand 47690563001 / 23710842 Thermal Valve Service Kit
0.0
Points
Brand:Ingersoll Rand Item No.:47690563001 / 23710842 Product Origin:USA Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Ingersoll Rand 47690563001 / 23710842 Thermal Valve Service Kit is a maintenance component designed for servicing the thermal-control system of compatible Ingersoll Rand compressors.
The primary reference 47690563001 is clearly documented as a Kit, Thermal Valve 180–198°F, Rebuild, including listings describing it as a genuine Ingersoll Rand component. The corresponding 23710842 reference is identified as a Service Hot Side Thermal Control Valve Kit and is listed for compatible rotary screw compressor applications.
Thermal-valve service is important because compressor lubricant must operate within an appropriate temperature range for effective lubrication, cooling, and moisture management. A properly functioning valve helps control when lubricant is directed through the cooler and helps maintain stable operating conditions.
For maintenance teams, the rebuild-kit approach can be advantageous during planned overhauls because the serviceable thermal-control components can be renewed without automatically replacing the complete cooling assembly.
The 47690563001 / 23710842 references are treated as one product listing for this page. Final selection should nevertheless be confirmed against the compressor model and serial number, particularly because thermal-valve temperature ratings are application-specific.
Not reliably verified from available technical documentation
Material
Component-specific
Compatibility
Model-, serial-number and temperature-rating dependent
The 180–198°F temperature range is directly associated with 47690563001 in available product documentation. Exact physical dimensions and complete kit weight were not reliably verified and should therefore be confirmed against the supplied kit or applicable OEM documentation.
These references cover related Ingersoll Rand thermal-control service configurations. The temperature ratings differ, so they should be selected according to the compressor's specified thermal-control configuration rather than treated as universal substitutes. Available parts data identify 47690564001 as a related thermal-valve rebuild reference and 47606468001 as a TCV service kit.
Frequently Selected Alternatives
Model
Product Name
23710842
Ingersoll Rand Service Hot-Side Thermal Control Valve Kit
Thermal Control Valve Maintenance: The supplied 47690563001 / 23710842 references are treated as one product listing. 47690563001 is identified as an Ingersoll Rand thermal valve rebuild kit for 180–198°F, while 23710842 is identified as a service hot-side thermal control valve kit.
Rotary Screw Compressor Service: 23710842 is listed for Ingersoll Rand rotary screw compressor applications, including R55I/R75I configurations.
Temperature Regulation: A properly functioning thermal valve helps regulate lubricant temperature by controlling the oil-flow path through the cooler circuit as the compressor reaches operating temperature.
Planned Rebuilds: The rebuild-kit format is well suited to scheduled compressor maintenance when the thermal valve assembly can be serviced without replacing the complete valve housing.
Key Strengths at a Glance
Defined Temperature Range: 47690563001 is specifically described as a thermal valve rebuild kit for 180–198°F service.
OEM Service Reference: Both 47690563001 and 23710842 are offered as Ingersoll Rand service parts, with 23710842 specifically identified as a hot-side thermal control valve service kit.
Supports Stable Oil Temperature: Maintaining correct thermal-valve operation helps the compressor reach and maintain its intended oil operating temperature.
Maintenance-Friendly Design: A rebuild kit allows service of the thermal-control assembly while avoiding unnecessary replacement of the complete compressor cooling system.
Technical FAQs
1. What is Ingersoll Rand 47690563001 / 23710842?
The supplied references are treated as one product listing. 47690563001 is a thermal valve rebuild kit rated for the 180–198°F range, while 23710842 is identified as a service hot-side thermal control valve kit.
2. What is the main function of the thermal valve?
The thermal valve regulates compressor lubricant temperature by controlling oil flow through the cooling circuit according to operating temperature.
3. What temperature range is associated with 47690563001?
47690563001 is documented as a 180–198°F thermal valve rebuild kit.
4. What does 23710842 refer to?
23710842 is identified as a Kit, Service Hot Side Thermal Control Valve and is also listed as a thermostatic valve kit for compatible Ingersoll Rand rotary screw compressors.
5. Which compressor applications are associated with 23710842?
Available parts catalogs identify 23710842 with Ingersoll Rand compressor applications including R55I/R75I configurations. Exact applicability remains dependent on compressor model and serial number.
6. What can happen if the thermal valve does not regulate correctly?
Incorrect thermal-valve operation can contribute to abnormal oil temperature, inefficient cooling control, excessive thermal cycling, or compressor temperature alarms.
7. Is 47690563001 a complete thermal valve assembly?
No. It is identified as a thermal valve rebuild kit, so it should not automatically be considered a complete replacement valve assembly.
8. Can the 180–198°F kit be substituted for another thermal-valve temperature rating?
Not without confirming the compressor's specified operating temperature and OEM parts documentation. Different thermal settings can change oil-temperature control behavior.
9. What should be checked during thermal-valve rebuilding?
Inspect the valve body, sealing surfaces, O-rings, valve element, spring components, and mating passages for wear, contamination, corrosion, or damage before reassembly.
10. What should be verified before ordering this kit?
Verify the compressor model, serial number, existing thermal-valve part number, specified temperature range, and current Ingersoll Rand parts documentation.
