Introduction

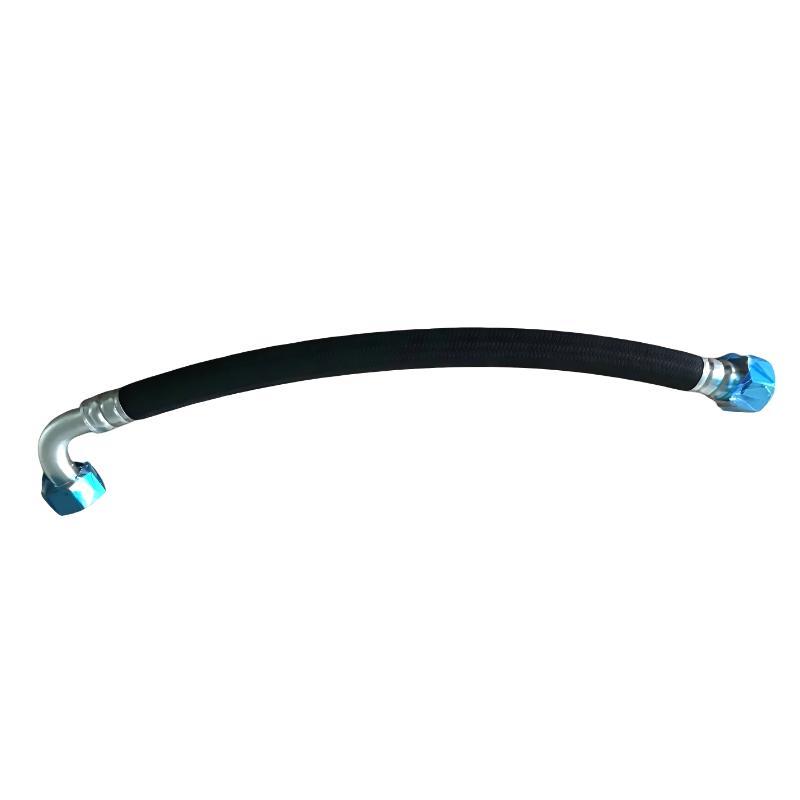

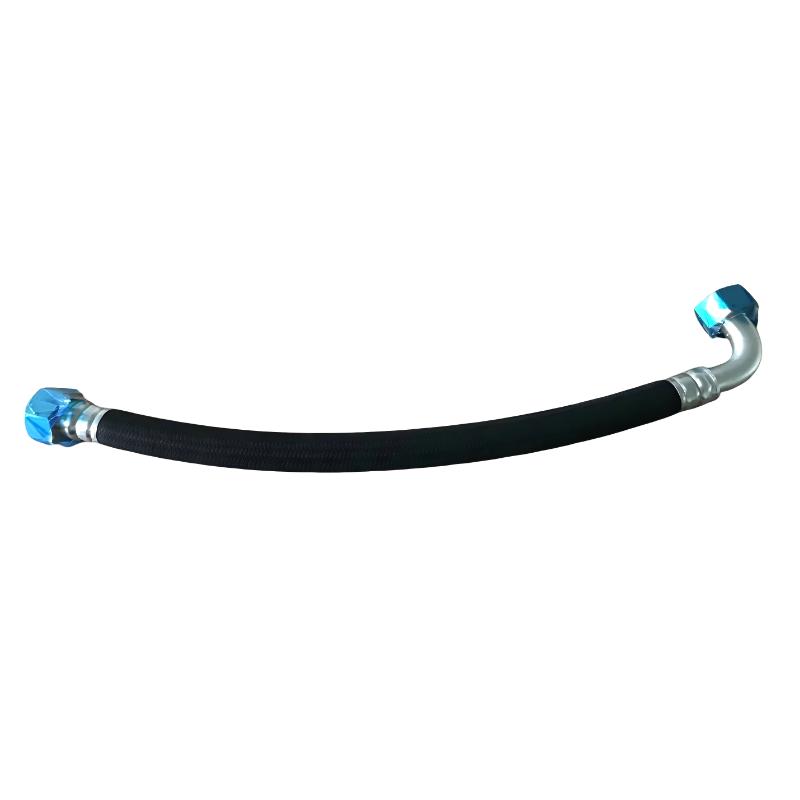

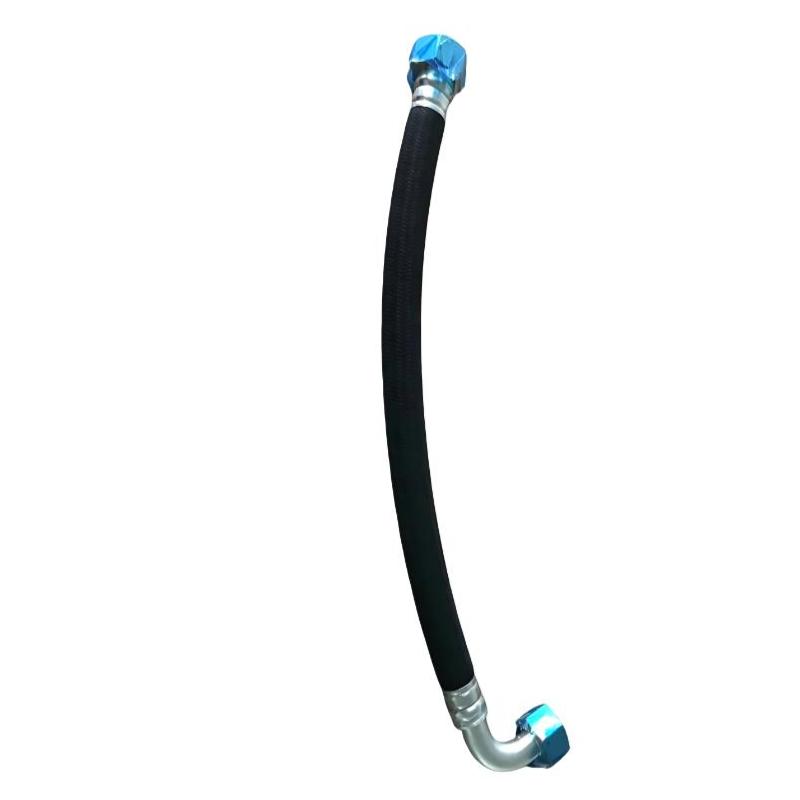

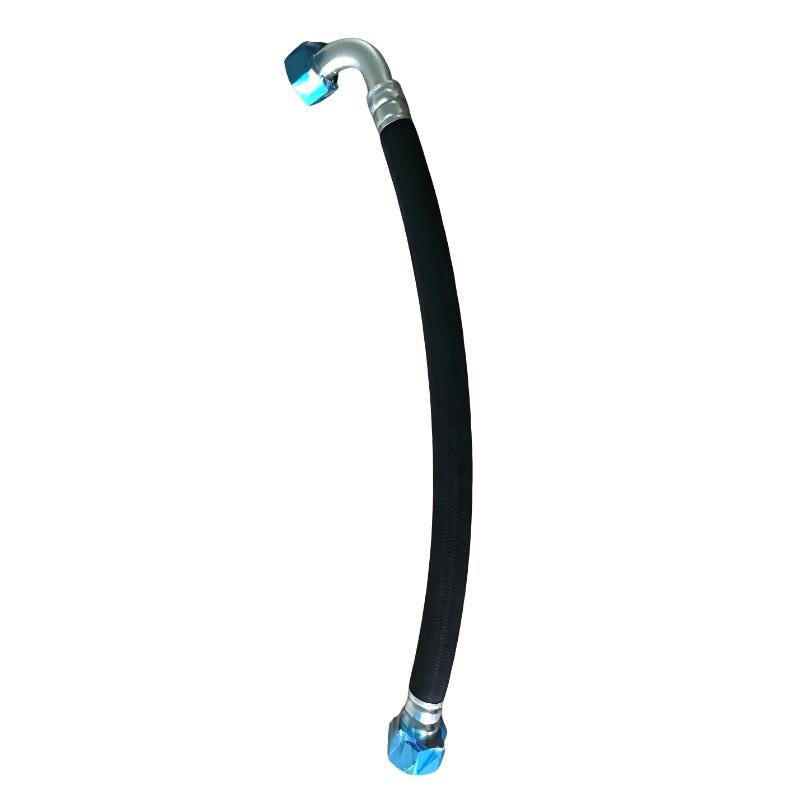

The Ingersoll Rand 47704460001 / 24260804013 Hydraulic Hose Assembly is a compact, application-specific hose intended for fluid routing within compatible Ingersoll Rand compressor equipment.
The directly documented 24260804013 reference is described as “Hose, Hydraulic .25 X 34 ORFS Straight X ORFS 90 Degree Elbow (PTFE)”. This identifies four important characteristics of the assembly: its 0.25-inch nominal size, 34-inch length, ORFS connection system, and PTFE hose construction.
PTFE construction can be advantageous in demanding fluid-service environments because the material offers strong chemical and temperature resistance compared with many conventional elastomeric hose constructions. Nevertheless, the complete assembly must be selected according to the original compressor application rather than by material or size alone.
The 90-degree fitting is equally important. Correct orientation allows the hose to follow the intended equipment routing without introducing excessive bending stress at the fitting. During replacement, technicians should therefore compare both fitting orientation and connection geometry with the original hose.
The two supplied references are treated as one product listing as requested. The public documentation directly verifies 24260804013, but does not independently establish the relationship between 47704460001 and 24260804013. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts list.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47704460001 |
| Associated Reference | 24260804013 |
| Product Type | Hydraulic Hose Assembly |
| Hose Construction | PTFE |
| Nominal Hose Size | 0.25 in |
| Hose Length | 34 in |
| Approx. Hose Length | 863.6 mm |
| Connection 1 | ORFS Straight |
| Connection 2 | ORFS 90° Elbow |
| Sealing System | ORFS / O-Ring Face Seal |
| Service Function | Pressurized Fluid Routing |
| Application | Ingersoll Rand Compressor Equipment |
| Complete Assembly Dimensions | 34-in hose-length specification; overall fitting envelope is configuration-specific |
| Weight | 5.05 listed by one supplier; unit is not clearly stated, so actual net weight should be verified before shipping. |
| Material | PTFE hose construction |
| Compatibility | Model-, serial-number and circuit-configuration dependent |
The 34-inch dimension refers to the documented hose length, not necessarily the complete end-to-end envelope including the fittings. The fitting geometry should be checked against the original assembly before installation.
Recommended Companion Models
| Model | Product Name |
|---|---|
| 24260804012 | Ingersoll Rand Hydraulic Hose, 0.25 × 41 in, ORFS Straight × ORFS Straight |
| 24260804011 | Ingersoll Rand Hydraulic Hose, 0.25 × 56 in, ORFS Configuration |
| 24260804006 | Ingersoll Rand Hydraulic Hose, 0.25 × 53 in, ORFS Straight × ORFS 90° Elbow, PTFE |
| 24260804002 | Ingersoll Rand 0.25-Inch ORFS Hose, 21-Inch Length |
These references belong to the same Ingersoll Rand small-bore hose family, but their lengths and/or end configurations differ. 24260804012 is documented as a 0.25 × 41-inch ORFS hose, while 24260804006 is a 0.25 × 53-inch PTFE hose with the same straight-to-90-degree configuration.
Frequently Selected Alternatives
| Model | Product Name |
|---|---|
| 24260804014 | Ingersoll Rand -4 / 0.25-Inch ORFS Hose, 22-Inch, Stainless-Braided PTFE |
| 24260804008 | Ingersoll Rand Hydraulic Hose, 0.25 × 38 in, ORFS |
| 24260804010 | Ingersoll Rand Hydraulic Hose, 0.25-Inch ORFS Configuration |
| 24260804009 | Ingersoll Rand Small-Bore Hydraulic Hose Assembly |
These are related small-bore Ingersoll Rand hose references rather than guaranteed direct replacements for 24260804013. The correct substitute must match the original hose length, PTFE construction where required, fitting orientation, sealing system, pressure/temperature requirements, and compressor-specific routing. The documented 24260804014, for example, uses a 0.25-inch ORFS configuration with stainless-braided/PTFE construction but has a different 22-inch length and straight-to-straight configuration.
