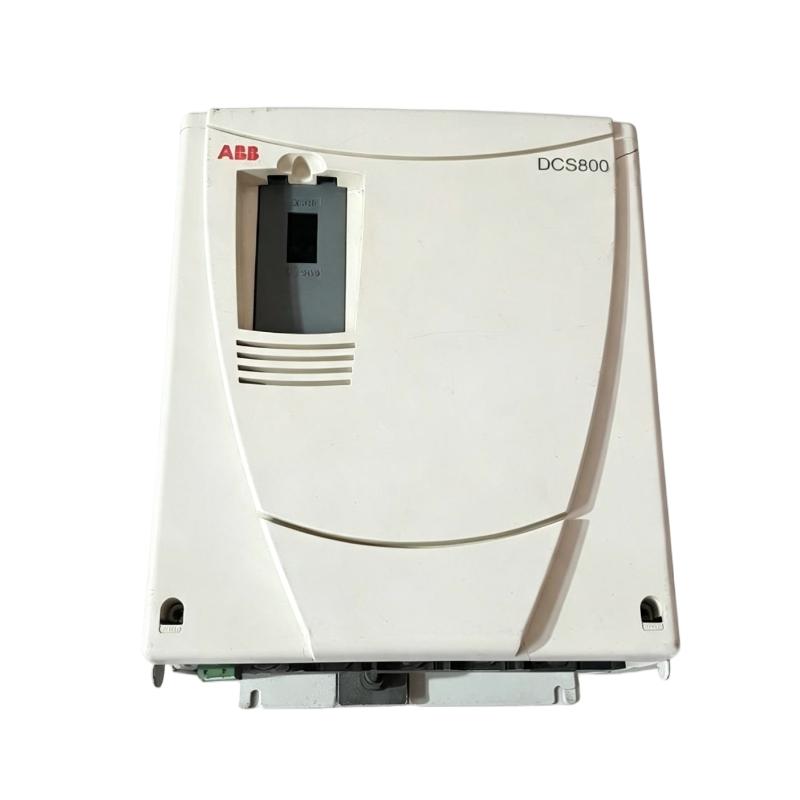

ABB DCS800-S02-0200-05 3AUA0000013766 DC Speed Controller
ABB DCS800-S02-0200-05 3AUA0000013766 DC Speed Controller
0.0
Points
Brand:ABB PLC Item No.:DCS800-S02-0200-05 Product Origin:Sweden (SE) Product Dimensions:370 × 270 × 270 mm Product Weight:21.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Introduction to ABB DCS800-S02-0200-05 3AUA0000013766 DC Speed Controller
The ABB DCS800-S02-0200-05 3AUA0000013766 DC Speed Controller is a robust industrial drive module developed for applications requiring dependable DC motor control and high operational accuracy. It combines ABB’s advanced drive technology with flexible configuration capabilities to support a wide range of industrial processes.
Designed for demanding environments, the controller provides stable motor regulation, efficient power management, and comprehensive diagnostic capabilities. Its engineering-focused design allows system integrators and maintenance teams to optimize motor performance while reducing downtime.
The DCS800 series has become a preferred solution for industries that continue to rely on DC motors due to their excellent torque characteristics and controllability. The ABB DCS800-S02-0200-05 provides a reliable platform for both standalone drive applications and integrated automation systems.
Technical Specifications of ABB DCS800-S02-0200-05 3AUA0000013766
Parameter
Specification
Manufacturer
ABB
Model Number
DCS800-S02-0200-05
Product Code
3AUA0000013766
Product Type
DC Speed Controller
Drive Series
ABB DCS800 Series
Application
Industrial DC Motor Control
Control Type
Speed / Torque / Current Control
Rated Current
200 A Class
Input Voltage Range
Three-Phase AC Supply
Communication Capability
Fieldbus Communication Options
Configuration Tool
ABB Drive Software Tools
Cooling Method
Air Cooling
Installation Type
Cabinet Installation
Dimensions
370 × 270 × 270 mm
Weight
21.32 kg (46.99 lb)
Recommended Related Models
Model
Product Type
Application
ABB DCS800-S02-0450-05
DC Speed Controller
High-current DC motor applications
ABB DCS800-S01-0900-04
DC Drive Module
Industrial motor control systems
ABB DCS800-S02-0520-05
DC Drive Controller
Heavy-duty industrial drives
ABB DCS800-A04-0520-05
Complete DC Drive System
Advanced DC automation solutions
Popular Related Models
Model
Product Type
ABB DCS800-S01-0025-04
DC Drive Module
ABB DCS800-S02-0035-05
DC Speed Controller
ABB DCS800-S02-0720-05
Industrial DC Drive Controller
ABB DCS800-S04-0900-05
High-Power DC Drive System
Applications in Industrial DC Drive Control Systems
The ABB DCS800-S02-0200-05 3AUA0000013766 DC Speed Controller is a high-performance industrial drive solution designed for precise speed regulation and reliable control of DC motors. As part of the ABB DCS800 series, this controller is engineered for demanding industrial applications requiring accurate torque management, stable motor operation, and flexible system integration.
This DC speed controller is widely used in industries such as metal processing, cranes, elevators, paper production, mining equipment, and industrial material handling systems. It provides advanced control functions for applications where consistent motor performance and dynamic response are essential.
The ABB DCS800-S02-0200-05 delivers efficient DC motor management by combining powerful control technology with ABB’s proven industrial drive architecture, making it suitable for both new installations and modernization projects.
Advantages and Industrial Performance Features
High-Precision DC Motor Control
The controller provides accurate speed and torque regulation, allowing motors to maintain stable performance under changing load conditions.
Advanced Drive Technology
The ABB DCS800 platform includes sophisticated control functions designed to improve motor efficiency, reduce mechanical stress, and enhance overall system reliability.
Flexible Industrial Integration
With multiple communication and configuration options, the controller can be integrated into existing automation systems for centralized monitoring and control.
Reliable Operation in Heavy-Duty Applications
Designed for industrial environments, the unit supports continuous operation in applications requiring high availability and consistent performance.
Simplified Maintenance and Commissioning
ABB engineering tools and diagnostic functions help technicians configure parameters, monitor drive status, and quickly identify operational issues.
Technical FAQs About ABB DCS800-S02-0200-05 3AUA0000013766
1. What type of motor is controlled by the ABB DCS800-S02-0200-05?
The controller is designed for controlling industrial DC motors, providing precise speed, torque, and current regulation.
2. What communication options are available for this DC speed controller?
The DCS800 series supports industrial communication solutions through optional fieldbus adapters, enabling integration with automation systems.
3. Can the ABB DCS800-S02-0200-05 operate in both speed and torque control modes?
Yes. The controller supports different control modes, including speed control and torque/current control depending on application requirements.
4. How is parameter configuration performed on the DCS800 controller?
Parameters can be configured using ABB commissioning tools and local control interfaces designed for drive setup and adjustment.
5. Does this controller provide motor protection functions?
Yes. The drive includes monitoring and protection features for conditions such as overcurrent, overheating, and abnormal operation.
6. Can the DCS800-S02-0200-05 be integrated into PLC-based automation systems?
Yes. Through supported communication interfaces, the controller can exchange control commands and operational data with PLC systems.
7. What applications commonly use ABB DCS800 controllers?
Typical applications include rolling mills, cranes, conveyors, winches, paper machines, and other heavy industrial drive systems.
8. Can the controller support regenerative braking applications?
Yes. The DCS800 family supports configurations suitable for regenerative operation when properly installed with compatible system components.
9. How can drive faults be diagnosed?
Fault information can be accessed through diagnostic functions, allowing engineers to analyze alarms, operating conditions, and system status.
10. Is the ABB DCS800-S02-0200-05 suitable for industrial modernization projects?
Yes. It is commonly used for upgrading existing DC drive systems while maintaining compatibility with industrial motor applications.
