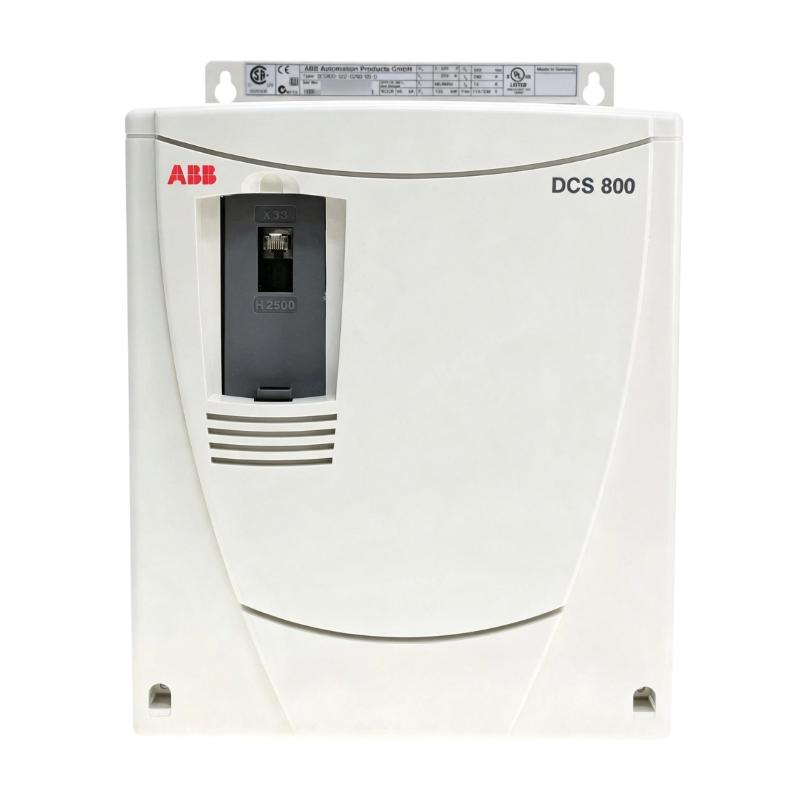

ABB DCS800-S02-0260-05 3AUA0000013767 DC Speed Controller
ABB DCS800-S02-0260-05 3AUA0000013767 DC Speed Controller
0.0
Points
Brand:ABB PLC Item No.:DCS800-S02-0260-05 Product Origin:Sweden (SE) Product Dimensions:370 × 270 × 270 mm Product Weight:21.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Introduction to ABB DCS800-S02-0260-05 3AUA0000013767 DC Speed Controller
The ABB DCS800-S02-0260-05 3AUA0000013767 DC Speed Controller is a high-performance industrial drive module designed to provide accurate and dependable control of DC motors. Developed for applications requiring excellent speed stability and dynamic response, this controller combines ABB’s expertise in industrial drives with flexible configuration options.
The DCS800 platform is engineered for industries that continue to rely on DC motor technology due to its strong torque characteristics and precise controllability. This model provides efficient motor management, reliable operation, and comprehensive monitoring functions to support critical production processes.
With its robust industrial design and advanced control capabilities, the ABB DCS800-S02-0260-05 is a trusted choice for automation engineers seeking a dependable DC drive solution for demanding environments.
Technical Specifications of ABB DCS800-S02-0260-05 3AUA0000013767
Parameter
Specification
Manufacturer
ABB
Model Number
DCS800-S02-0260-05
Product Code
3AUA0000013767
Product Type
DC Speed Controller
Drive Series
ABB DCS800 Series
Application
Industrial DC Motor Control
Rated Current
260 A Class
Control Mode
Speed Control / Torque Control / Current Control
Input Supply
Three-Phase AC Supply
Communication Capability
Optional Fieldbus Modules
Cooling Method
Air Cooling
Configuration Tool
ABB Drive Commissioning Software
Installation Type
Cabinet Mount Installation
Operating Environment
Industrial Applications
Dimensions
370 × 270 × 270 mm
Weight
21.32 kg (46.96 lb)
Recommended Related Models
Model
Product Type
Application
ABB DCS800-S02-0200-05
DC Speed Controller
Medium-power DC motor control
ABB DCS800-S02-0320-05
DC Drive Controller
Industrial drive applications
ABB DCS800-S01-0260-04
DC Drive Module
Motor control modernization
ABB DCS800-A04-0260-05
Complete DC Drive System
Integrated automation solutions
Popular Related Models
Model
Product Type
ABB DCS800-S02-0035-05
DC Speed Controller
ABB DCS800-S02-0520-05
Industrial DC Drive Controller
ABB DCS800-S02-0720-05
High-Current DC Speed Controller
ABB DCS800-S04-0900-05
High-Power DC Drive System
Applications in Heavy-Duty DC Motor Control Systems
The ABB DCS800-S02-0260-05 3AUA0000013767 DC Speed Controller is an advanced industrial drive unit designed for accurate control of high-performance DC motors in demanding production environments. As a member of the ABB DCS800 series, this controller provides reliable speed regulation, torque management, and current control for applications requiring precise motor operation.
This DC speed controller is commonly applied in industries including metal processing, cranes, marine equipment, paper manufacturing, mining systems, and industrial production machinery. It provides stable motor control performance for systems where smooth acceleration, accurate speed adjustment, and continuous operation are essential.
The ABB DCS800-S02-0260-05 offers a practical solution for both new industrial installations and modernization projects, helping users improve drive efficiency while maintaining compatibility with existing DC motor systems.
Advantages and Engineering Advantages
Advanced DC Motor Regulation Technology
The controller delivers precise speed and torque control, allowing DC motors to operate efficiently under variable load conditions and demanding production cycles.
High Reliability for Industrial Applications
Built with ABB’s proven drive technology, the DCS800 series provides dependable performance for continuous industrial operation where equipment availability is critical.
Flexible System Integration Capability
The controller supports integration with automation platforms through compatible communication solutions, enabling centralized monitoring and coordinated control.
Optimized Performance Management
Advanced control functions help improve motor response, reduce mechanical impact during operation, and maintain consistent production quality.
Efficient Commissioning and Maintenance
ABB configuration tools and diagnostic functions simplify parameter setup, troubleshooting, and system optimization for engineers and maintenance teams.
Technical FAQs About ABB DCS800-S02-0260-05 3AUA0000013767
1. What type of motor applications is the ABB DCS800-S02-0260-05 designed for?
The controller is designed for industrial DC motor applications requiring accurate speed, torque, and current regulation.
2. Can the DCS800-S02-0260-05 be used in closed-loop speed control systems?
Yes. The controller supports feedback-based control systems for improved speed accuracy and dynamic performance.
3. How is the drive configured during commissioning?
Engineers can configure motor parameters, control settings, and application functions through ABB commissioning software and control interfaces.
4. Does this controller support fieldbus communication?
Yes. The DCS800 platform supports optional fieldbus communication modules for connection with industrial control systems.
5. What protection functions are included in this DC speed controller?
The controller provides monitoring and protection functions for conditions such as overcurrent, overload, temperature issues, and drive faults.
6. Can the ABB DCS800-S02-0260-05 work with PLC control systems?
Yes. It can exchange control commands and operational information with PLC-based automation systems through supported communication methods.
7. What industries typically use ABB DCS800 controllers?
Common applications include steel processing, cranes, conveyors, elevators, printing machinery, and production equipment.
8. Does the controller support torque control operation?
Yes. Torque/current control modes are available for applications requiring precise force regulation.
9. How can drive faults be analyzed during operation?
Fault diagnostics, status monitoring, and parameter information help engineers identify operating issues and perform maintenance.
10. Is the ABB DCS800-S02-0260-05 suitable for replacing older DC drive systems?
Yes. The controller is frequently used in industrial upgrade projects to replace aging DC drive equipment while maintaining existing motor infrastructure.
