Introduction

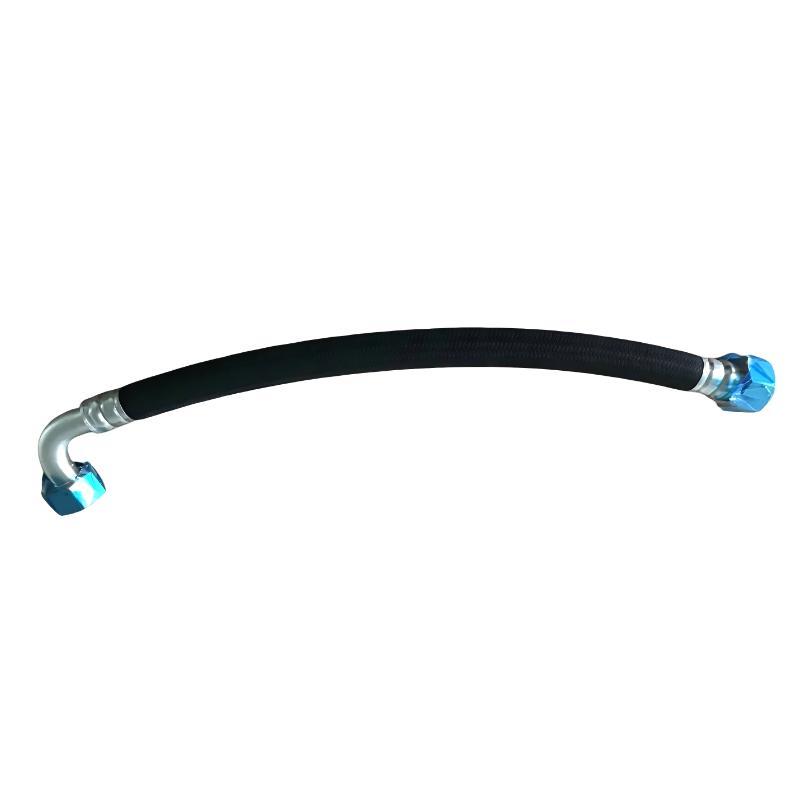

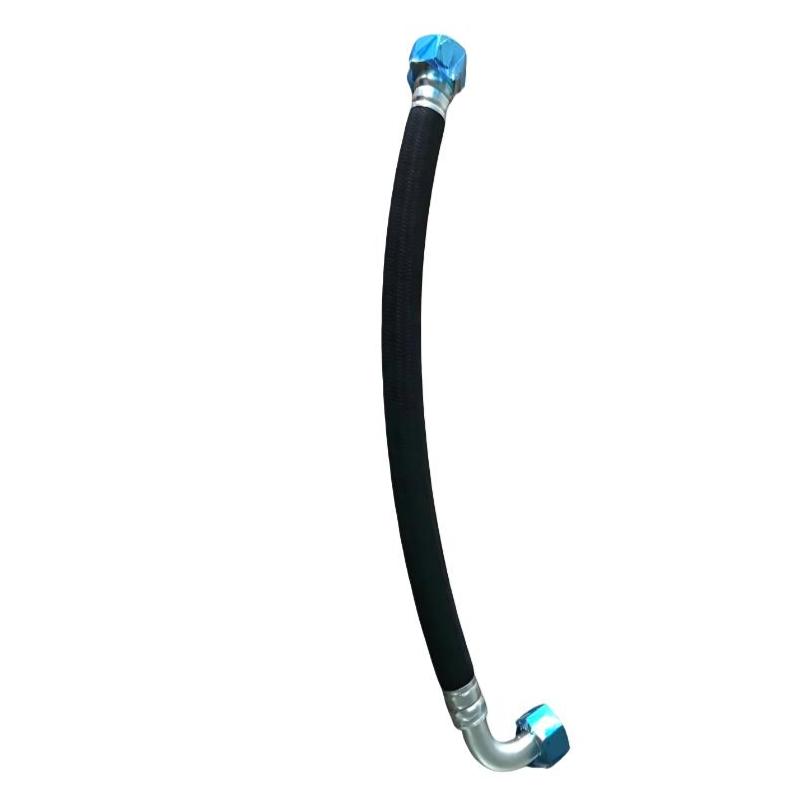

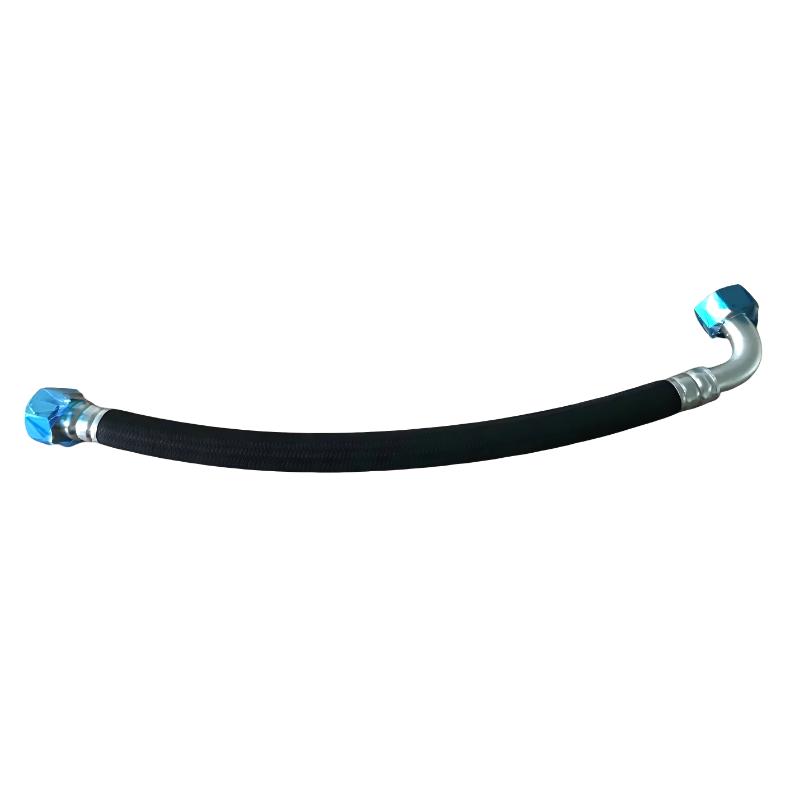

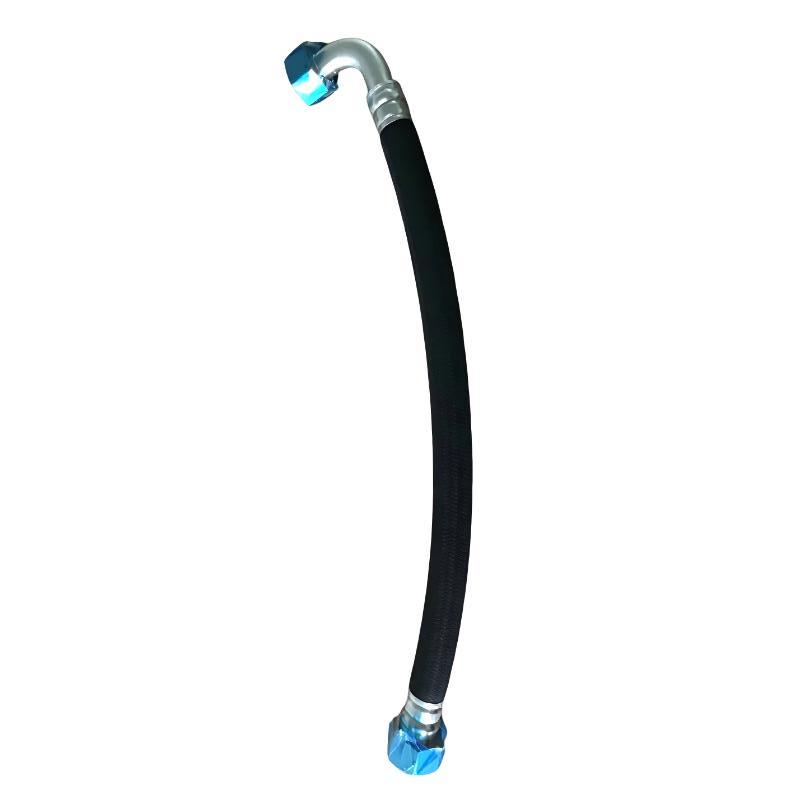

The Ingersoll Rand 47704461001 / 24260853008 Hydraulic Hose Assembly is a purpose-specific flexible hose used within compatible Ingersoll Rand compressor fluid circuits.
The directly documented 24260853008 description identifies it as “Hose, Hydraulic 1.00 × 30 ORFS Straight × ORFS 90 Degree Elbow.” This establishes the principal configuration: a 1-inch hose, 30-inch nominal length, straight ORFS connection at one end, and 90-degree ORFS elbow at the other.
The application is supported by the RS75i parts documentation, where 24260853008 appears in the cooler oil tubing assembly. It is installed alongside 24266223, a minimum-pressure valve, flange clamps, O-rings, and rigid tubing, indicating its role within a defined oil-circuit assembly.
The 90-degree fitting is an important part of the assembly geometry. It determines the direction in which the hose leaves the connection and helps maintain clearance around adjacent compressor components. Using a hose with a different fitting orientation can introduce twisting or excessive bending.
The 30-inch length is equally important. A hose that is too short can place stress on fittings, while excessive slack can create contact with nearby components. Replacement should therefore follow the original routing path as closely as practical.
For maintenance, technicians should inspect the hose body for abrasion, cracking, swelling, deformation, and leakage. The ORFS sealing surfaces and O-rings should also be inspected whenever the connection is opened.
The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24260853008, while the relationship between 47704461001 and 24260853008 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts documentation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47704461001 |
| Associated Reference | 24260853008 |
| Product Type | Hydraulic Hose Assembly |
| Hose Description | HYD 1.00 × 30 ORFS Straight × ORFS 90° Elbow |
| Nominal Hose Size | 1.00 in |
| Hose Length | 30 in |
| Approx. Hose Length | 762 mm |
| Connection 1 | ORFS Straight |
| Connection 2 | ORFS 90° Elbow |
| Sealing System | ORFS / O-Ring Face Seal |
| Service Function | Cooler Oil/Fluid Routing |
| Documented Assembly | Cooler Oil Tubing |
| Documented Equipment | Ingersoll Rand RS75i parts documentation |
| Overall Product Dimensions | 30-inch hose-length specification; complete fitting envelope is configuration-specific |
| Weight | Not reliably verified from available technical documentation |
| Package Dimensions | Not reliably verified; shipping dimensions should not be confused with actual product dimensions |
| Hose-Body Material | Exact OEM construction not reliably verified from available documentation |
| Compatibility | Model-, serial-number, and circuit-configuration dependent |
The 30-inch dimension is the documented hose-length specification. The complete installed envelope depends on the fitting geometry and routing arrangement, so the original assembly should be used as the dimensional reference during replacement.
Recommended Companion Models
| Model | Product Name |
|---|---|
| 24266223 | Ingersoll Rand Hydraulic Hose for Cooler Oil Tubing |
| 24260853010 | Ingersoll Rand Hose, Tee to Connector |
| 24266207 | Ingersoll Rand Hose, Elbow to Valve |
| 47581507001 | Ingersoll Rand Hose Assembly |
These components are documented within related Ingersoll Rand compressor fluid-routing assemblies. In particular, 24266223 and 24260853008 are both listed in the RS75i cooler oil tubing assembly, while 24260853010 and 47581507001 appear in the related separator-tank tubing assembly.
Frequently Selected Alternatives
| Model | Product Name |
|---|---|
| 24260853012 | Ingersoll Rand Hydraulic Hose, 1 × 49 ORFS |
| 24260879022 | Ingersoll Rand Hydraulic Hose, 1.5 × 30 ORFS |
| 24260879040 | Ingersoll Rand Hydraulic Hose, 1.5 × 30 ORFS |
| 24279176 | Ingersoll Rand Hydraulic Hose, 0.75 × 32 JIC Straight × JIC 90° Elbow |
