Introduction

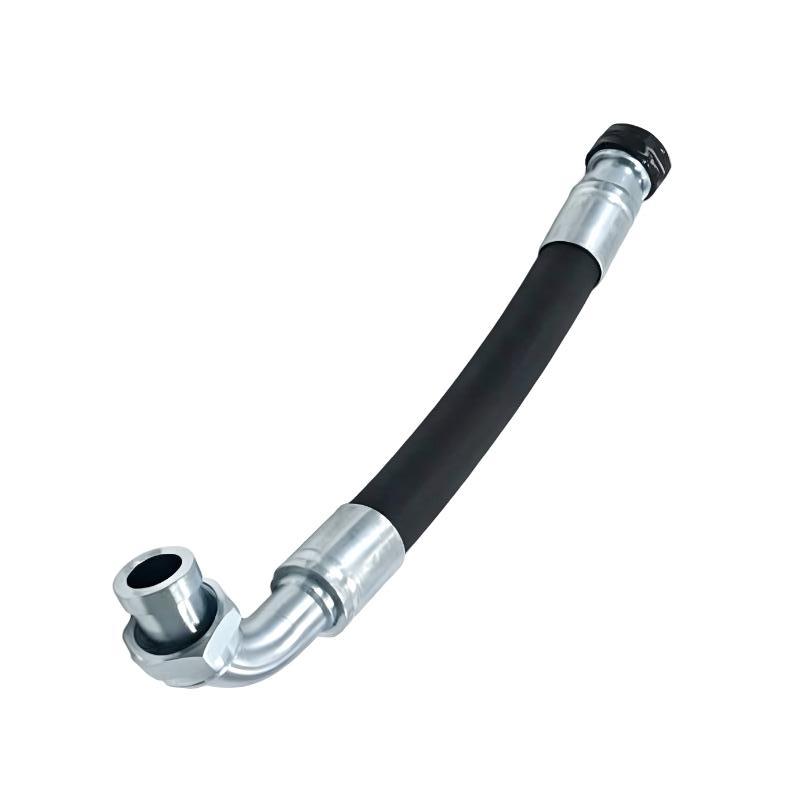

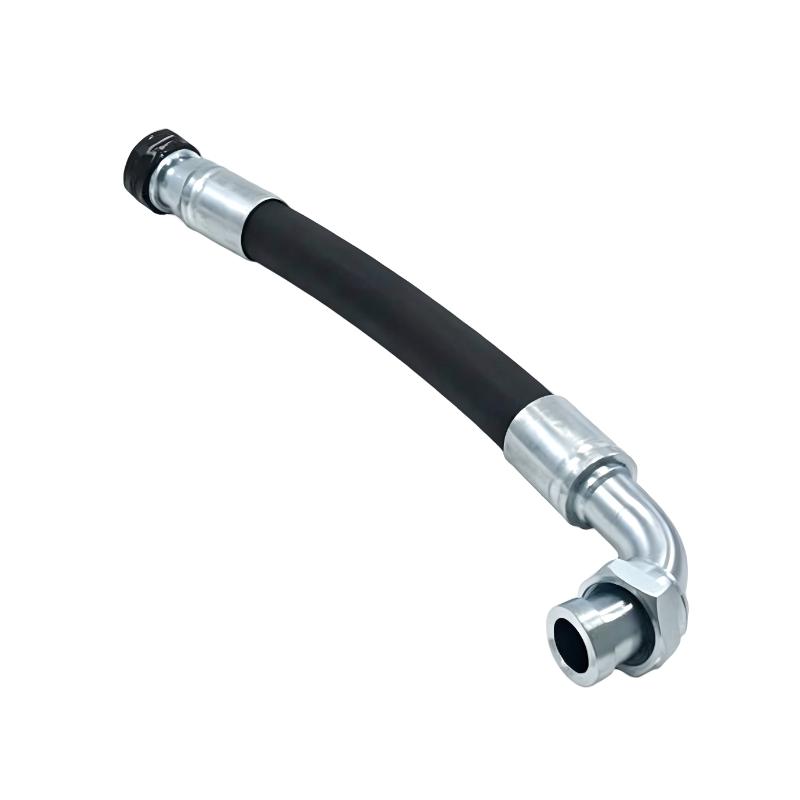

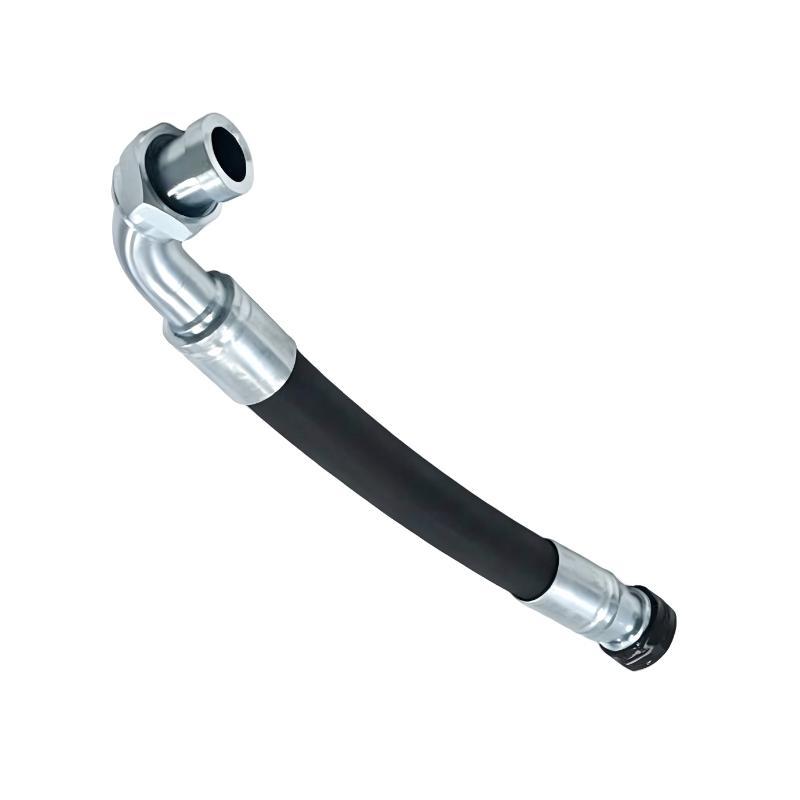

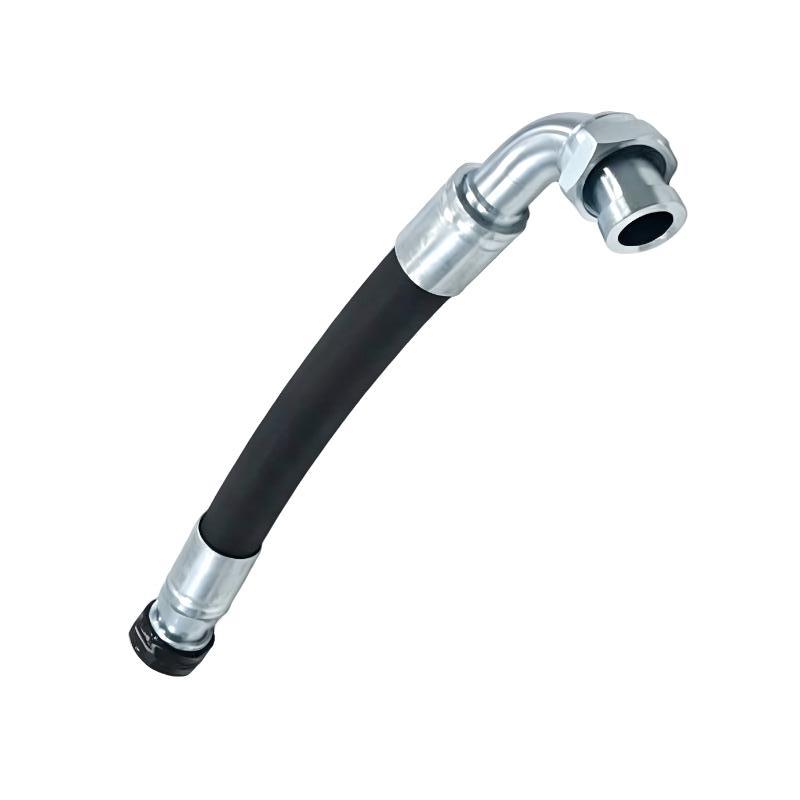

The Ingersoll Rand 47704461001 / 24260804013 Hydraulic Hose Assembly is a compact OEM-style hose designed for flexible fluid routing in compatible Ingersoll Rand compressor equipment.
The directly documented 24260804013 specification is “HOSE, HYD .25 X 34 ORFS STR X ORFS 90 ELB (PTFE).” This identifies the principal configuration: a 0.25-inch hose, 34-inch length, ORFS straight fitting at one end, ORFS 90-degree elbow at the other, and PTFE hose construction.
The combination of a small bore and 90-degree fitting makes installation geometry particularly important. The elbow helps establish the intended direction of the hose, while the 34-inch length determines how the assembly reaches between its connection points.
PTFE construction is also a meaningful specification. It should not be replaced solely on the basis of matching hose diameter and length; the replacement assembly should be suitable for the same service conditions and retain the required fitting and sealing configuration.
During maintenance, technicians should inspect the hose for abrasion, deformation, cracking, leakage, or damage near the fittings. ORFS connections should also be checked for clean sealing faces and properly seated O-rings.
The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24260804013, while the relationship between 47704461001 and 24260804013 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts documentation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47704461001 |
| Associated Reference | 24260804013 |
| Product Type | Hydraulic Hose Assembly |
| Hose Description | HYD .25 × 34 ORFS Straight × ORFS 90° Elbow |
| Nominal Hose Size | 0.25 in |
| Hose Length | 34 in |
| Approx. Hose Length | 863.6 mm |
| Connection 1 | ORFS Straight |
| Connection 2 | ORFS 90° Elbow |
| Sealing System | ORFS / O-Ring Face Seal |
| Hose Material | PTFE |
| Service Function | Flexible Fluid Routing |
| Overall Product Dimensions | 34-inch hose-length specification; complete fitting envelope is configuration-specific |
| Net Weight | Not reliably verified from available technical documentation |
| Package Dimensions | Not reliably verified from available technical documentation |
| Compatibility | Model-, serial-number, and circuit-configuration dependent |
The 34-inch dimension is the documented hose-length specification. The complete installed envelope depends on the fittings and routing arrangement, so the original assembly should be used as the dimensional reference when replacing the hose.
Recommended Companion Models
| Model | Product Name |
|---|---|
| 24260804002 | Ingersoll Rand Hose, 0.25-Inch ORFS Straight × ORFS Straight |
| 24260804006 | Ingersoll Rand Hydraulic Hose, 0.25 × 53 ORFS Straight × ORFS 90° Elbow, PTFE |
| 24260804011 | Ingersoll Rand Hydraulic Hose, 0.25 × 56 ORFS Straight × ORFS 90° Elbow |
| 24260804012 | Ingersoll Rand Hydraulic Hose, 0.25 × 41 ORFS Straight × ORFS Straight |
These are closely related Ingersoll Rand hose references within the same 242608040 series. Their documented lengths and fitting configurations differ, so they should be matched to the specific equipment routing rather than assumed to be interchangeable.
