Name: Ingersoll Rand 47704536001 / 24260853010 Hydraulic Hose Assembly
Brand: Ingersoll Rand
SKU: 18239
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Ingersoll Rand 47704536001 / 24260853010 Hydraulic Hose Assembly is a purpose-specific flexible hose for compatible Ingersoll Rand compressor equipment.

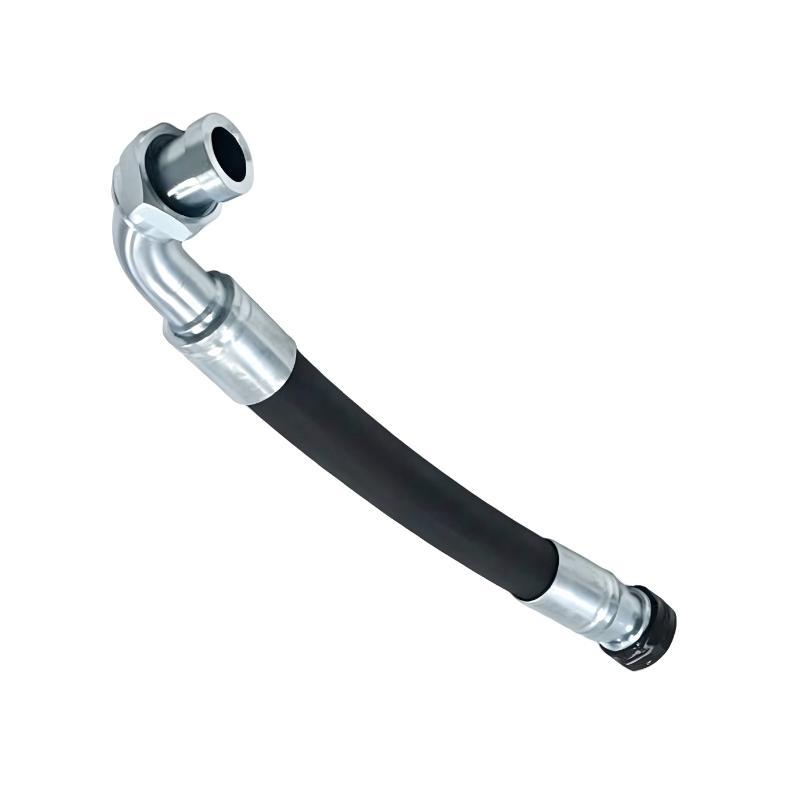

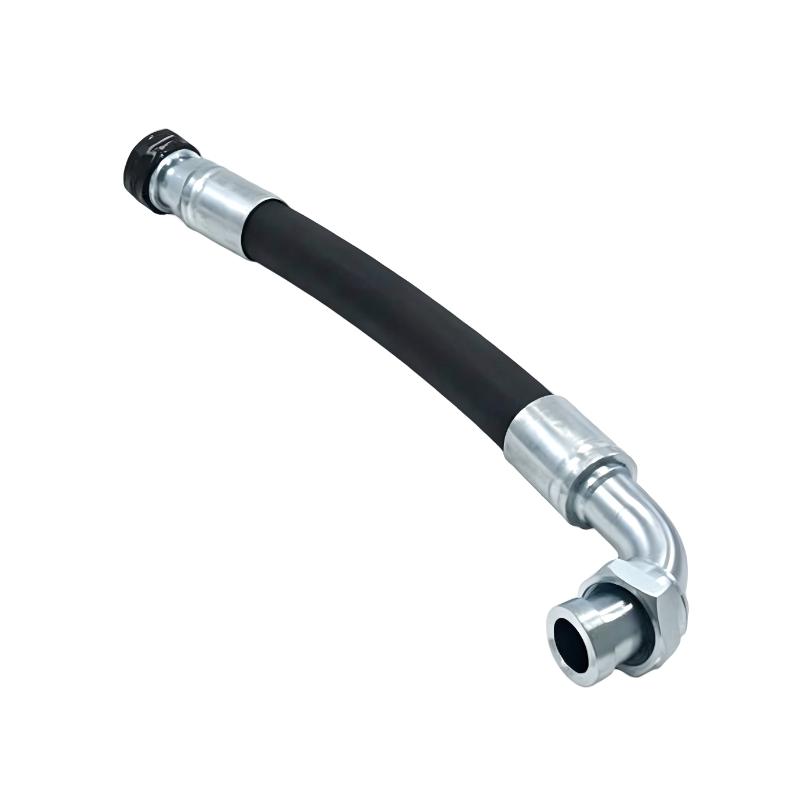

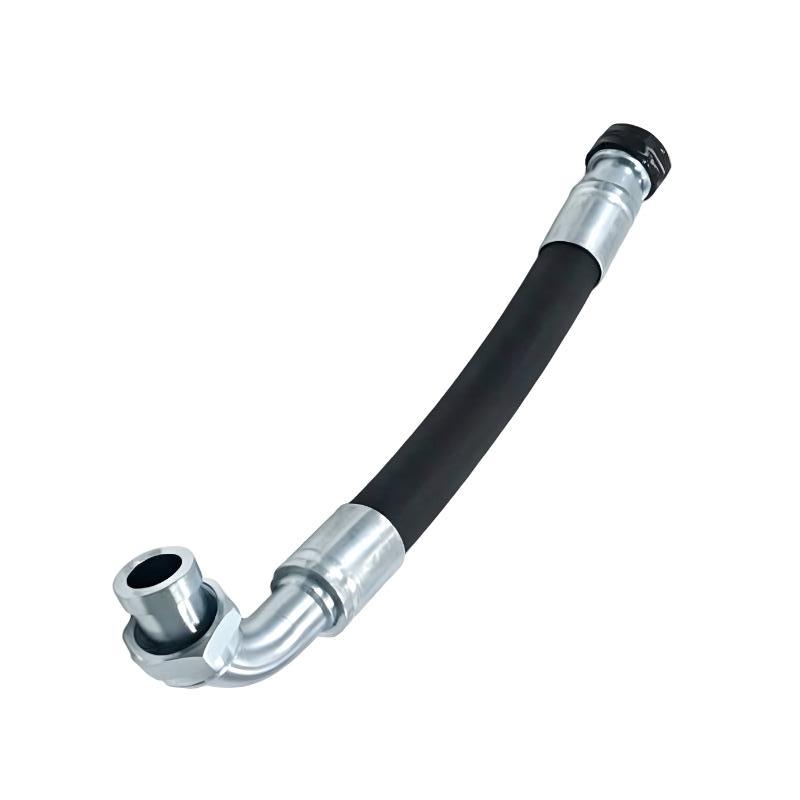

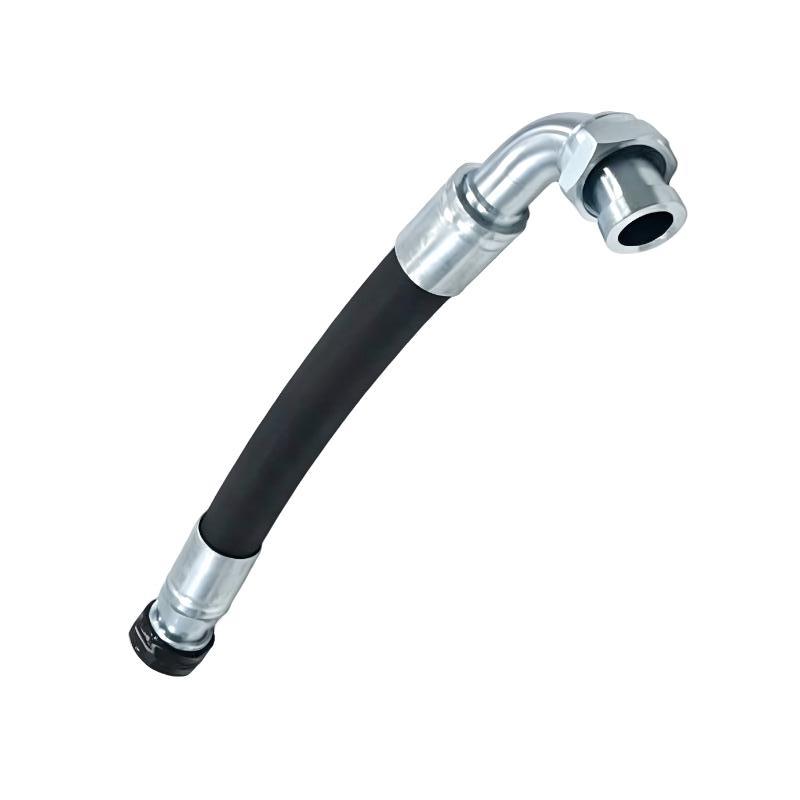

The directly documented specification for 24260853010 is “HOSE, HYD 1.0 X 27 ORFS STR X ORFS 90 ELB.” This identifies the assembly as a 1-inch hydraulic hose with a 27-inch nominal length, an ORFS straight fitting at one end, and an ORFS 90-degree elbow at the other.

The hose's fitting geometry is particularly important during installation. The 90-degree elbow establishes the intended connection direction and helps prevent the hose from being forced into an unsuitable bend immediately behind the fitting.

The 27-inch length is also an important functional dimension. A replacement that is too short can place tension on the fittings, while an excessively long assembly can create unwanted loops or interference with nearby components. The original routing should therefore be retained as closely as practical.

Parts documentation identifies 24260853010 as a compressor hose, while an Ingersoll Rand RS75i parts manual lists the same reference as “HOSE, TEE TO CONNECTOR” within the separator-tank tubing assembly. This supports its role as a flexible connection between defined components rather than as a generic-purpose hose.

An additional parts record associates 24260853010 with RM220i equipment and identifies it as a 1.0 × 27 ORFS straight × ORFS 90° elbow hose. This reinforces the need to verify model and configuration before installation.

For preventive maintenance, inspect the hose body for abrasion, cracking, deformation, heat damage, and leakage. The ORFS fittings and sealing surfaces should also be examined whenever the connection is opened.

The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24260853010, while the relationship between 47704536001 and 24260853010 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts documentation.

Technical Specifications

Specification	Details
Brand	Ingersoll Rand
Primary Part Number	47704536001
Associated Reference	24260853010
Product Type	Hydraulic Hose Assembly
Hose Description	HYD 1.0 × 27 ORFS Straight × ORFS 90° Elbow
Nominal Hose Size	1.00 in
Hose Length	27 in
Approx. Hose Length	685.8 mm
Connection 1	ORFS Straight
Connection 2	ORFS 90° Elbow
Sealing System	ORFS / O-Ring Face Seal
Service Function	Flexible Compressor Fluid Routing
Documented Application	Ingersoll Rand Compressed-Air Equipment
Documented Assembly Role	Tee-to-connector hose in applicable tubing assembly
Overall Product Dimensions	27-inch hose-length specification; complete fitting envelope is configuration-specific
Net Weight	1.28 kg is reported for one documented 24260853010 shipment; this should be treated as reference logistics data rather than a universally confirmed net product weight.
Package Dimensions	Not reliably verified from available technical documentation
Hose-Body Material	Rubber/reinforced construction is indicated in trade/shipping documentation; exact OEM compound specification is not reliably verified.
Pressure Rating	Not reliably verified from available technical documentation
Temperature Rating	Not reliably verified from available technical documentation
Compatibility	Model-, serial-number, and circuit-configuration dependent

Recommended Companion Models

Model	Product Name
24260853008	Ingersoll Rand Hydraulic Hose, 1.00 × 30 ORFS Straight × ORFS 90° Elbow
24260853012	Ingersoll Rand Hydraulic Hose, 1.00 × 49 ORFS Straight × ORFS 90° Elbow
24260853015	Ingersoll Rand Hydraulic Tube, 1.00 × 53 ORFS 90° Elbow × ORFS 90° Elbow
47581507001	Ingersoll Rand Hose Assembly for Compressor Tubing

24260853008, 24260853012, and 24260853015 belong to the same 242608-series compressor fluid-routing family, with their documented dimensions and connection arrangements differing from 24260853010. 47581507001 is also listed in the same separator-tank tubing documentation as 24260853010.

Frequently Selected Alternatives

Model	Product Name
24260804006	Ingersoll Rand Hydraulic Hose, 0.25 × 53 ORFS Straight × ORFS 90° Elbow, PTFE
24260804011	Ingersoll Rand Hydraulic Hose, 0.25 × 56 ORFS Straight × ORFS 90° Elbow
23416704005	Ingersoll Rand Hydraulic Hose, 1.25 × 40 ORFS Straight × ORFS 90° Elbow
24260861004	Ingersoll Rand Hydraulic Hose, 1.25 × 56 ORFS Straight × ORFS 90° Elbow

Where It Excels in Industrial Use

Compressor Fluid Routing: The supplied 47704536001 / 24260853010 references are treated as one product listing. Part 24260853010 is documented as an Ingersoll Rand hydraulic hose with a 1.00-inch nominal size and 27-inch length, using an ORFS straight connection and ORFS 90° elbow.
Rotary Screw Compressor Systems: 24260853010 is specifically listed for Ingersoll Rand compressed-air equipment. Parts documentation also identifies it as a hose used within compressor tubing assemblies.
Flexible Connection Between Fixed Components: The hose allows relative movement and vibration between connected components while maintaining the designed fluid-routing path.
Maintenance and Replacement: The defined 1-inch size, 27-inch length, and ORFS fitting geometry make the assembly suitable for replacement when the compressor configuration and original hose arrangement have been verified.

Key Strengths at a Glance

Genuine Ingersoll Rand Reference: 24260853010 is identified by an industrial parts supplier as a genuine/OEM Ingersoll Rand hose.
1-Inch Hose Size: The documented specification is 1.0 inch.
27-Inch Hose Length: The listed hose length is 27 inches, equivalent to approximately 685.8 mm.
ORFS Straight × 90° Elbow: The hose uses an ORFS straight × ORFS 90° elbow configuration, giving the assembly a defined installation orientation.
Application-Specific Design: Parts records associate 24260853010 with Ingersoll Rand compressor equipment, including RM220i-related documentation, so model and configuration verification remains important.

Technical FAQs

1. What is Ingersoll Rand 47704536001 / 24260853010?

The supplied references are treated as one product listing. 24260853010 is an Ingersoll Rand hydraulic hose specified as 1.0 × 27 inches, with ORFS straight and ORFS 90° elbow connections.

2. What is the primary function of 24260853010?

Its primary function is flexible fluid routing within a compatible Ingersoll Rand compressor circuit.

3. What is the nominal hose size?

The documented nominal hose size is 1.00 inch.

4. What is the specified hose length?

The documented length is 27 inches, or approximately 685.8 mm.

5. What fitting configuration does the hose use?

The documented configuration is ORFS straight × ORFS 90° elbow.

6. What does ORFS mean?

ORFS means O-Ring Face Seal. The sealing interface uses an O-ring at the fitting face.

7. Why is the 90-degree elbow important?

The elbow establishes the intended direction of the hose connection and helps maintain clearance around adjacent compressor components.

8. Is 24260853010 interchangeable with another 1-inch hose?

Not automatically. Hose diameter alone is insufficient; length, fitting geometry, sealing system, hose construction, and circuit location must all match.

9. What should be inspected before replacing the hose?

Inspect the hose for abrasion, cracking, swelling, deformation, oil or fluid leakage, and damage around the fittings. The mating ORFS sealing surfaces should also be checked.

10. What should be checked after installation?

Confirm correct fitting engagement, hose orientation, routing clearance, bend condition, and support, then inspect the circuit for leakage during controlled operation.
